Behind the Scenes: How We Test Hightop Mini Excavators

Every mini excavator for sale leaves our facility only after survival testing. We don’t just wipe down the paint and load it onto a truck. To ensure a 1-ton or 2-ton compact digger can handle raw job-site abuse without leaking hydraulic fluid or dropping power, every unit must clear a strict two-stage verification process: the Workshop Pressure Test and the Real-World Field Simulation.

Here is exactly what happens behind our factory doors before your machine gets wrapped for shipping.

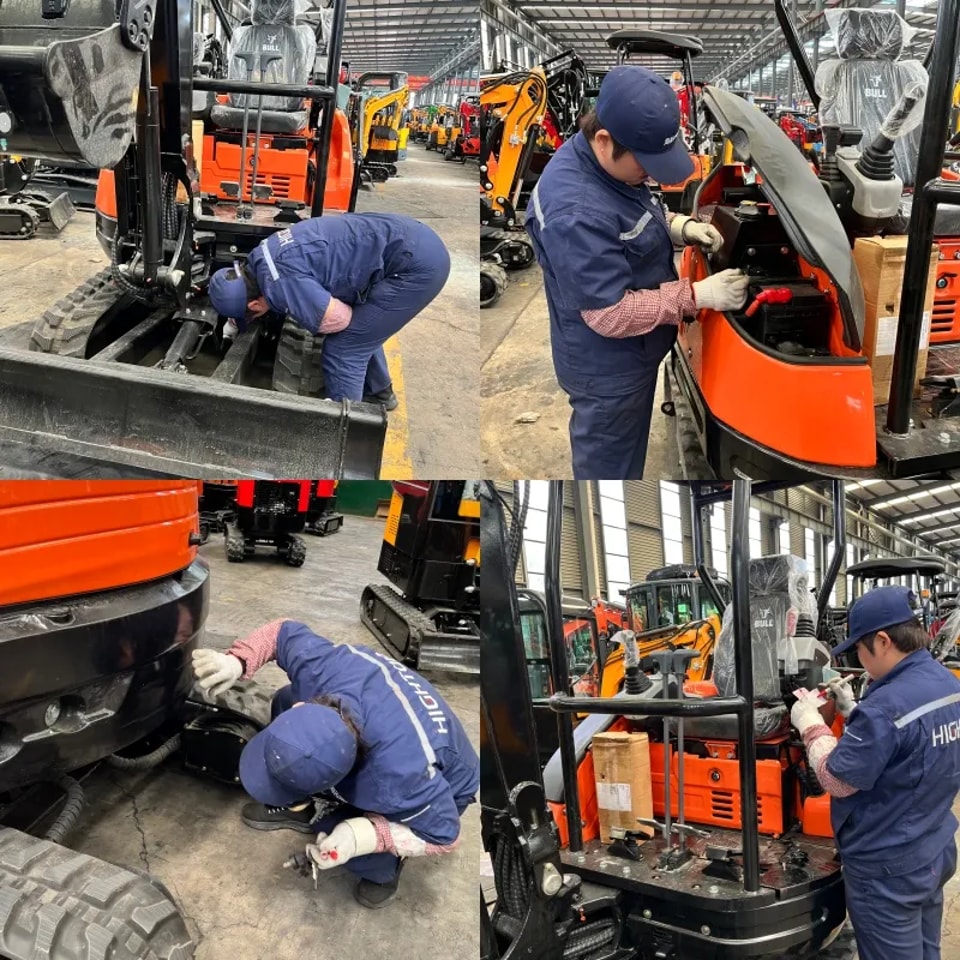

Phase 1: Workshop Pressure Test (4-Point Mechanical Lockdown)

Before the keys are turned, our quality control technicians put the excavator through a rigorous static and structural check directly on the workshop floor. We focus on four major potential failure points:

Hydraulic Pressure Stress Test: Small diggers rely entirely on fluid pressure to rip out tree roots. We hook up digital pressure gauges to run the system at maximum relief pressure (up to 18.2Mpa) for 30 minutes straight. If a single hose coupling shows a drop of fluid, the unit is rejected.
High-Torque Fastener Validation: Every single structural bolt on the slewing ring, track rollers, and boom cylinder is checked with a calibrated digital torque wrench – no loose parts, no factory vibrations.
Powertrain & Cold Start Analysis: We run cold-start diagnostics on our standard Koop 192F diesel engines and premium Briggs & Stratton EPA-compliant engines to check for irregular idle rhythms or excessive exhaust emissions.
Cabin & Control Calibration: Technicians verify that the hydraulic pilot control joysticks are perfectly responsive, with zero dead zones – so you get precision control in tight residential backyards.

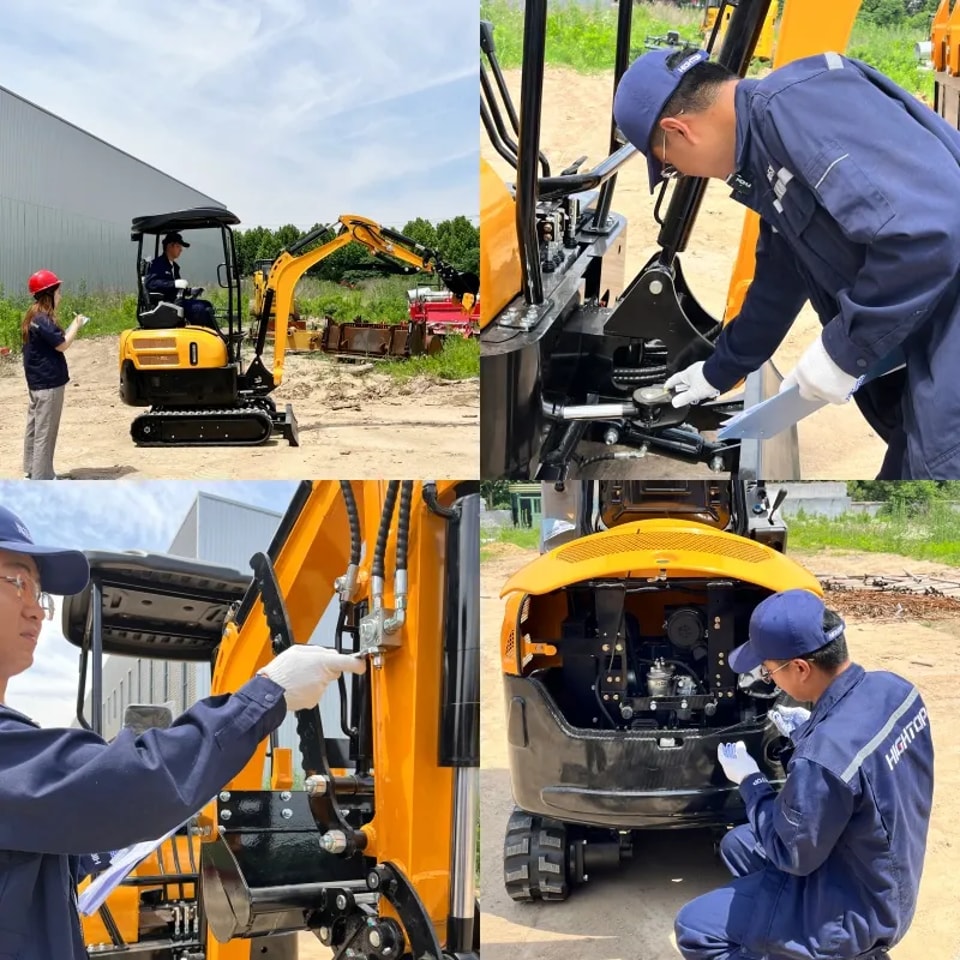

Phase 2: Real-World Field Simulation (Extreme Ground Testing)

Passing workshop specs is only half the battle. Next, our test drivers take the machine out to our rugged outdoor testing grounds for dynamic field endurance training to prove it stands out among generic tractors and equipment for sale:

Continuous Swing & Dump Cycles: For our agile models like the Hightop HT10B, drivers execute uninterrupted 360-degree cabin rotations while independently swinging the boom 60 degrees left and right next to a mock concrete wall. This proves the boom swing casting won't crack under side-load stresses.
Deep Trenching Leverage Test: The machine is driven directly into packed clay and rock to perform deep-trenching cycles down to its maximum 1650mm digging depth limit. This ensures the standard 100kg rear counterweight maintains a perfect center of gravity – no tipping when tearing heavy roots.
Thermal Heat Management Run: We run the excavator under full operational loads until the hydraulic oil tank stabilizes. Our enlarged 21L oil tanks must maintain steady operational temperatures even after hours of continuous digging – so your machine won't experience thermal power loss on a hot summer project.

📊 Factory Testing Standards Checklist

Quality Inspection Gate	Factory Acceptance Standard	Purpose on Job Site
Hydraulic System Stress	Zero drop in 18.2Mpa pressure over 30 mins	Prevents mid-work oil leaks & pressure blowouts
Engine Emission & Idle	Full Tier 4 Final / Euro Stage V compliance	Ensures legal operation in US and European markets
Boom Swing Durability	Full 60° left/right independent articulation	Allows smooth digging flush against house foundations
Counterweight Stability	Solid 100kg integrated iron ballast lock	Shifts weight back to prevent tipping under heavy load
Undercarriage Retraction	Smooth 830mm to 1000mm hydraulic travel	Guarantees the digger can squeeze through 85cm gates

🙋 FAQ: Common Questions About Our Inspection Process

Q: Why do you test the boom swing independently from the track chassis?
A: When contractors dig trenches next to fences, they cannot turn the tracks without hitting obstacles. Testing our 60-degree independent boom swing ensures you can dig a straight line perfectly flush against a wall while dumping dirt sideways safely.
Q: How does your factory verify that a small 1-ton excavator won't leak under high pressure?
A: We use advanced Germany Continental hydraulic hoses on our key pressure lines. During our workshop test, we force the hydraulic pumps to run at peak capacity for 30 minutes, checking every connection with digital gauges to ensure 100% airtight sealing.
Q: What happens if an excavator fails any part of the outdoor field test?
A: It is immediately sent back to the teardown bay. The machine is stripped, the faulty component is replaced, and the entire inside and outside test protocol restarts from scratch. No machine leaves with an unresolved fault.

📞 Ready to See the Difference?

If you're comparing compact diggers and want to know what you're actually paying for – not just the spec sheet, but the testing behind it – we're happy to show you our process. Contact us for a factory tour or a direct wholesale quote.
