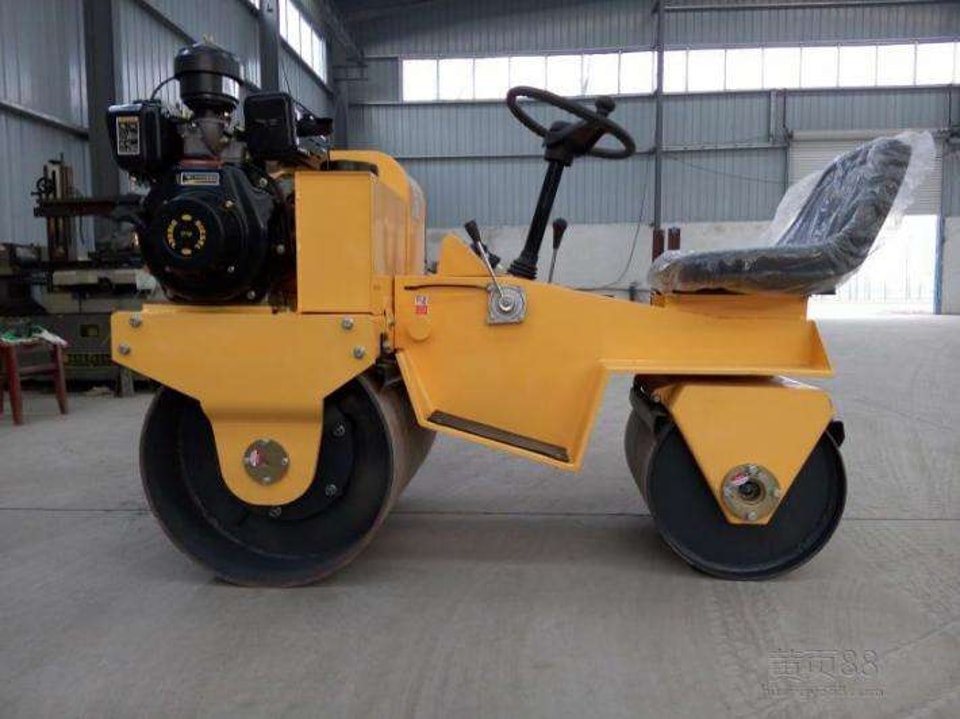

Small Roller Transmission Maintenance – A Practical Guide for Operators

If you own or operate a small vibratory roller, the transmission system is one of the most critical components to maintain. Skip the routine checks, and you're looking at costly repairs and unplanned downtime. This guide walks you through the essential maintenance and oil change procedures – in plain language, no jargon.

Why Transmission Maintenance Matters

The transmission system transfers power from the engine to the wheels and drum. It works under heavy loads, in dusty conditions, and often in high temperatures. Over time, oil degrades, contaminants build up, and seals wear out. Regular maintenance keeps everything running smoothly and prevents sudden breakdowns on the job site.

Most transmission failures in small rollers are preventable. A few minutes of routine checks can save you thousands in repair costs.

Before You Start: Key Principles

Whether you're checking oil levels or doing a full oil change, follow these basic rules:

• Check oil when the machine is stopped. Running components splash oil around, giving you a false reading. Always check with the engine off and the machine on level ground.
• Warm up the oil before draining. Run the roller for a few minutes to heat the transmission oil. Hot oil flows faster and carries out more contaminants.
• Turn off the engine before changing oil. If you need to work underneath, block the wheels with chocks for safety.
• Keep everything clean. Wipe down the area around the oil plug before removing it. Dirt that falls into the system becomes abrasive.
• Clean the plug before reinstalling. Any debris on the plug will contaminate the new oil.

Fixed Transmission Components – Oil Level Check & Oil Change

Fixed transmission parts include the transfer case, gearbox, and drive axle center drive. These components have a drain plug at the bottom (often magnetic) and an oil level hole or dipstick on the side.

How to Check Oil Level

1. Park the roller on level ground with the engine off.
2. Remove the oil level plug or check the dipstick.
3. Oil should be at the marked level or just reaching the bottom edge of the level hole.
4. If low, add oil through the fill port until it reaches the correct level.

How to Change the Oil

1. Run the roller briefly to warm the oil, then shut off the engine.
2. Remove the fill cap or level plug first, then the drain plug.
3. Let the old oil drain completely into a suitable container.
4. Clean the magnetic drain plug (remove any metal shavings).
5. Reinstall the drain plug securely.
6. Fill with fresh oil through the fill port until it reaches the level hole or dipstick mark.
7. Reinstall the level plug and fill cap.
8. Run the machine and check for leaks.

Rotating Housing Components – Oil Check & Change

Rotating components include the axle planetary reducers and the vibratory exciter oil chamber. Because these housings rotate, the procedure is different.

How to Check Oil Level

1. Rotate the housing until the fill port is at the highest position.
2. Open the fill port and check if oil reaches the edge.
3. If low, add oil through the fill port until it reaches the level hole.

How to Change the Oil

1. Rotate the housing so the drain port is at the lowest position.
2. Remove the drain plug and let the oil drain completely.
3. Clean the plug and reinstall it.
4. Rotate the housing so the fill port is at the top.
5. Fill with fresh oil until it reaches the level hole.

Side Drive & Chain Maintenance

The side drive chain is the final drive component for many small rollers. It handles heavy loads and takes冲击 from starting and braking.

• Lubricate before each shift. Use an oil can to apply oil to the gears before starting the roller.
• Clean weekly. Remove dust and debris from the chain and gears at least once a week.
• Inspect regularly. Check for wear, stretching, or damage. Replace if necessary.

Recommended Oil Types

Frequently Asked Questions

How often should I change the transmission oil in my small roller?

The transmission should be cleaned and oil changed at least once every quarter (every 3 months). Always do this with the oil warm – run the machine for a few minutes before draining.

What oil should I use for the transmission?

Use SAE 90 gear oil for the transmission. The vibratory drum uses SAE 30 diesel engine oil (CD grade), and the hydraulic system uses anti-wear hydraulic oil ISO VG 68. Check your machine's manual to confirm.

Why does the oil need to be warm before draining?

Warm oil flows more easily and carries more suspended contaminants out of the system. Cold oil is thicker and leaves sludge and debris behind.

What's the most common mistake in transmission maintenance?

Not cleaning the area around the oil plug before removing it. Dirt and debris can fall into the open port and contaminate the new oil, causing premature wear.

Can I just top up the oil instead of changing it?

Topping up is fine between changes, but it doesn't replace a full oil change. Over time, oil breaks down and accumulates contaminants. Regular full changes are essential for long-term reliability.
