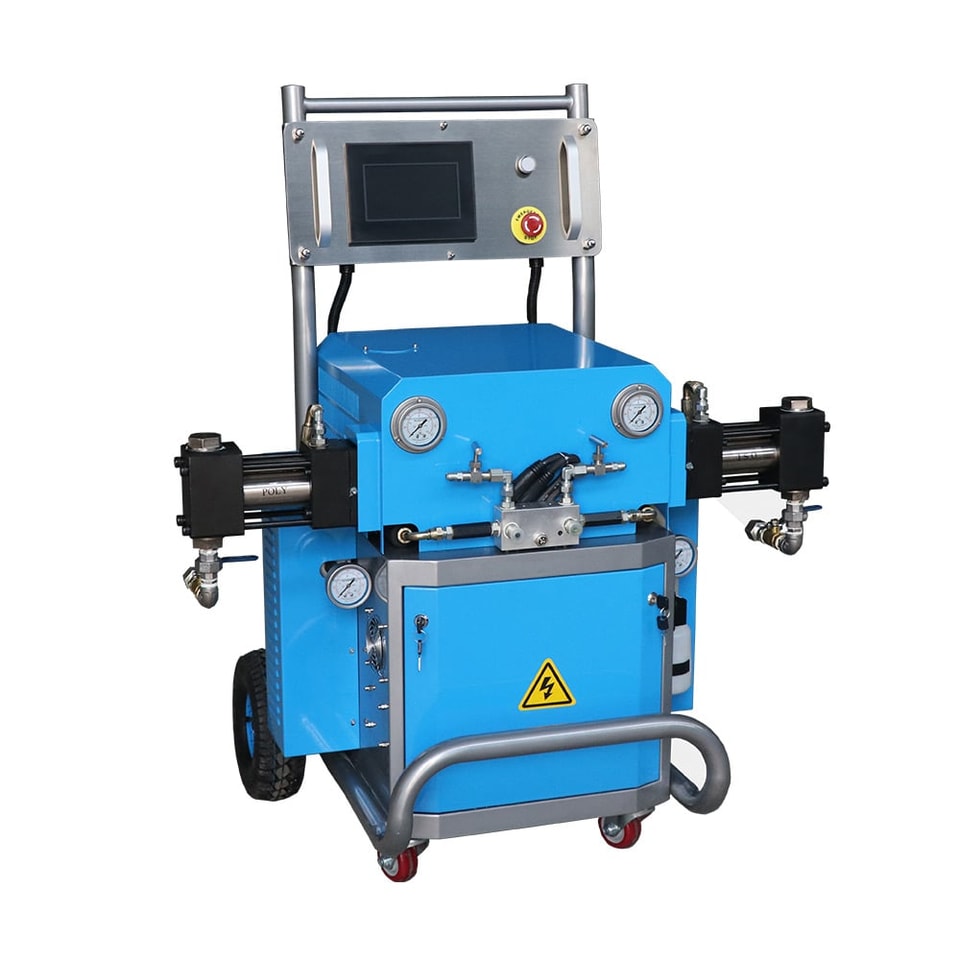

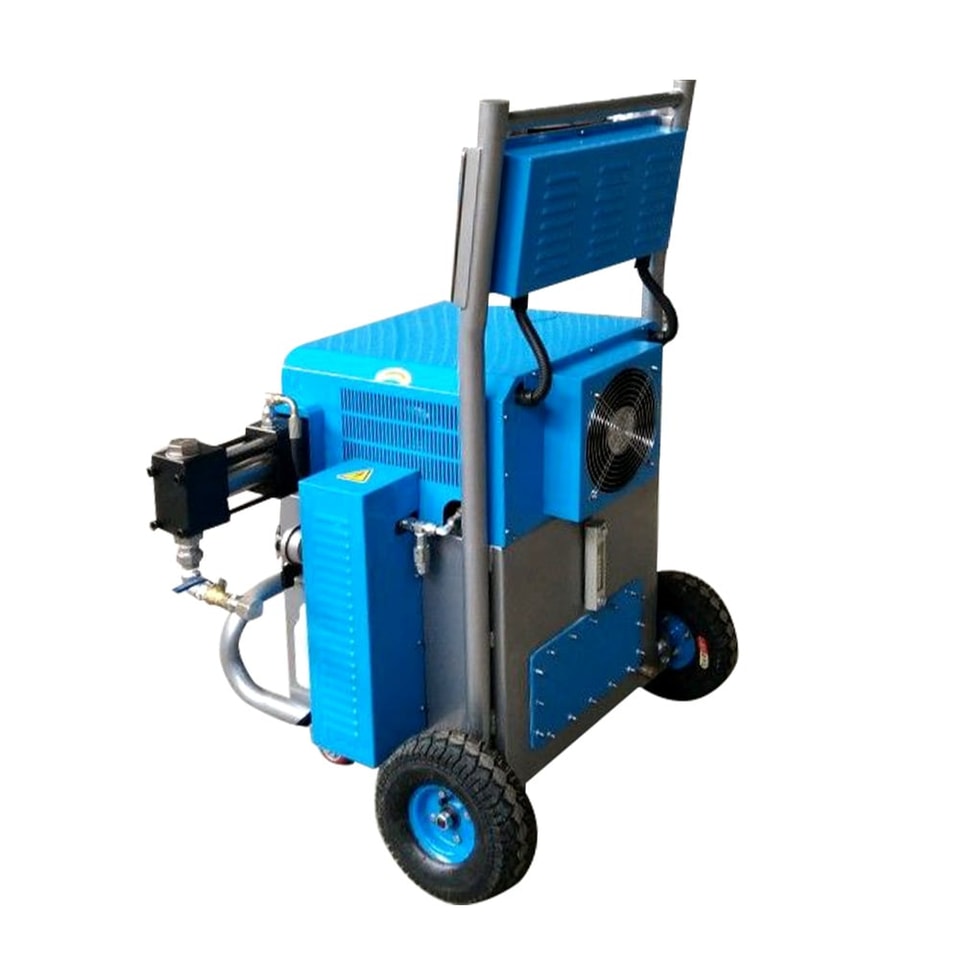

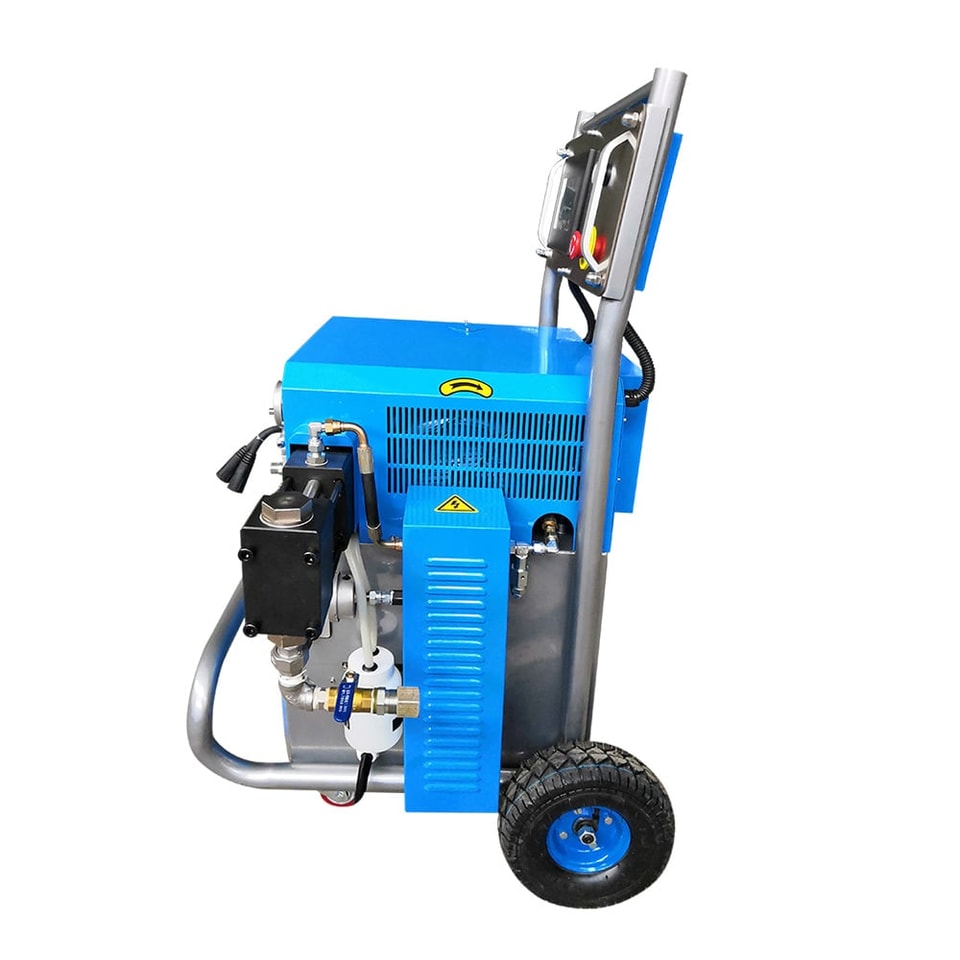

CNMC-500 Polyurea Spray Machine

CNMC-500 Hydraulic Polyurea Spray Machine – 25MPa Stable Pressure, 2-24kg/min Output

The CNMC-500 hydraulic polyurea spray machine is a high-performance polyurea spray equipment designed for demanding industrial coating applications. With work efficiency reaching 60% or more – far greater than the 20% efficiency of pneumatic machines – this hydraulic polyurea sprayer delivers exceptional productivity.

Powered by hydraulic drive, this polyurea spray machine experiences fewer troubles and provides stable working pressure up to 25MPa with large displacement of up to 24kg per minute.

🔧 Key Components – German, Japanese, Italian Quality

This high-pressure polyurea sprayer is built with premium components:

• Electrical components, testing components, and seals: Made in Germany
• Pumps: Made in Japan
• Solenoid valves: Made in Italy

⚙️ Smart Protection & Operation Features

The CNMC-500 polyurea spray machine includes several protective features:

• Machine soft start for smooth operation
• Overpressure valve on the booster pump – automatically releases pressure and protects the machine when pressure exceeds set limits
• Only needs a 2.2KW air compressor to work together, reducing overall working load

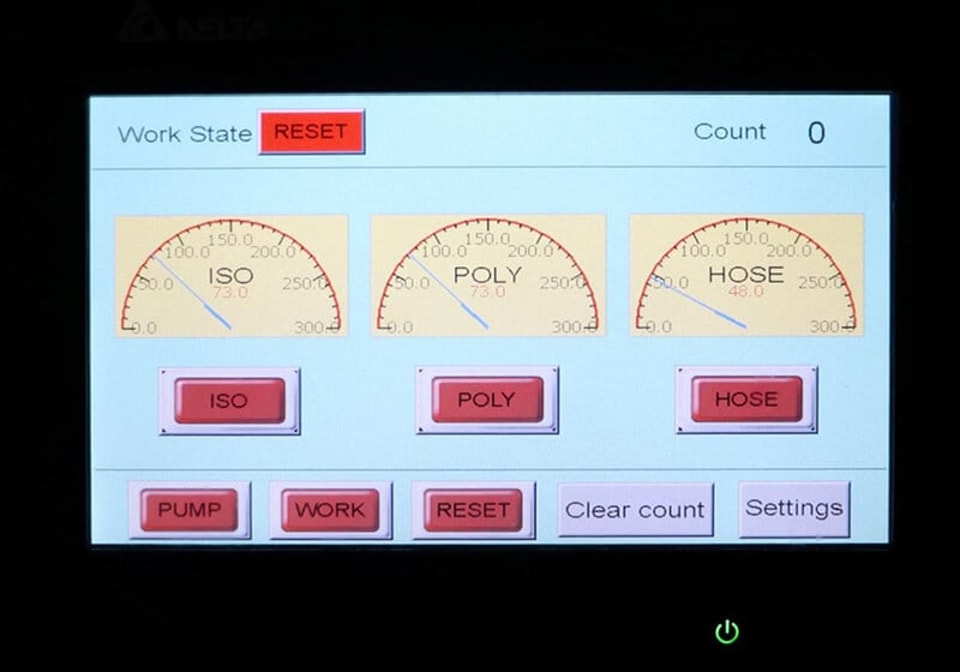

📱 Advanced PLC Control – 8-Inch Touch Screen

This polyurea spray equipment features an 8-inch operating touch screen PLC, offering:

• Enhanced technology experience
• Convenient real-time monitoring of machine working status
• Advanced control technology
• Tracks, monitors, and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators
• Quick and easy troubleshooting with QR code shortcuts – resulting in less downtime

🛡️ Protection & Warranty

The CNMC-500 spray machine includes:

• Sacrificial surge protector – protects electronics against excessive power spikes
• Three-year warranty – covers user display and control modules (one of the best in the industry)

📊 CNMC-500 Hydraulic Polyurea Spray Machine – Technical Specifications

• Power source: 230V 3 phase, 400V 3 phase, 50/60HZ
• Whole power: 17KW
• Heater power: 6KW each side
• Heating hose power: 1000W per 15 meters
• Driven mode: Hydraulic
• Air source: 0.5-0.8MPa ≥0.25m³
• Chemical output: 2-24 kg/min
• Maximum output pressure: 25MPa
• A and B chemical output ratio: 1:1
• Max hose support: 120 meters
• Machine size: 870 × 700 × 1150 mm

🏭 Why Choose This Hydraulic Polyurea Spray Machine?

• Dependability: Robust, durable, longest life spray system
• Reduce downtime: Allows longer time between required maintenance
• Increase daily productivity: Capable of extremely high duty cycle
• Easy to reach, conveniently placed electronics

Applications for the CNMC-500 Polyurea Sprayer

This hydraulic polyurea spray machine is ideal for polyurea coatings, polyurethane foam insulation, and other two-component systems requiring stable high pressure and high output volume.
