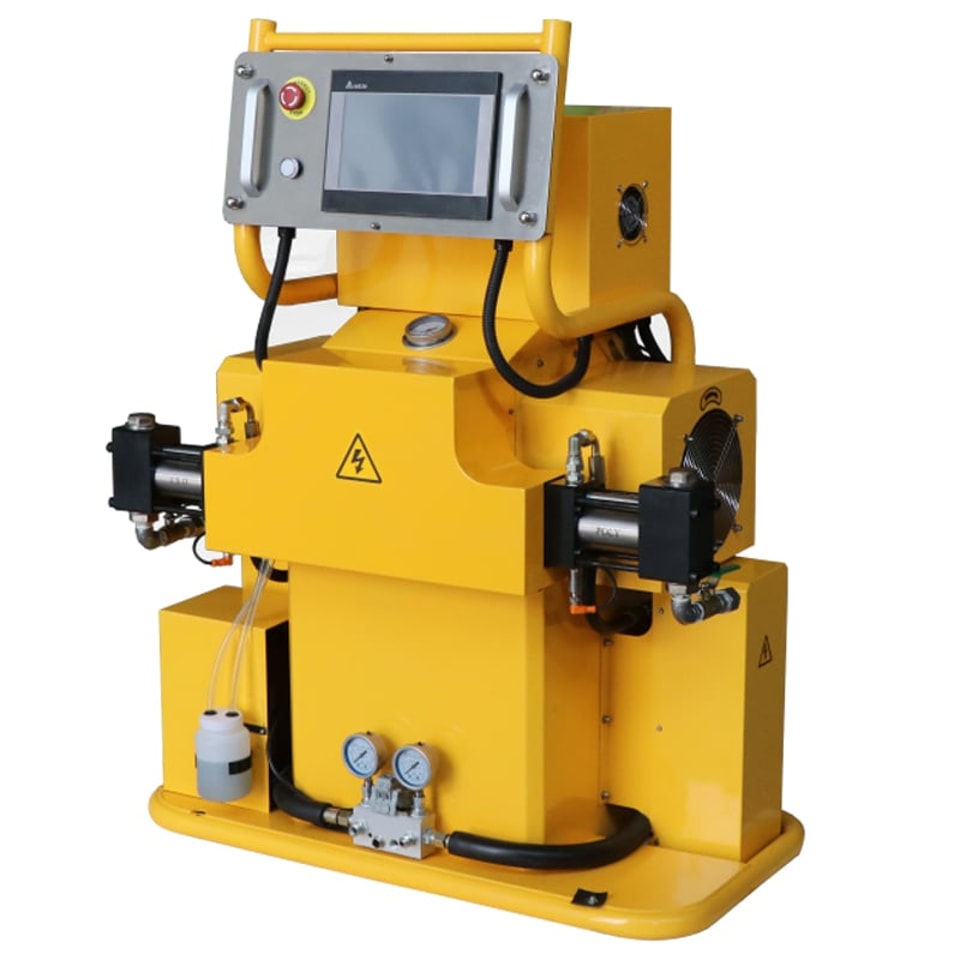

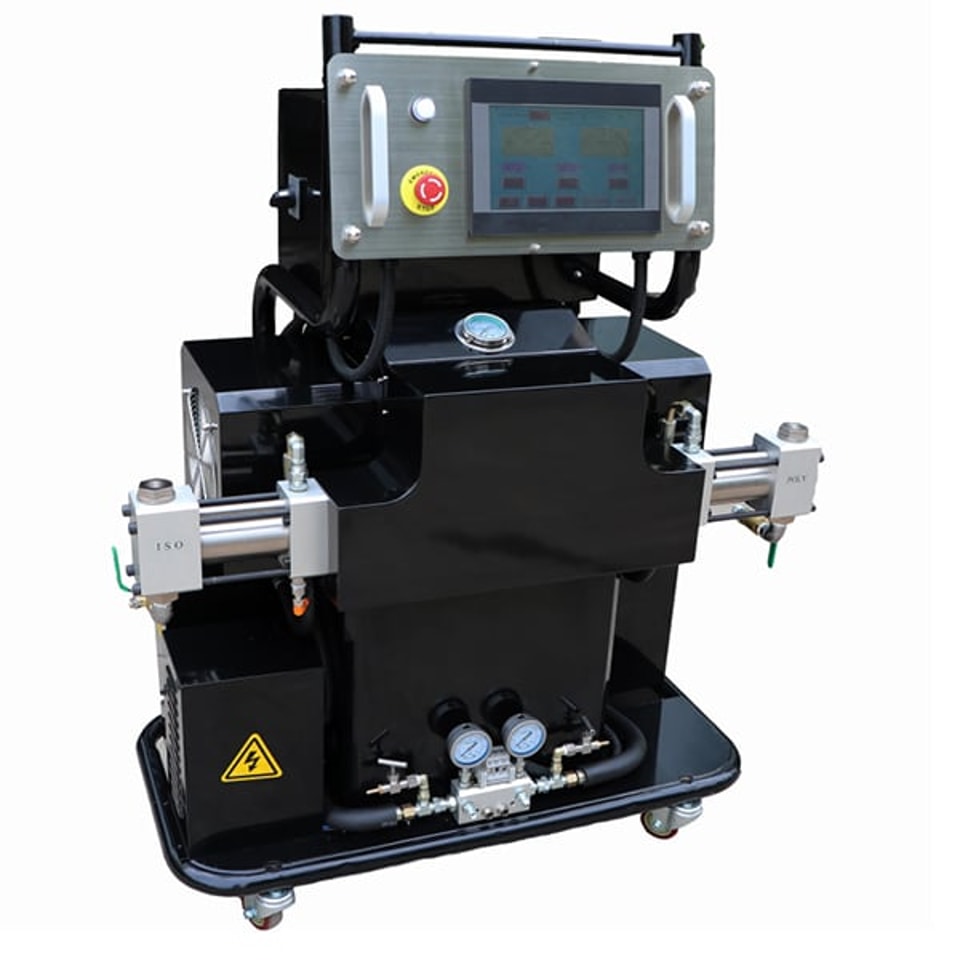

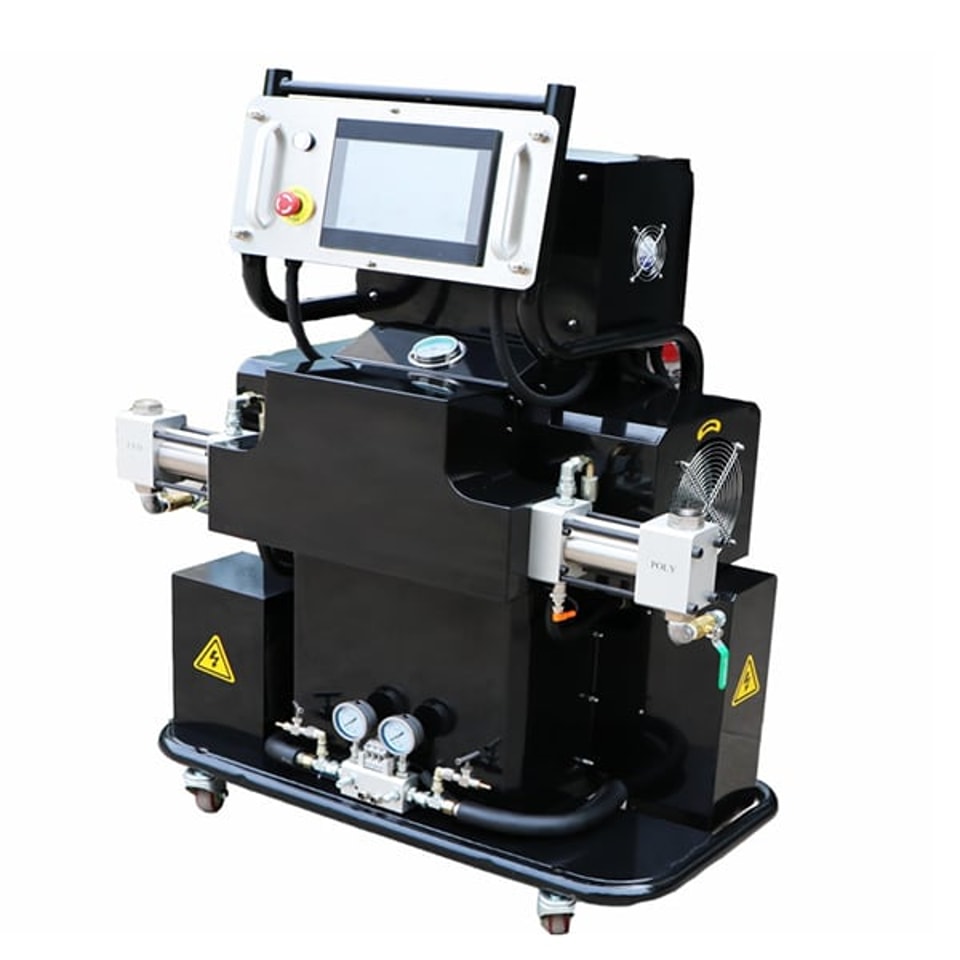

CNMC-500L Polyurea Spray Machine

CNMC-500L Polyurea Spray Machine – Hydraulically Driven, 18KW, 35MPa

The CNMC-500L polyurea spray machine is a hydraulically driven proportioning unit designed for polyurea, polyurethane foam, and two-component systems requiring precise control over temperature, pressure, and mixing ratio. This hydraulic polyurea machine delivers reliable, repeatable results for industrial coating projects.

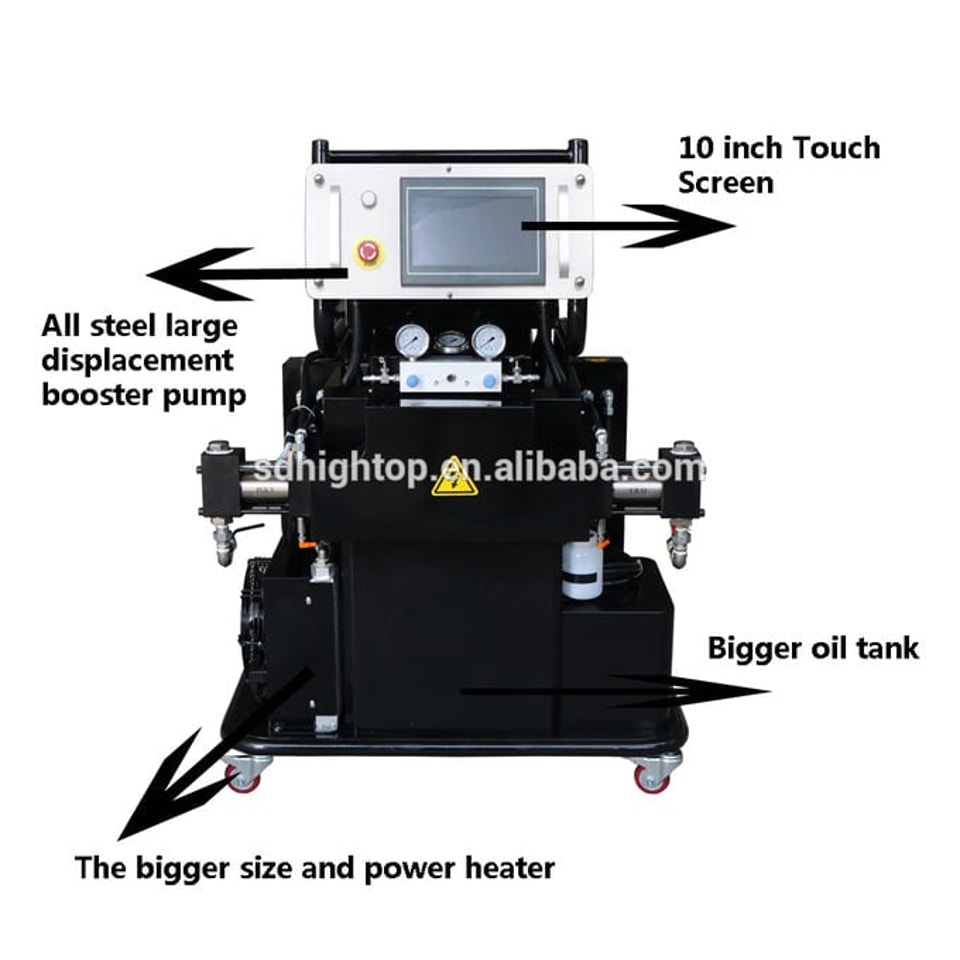

🔥 Primary Heating System – 18KW Total Power

The primary heating system consists of two independent 6KW block heaters (18KW total). This high-performance heating system achieves a DT of 50°C and reaches application temperatures of 90°C in normal conditions. All control and safety features ensure accurate, reliable performance from this polyurea spray equipment.

🔌 Independent Hose Heating – Up to 150 Meters

Equipped with two 4000W isolation transformers, the CNMC-500L spray machine allows individual heating of each component hose up to 150 meters. The heated hose features a copper resistance element homogeneously spread around the hose – eliminating cold spots and heat concentration issues found in traditional hoses.

⚙️ Double Acting Piston Proportioning Pumps

Each pump is driven by a hydraulic cylinder to deliver precise component volume. This positive-displacement design delivers constant output and stabilized pressures while eliminating asymmetrical loads. The result: extended pump seal life and consistent 1:1 ratio. Multiple pump sizes are available for different pressure and ratio requirements.

🔄 Recirculation System – Automatic Pre-Heating

The automatic recirculation system heats materials without starting the main pumps, significantly reducing polyurea spray machine setup time. Program time intervals and desired temperatures – the machine handles the rest automatically. Valves can be activated manually or automatically.

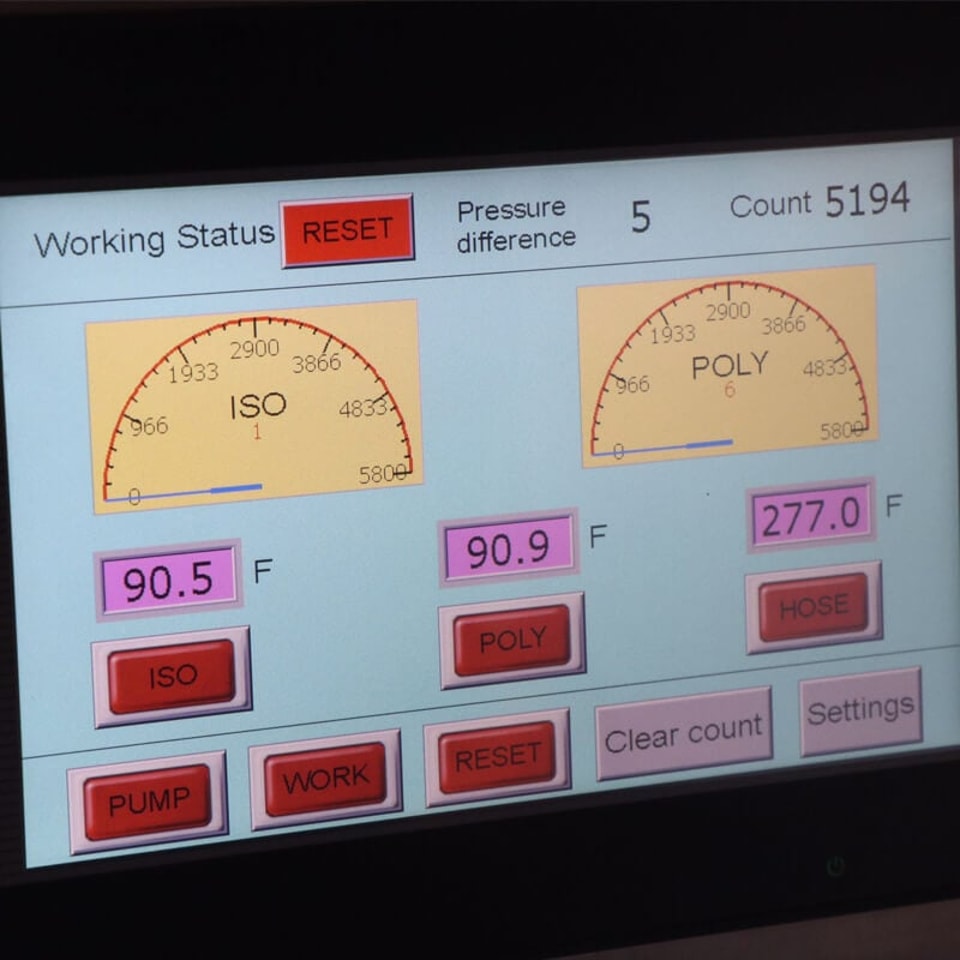

🧠 Central Processing Unit (CPU) – Real-Time Control

The CPU processes and monitors all polyurea sprayer parameters in real-time. Any deviation is corrected automatically while the unit continues operating. If a problem exceeds tolerance limits, the CPU shuts down the system and displays the specific failure type – protecting your equipment and materials.

📋 CNMC-500L Polyurea Spray Machine – Key Specifications

• Power source: 230V 3 phase / 400V 3 phase, 50/60HZ
• Total power: 18KW
• Heater power: 6KW per side
• Heating hose power: 1000W per 15 meters
• Drive mode: Hydraulic
• Air source: 0.5-0.8MPa ≥0.25m³
• Chemical output: 2-24 kg/min
• Max output pressure: 35MPa
• Mixing ratio: 1:1 (A:B)
• Max hose length: 150 meters
• Machine size: 1000 × 750 × 1150 mm

🏭 Applications for This High-Pressure Polyurea Sprayer

The CNMC-500L polyurea spray machine is ideal for:

• Polyurea coatings – bridge decks, tanks, secondary containment
• Polyurethane foam insulation – commercial and industrial buildings
• Two-component systems – requiring precise temperature and pressure control
