CNMC-B Spray Foam Machine

CNMC-B Spray Foam Machine – 230V/400V, 2-8kg/min Output, No-Seal Heater Design

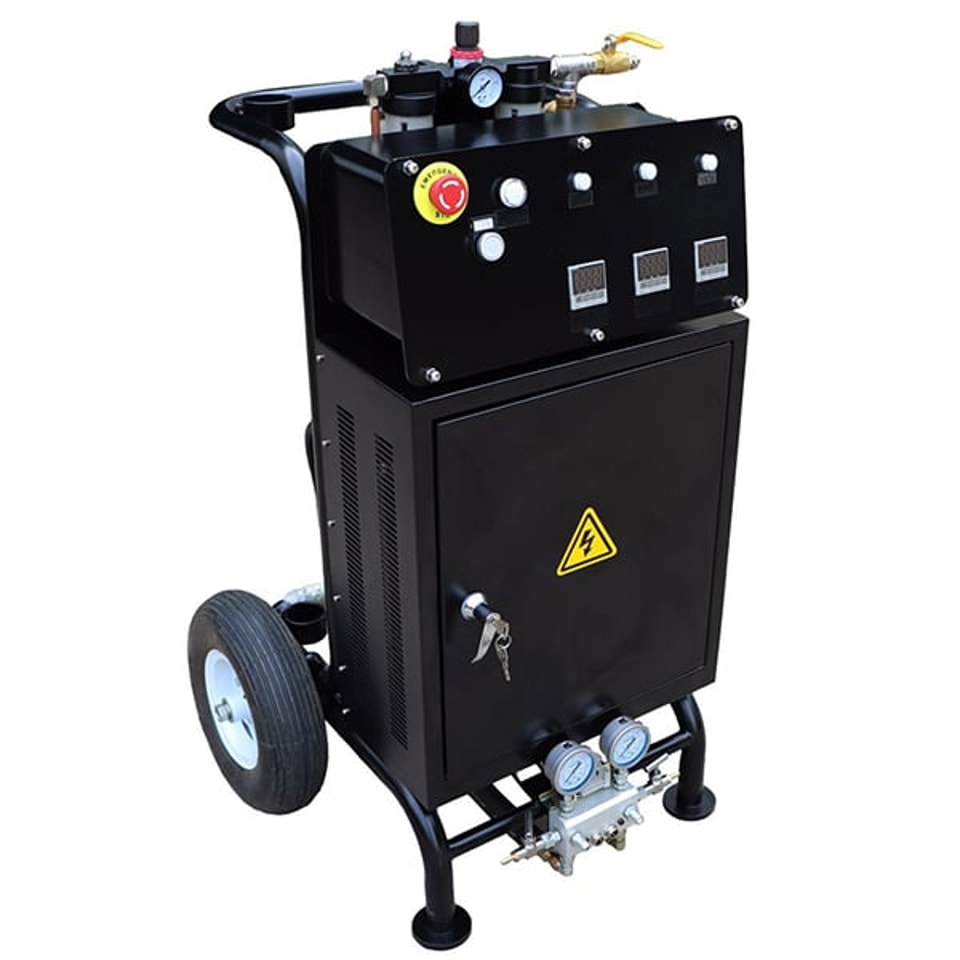

The CNMC-B spray foam machine is an advanced, air-driven polyurethane equipment unit with a compact design. Specifically engineered for polyurethane foam in-place applications, it delivers reliable performance for building insulation, roofing, cold storage, and industrial coating projects.

Available in 230V single phase, 230V three phase, or 400V three phase (50/60Hz), this machine adapts to diverse job site power requirements. With a total power of 7.5KW and output range of 2-8 kg/min, it balances efficiency with precision.

Key Features

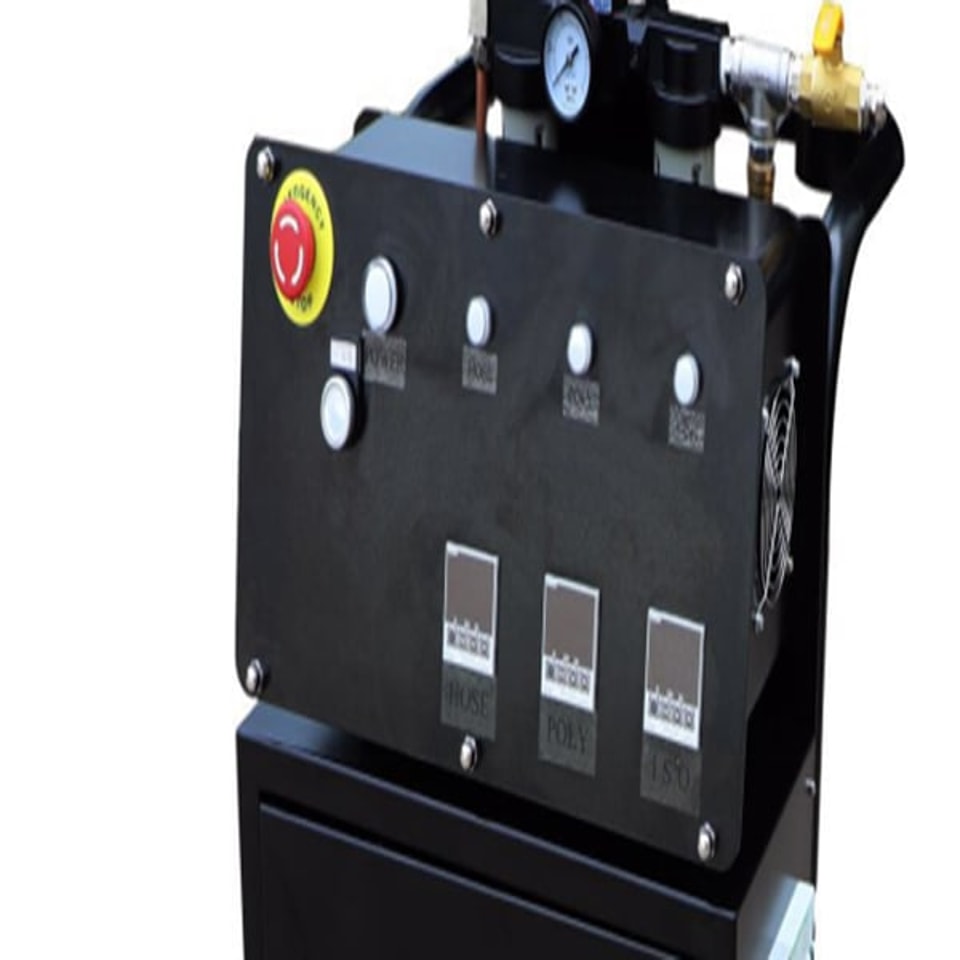

• Advanced Compact Design: Easy access to all components simplifies control functions and significantly reduces maintenance work.
• Primary Heating System (No-Seal Design): Two separate independent block heaters with no seals. Each heater provides 3000W total power with accurate temperature control, achieving a 30°C temperature rise and reaching application temperatures of 70°C under normal conditions.
• Proportioning Pumps: Two positive displacement piston pumps driven by a pneumatic motor. Manufactured from high-hardness tempered aluminum with a special low-friction, high-lubrication treatment for increased wear resistance. A common guide system ensures dynamic stability and extends seal life.
• Recirculation System: Enables faster achievement of preset temperatures before spraying and during temporary shutdowns, improving workflow efficiency.
• Heated Hose System (Optional): Designed with 1000W per 15 meters, supporting up to 60 meters of hose. The copper resistance is homogeneously spread around the hose for accurate, uniform temperature control.

Technical Advantages at a Glance

• Voltage options: 230V single phase / 230V 3 phase / 400V 3 phase (50/60Hz)
• Total power: 7.5KW
• Heater power: 3KW each side (no-seal design)
• Heated hose power: 1000W per 15 meters
• Output range: 2-8 kg/min
• Max working pressure: 13.8MPa
• Mixing ratio: 1:1 for A and B components
• Max hose support: 60 meters
• Machine size: 870 × 700 × 1150mm

Typical Applications

• Building insulation (walls, roofs, attics)
• Cold storage and refrigeration insulation
• Industrial pipe coating and tank insulation
• Waterproofing and protective linings
