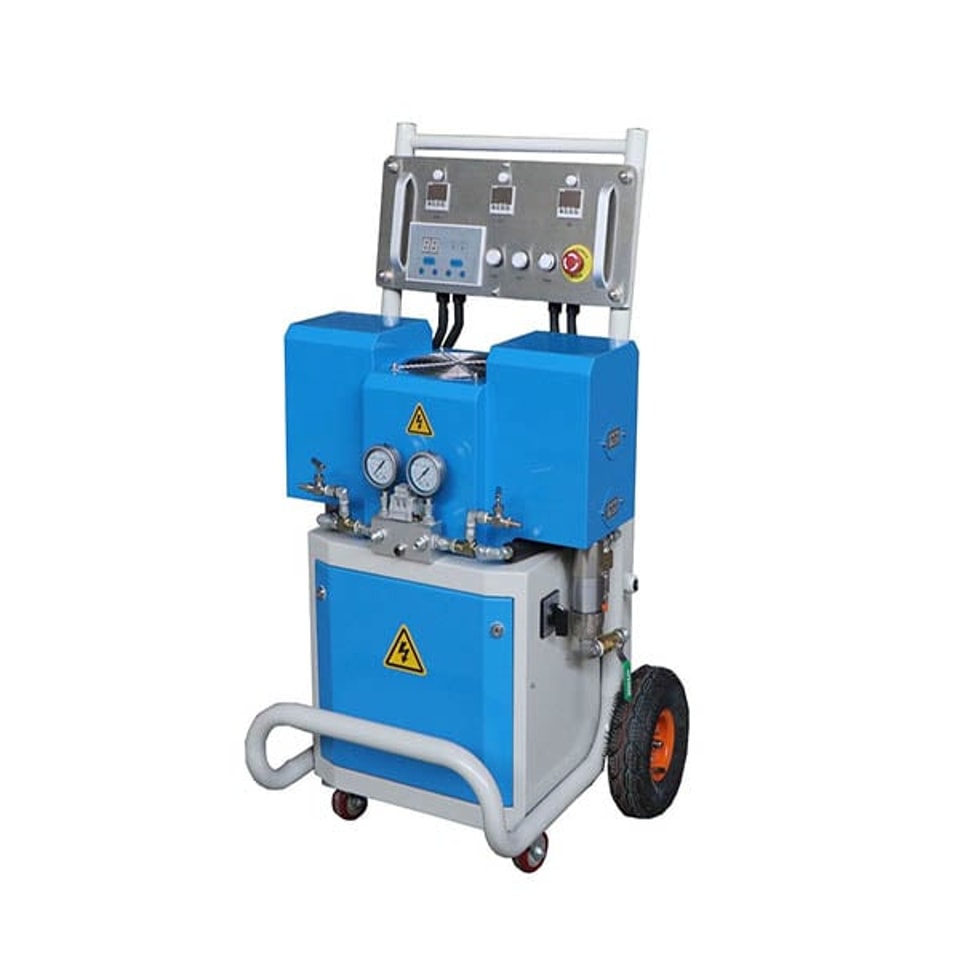

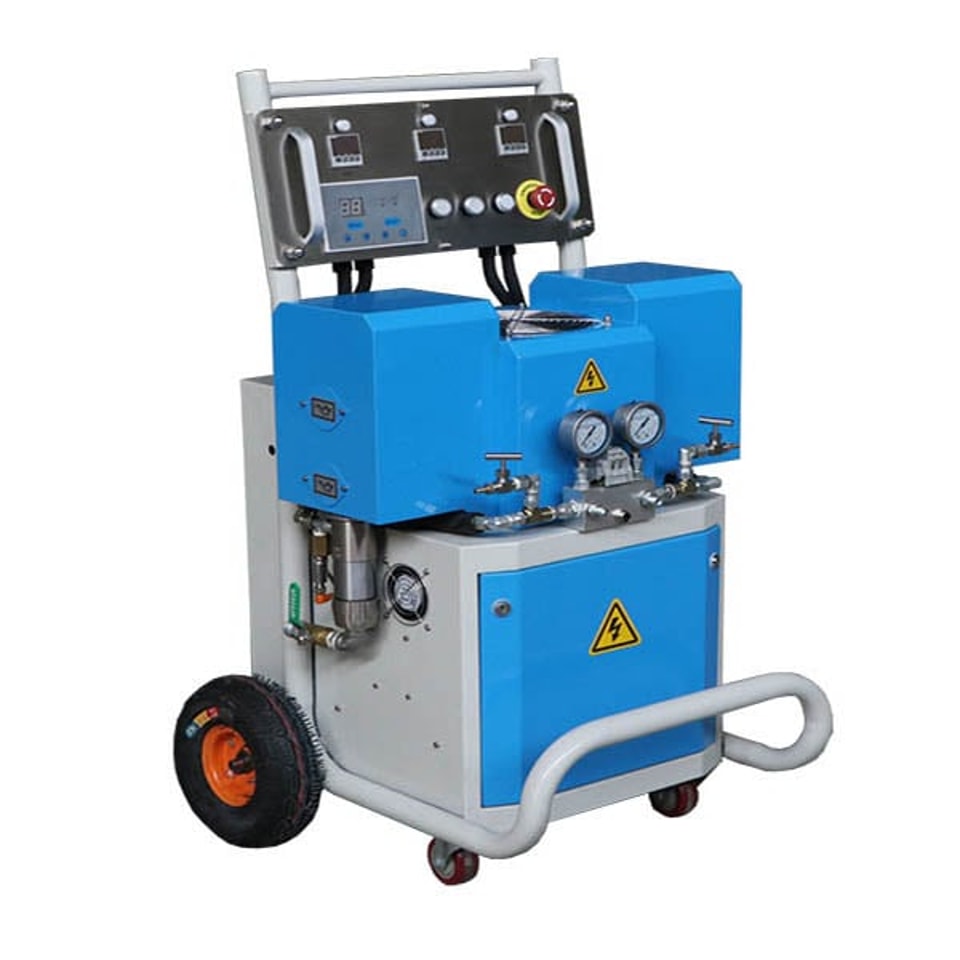

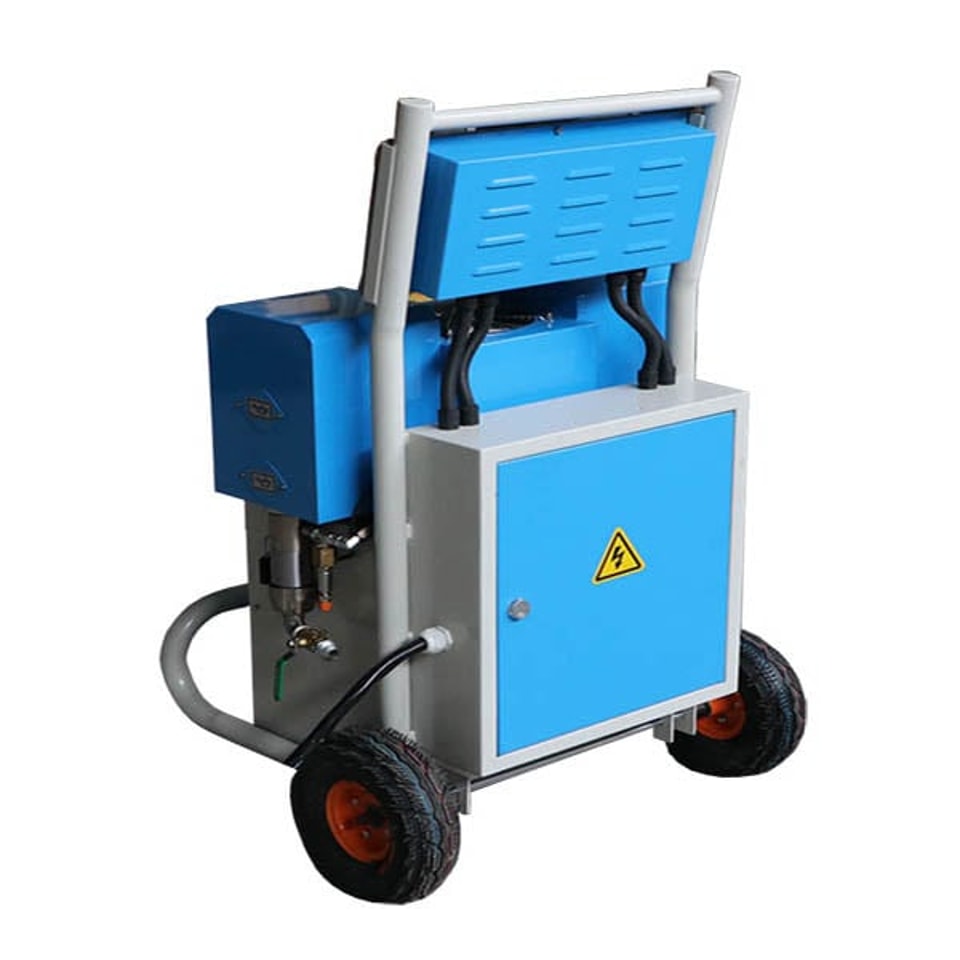

CNMC-E20 Polyurea Spray Machine

CNMC-E20 Polyurea Spray Machine – 10KW Power, 20MPa Max Pressure, 3-Year Warranty

The CNMC-E20 polyurea spray machine is a high-performance electric-driven spray system designed for polyurea and polyurethane applications. With 10KW total power, 2-12kg/min chemical output, and 20MPa maximum output pressure, it delivers superior spraying performance compared to traditional air and hydraulic machines.

Available in 230V 3-phase or 400V 3-phase (50/60Hz), the CNMC-E20 offers flexible power options for global job sites. The ergonomic design makes servicing easier, while advanced control modules allow you to manage your spray foam or polyurea business remotely.

Key Features

• Advanced Control Technology: Manage your spray foam or polyurea business wherever you are. Better fleet and crew management with improved cost containment and forecasting.
• Ergonomic Design: Easier to service with quick troubleshooting capabilities.
• Superior Spraying Performance: Better spraying results compared to traditional air and hydraulic spray machines.
• 3-Year Warranty: Covers user display module, control modules, and electric motor – one of the best in the industry.
• Electric Driven Mode: Clean, efficient, and reliable power for consistent operation.
• High Output & Pressure: 2-12kg/min output with 20MPa max pressure for demanding jobs.
• Long Hose Support: Supports up to 120 meters of heated hose for extended reach.

Technical Specifications at a Glance

• Power source: 230V 3-phase / 400V 3-phase, 50/60HZ
• Whole power: 10KW
• Heater power: 3KW each side
• Heating hose power: 1000W / 15 meters
• Driven mode: Electric
• Air source: 0.5-0.8MPa ≥0.1m³
• Chemical output: 2-12 kg/min
• Maximum output pressure: 20MPa
• A and B chemical output ratio: 1:1
• Max hose support: 120 meters
• Machine size: 730 × 653 × 1150 mm

Ideal Applications

The CNMC-E20 polyurea spray machine is perfect for polyurea waterproofing, polyurethane foam insulation, pipeline coating, tank lining, industrial flooring, and protective coatings. Its advanced control features also make it an excellent choice for fleet operators and contractors who need to manage multiple machines and crews efficiently.
