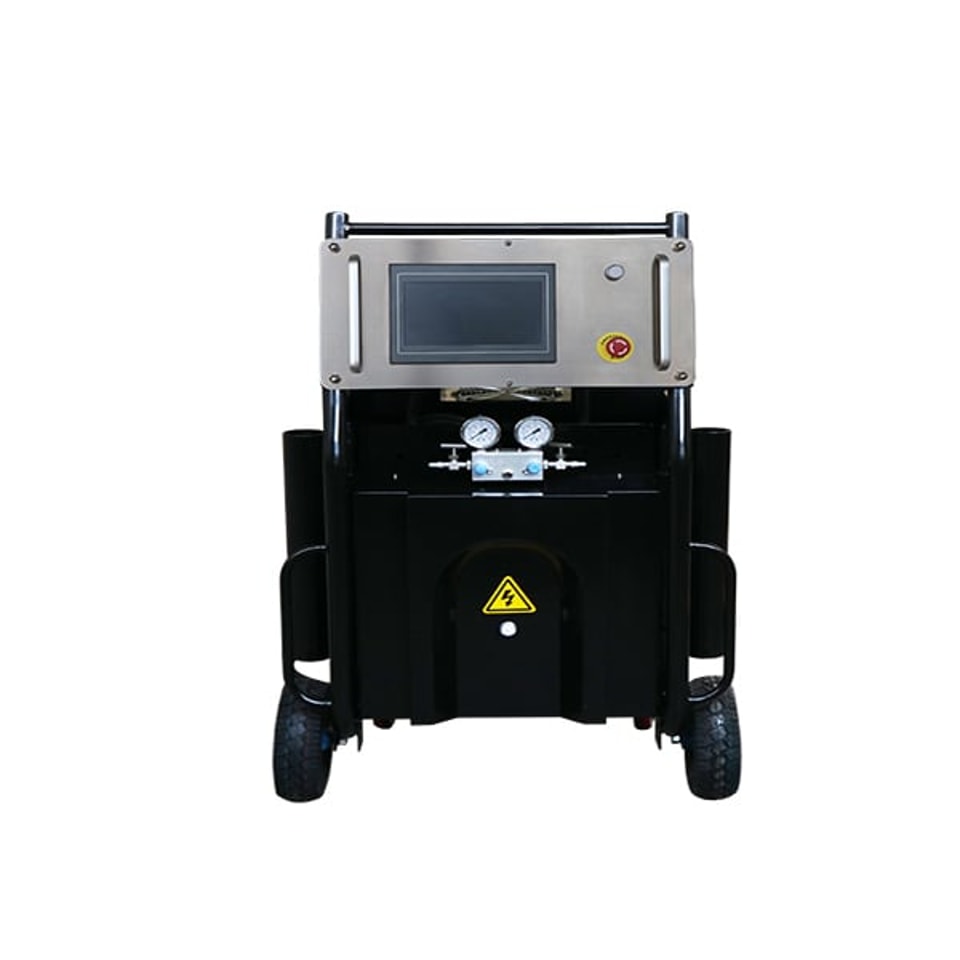

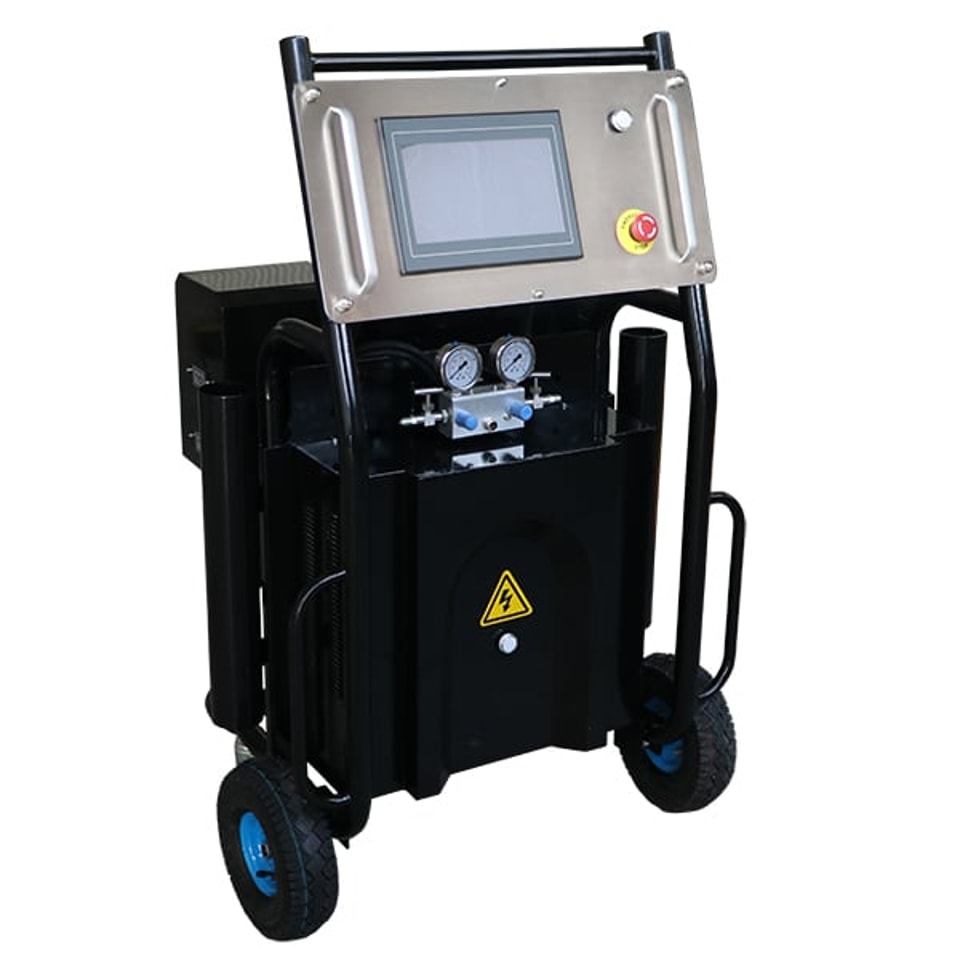

CNMC-E30 Polyurea Spray Machine

CNMC-E30 Polyurea Spray Machine – 12KW, 2-12kg/min, PLC Smart Control

Looking for a high-performance polyurea spray machine? The CNMC-E30 delivers 2-12kg/min output with 23MPa maximum pressure, powered by a 12KW electric drive system. Available in 230V or 400V three-phase, 50/60Hz, this machine adapts to global job site requirements.

What sets the CNMC-E30 apart is its advanced PLC control module. It tracks, monitors, and saves project data, stores up to 24 chemical recipes, and transmits real-time job activity displayed on the PLC screen. Troubleshooting is quick and intuitive.

Whether you need polyurea waterproofing for embankments, corrosion protection for pipelines, or wear-resistant linings for industrial equipment, the CNMC-E30 delivers consistent, high-quality results.

Key Features & Benefits

• ✔ 2-12kg/min Output: Adjustable flow rate for projects of any scale, from small repairs to large industrial applications.
• ✔ 23MPa Maximum Pressure: Powerful spraying performance for tough polyurea and polyurethane materials.
• ✔ 12KW Total Power (3KW per side heater): Fast, consistent material heating for smooth spraying.
• ✔ 230V / 400V 3-Phase Options: Flexible power configuration for different job site electrical supplies.
• ✔ PLC Smart Control: Store up to 24 chemical recipes, monitor real-time job data, and save project history.
• ✔ Compact & Ergonomic Design: Small footprint leaves more room in your spray rig; easy to service and transport.
• ✔ Better Spraying Performance: Outperforms traditional air and hydraulic spray machines with superior atomization.
• ✔ 90-Meter Hose Support: Extended reach for large-scale projects without moving the machine.

Technical Specifications

• Model: CNMC-E30
• Power source: 230V 3-phase / 400V 3-phase, 50/60Hz
• Total power: 12KW
• Heater power: 3KW per side
• Heating hose power: 1000W per 15 meters
• Driven mode: Electric
• Air source: 0.5-0.8MPa ≥0.1m³
• Chemical output: 2-12 kg/min
• Maximum output pressure: 23MPa
• A and B chemical output ratio: 1:1
• Max hose support: 90 meters
• Machine size: 804 × 842 × 1230 mm

Common Applications

• Waterproofing: Embankments, basements, roofs, tunnels, wastewater treatment facilities
• Corrosion Protection: Pipelines, tanks, steel structures, marine equipment
• Wear-Resistant Linings: Chutes, hoppers, conveyor systems, mining equipment
• Industrial Coating: Secondary containment, chemical plants, flooring

Advanced PLC Control – Smarter Spraying

The CNMC-E30 is equipped with advanced control technology that gives you:

• 📊 Real-time monitoring: View job activity on the PLC screen as it happens
• 💾 Recipe storage: Save up to 24 chemical formulations for quick recall
• 📈 Project data tracking: Record and review project history for quality control
• 🔧 Quick troubleshooting: Intelligent diagnostics reduce downtime
