CNMC-E40 Polyurea Spray Machine

CNMC-E40 Polyurea Spray Machine – Smart PLC Control, High Output, Superior Spray Performance

Ready to upgrade your polyurea spraying operation? The CNMC-E40 polyurea spray machine delivers exceptional performance with 2-12 kg/min output and 23MPa maximum working pressure. Powered by 230V or 400V three-phase electricity (50/60Hz), this electric-driven sprayer offers reliable, consistent results for waterproofing, industrial coating, and protective lining applications.

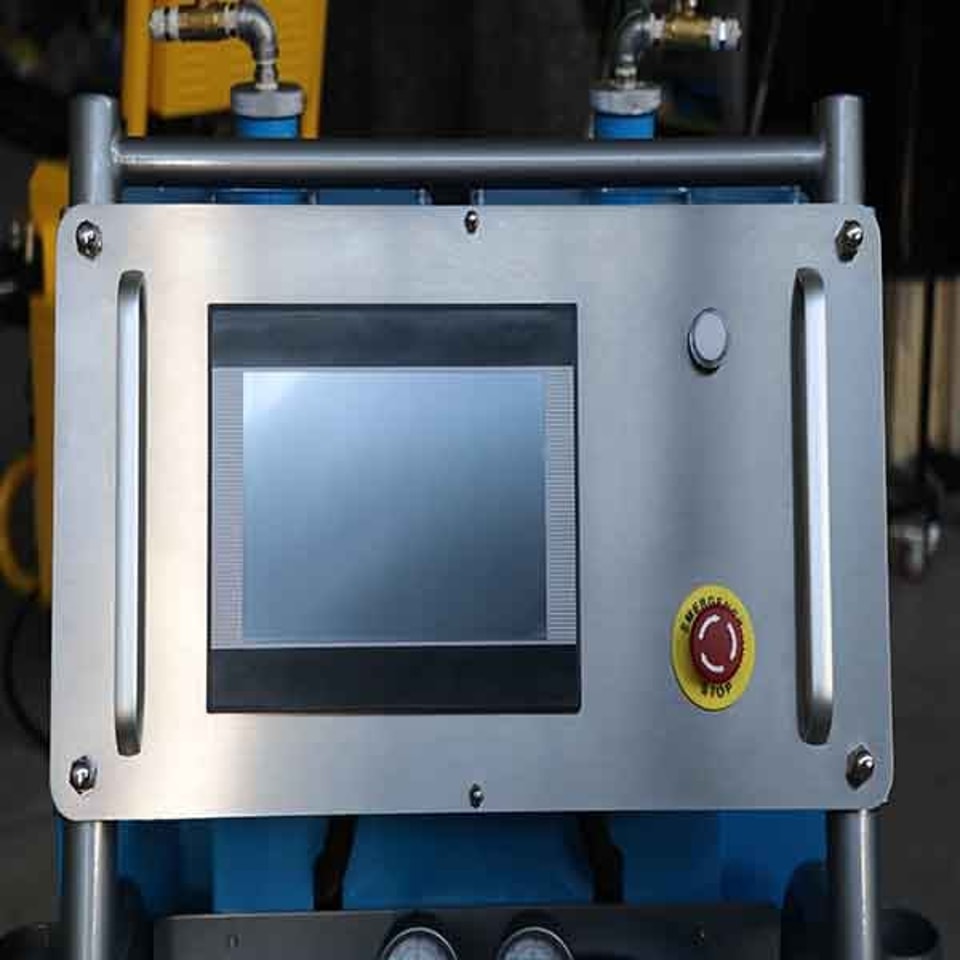

What sets the E40 apart? Advanced PLC control technology tracks, monitors, and saves project data in real time. You can store up to 24 chemical recipes and view live job activity on the intuitive PLC screen. Troubleshooting is quick and easy, minimizing downtime and maximizing productivity.

Compared to traditional air or hydraulic spray machines, the CNMC-E40 provides better spraying performance, a compact footprint that saves space in your spray rig, and an ergonomic design that makes servicing simpler. Upgrade your spraying operation today.

Key Features & Benefits

• ✔ PLC Smart Control: Real-time monitoring, data tracking, and 24 recipe storage for consistent, repeatable results.
• ✔ High Output (2-12 kg/min): Versatile flow rate for projects of all sizes, from small repairs to large-scale coating.
• ✔ 23MPa Maximum Pressure: Powerful atomization for superior polyurea and polyurethane spray performance.
• ✔ Flexible Power Options: 230V 3-phase or 400V 3-phase, 50/60Hz – compatible with global job site power supplies.
• ✔ Compact & Ergonomic Design: Small footprint saves valuable rig space; easy-service layout reduces maintenance time.
• ✔ Electric Driven Mode: Clean, efficient, and consistent power for demanding spray applications.
• ✔ Extended Hose Support (90 meters): Reach distant work areas without repositioning the machine.
• ✔ 3KW Heater Per Side + 1000W Heated Hose (per 15m): Maintains ideal material temperature for smooth, even application.

Technical Specifications

• Model: CNMC-E40
• Power source: 230V 3-phase / 400V 3-phase, 50/60HZ
• Total power: 12KW
• Heater power: 3KW each side
• Heated hose power: 1000W per 15 meters
• Driven mode: Electric
• Air source requirement: 0.5-0.8MPa ≥0.1m³
• Chemical output: 2-12 kg/min
• Maximum output pressure: 23MPa
• A and B chemical output ratio: 1:1
• Max hose support: 90 meters
• Machine size: 804 × 842 × 1230 mm

Common Applications

• Waterproofing: Roofs, basements, parking decks, embankments, tunnels
• Industrial Coating: Pipelines, storage tanks, steel structures, containment areas
• Protective Linings: Truck beds, mining equipment, wear-resistant linings, secondary containment
• Infrastructure: Bridge coatings, seawall protection, concrete repair and rehabilitation

Why Upgrade to the CNMC-E40?

• Save Time: Store up to 24 recipes – switch between materials instantly with no reconfiguration.
• Boost Productivity: Real-time job data helps you optimize settings and track project progress.
• Reduce Downtime: Advanced troubleshooting and ergonomic service access keep you spraying longer.
• Consistent Quality: PLC-controlled parameters ensure every batch meets your specifications.
• Better Spray Performance: Superior atomization and even coverage compared to conventional machines.
