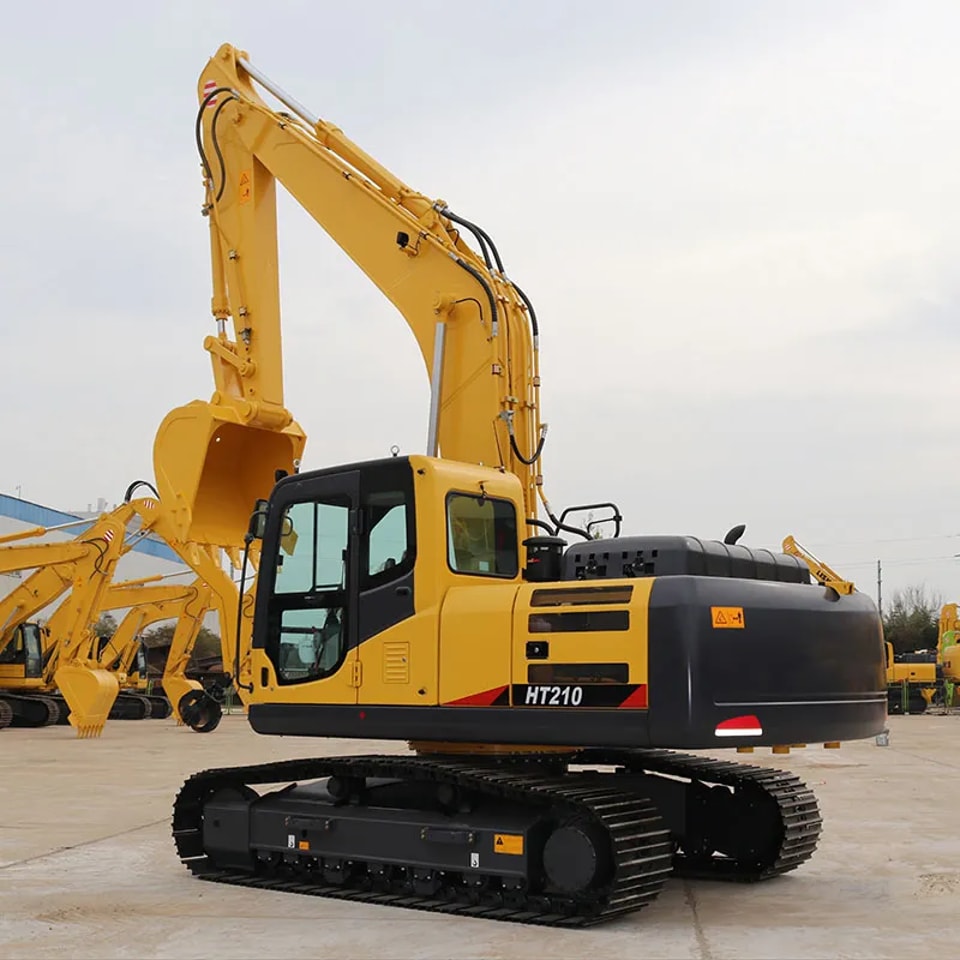

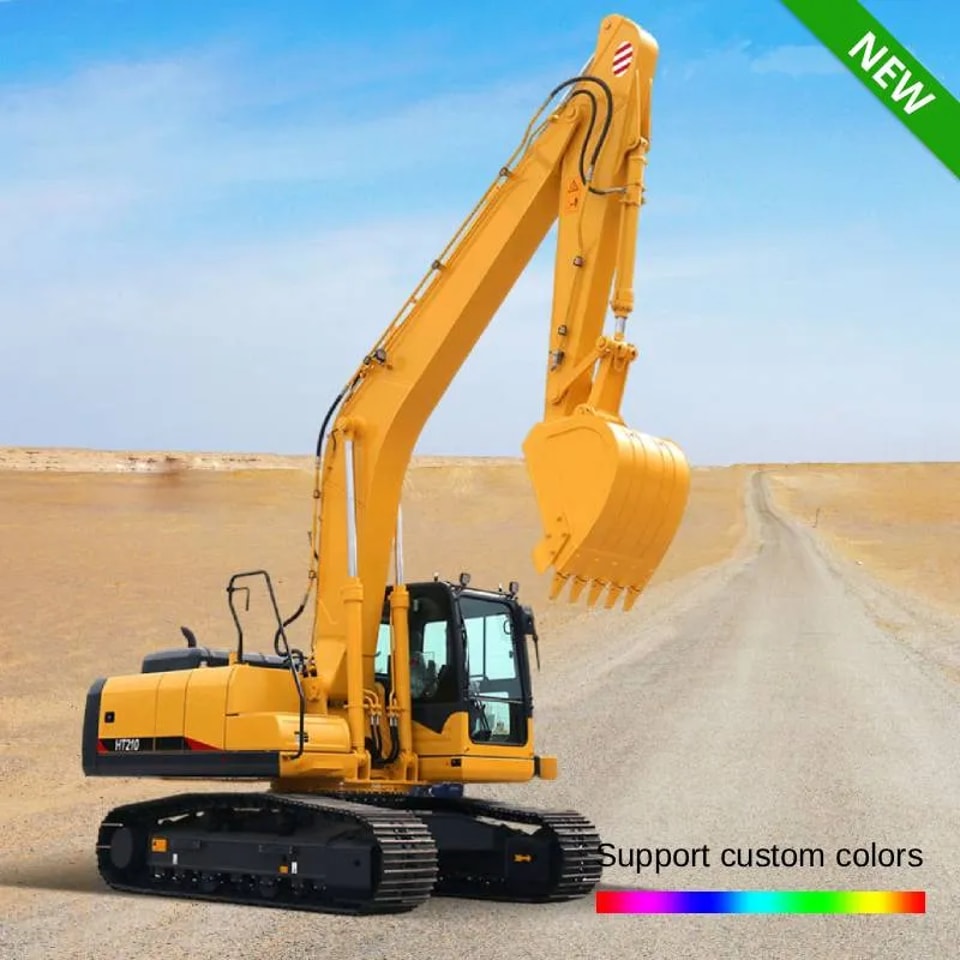

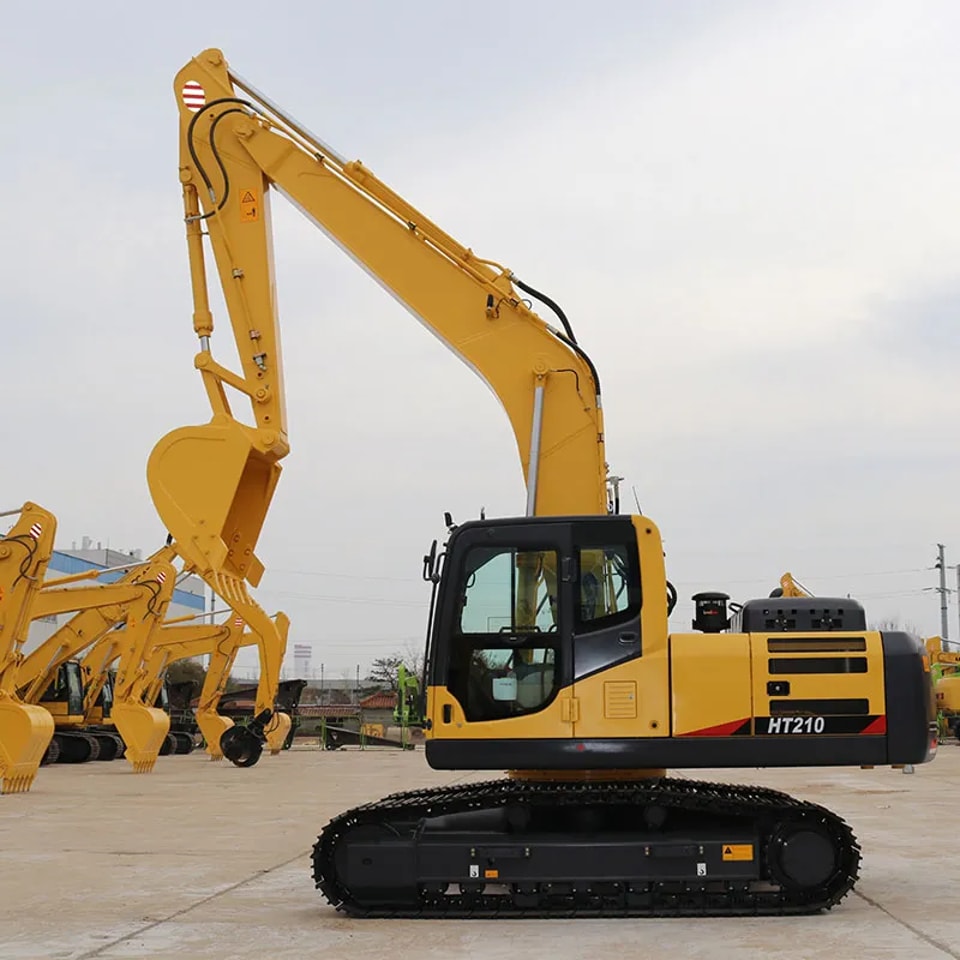

HT210 Large Excavator
HT210 Large Excavator Instruction
SUPERIOR USE
Heavy Duty Boom and Arm
New Variable Power Control
6BTAA-5.9 (HM5.9)
Reinforced Bucket and Link Bucket Powerful
and Preciser Swing Control
Strong and Stable Bottom Frame
Single Layer Cooling System
Minimize Shock and Vibration Through Mounting cab system
COMFORTABLE OPERATION
· New Front Side Air Conditioning System
· Smooth Travel Pedal and Footrest
· Improved Smart Display
· Lightweight Control Panels
· Wide Cab with Excellent Visibility
· Highly Sensitive Joystick and Easy Entry
· Wide, Comfortable Operating Space
MAINTENANCE AND EASY MAINTENANCE
· Easy to maintain engine components
· Centralized electrical control unit and easy to change air cleaner assembly
· Side cover with left and right swing open type
· Large tool box for extra storage
· High efficiency hydraulic pump
· Hi-MATE (remote system management)
| HT210 Large Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT210 |
| Total Weight | 21t |
| Bucket Capacity | 0.9-1.2m³ |
| Engine Model | Cummins 6BTAA5.9 |
| Rated Power | 133kw/2000r/min |
| Fuel Tank Volume | 350L |
| Hydraulic Tank Volume | 246L |
| Hydraulic Pump Model | K3V112DT |
| Max. Flow Rate | 223*2L/min |
| Work Pressure | 34.3/37.3mpa |
| Travel & Performance | |
| Walking Speed | 5.2/3.5km/h |
| Swing Speed | 11.7r/min |
| Climbing Ability | 35° |
| Bucket Digging Force | 138kn |
| Arm Digging Force | 99kn |
| Ground Pressure | 44kpa |
| Traction | 174kn |
| Overall Dimensions (Unit: mm) | |
| Total Length | 9390mm |
| Overall Width | 2780mm |
| Total Height (Boom Top) | 3040mm |
| Overall Height (Top of Cab) | 3114mm |
| Counterweight Ground Clearance | 1065mm |
| Minimum Ground Clearance | 468mm |
| Turntable Width | 2700mm |
| Distance from Center of Rotation to Rear End | 2720mm |
| Counterweight Height | 2045mm |
| Tail Turning Radius | 2720mm |
| Undercarriage & Track (Unit: mm) | |
| Track Grounding Length | 3445mm |
| Track Length | 4250mm |
| Rail Gauge | 2180mm |
| Track Width | 2780mm |
| Track Shoe Width | 600mm |
| Track Tooth Thickness | 26mm |
| Grounding Length During Transportation | 4940mm |
| Working Equipment (Unit: mm) | |
| Arm Length | 2900mm |
| Boom Length | 5700mm |
| Working Range (Unit: mm) | |
| Maximum Excavation Height | 8630mm |
| Maximum Unloading Height | 6180mm |
| Maximum Digging Depth | 5501mm |
| Maximum Vertical Digging Depth | 4940mm |
| Maximum Digging Depth (2.5m Level) | 5287mm |
| Maximum Digging Distance | 8305mm |
| Maximum Excavation Distance on Ground | 8180mm |
| Minimum Turning Radius | 2495mm |
| Maximum Height at Minimum Turning Radius | 6430mm |
