HTSC2.0 2-Ton Compact Spider Crane for Indoor Lifting and Narrow Access Jobs
Lift Heavy Materials Where Conventional Cranes Cannot Reach

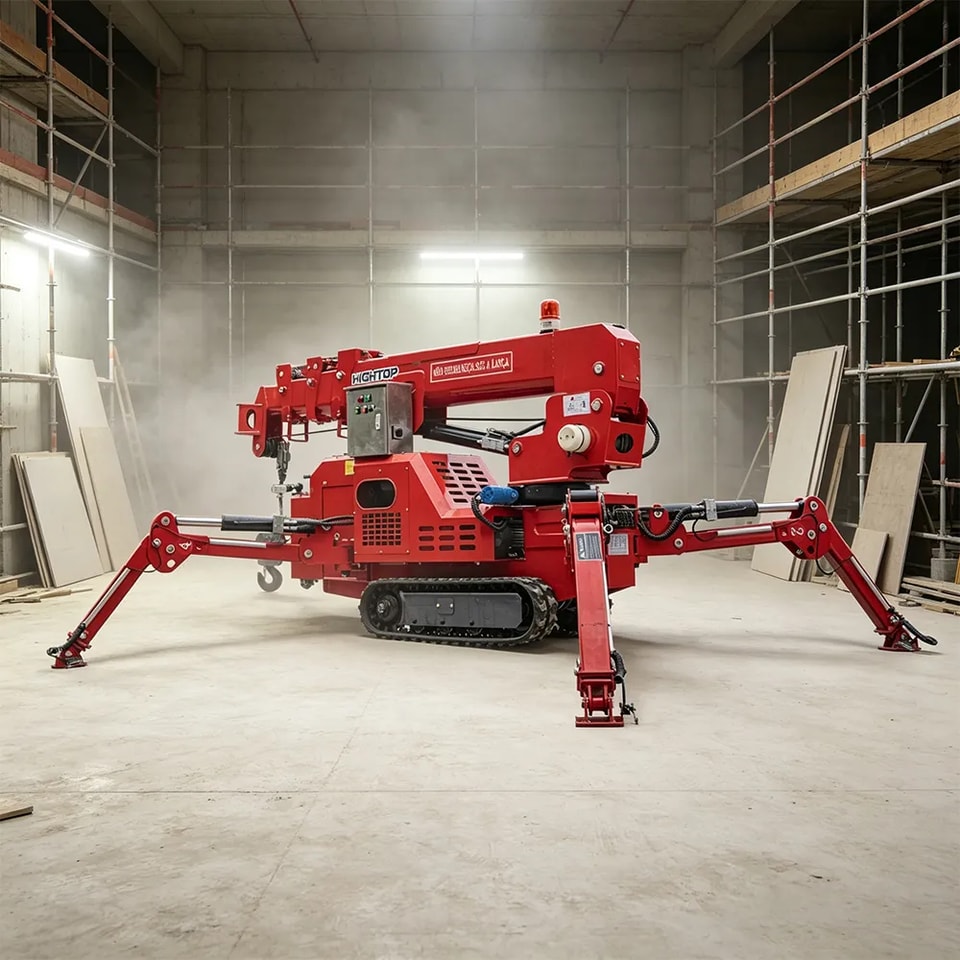

Many indoor installation and maintenance projects face the same challenge: limited access space, sensitive ground surfaces and difficult lifting positions. The HTSC2 spider crane provides a compact lifting solution for contractors working in locations where standard mobile cranes are difficult to deploy.

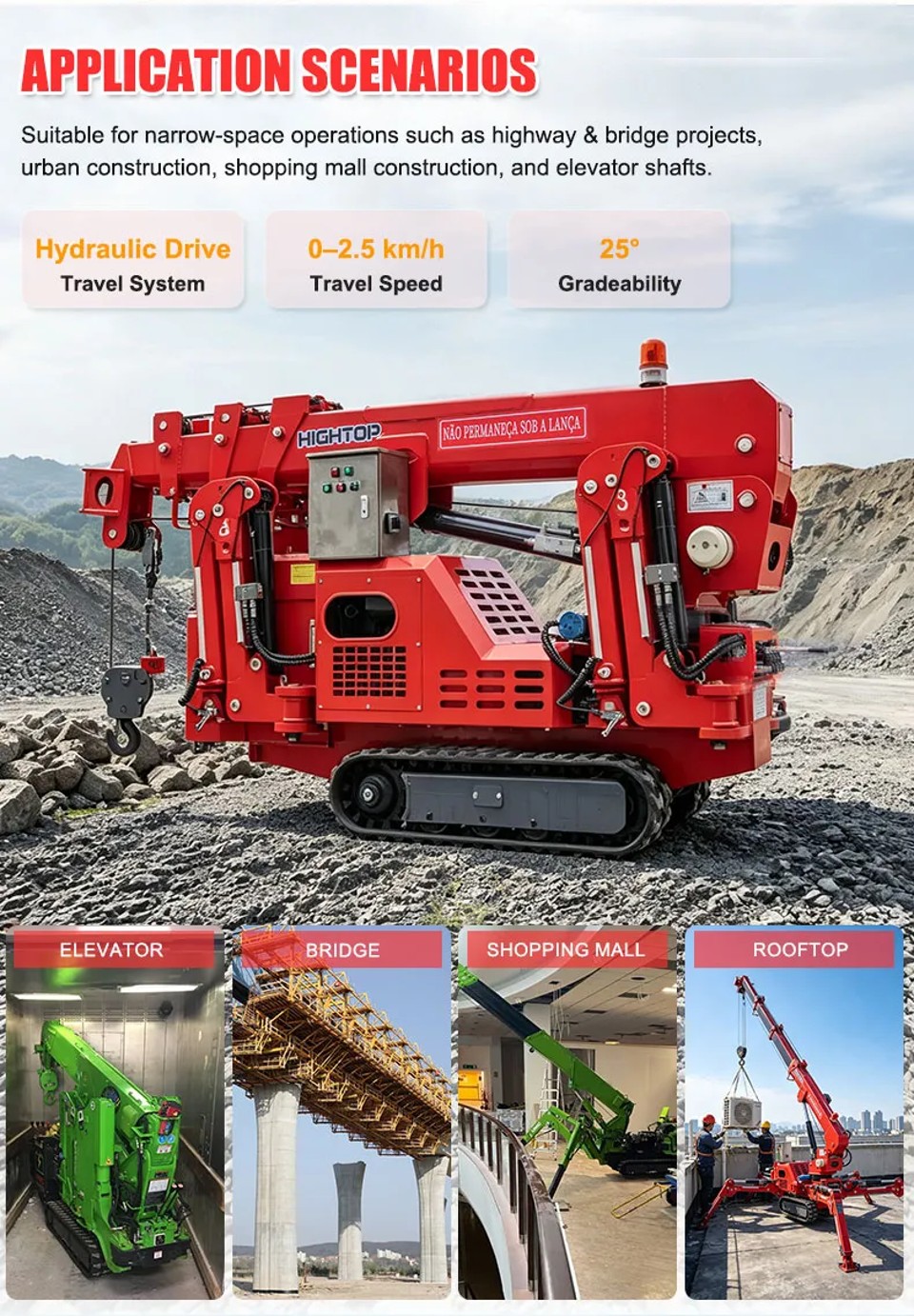

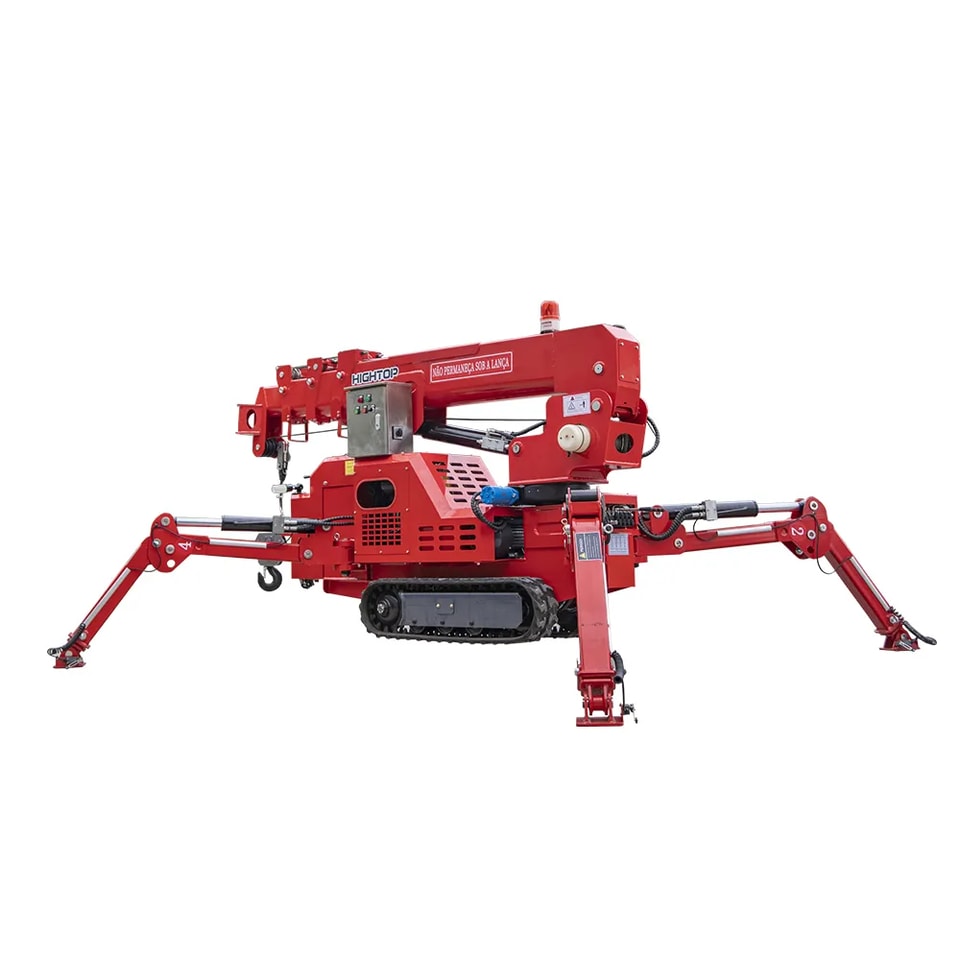

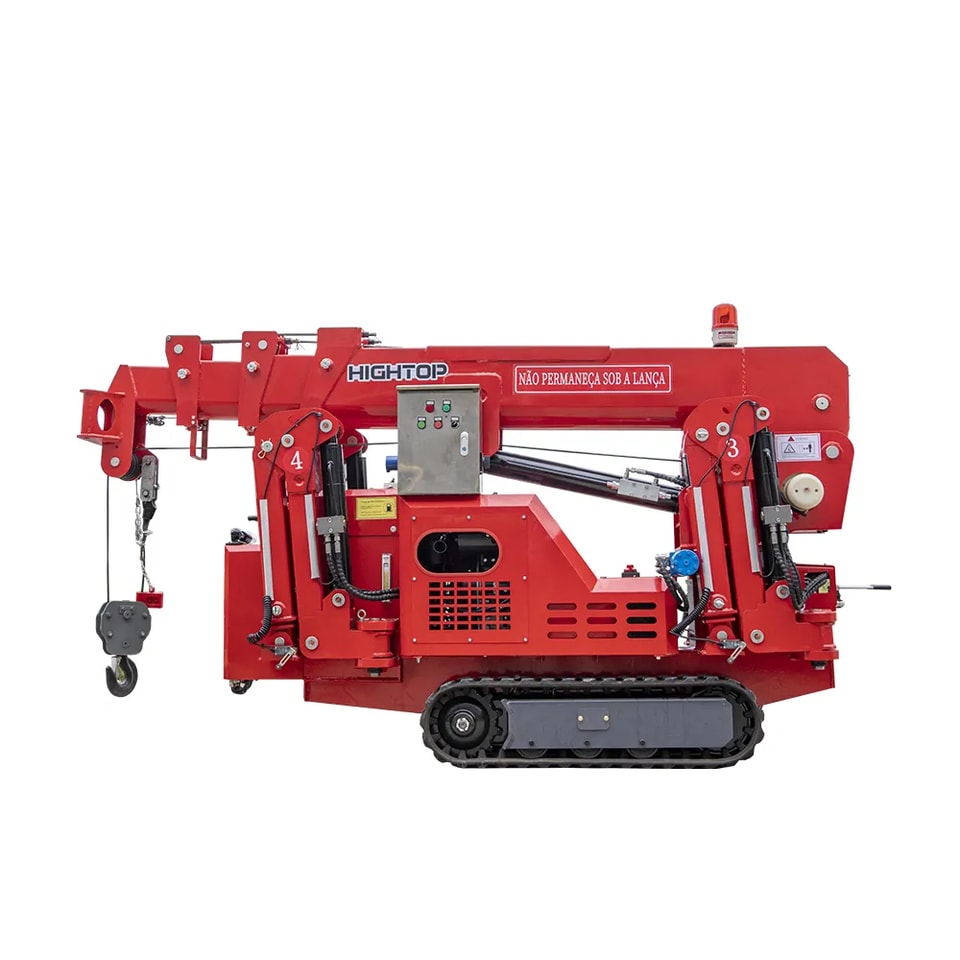

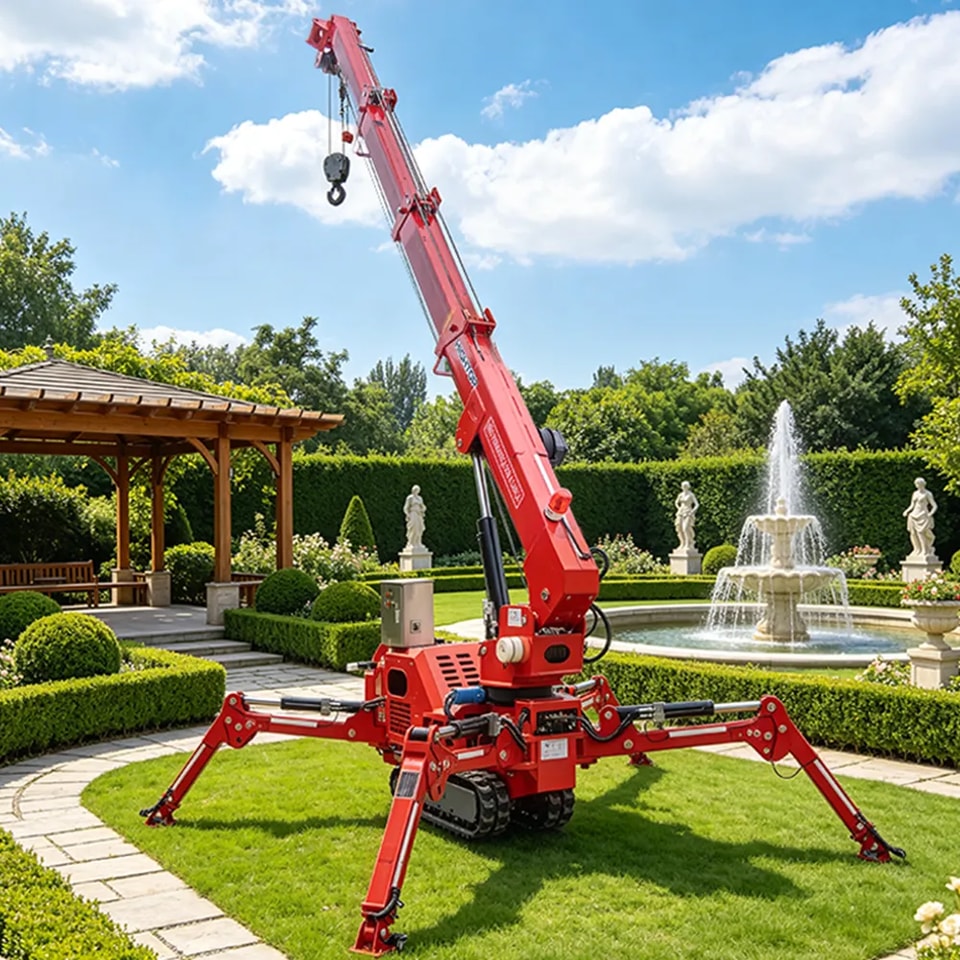

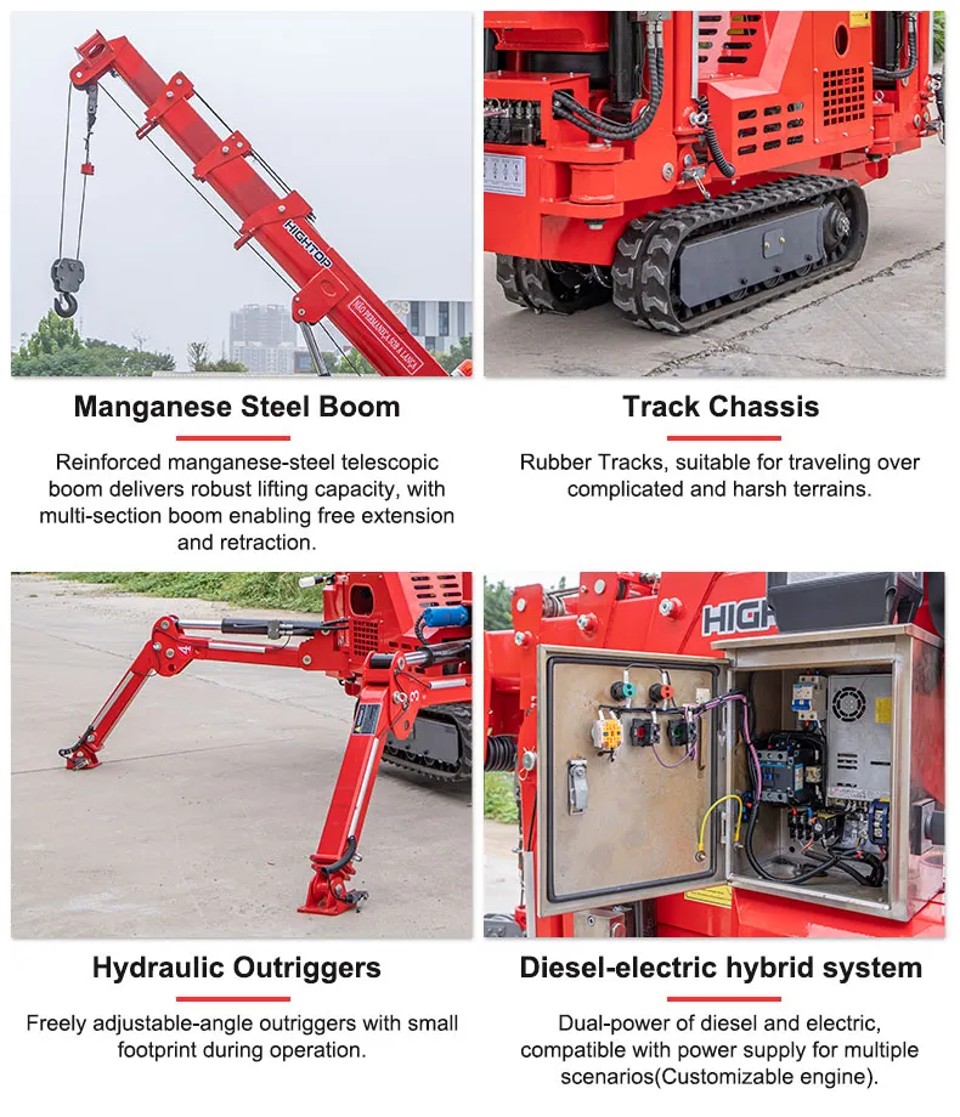

With a compact crawler structure and rubber tracks, this mini crawler crane can move through narrow working areas while reducing impact on finished floors and landscaped surfaces. It is suitable for glass installation, equipment positioning, steel structure assembly, HVAC installation and industrial maintenance projects.
Designed for Precision Lifting in Restricted Work Areas

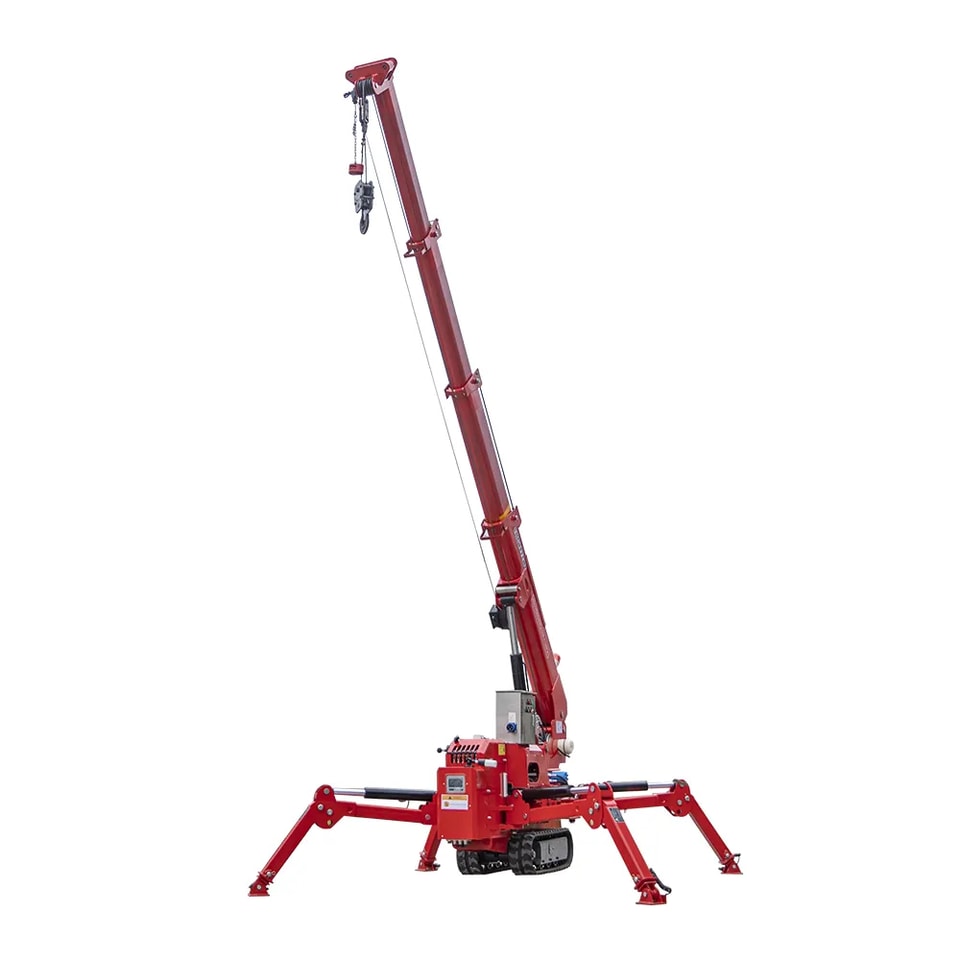

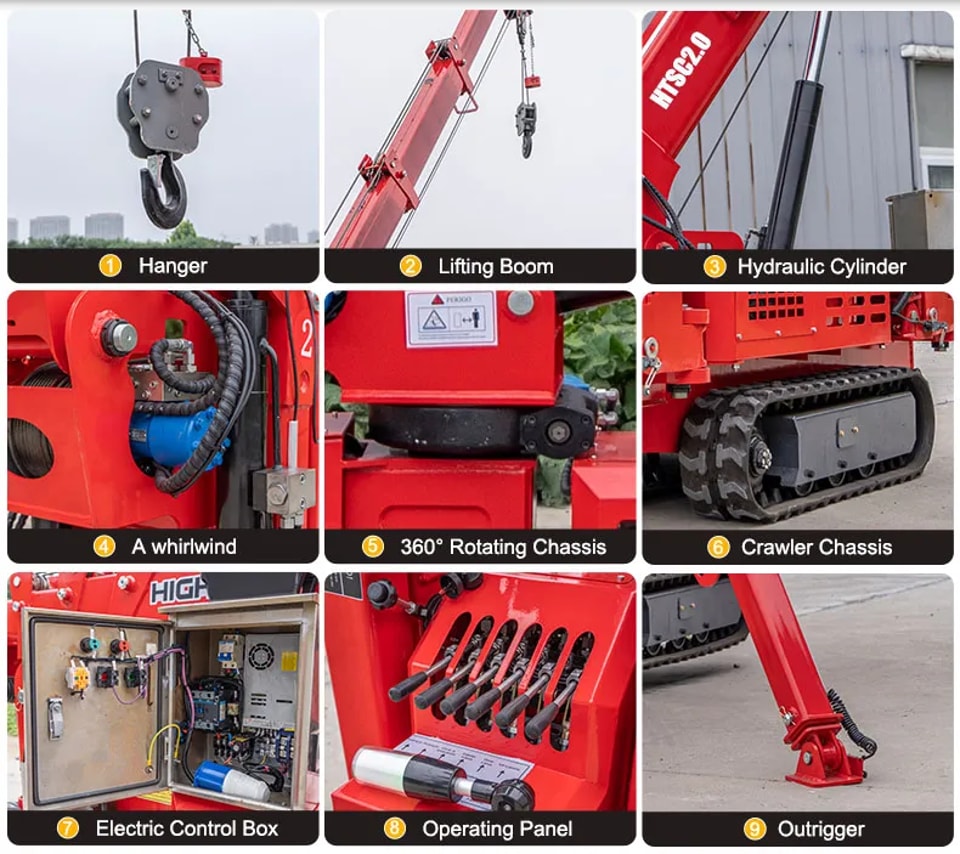

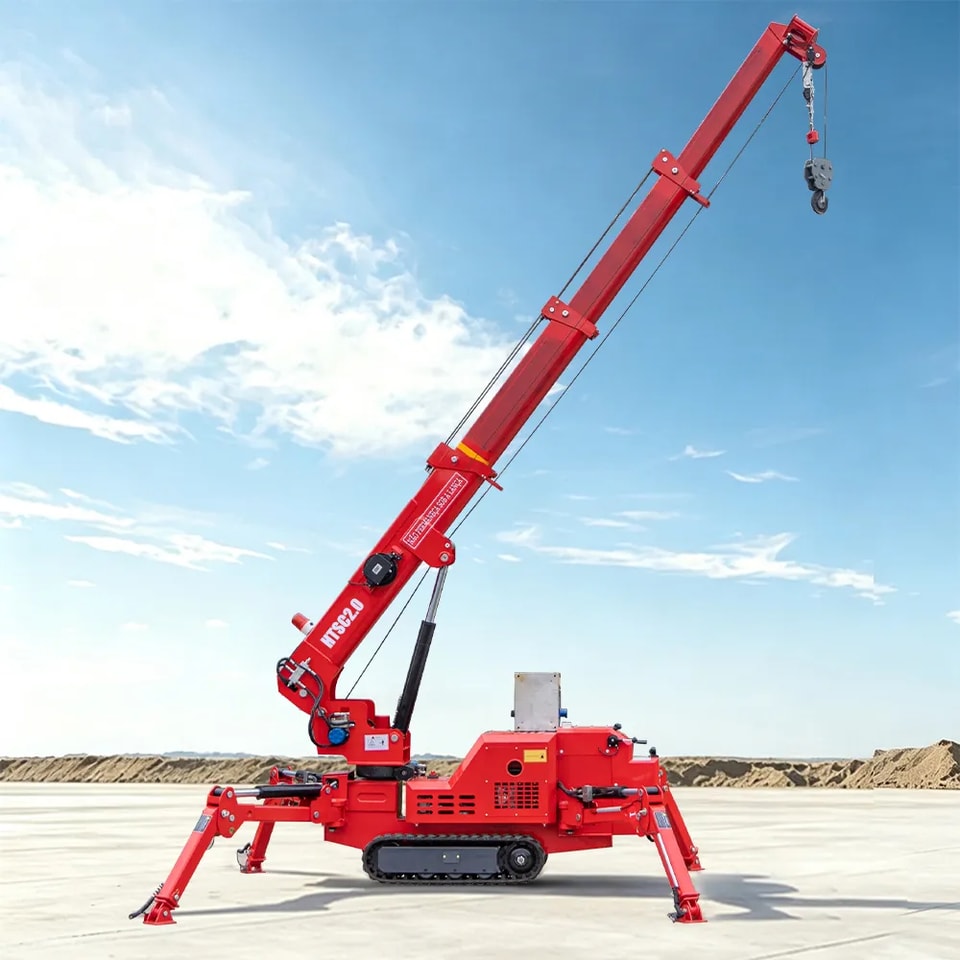

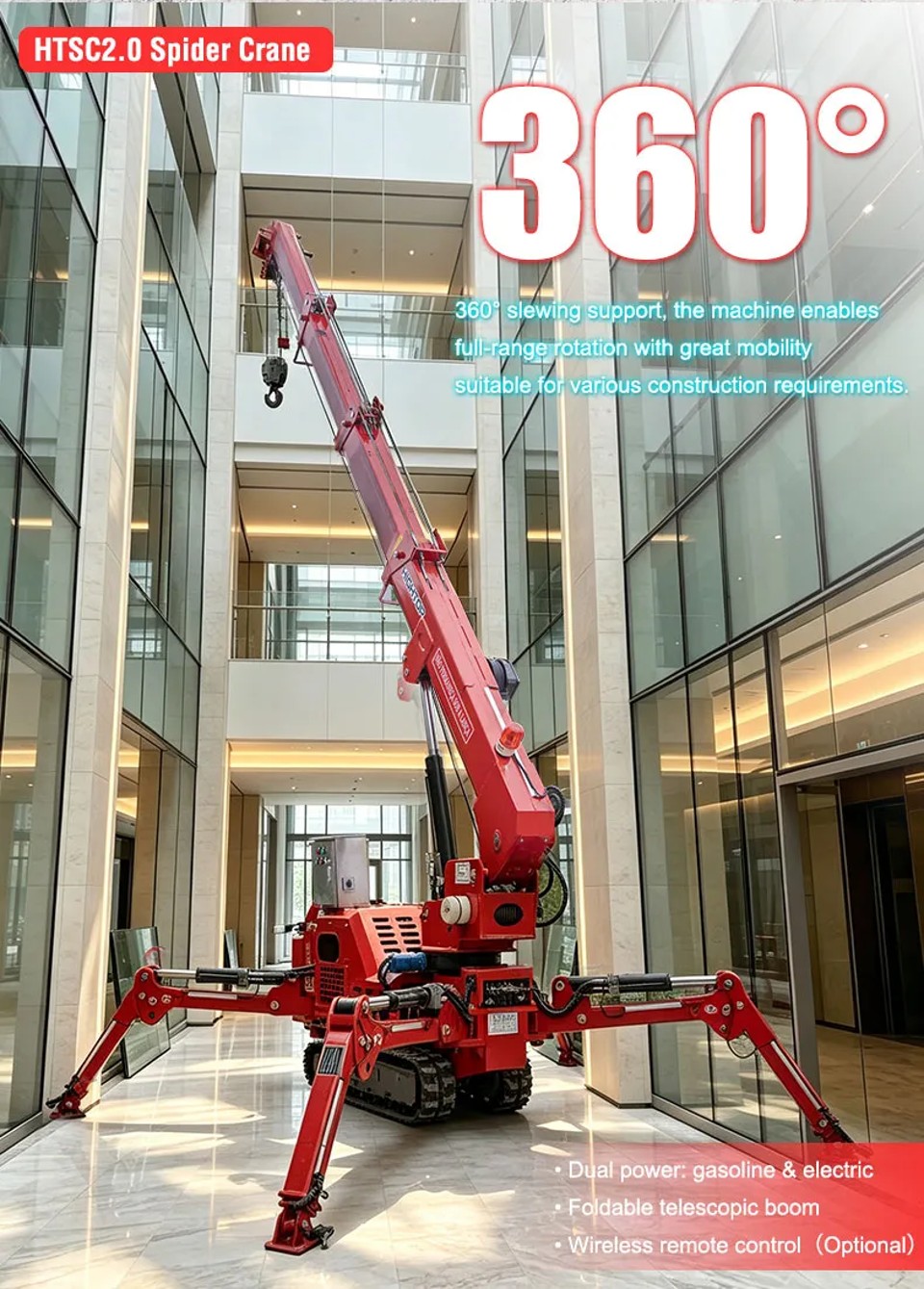

The HTSC2 features a five-section telescopic boom with a maximum lifting height of 16 meters and a working radius of 14.8 meters under specific lifting conditions. The continuous 360° slewing system allows operators to adjust load positions efficiently without frequent machine relocation.

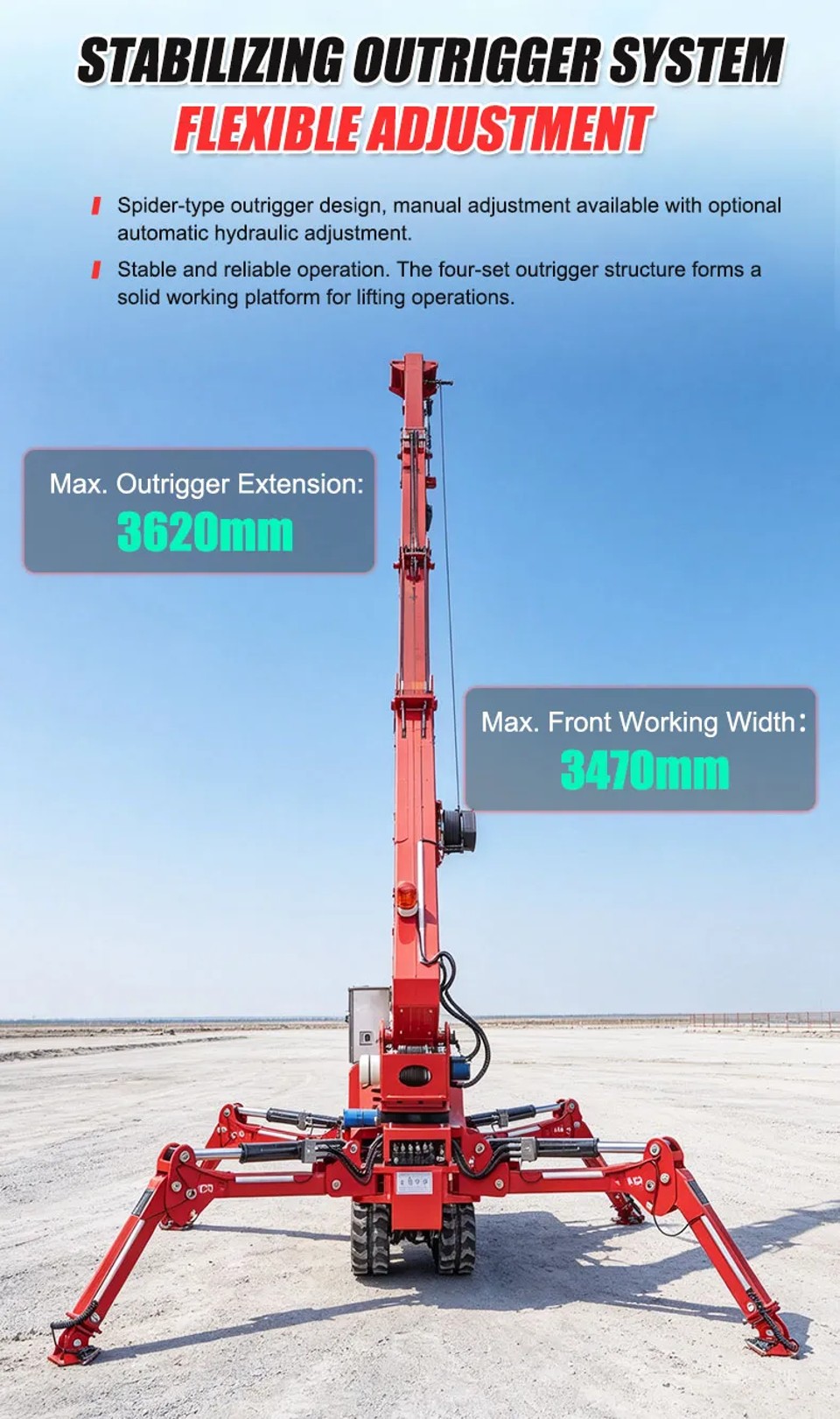

For contractors searching for a spider crane for indoor lifting or a compact crane for narrow access projects, the HTSC2 provides a practical balance between lifting capability and transportation convenience. The rubber crawler system improves stability on different surfaces, while wireless remote control supports safer operation when visibility around the load is limited.
Built for Long-Term Ownership and Export Support

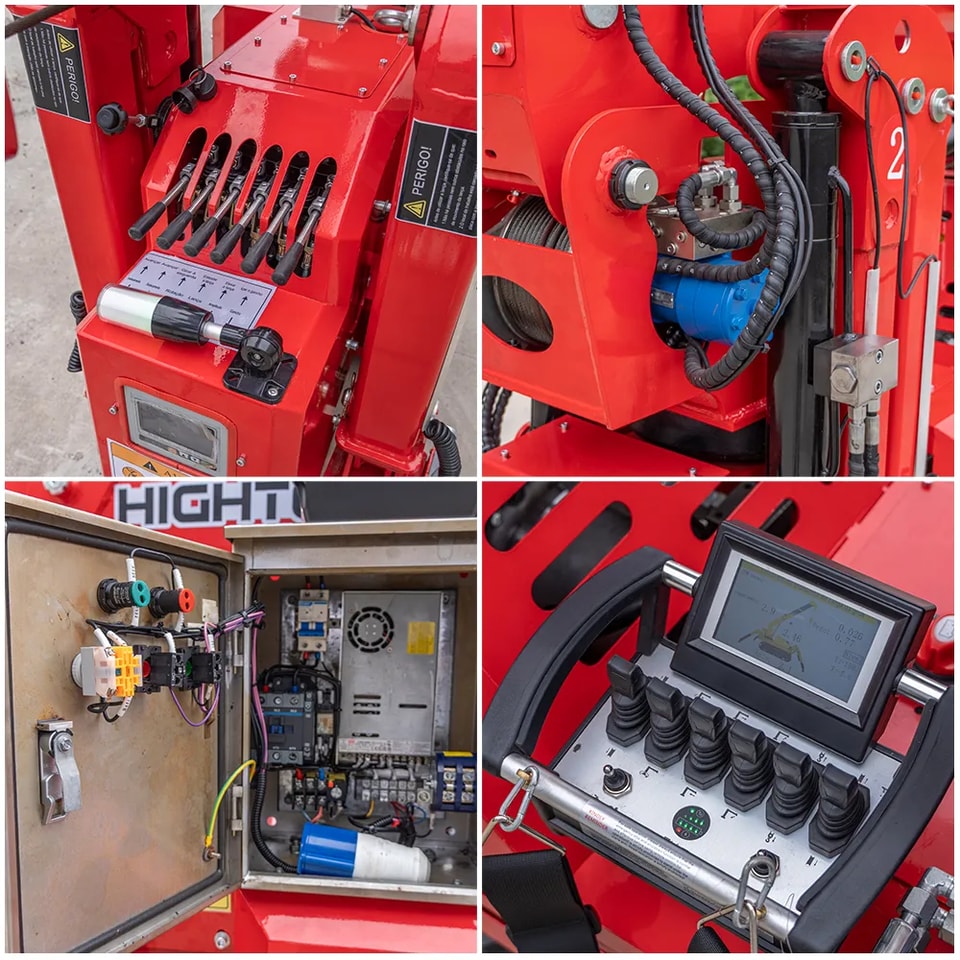

The machine is powered by a Yunnei YN25GB diesel engine with 37kW output, supporting daily lifting operations in construction and industrial environments. Standard configuration includes manual operation and wireless remote control modes, allowing users to select the most suitable operating method for different job conditions.
For overseas contractors, rental companies and equipment distributors, support options include spare parts supply, attachment configuration guidance, shipping assistance and dealer cooperation opportunities.
| Parameter | Specification |
|---|---|
| Product Model | HTSC2 Spider Crane |
| Machine Type | Crawler Spider Crane |
| Maximum Lifting Height | 16m |
| Maximum Working Radius | 14.8m @ 0.5T |
| Maximum Lift Below Ground | 65m |
| Overall Dimensions | 4650 × 1400 × 2160mm |
| Machine Weight | 6800kg |
| Boom Type | Five-section hexagonal telescopic boom |
| Boom Length | 4m–15.6m |
| Boom Telescoping Time | 40s |
| Boom Luffing Range | 0–78° |
| Slewing Range | 0–360° continuous rotation |
| Hoisting Speed | Low speed: 6m/min; High speed: 11m/min |
| Wire Rope | Ø10mm × 70m |
| Remote Control Distance | 100m |
| Remote Response Time | 40ms |
| Track Type | Rubber crawler |
| Travel Speed | Low gear: 0–0.8km/h; High gear: 0–2km/h |
| Gradeability | 20° |
| Engine Model | Yunnei YN25GB |
| Engine Power | 37kW |
| Displacement | 2.5L |
| Fuel Tank Capacity | 40L |
| Starting Method | Electric start |
Frequently Asked Questions
Can the HTSC2 spider crane work inside buildings?
Yes. The compact crawler design and rubber tracks make the HTSC2 suitable for indoor lifting applications such as equipment installation, glass handling, HVAC projects and industrial maintenance where access space is limited.
What type of companies usually purchase this mini crawler crane?
The HTSC2 is commonly suitable for small contractors, equipment rental companies, installation teams and industrial service providers that need flexible lifting equipment for specialized projects.
How does the spider crane move in narrow working areas?
The rubber crawler system allows the crane to travel through restricted spaces while providing stable support during lifting operations. Its compact width helps access locations where larger cranes cannot enter.
Does the HTSC2 support remote operation?
Yes. The crane includes wireless remote control capability with a control distance of up to 100 meters, helping operators manage lifting tasks from a safer position.
What maintenance support is available for overseas buyers?
Export customers can request spare parts support, operation guidance, attachment recommendations and shipping assistance according to their market requirements.
