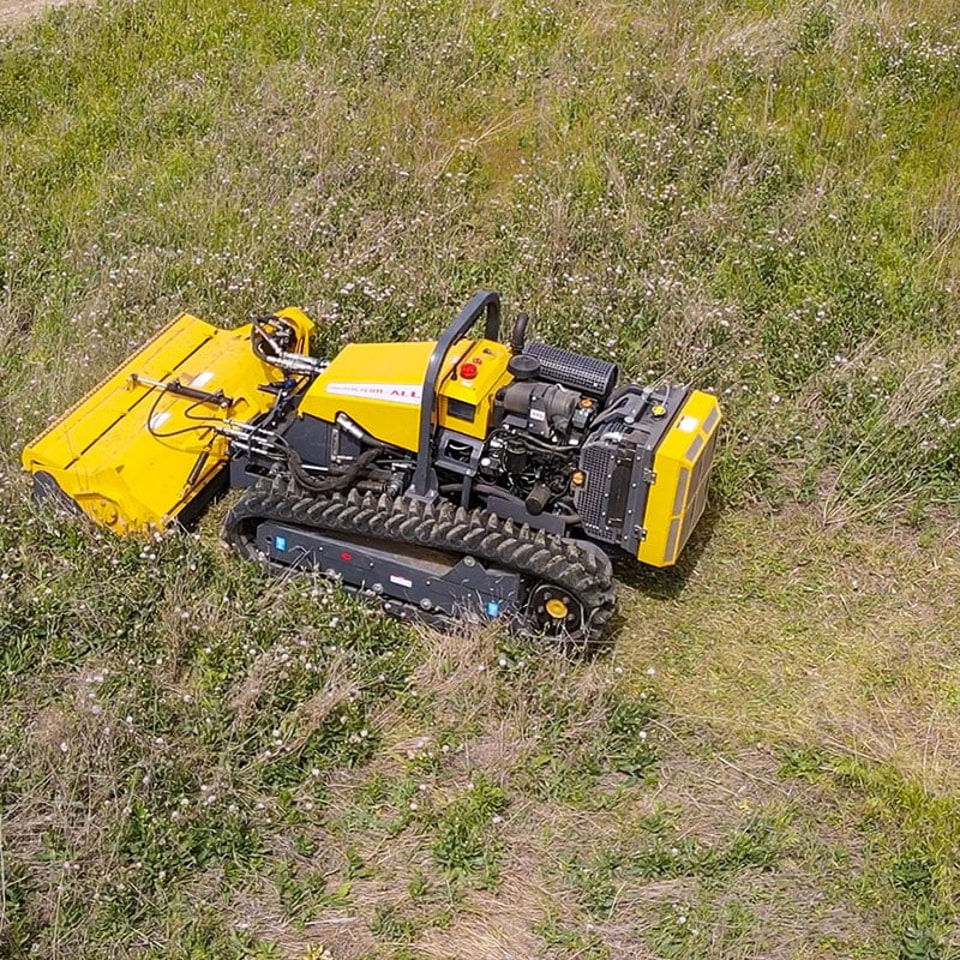

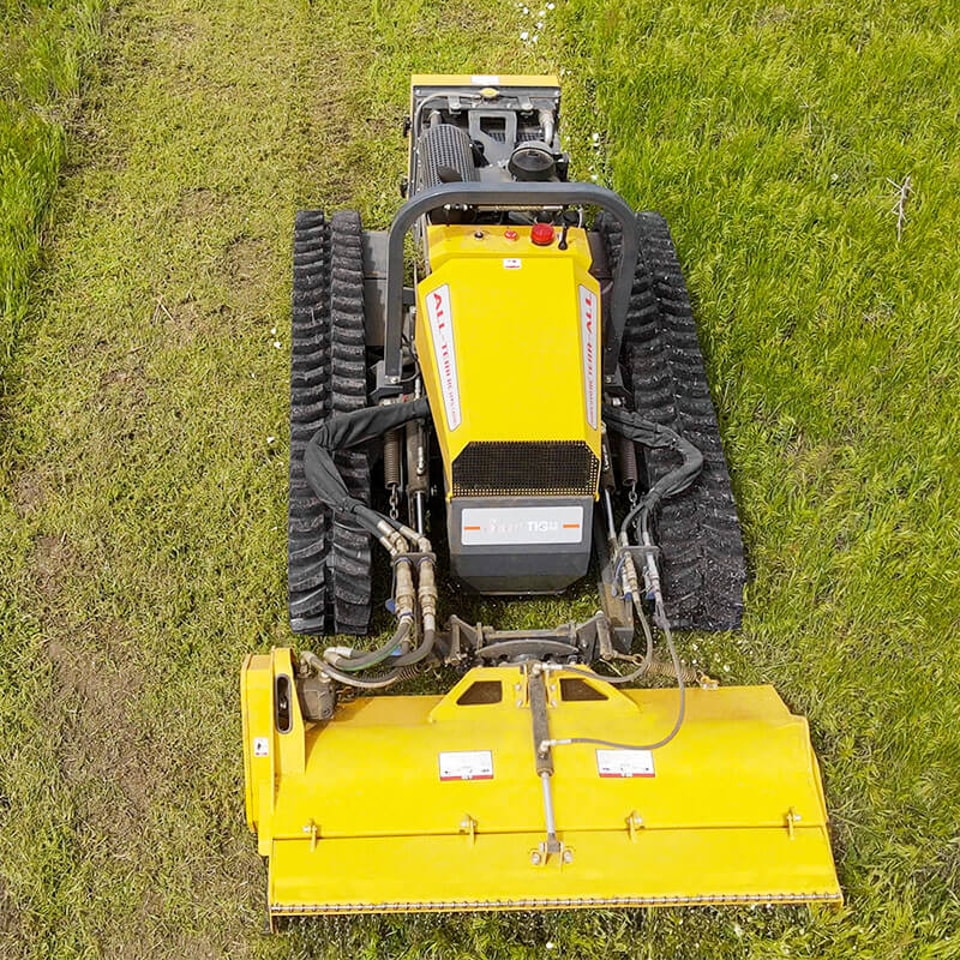

Fully hydraulic remote control platform-Smart tiger 40
Industrial 40HP Hydraulic Remote Mower: The Smart Tiger 40 large remote control lawn mower features a 28.2KW Yanmar diesel engine, France Poclain dual-drive motors, and an Italy hydraulic system. Conquer slopes up to 60°. 40HP & 60° Slope Yanmar diesel engine, omnidirectional tilt. 8.6km/h Max Speed Two-speed travel with stepless regulation. 200m Remote Range Full remote control with angle protection. Industrial Hydraulics Italy pump & France Poclain motors.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Instruction
Specification
Images
Instruction

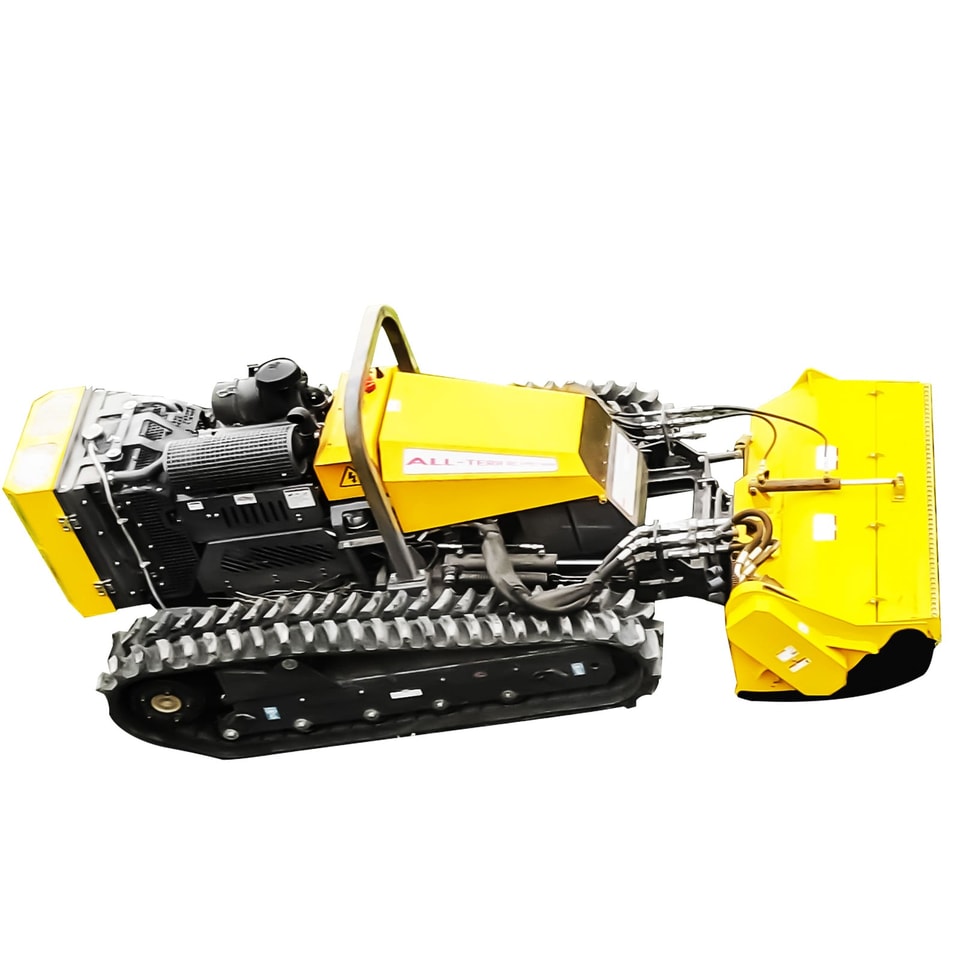

Smart Tiger 40 – Fully Hydraulic Remote Control Platform for Extreme Terrain
1. Power & Drivetrain
- 40HP Yanmar Diesel Engine: 3-cylinder, 4-stroke, water-cooled direct injection, 28.2KW power, max speed <3200 RPM.
- Italy Imported Hydraulic System: Electric proportional servo system with original imported hydraulic pump.
- France Poclain Dual-Drive Travel Motors: Two-speed system with autonomous and remote parking. Low speed 4km/h, high speed 8.6km/h. All low speeds support 0-to-max stepless regulation.
2. Remote Control & Safety Intelligence
- 200m Remote Control Distance: 433MHz frequency (adjustable for export). All machine functions are remote-operated.
- Dual-Layer Safety System: Emergency stop button on machine + program emergency stop (auto shutdown if no signal for 2 seconds).
- Over-Angle Protection (＞55°): Angle sensor triggers alarm when exceeding limit angle, preventing rollover.
- Active Slope Correction (Optional): Tilt sensor + brake correction for easier control on steep slopes.
- Equipment Health Monitoring: Real-time display of water temp, oil temp, oil level, speed, and blockages via receiver screen.
3. Maneuverability & Cutting Performance
- Omnidirectional Max Tilt 55-60°: Supports extreme slopes with reinforced rubber tracks for grip.
- 360° In-Situ Steering: Dual-joystick operation supports in-place turns, fine-tuning turns, and optional cruise control.
- Stepless Mower Speed Control: 0-3000 RPM with forward/reverse stepless regulation. Remote controls mower speed and flip direction.
- Joystick Direction Switching: Change forward/backward direction via knob – no need to turn the machine around.
- Electronic Parking Knob: Spot parking with electronic handbrake function to prevent misoperation.
4. Durability & Maintenance Features
- Bidirectional Fan System (Optional): Supports regular and mandatory cleaning of the cooler cover.
- Customized Oil-Water Integrated Cooling: Effective heat dissipation in any operating environment.
- Premium Hydraulic Components: Continental hydraulic hoses, Spain quick couplings, fuel tank filters, solenoid valves.
- Software Upgradable: Reserved port allows customers to experience latest features.

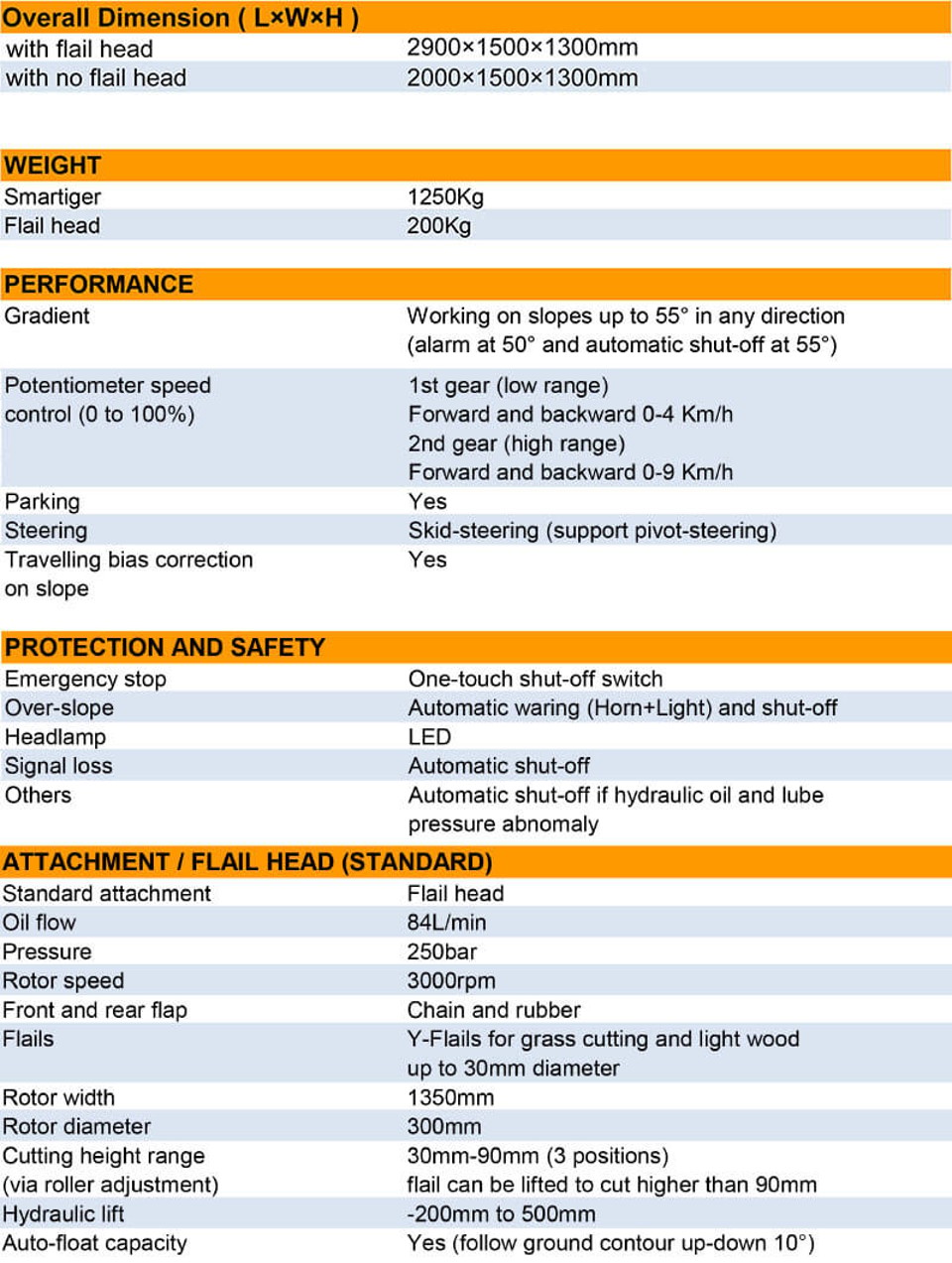

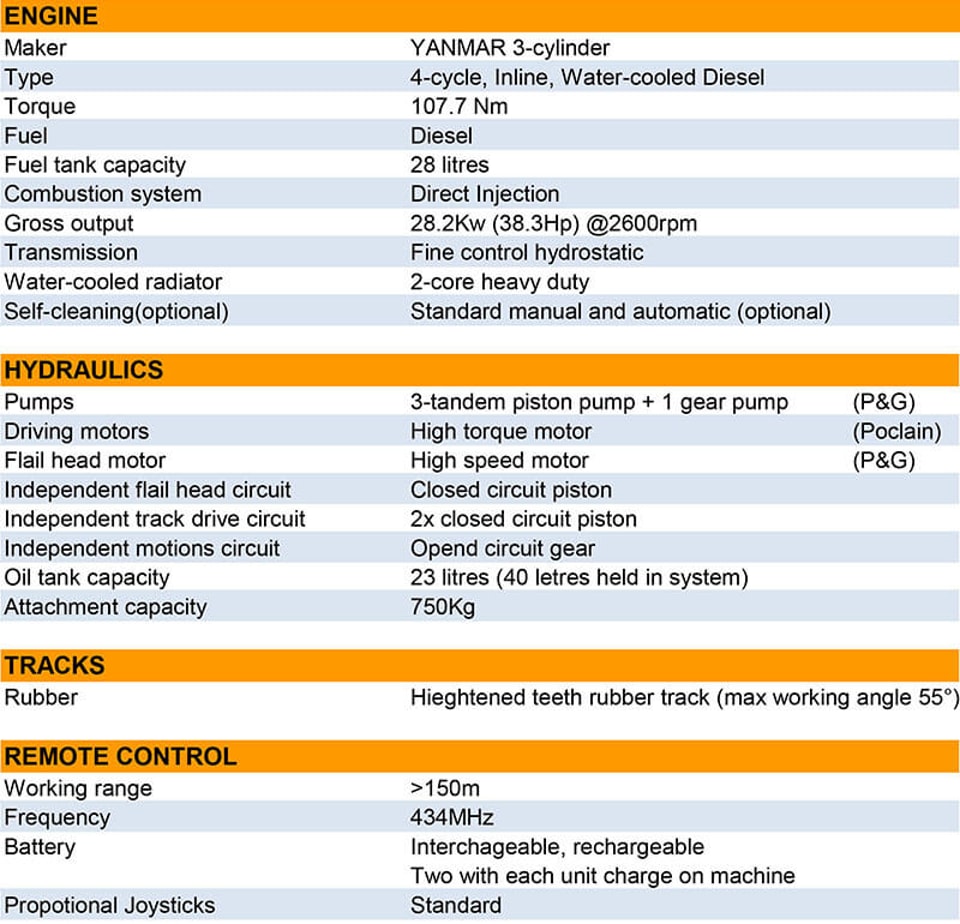

Specification
