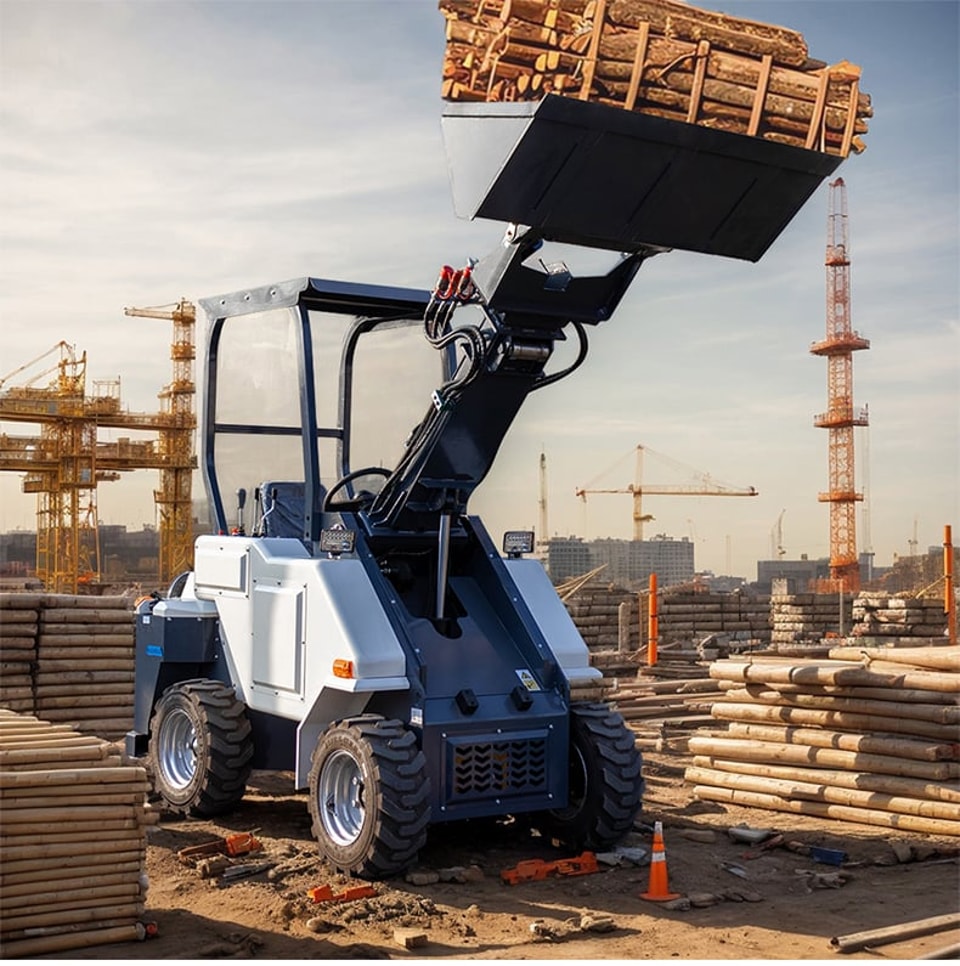

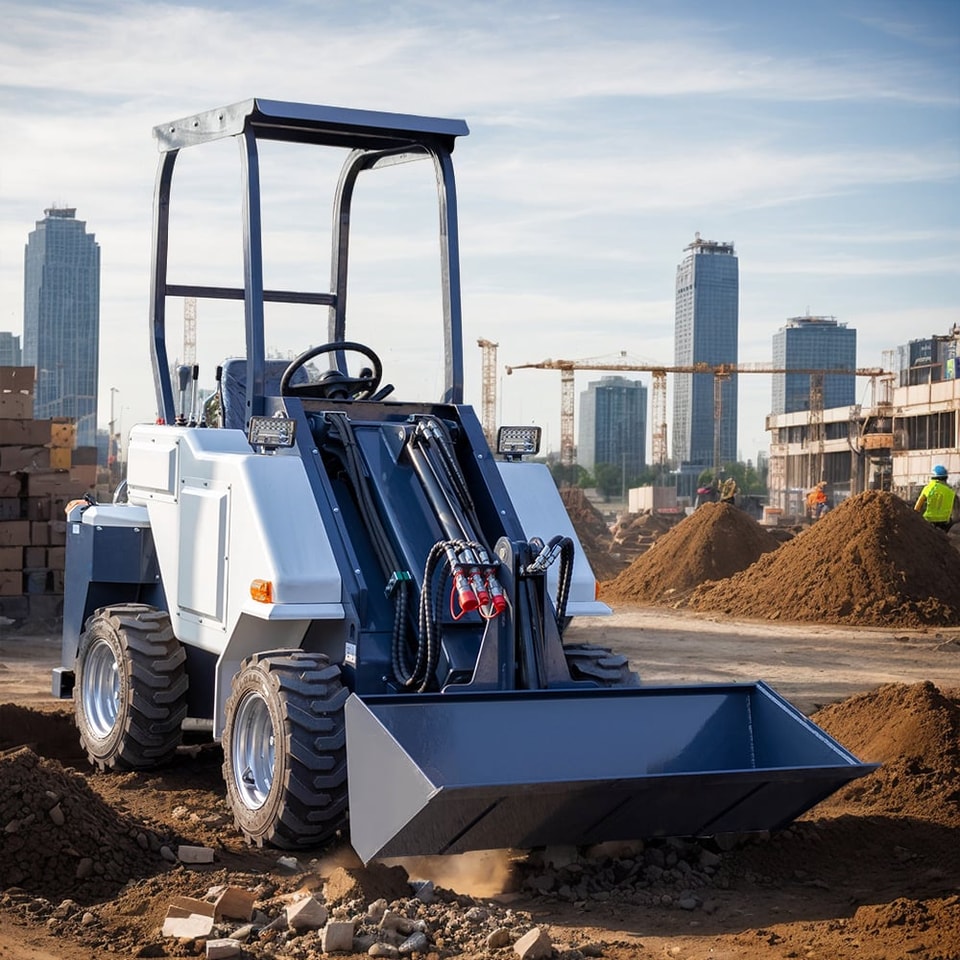

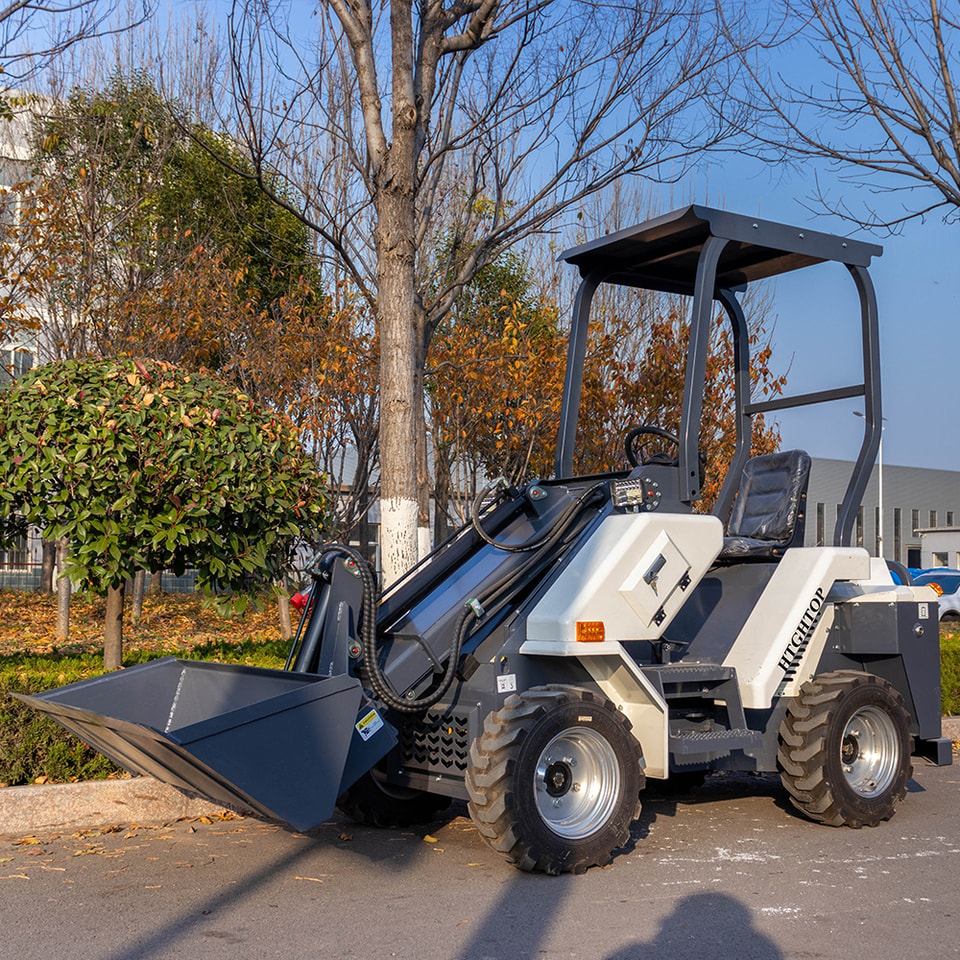

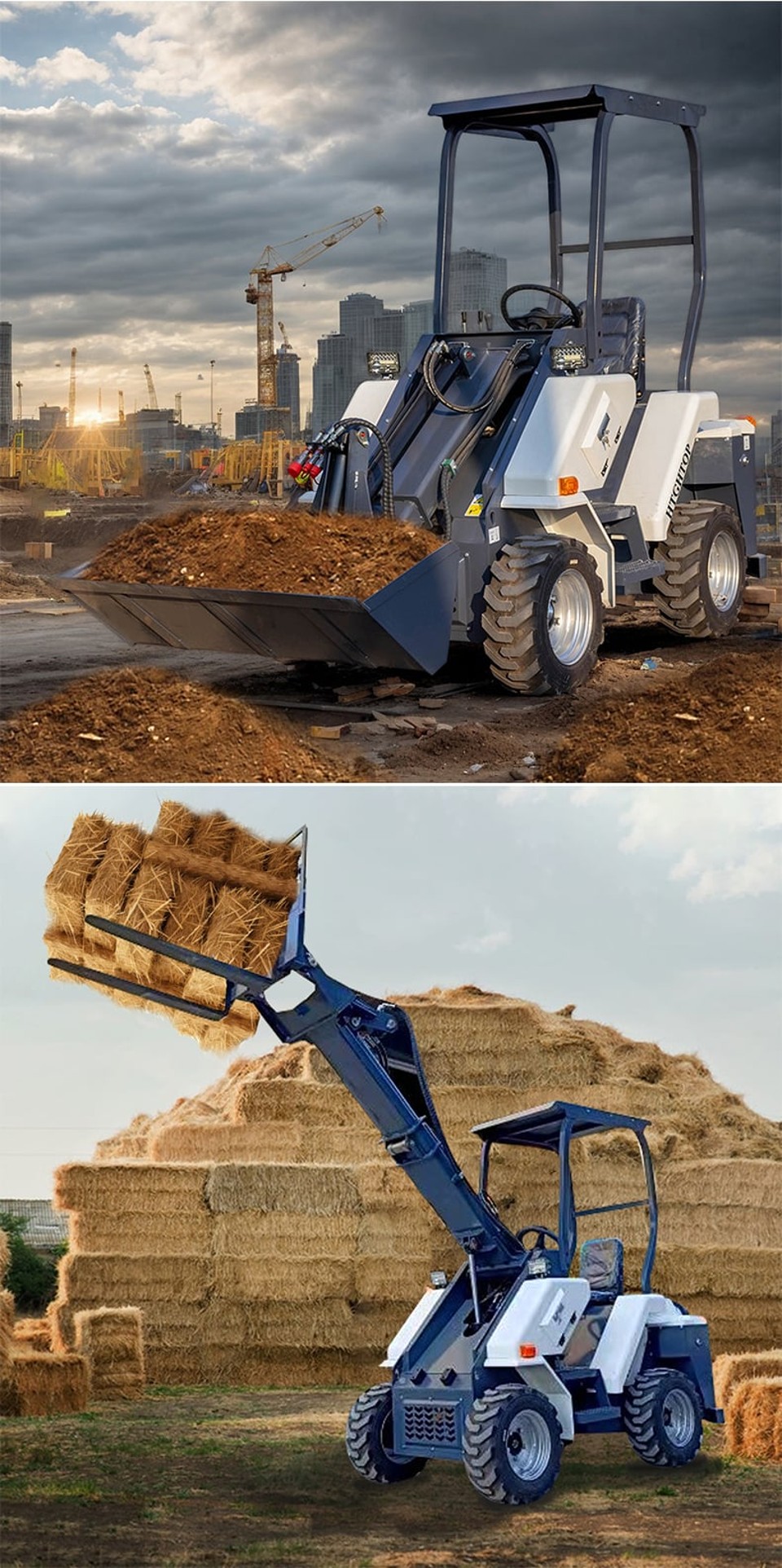

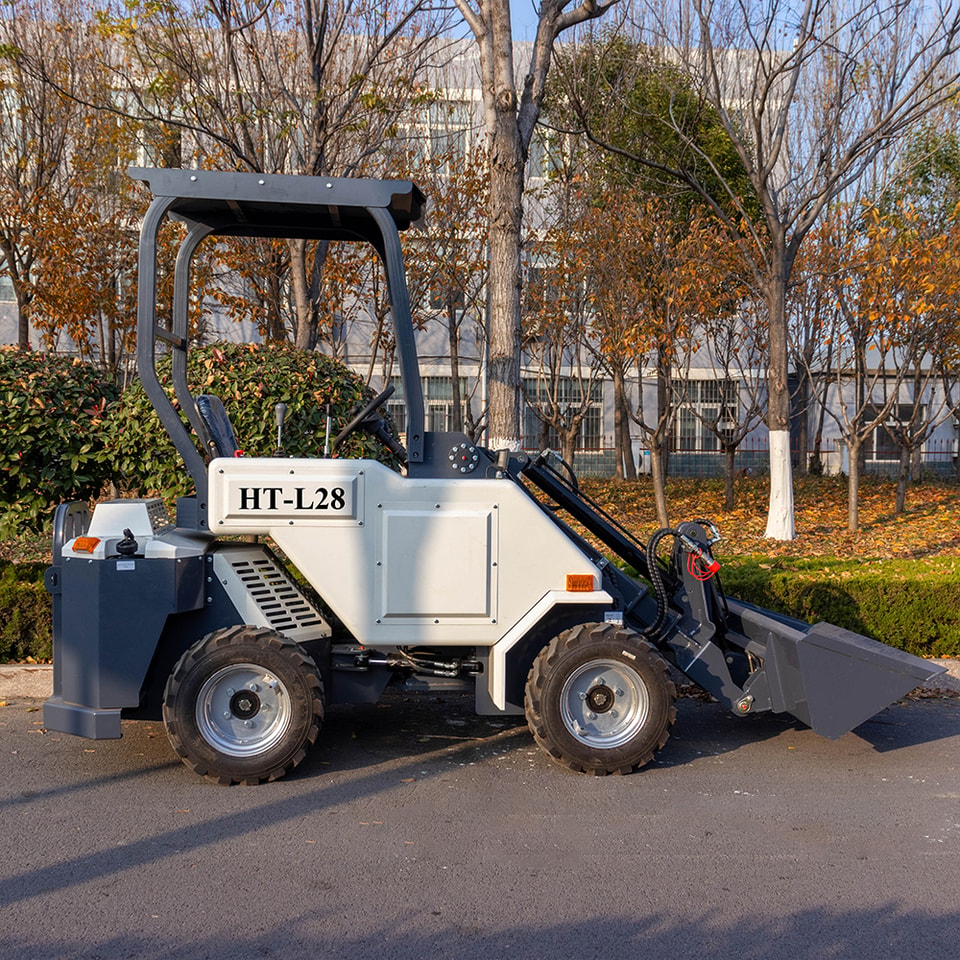

HT-L28 Telescopic Boom Mini Loader
1.Telescopic Arm
Increased loading and unloading efficiency.Expansion of the working area.Adaptation to a wide range of working conditions.Precise control of loading and unloading positions.Improvement of work precision.Multi-functional use.Reduced transportation costs and footprint
2.Telescopic arm With hydraulic lifting, can ajust the arm length and height.
High precision high density Strong bearing capacity.Durable and reliable, able to adapt to complex working environments.

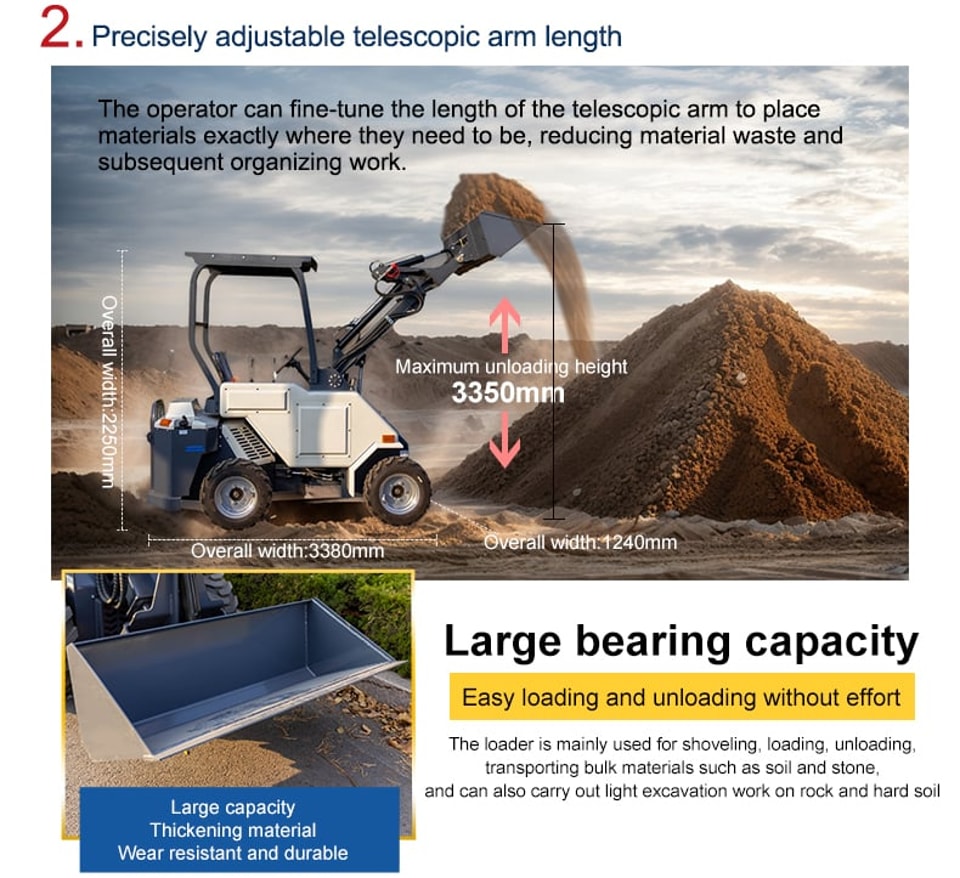

3.Precisely adjustable telescopic arm length.
The operator can fine-tune the length of the telescopic arm to placematerials exactly where they need to be, reducing material waste andsubsequent organizing work.
4.Large bearing capacity
Easy loading and unloading without effort.
The loader is mainly used for shoveling, loading, unloadingtransporing bulk materials such as soil and stone.and can also carry out light excavation work on rock and hard soil.

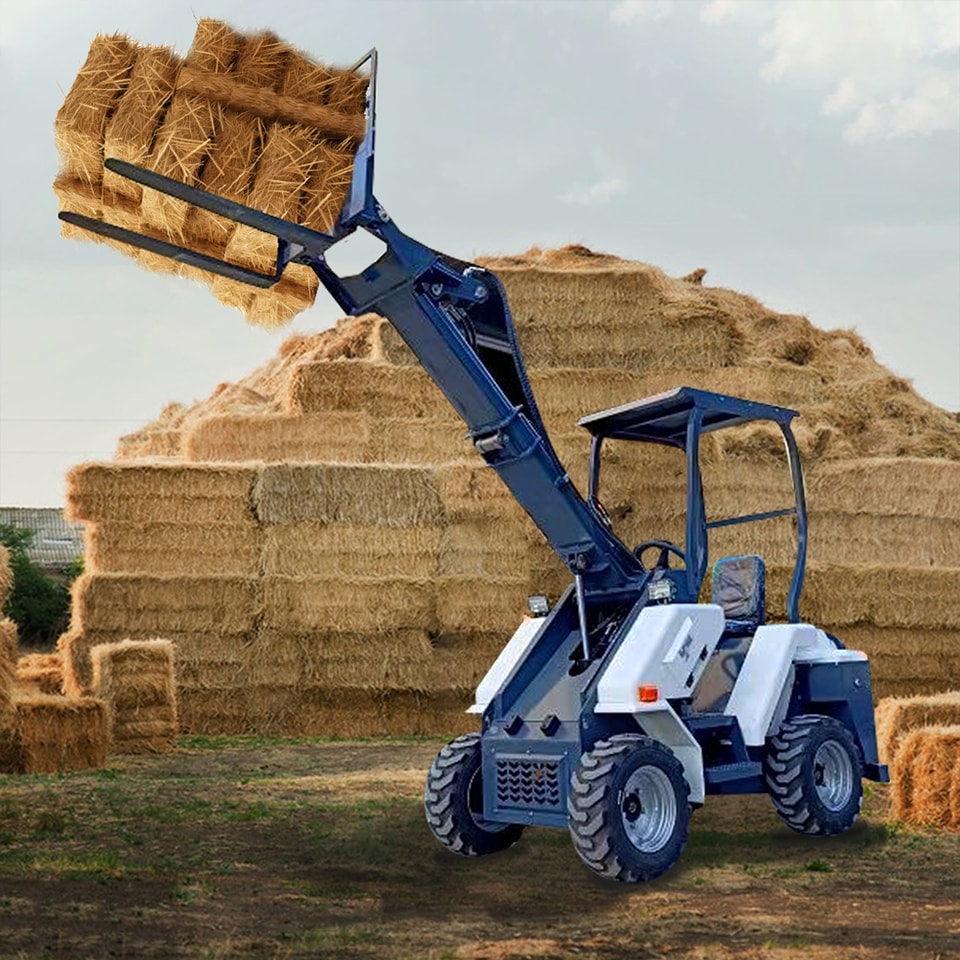

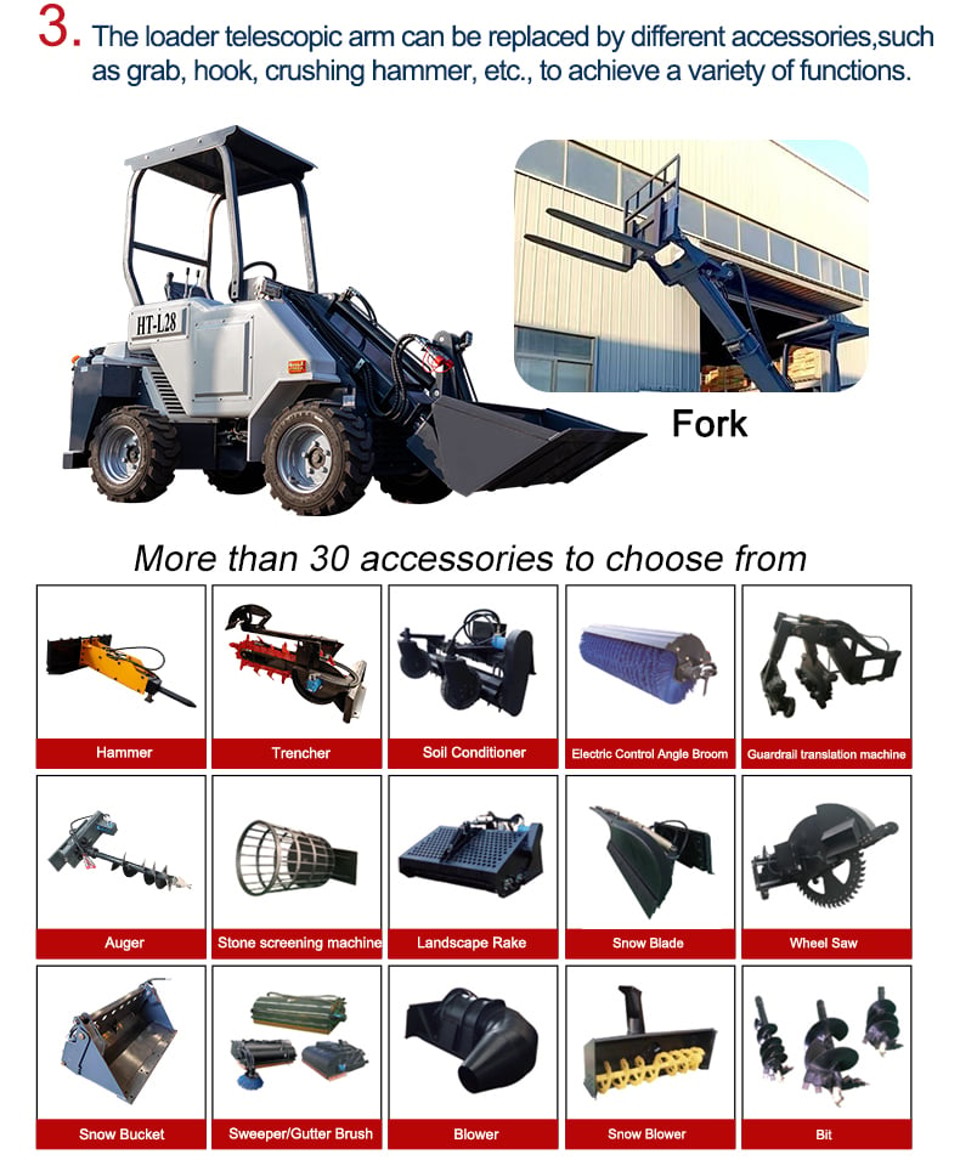

5.The loader telescopic arm can be replaced by different accessores,suchas grab, hook, crushing hammer, etc., to achieve a variety of functions.More than 30 accessories to choose from
6.Engineering off-road tireApplicable to various scenarios.shoveling，unloading，loading，
Item | Metric system |
Model | HT-L28 |
Max lifting height: | 3350mm |
Maximum pin height | 2680mm |
Dumping Height of main boom( dumping angle 45°) | 2000mm |
Dumping reach of main boom | 1240mm |
Max. Loading capacity of main boom | 800kg |
Lifting height of small boom | 2680mm |
Dumping height of small boom (dumping angle 45°) | 2300mm |
Max. Loading capacity of small boom | 600kg |
Overall length (bucket on ground position) | 3380mm |
Overall width | 1240mm |
Overall Height | 2250mm |
Wheel base | 1360mm |
Tread | 20mm |
Min. Ground clearance | 190mm |
Turning radius: | 2600mm |
Engine | |
Engine model | Rato739/Briggs&Stratton3864/Honda GX690/Kubota D1105 |
Engine type | Gasoline engine,Air cooled/Diesel oil,Water cooled |
Rated power | 23HP/18.2kw |
Rated speed (rpm) | 3600/3000 |
Max. Torque | 71.5 |
Speed at Max. Torque(rpm) | 2200 |
Number of cylinders | 2/3 |
displacement | 739/627/690/1123ML |
Rated fuel consumption | 240g/kw·h |
Hydraulic system | |
System Pressure (Mpa) | 25MPa |
Pump Pressure(Mpa) | 31MPa |
Driving | 4 wheel drive |
Steering type | All hydraulic steering |
Tyre type | |
Tire model | 23*8.5-12 |
Brake drum diameter | 300 |
Performance parameter | |
Carrying capacity | 500Kg |
Bucket volume | 0.3m³ |
Max. Speed | 12 Km/h |
Net weight: | 1446/1552Kg |
Working weight: | 2000KG |
Gradeability | 30% |
