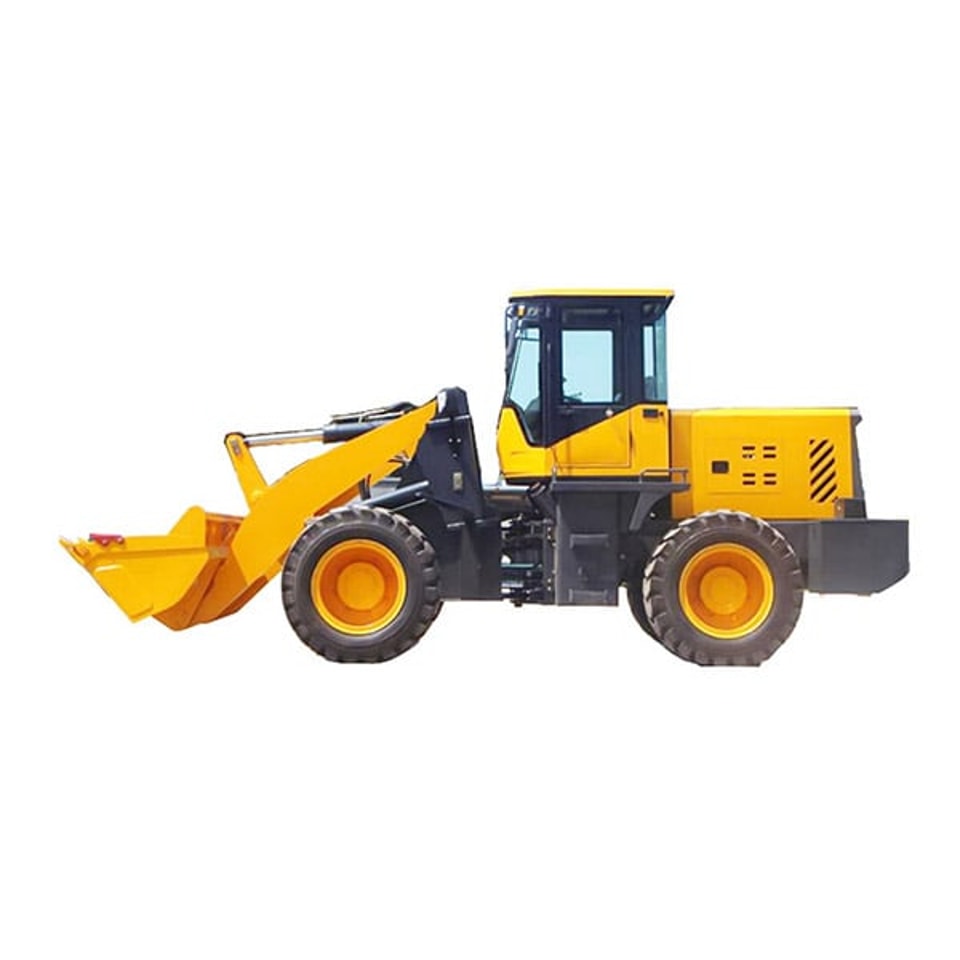

HT920 Wheel Loader
Shandong Hightop Machinery Co., LTD. is one of the toppest HT920 Wheel Loader in China.During these years of exporting , Shandong Hightop Machinery Co., LTD. now has rich experience in the worldwide markets
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Specification
Specification
HT920 Wheel Loader Parameter
Wheel loader is widely used in highway, railway, hydropower, construction, port, mine and other construction works of earth and stone construction machinery, which is mainly used for loading and unloading soil, gravel, lime, coal and other bulk materials,it can also make light shovel digging operation of ore, hard soil, etc. with the advantages of fast operating speed, high efficiency, good mobility and easy operation.
Model | HT-920 |
Machine weight | 3350kg |
Rated load weight | 1500kg |
Bucket | 0.6m3 |
Engine | Yunnei 490 |
Power | 37KWr/min |
Rated speed | 2200mm |
Dump height | 3150mm |
Dump reach | 700mm |
Tread | 1090mm |
Wheelbase | 1870mm |
Minimum Ground Clearance | 250mm |
Tyre | 20.5-16 |
Structure | Front hinge and rear sway |
Overall dimension(LxWxH) | 5800*1700*2650mm |
