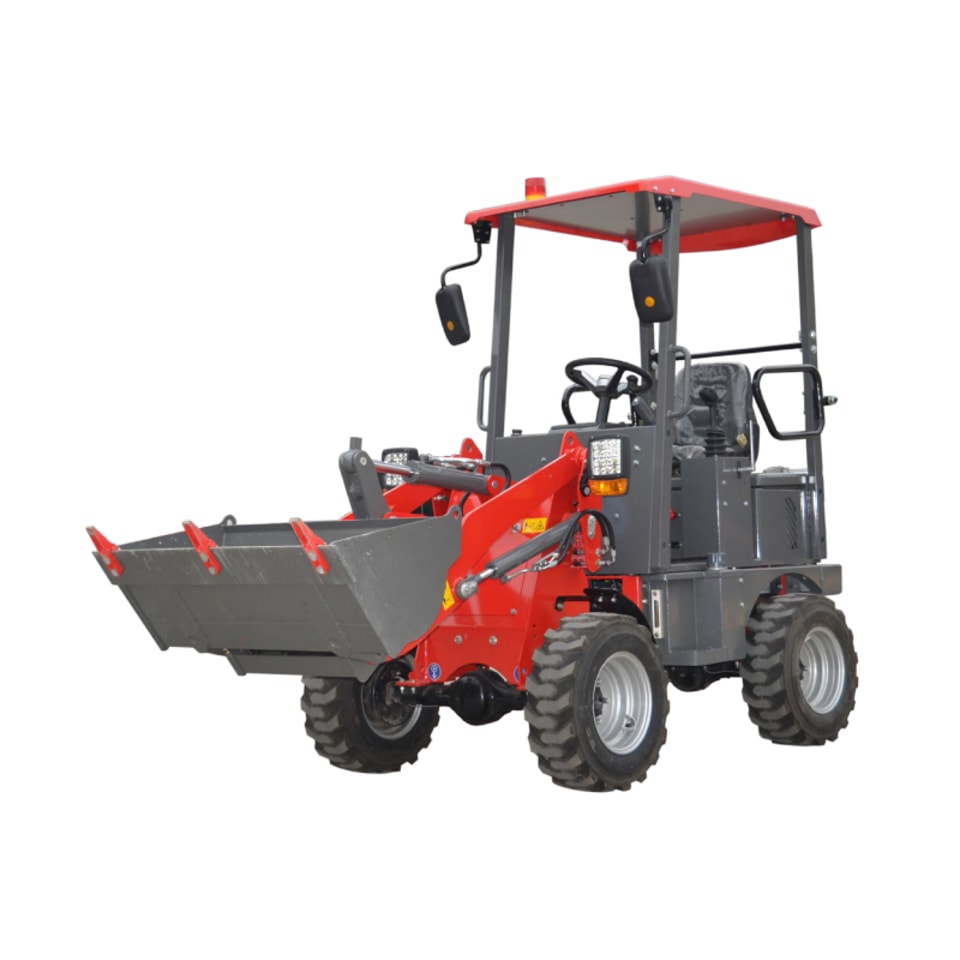

HT150E Electric Mini Loader
Beautiful appearance, compact structure,standard forklift operator console, high safety factor, five 120 maintenance-free batteries, equipped with intelligent 60V DC controller, brake power off, under voltage protection, over current protection, overload protection, speed limit protection, Under speed protection, front and rear axle differential protection. The above protection functions make the motor more energy efficient and durable, and can work continuously for six hours.
Model:HT150E | |
Overall dimension (L*W*H) | 2700 * 1160 * 2175 mm |
Total weight | 1260 kg |
Loadingbucket capacity | 0.3m3 |
Max. Lifting height | 2520mm |
Max. Dump height | 1738 mm |
Max. Dump distance | 700 mm |
Rated load capacity | 500kg |
Turning radius | 3100 mm |
Travel speed | 15km/h |
Min. Ground clearance | 200 mm |
Wheel tread | 1150 mm |
120 Battery x5 | 60V（DC） |
Boom lifting time | 5—7s |
