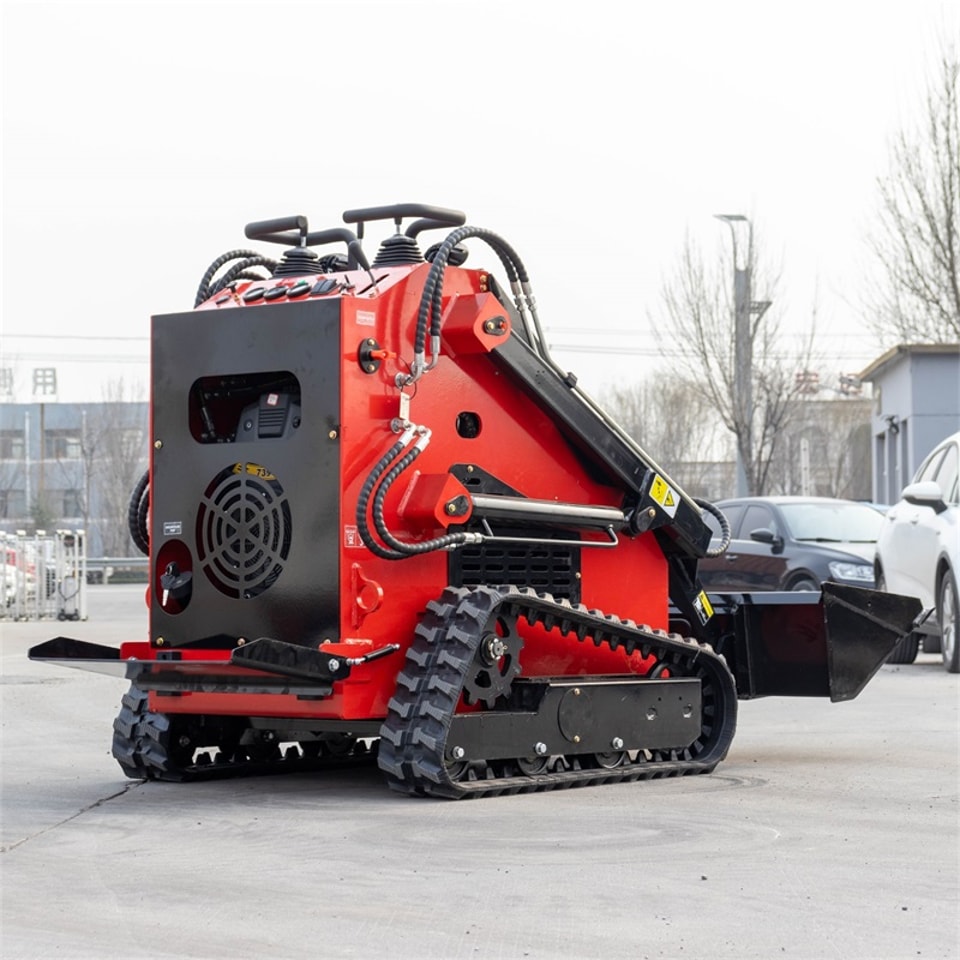

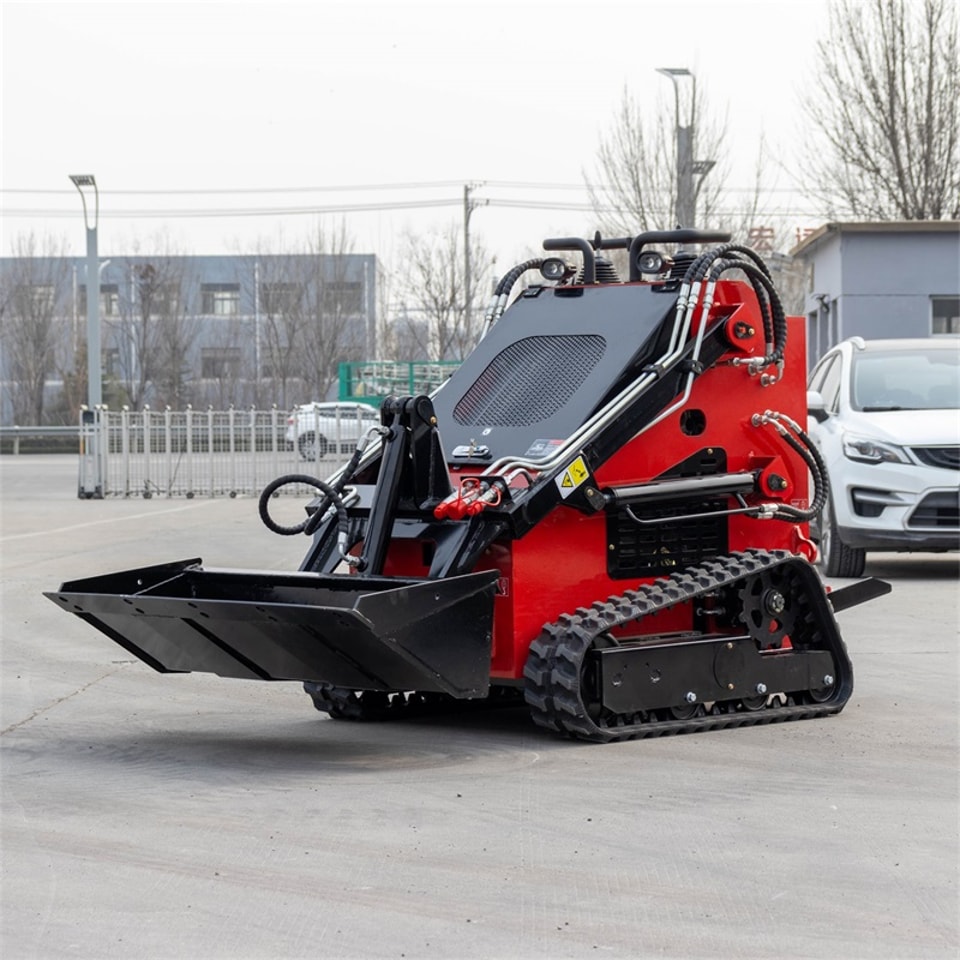

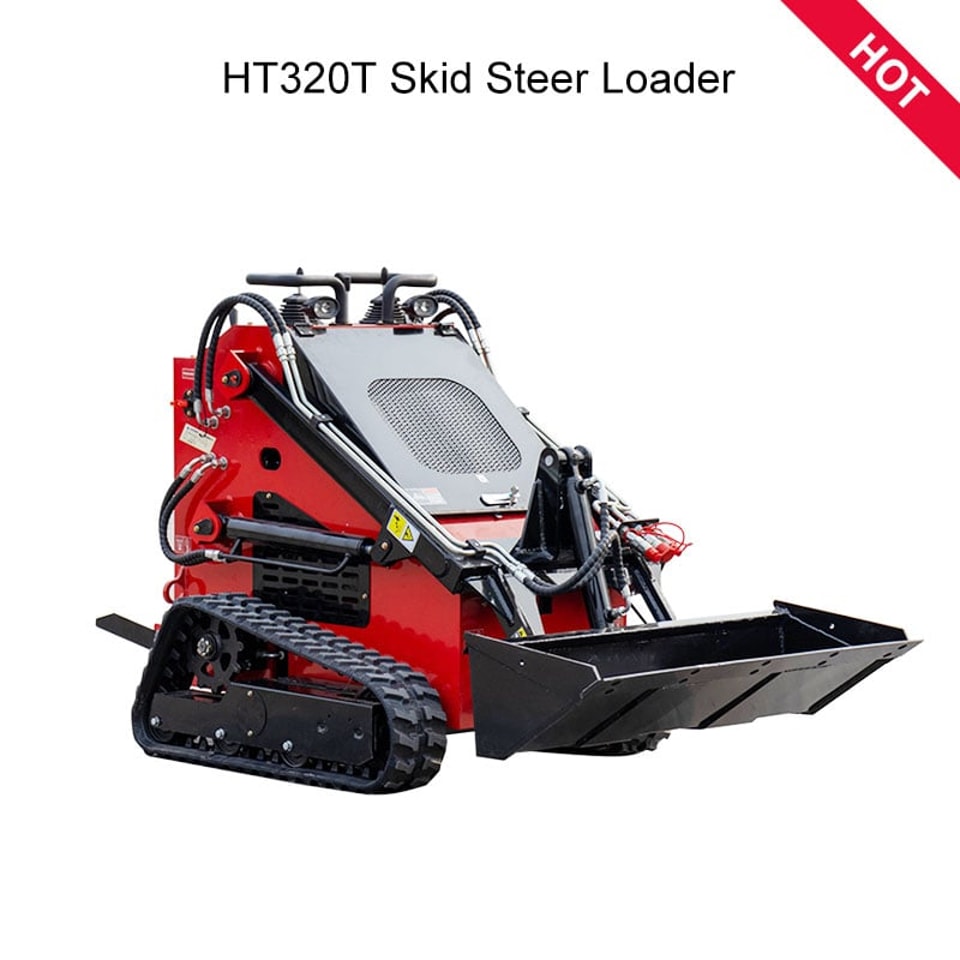

HT320T Skid Steer Loader
The HT320T compact track loader for sale is a high-efficiency mini loader engineered for superior traction and stability in narrow or challenging job sites. Featuring a universal quick-attach system and rubber tracks, this skid steer loader for sale ensures minimal ground disturbance and high ROI for rental fleets. Inquire today for exclusive factory-direct wholesale pricing and professional B2B support on this industrial-grade crawler.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Product Introduction
Technical Parameter
Product Introduction
RATO ENGINE
This skid steer loader is powered by a premium RATO R420 engine with up to 9.7KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.

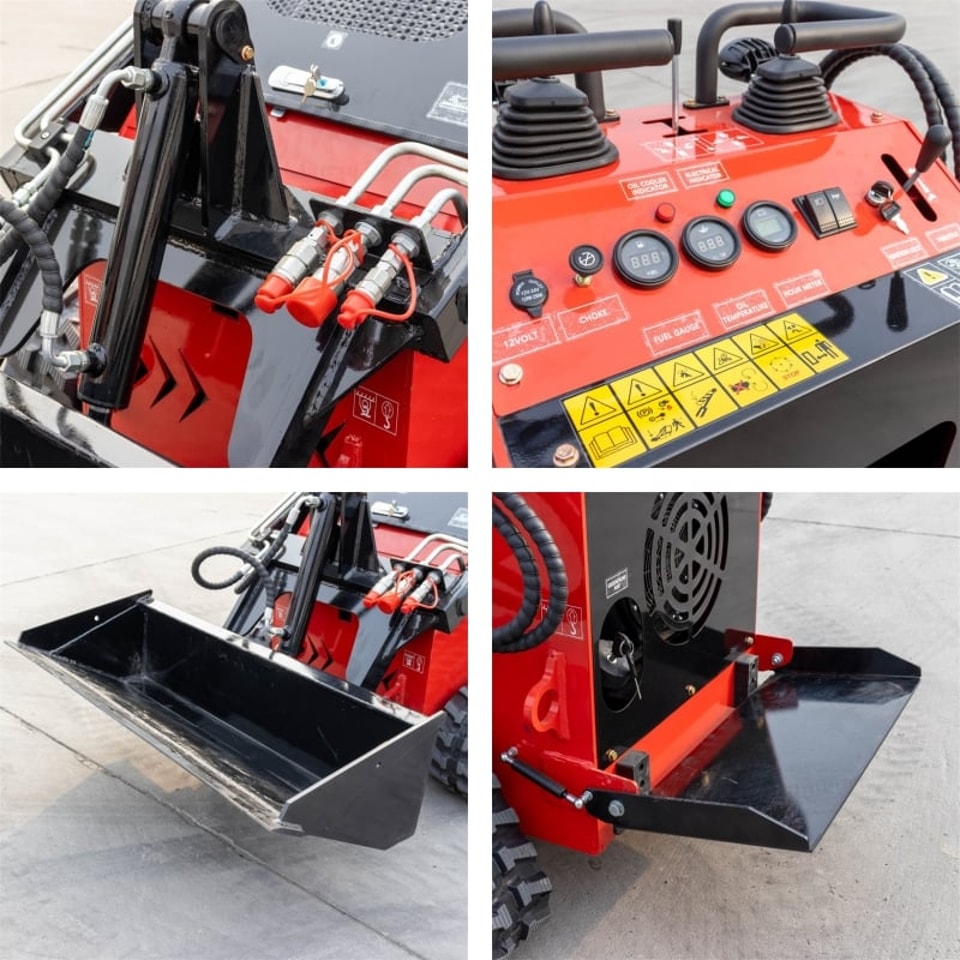

EASY OPERATION
Use the handy joysticks to effortlessly adjust the speed, direction, and lifting height. For simple and accurate movement, this small skid steer is suitable for both inexperienced and seasoned landscapers.

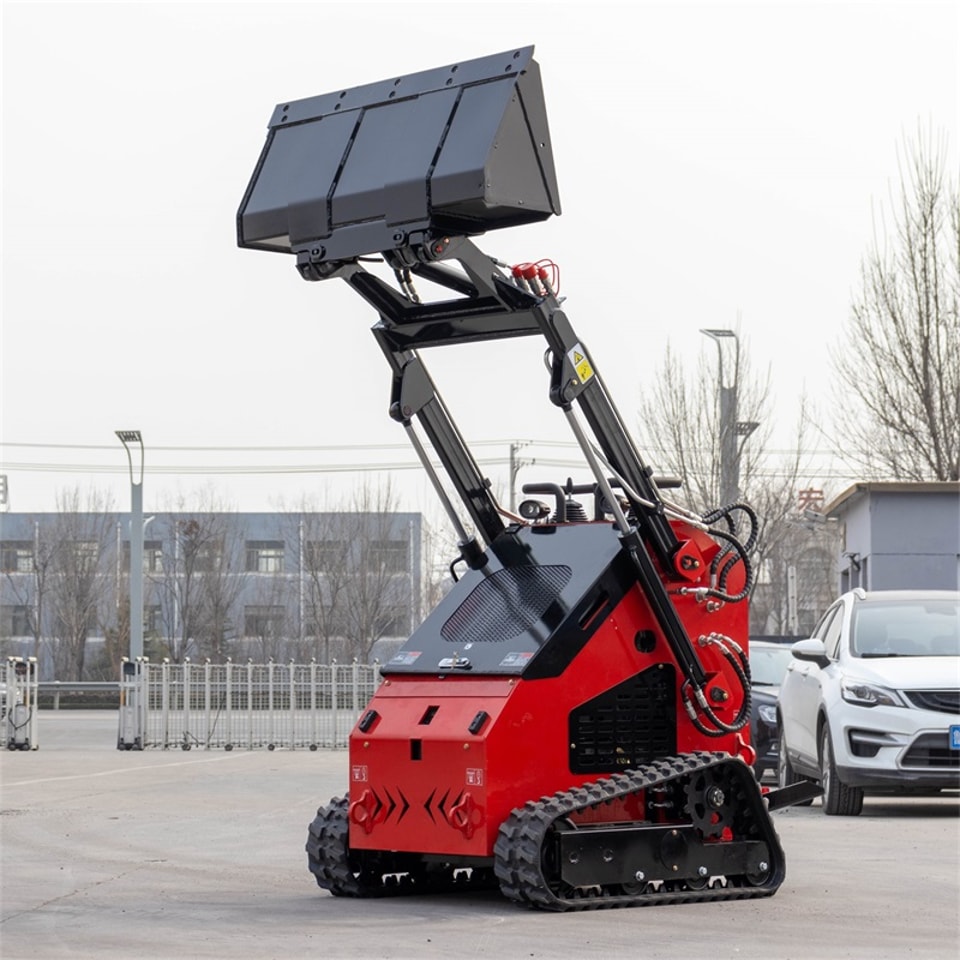

AUTOMATIC LEVELING SYSTEM
Maximum lifting height is up to 834.64in and keeps the bucket level to the ground.Lift arm, bucket and attachments are operated separately.
EASY MAINTENANCE
The front cover plate is easy to open and supported by double rods for easy maintenance and inspection inside the cabin.
HIGH-PERFORMANCE TRACKS
The lower vehicle adopts triangular track structure, which makeswalking more stable.
FLEXIBLE OPERATION
HIGHTOP skid steer is ability to operate the lifting arm, bucket, and attachments independently enhances flexibility, precision, and control.
Technical Parameter
| HT320T — Parameter Table | |
|---|---|
| Dimensions & Working Range | |
| Model | HT320T |
| Max working height | 2120mm |
| Max pin height | 1865 mm |
| Max Dumping height | 1405 mm |
| Max Dumping distance | 575mm |
| Max Dumping Angle | 37° |
| Total height | 1350 mm |
| Ground clearance | 121 mm |
| Wheel base | — |
| Overall length without bucket | 1495 mm |
| Total width | 1021 mm |
| Bucket width | 1080mm |
| Total length with bucket | 2245 mm |
| Overall length without the bucket after folding the pedal. | 1990 mm |
| Engine | |
| Engine (Optional) | RATO Engine R420 / Briggs & Stratton Engine 13.5HP |
| Rated Power (KW) | 9.7Kw/3600rpm (RATO) / 10Kw/3600rpm (Briggs) |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | ≤95 |
| Hydraulic System | |
| Pressure (Mpa) | 0-17 |
| Flow rate | 0-18L (RATO) / 0-21.6L (Briggs) |
| Working Performance | |
| Operating Load | 250 Kg |
| Bucket Capacity | 0.15m³ |
| Max Lifting Force | 360 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 830 Kg |
| Fluid Capacity | |
| Fuel tank | 7L |
| Engine oil | 1.7L |
| Hydraulic tank | 37L |
