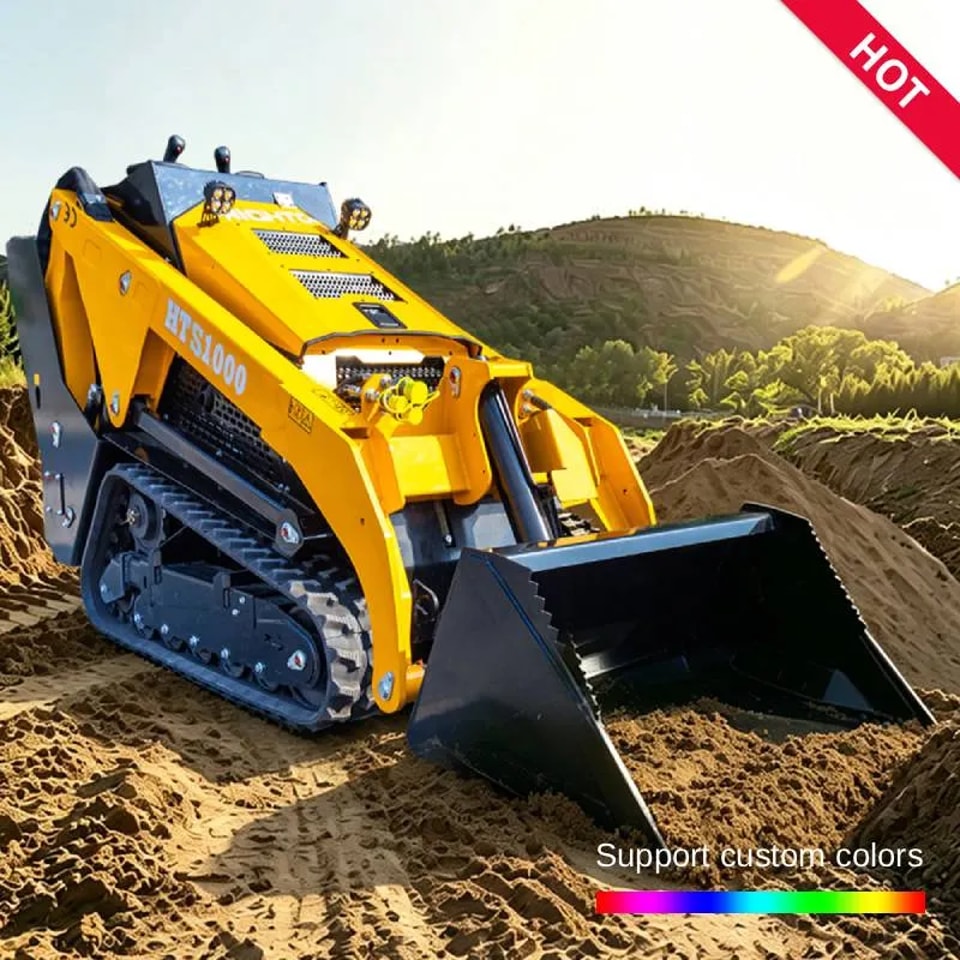

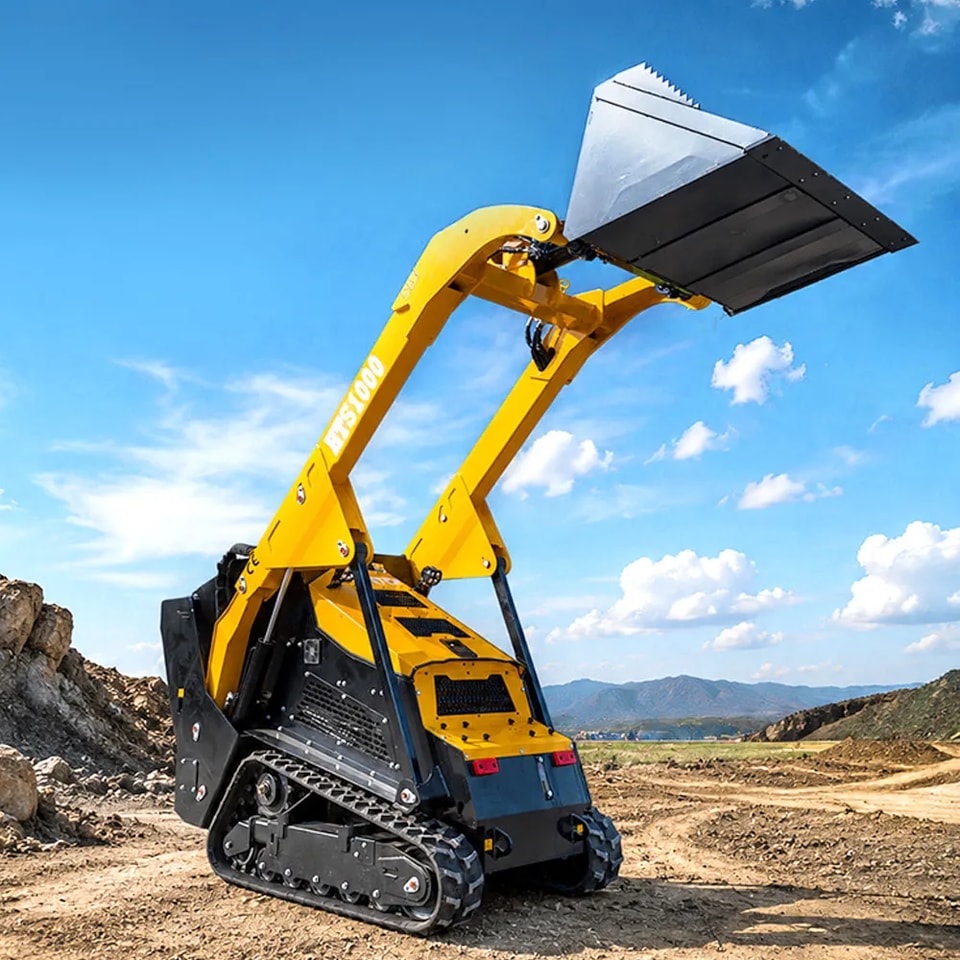

HTS1000 Skid Steer Loader
HTS1000 Skid Steer Loader – Technical Specifications
Positioned as a strong alternative to V1000-class mini skid steers – same compact footprint and lifting capacity, but with a Kubota EPA Final diesel engine that's ready for regulated markets out of the crate.

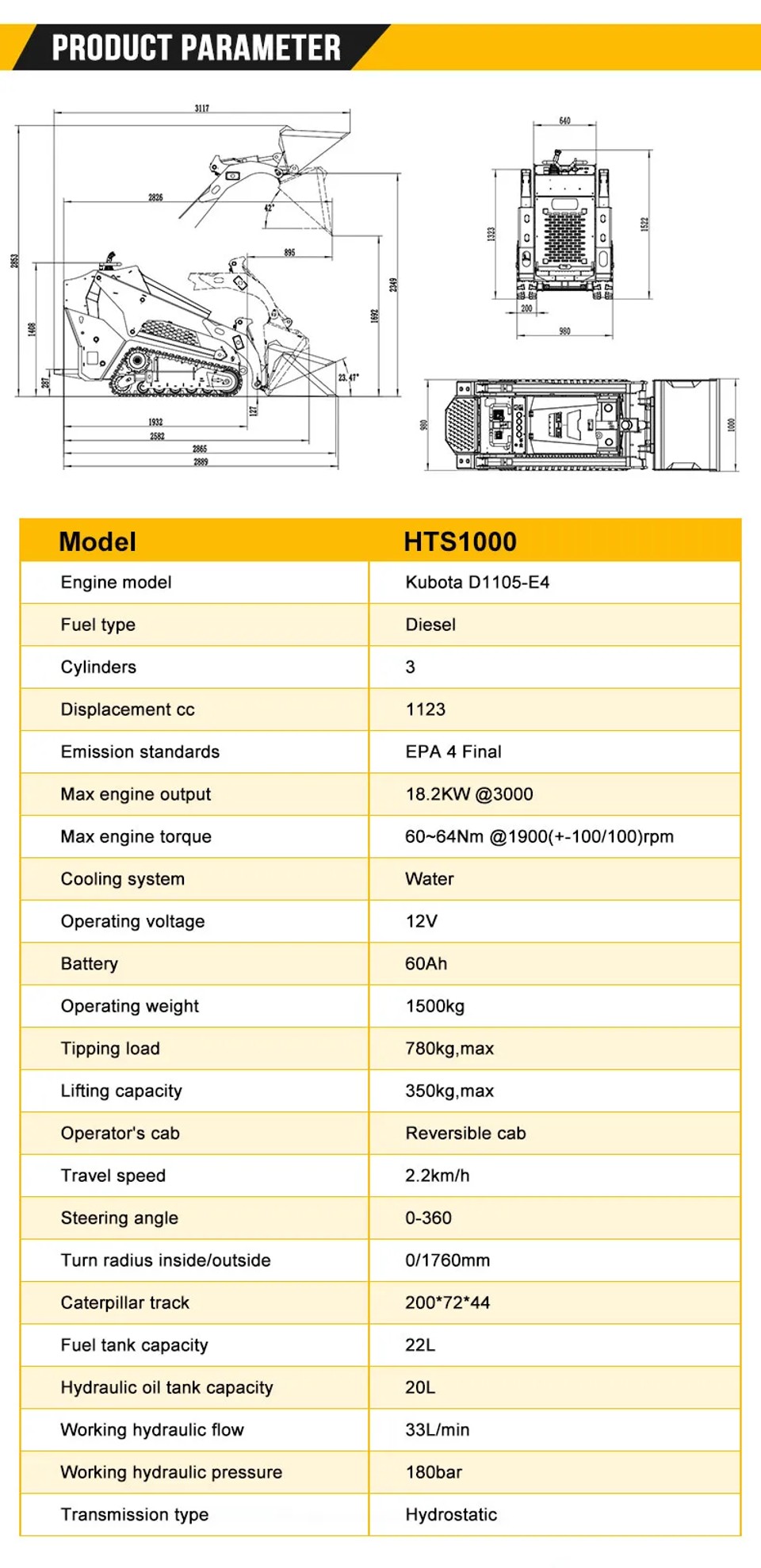

| HTS1000 Skid Steer Loader — Technical Specifications | |
|---|---|
| Model | HTS1000 |
| Engine Model | Kubota D1105-E4 |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Displacement (cc) | 1123 |
| Emission Standards | EPA 4 Final |
| Max Engine Output | 18.2KW @3000 rpm |
| Max Engine Torque | 60~64Nm @1900 rpm |
| Cooling System | Water |
| Operating Voltage | 12V |
| Battery | 60Ah |
| Operating Weight | 1500kg |
| Tipping Load (max) | 780kg |
| Lifting Capacity (max) | 350kg |
| Operator's Cab | Reversible Cab |
| Travel Speed | 2.2km/h |
| Steering Angle | 0-360° |
| Turn Radius (inside/outside) | 0 / 1760mm |
| Track Size | 200×72×44 |
| Fuel Tank Capacity | 22L |
| Hydraulic Oil Tank Capacity | 20L |
| Working Hydraulic Flow | 33L/min |
| Working Hydraulic Pressure | 180bar |
| Transmission Type | Hydrostatic |
Both are 1-ton class compact loaders with similar width (~900-980mm) and rated capacity (~350-454kg). The HTS1000 stands out with a Kubota D1105-E4 EPA Final engine – ready for regulated markets without modifications. Many V1000 models use older engine configurations that may require retrofits for compliance.
HTS1000 Skid Steer Loader – Frequently Asked Questions
Q: How does the HTS1000 compare to V1000-class mini skid steers?
A: Both are 1-ton class compact loaders with similar width (~980mm) and rated capacity (~350kg). The key difference is the engine – the HTS1000 comes standard with a Kubota D1105-E4 diesel engine that meets EPA Final emission standards, ready for regulated markets out of the crate. Many V1000 models use older engine configurations that may require modifications for compliance.
Q: What engine does the HTS1000 use?

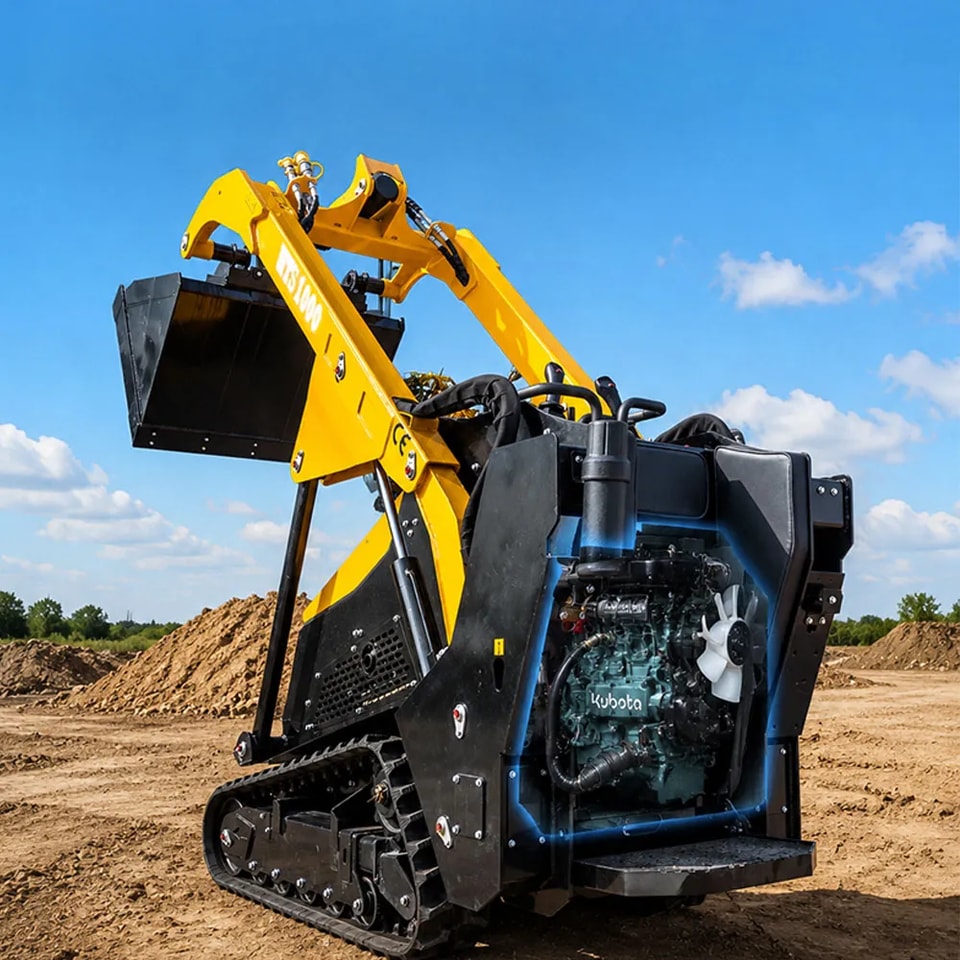

A: The HTS1000 is powered by a Kubota D1105-E4 diesel engine, meeting EPA Tier 4 Final emission standards. It's a reliable, fuel-efficient 3-cylinder engine widely used in compact equipment.
Q: What is the rated operating capacity of the HTS1000?
A: The HTS1000 has a rated operating capacity of 350kg (770 lbs) and a tipping load of 780kg (1720 lbs). The 1500kg operating weight provides stability when lifting heavy loads.
Q: How wide is the HTS1000? Will it fit through narrow spaces?

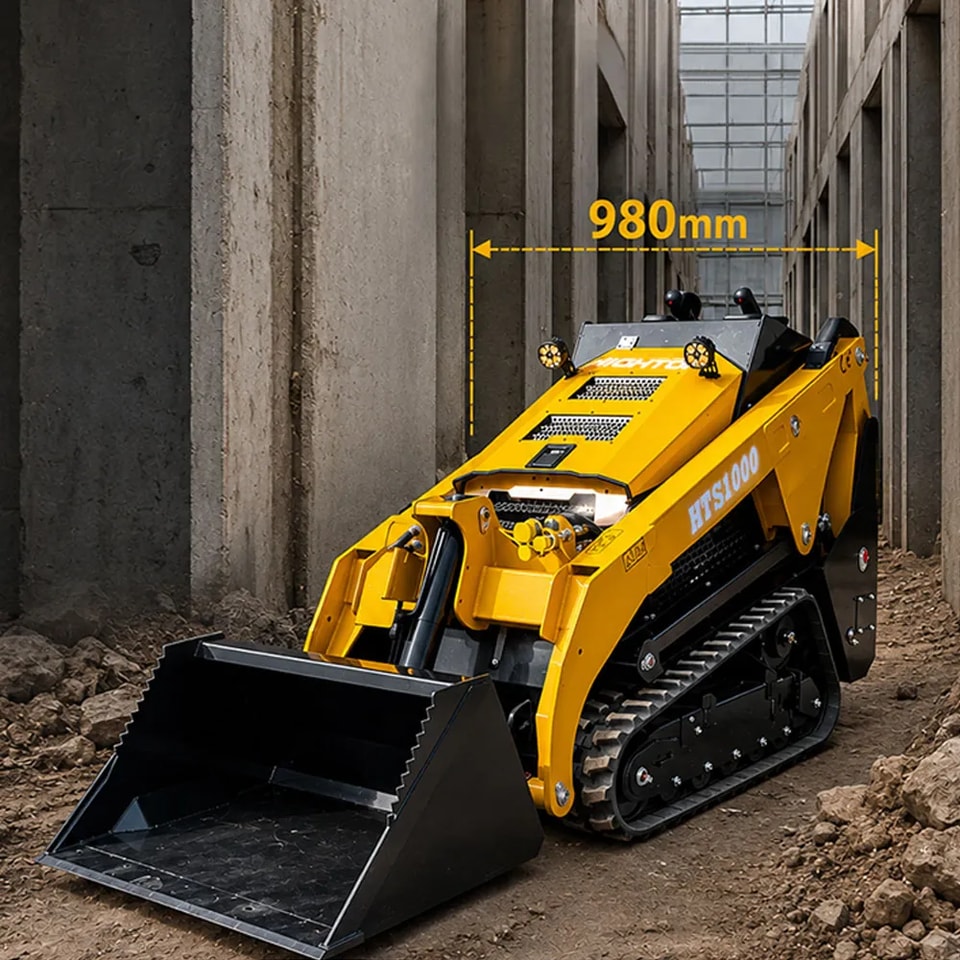

A: The HTS1000 is 980mm wide, making it suitable for greenhouse work, indoor demolition, landscaping, and other tight-access job sites.

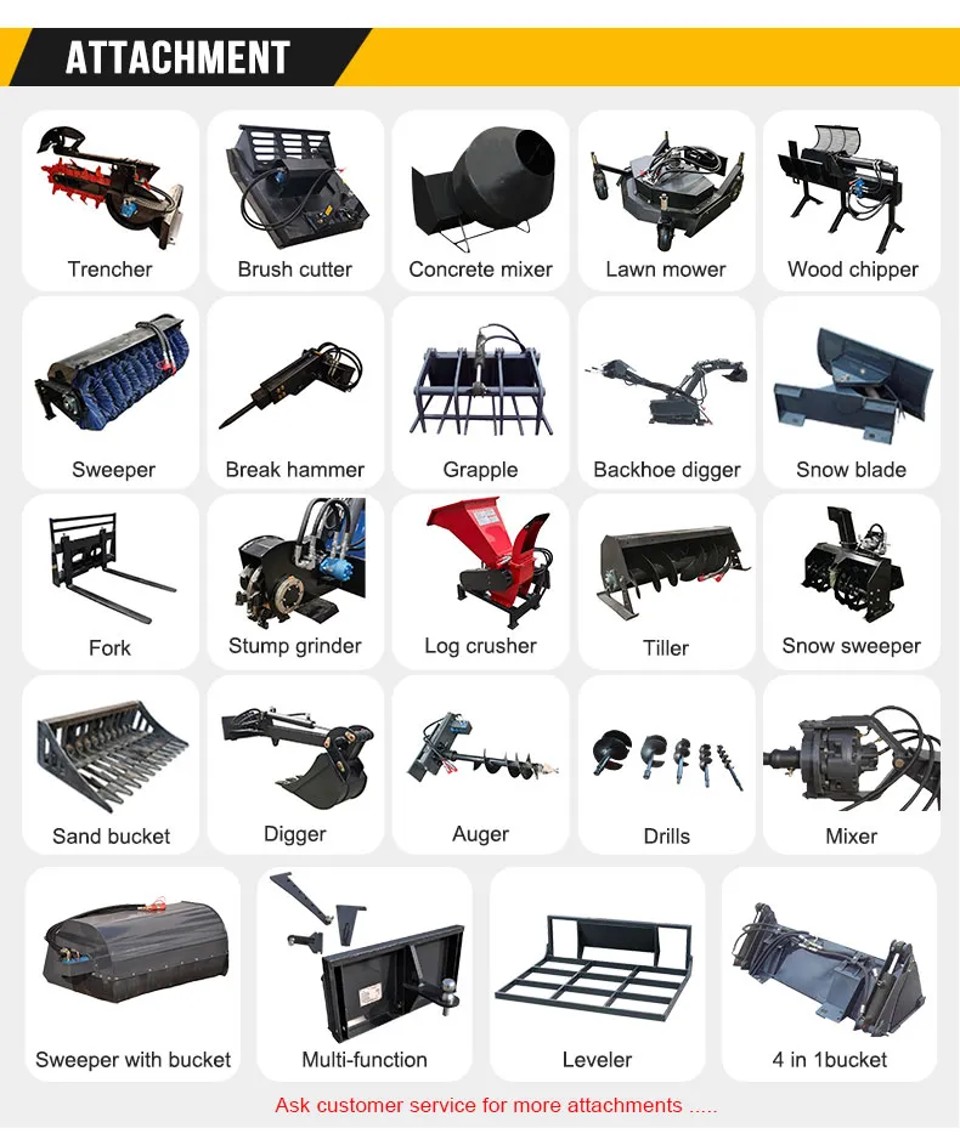

Q: What attachments can the HTS1000 use?
A: The HTS1000 accepts standard mini skid steer attachments via a universal quick-attach system. Buckets, forks, augers, sweepers, and other attachments can be swapped quickly.
Q: Is the HTS1000 easy to maintain?

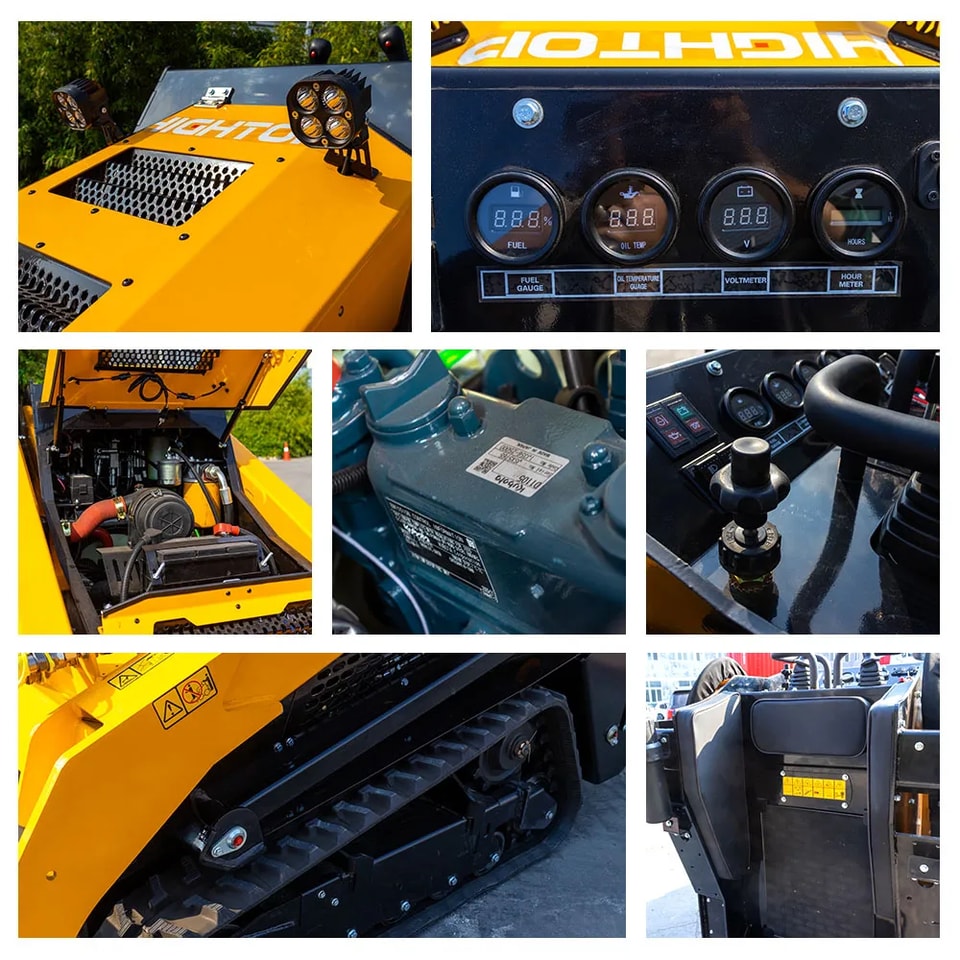

A: Yes. The HTS1000 features a reversible cab for easy access to the engine and hydraulic components. Routine maintenance points are accessible without disassembling major parts.
Q: Does the HTS1000 come with a warranty?
A: Contact our sales team for current warranty terms and coverage details. We offer factory-direct support and genuine parts availability.
A Strong Alternative to V1000-Class Mini Skid Steers
If you've been looking at V1000-style mini skid steers – the 1-ton class compact loaders with around 900mm width and 450kg rated capacity – the HTS1000 deserves a closer look. It delivers the same compact footprint and lifting performance, but with a key difference: a Kubota D1105-E4 diesel engine that meets EPA Final emission standards.
Many V1000 models on the market use older engine configurations or require after-treatment modifications to pass emissions. The HTS1000 comes ready to work in regulated markets straight out of the crate. No retrofits. No compliance headaches.
Beyond the engine, the HTS1000 offers the same narrow profile (980mm) that makes V1000-class machines so popular for tight job sites – greenhouse work, indoor demolition, landscaping, and utility trenching. The difference is in the details: better fuel efficiency, lower vibration, and a hydraulic system that responds faster than most V1000 alternatives.
The reversible cab is another feature you won't find on every V1000-style machine. It gives you quick access to the engine bay and hydraulic components – less downtime, easier servicing. And with 1500kg operating weight and 780kg tipping load, the HTS1000 stays stable when you're lifting heavy loads to full height.
