HT504-E 50HP 4WD Farm Tractor – Heavy-Duty Performance for Medium Farms
Downloads
HT504-E 50HP Tractor Parameter
HT504-E | Driven model | 4WD |
Engine | LAIDONG | |
Emission Standards | Ⅱ stages | |
Engine power | 50 | |
Clutch | Double-stage type | |
PTO speed | 540/720rpm | |
PTO spline number | 6 | |
Max.rated drawing power | ≥11.5KN | |
weight | 1550kg | |
Steering | hydraulic steering | |
Gears | 8+2 | |
Speed | 1.78-26.93 | |
Tires size | 7.50-16/11.2-28 | |
Wheel Base | 1810mm | |
(L*W*H)mm Overall dimension | 3640*1620*2240 | |
| Front ballast | |
Rear ballast(one layer) | ||
ROPS | ||
Canopy | ||
Gear 8+8 | ||
Double-stage type | ||
1 groups of hydraulic output | ||
2 groups of hydraulic output | ||
Air compressor | ||
External Forced lifter | ||
Swing traction | ||
Fan cab | ||
Heating cab | ||
Tires 7.5-16/11.2-28 | ||
Iron frame packaging |

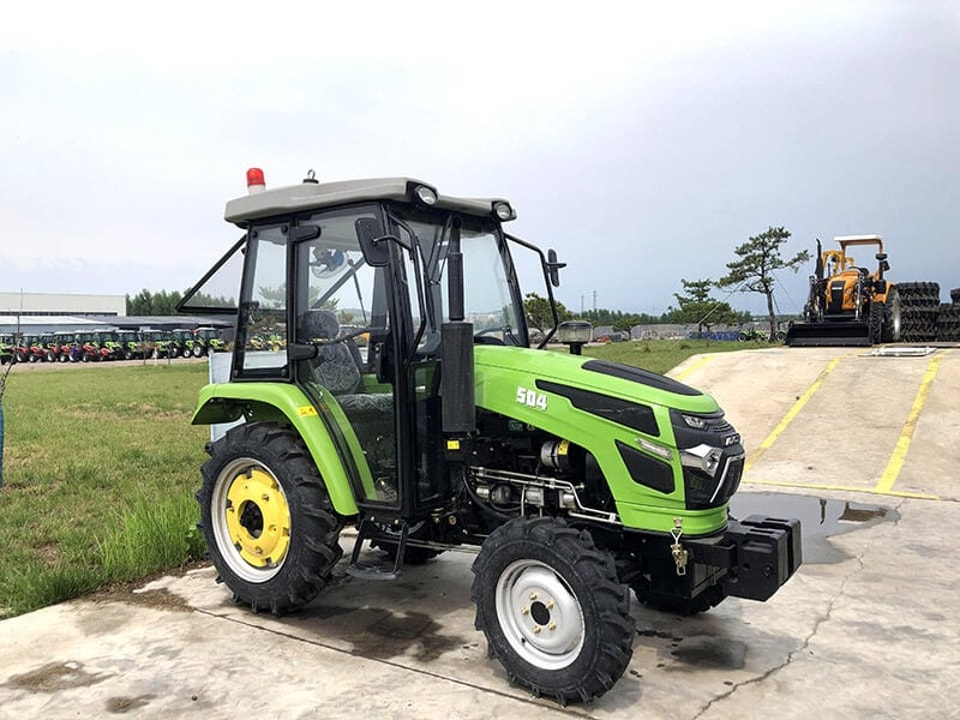

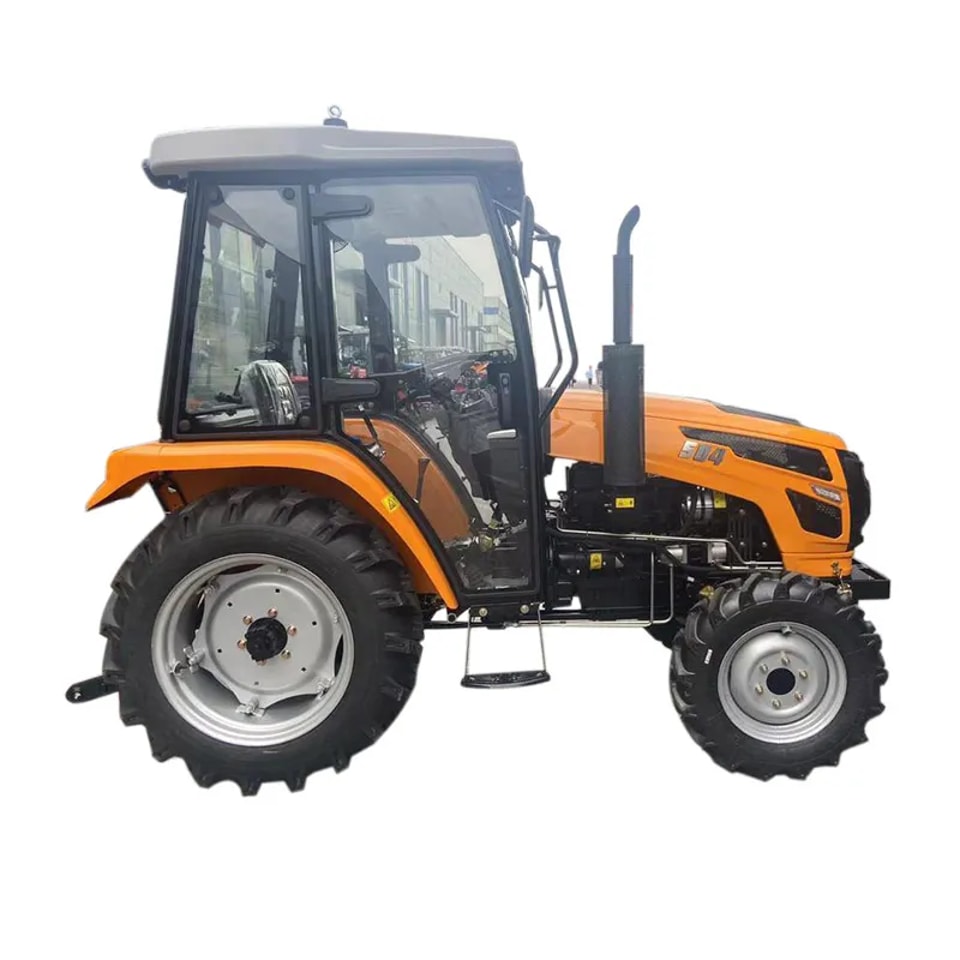

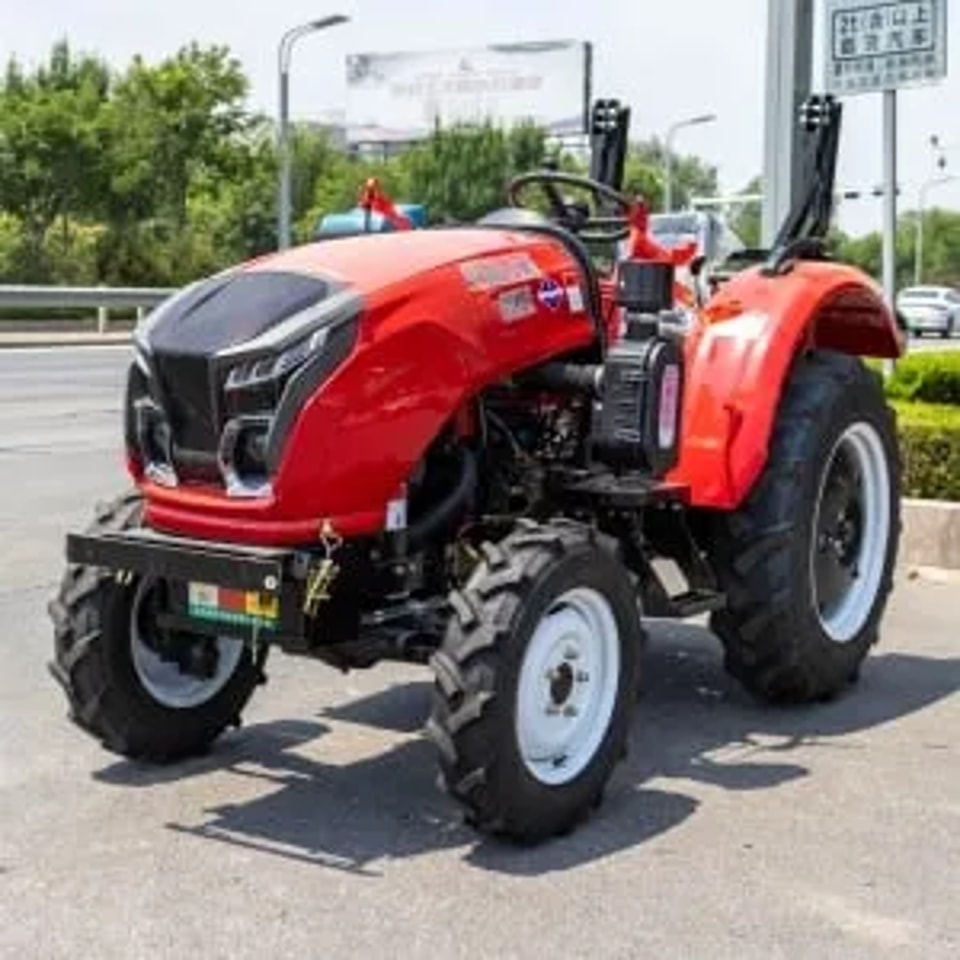

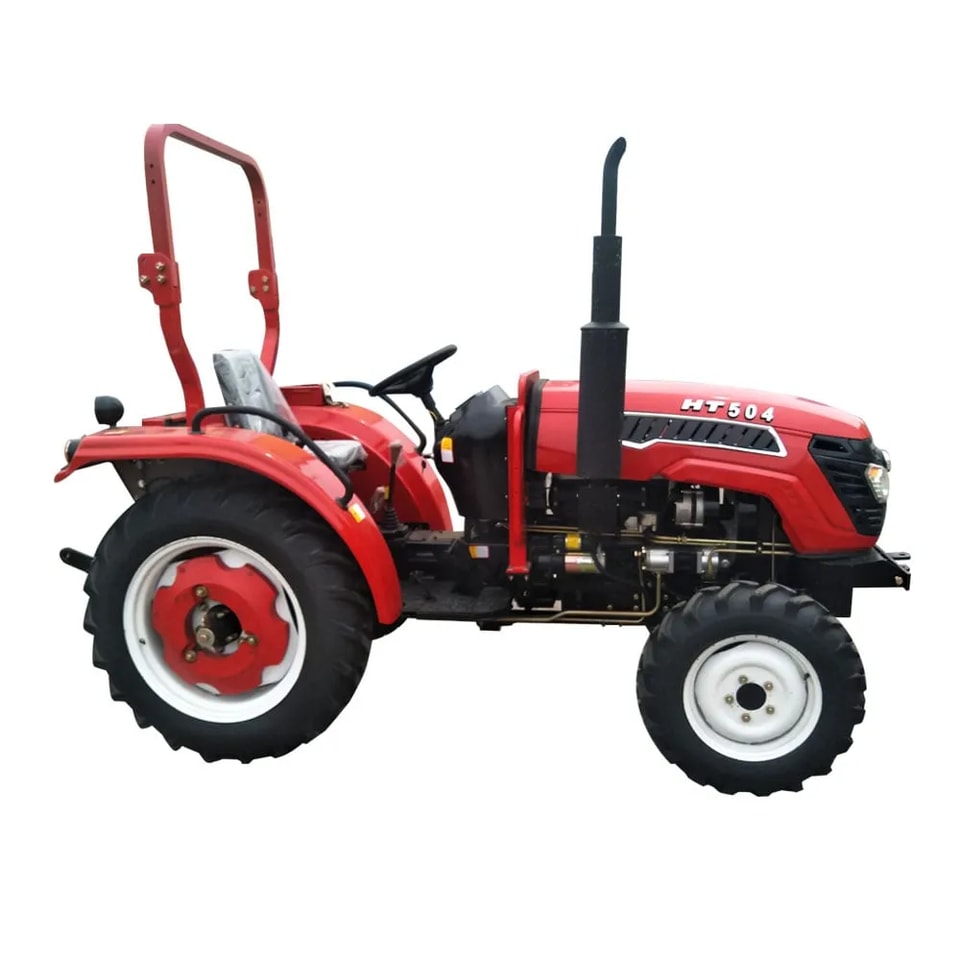

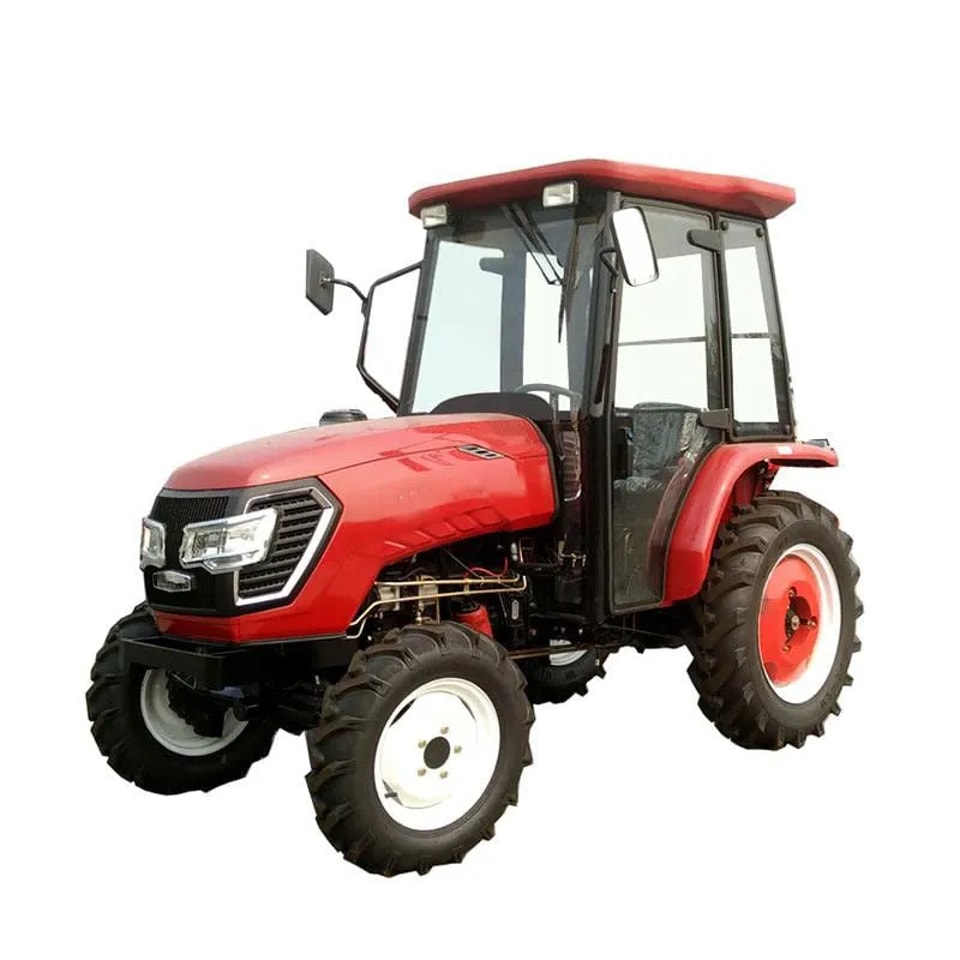

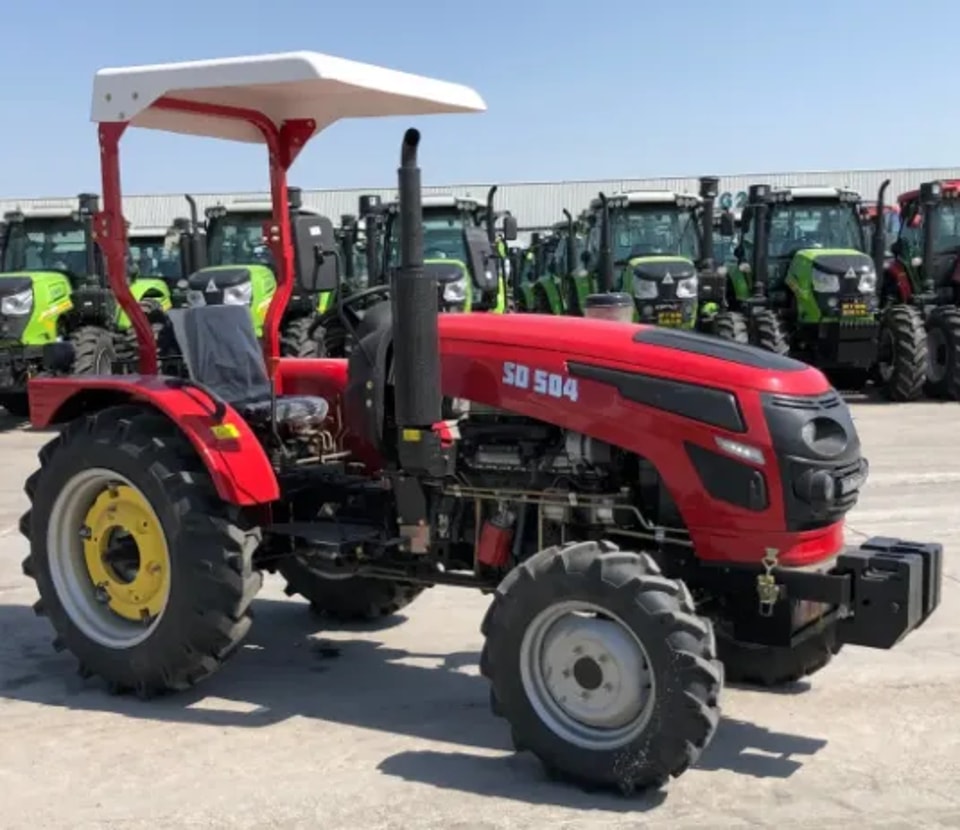

HT504-E 50HP Tractor Images


he Hightop HT504-E is a 50HP 4WD farm tractor built for medium-scale farms, orchards, and diversified operations. Its 1550kg chassis gives you the stability and grip to power through heavy tillage, seeding, and hauling tasks without wheel slip – making it a top choice among utility tractors for sale.

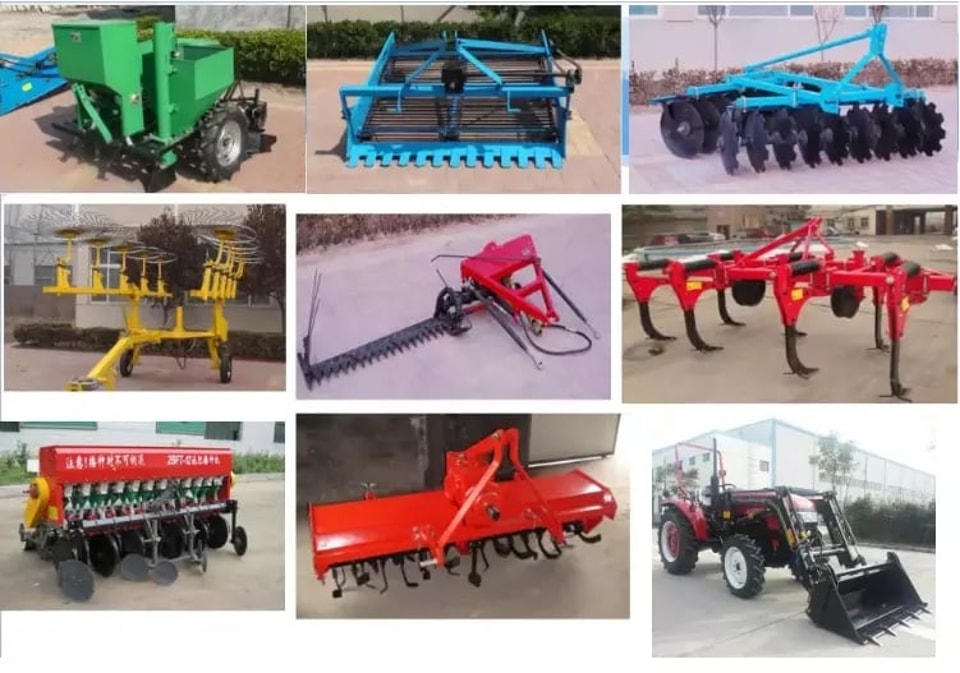

Pair it with standard Category 1 & 2 implements via the dual-speed 540/720 rpm PTO:
Primary Tillage:Pull multi-disc harrows or chisel plows through heavy clay and loam with confidence.*
Seeding & Planting:Accurately tow multi-row seeders and planters for uniform crop establishment.*
Farm Logistics:Haul large hydraulic dump trailers or feed wagons, backed by optional 1 or 2 groups of rear hydraulic valves.*
Custom Options:Add an 8+8 shuttle shift for rapid loader work, or upgrade to a full cab with heating for all-weather comfort.*
All at factory-direct wholesale pricing. Get your quote today!
Q1: Why is the 11.5KN drawbar pull important when comparing new tractors for sale?
A: Horsepower alone cannot pull implements if the wheels spin. The 1550kg heavy chassis of the HT504-E converts 50HP into 11.5KN of drawbar pull, preventing wheel slip under heavy loads.
Q2: Does the dual-stage clutch affect working with PTO-driven implements?
A: Absolutely. The standard dual-stage clutch lets you stop the tractor's ground movement without cutting power to the PTO shaft. This keeps attachments like balers or rotary mowers spinning smoothly during transitions.
Q3: What rear auxiliary hydraulic upgrades are available from the factory?
A: While standard shipments feature robust three-point linkages, you can custom-order 1 or 2 groups of rear quick-coupling multi-way valves to directly power external hydraulic dump trailers, front loaders, or other hydraulic attachments.
