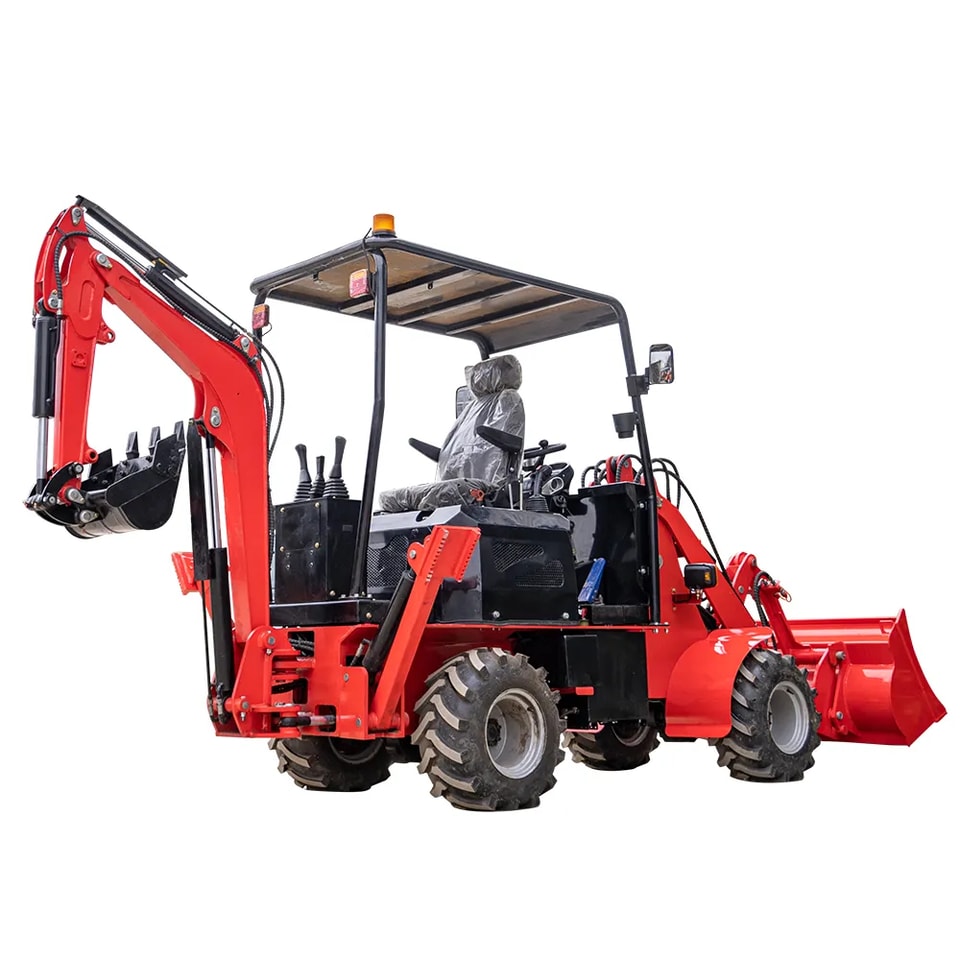

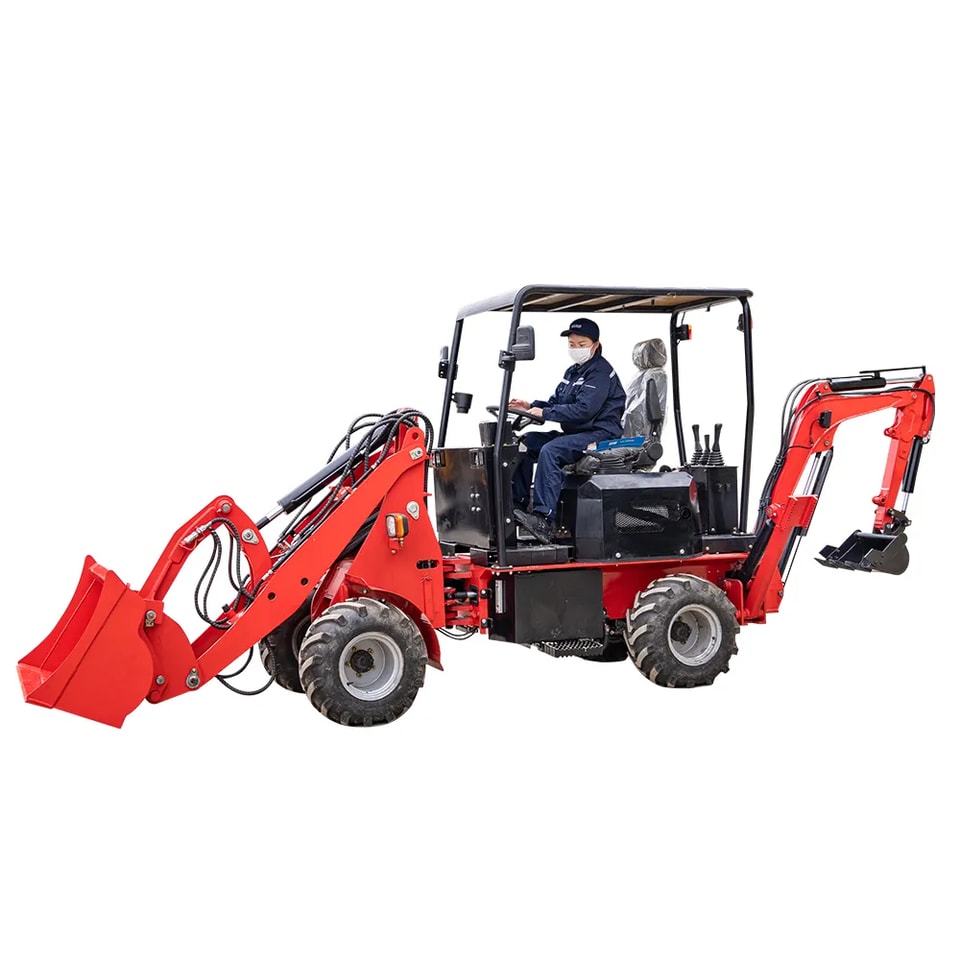

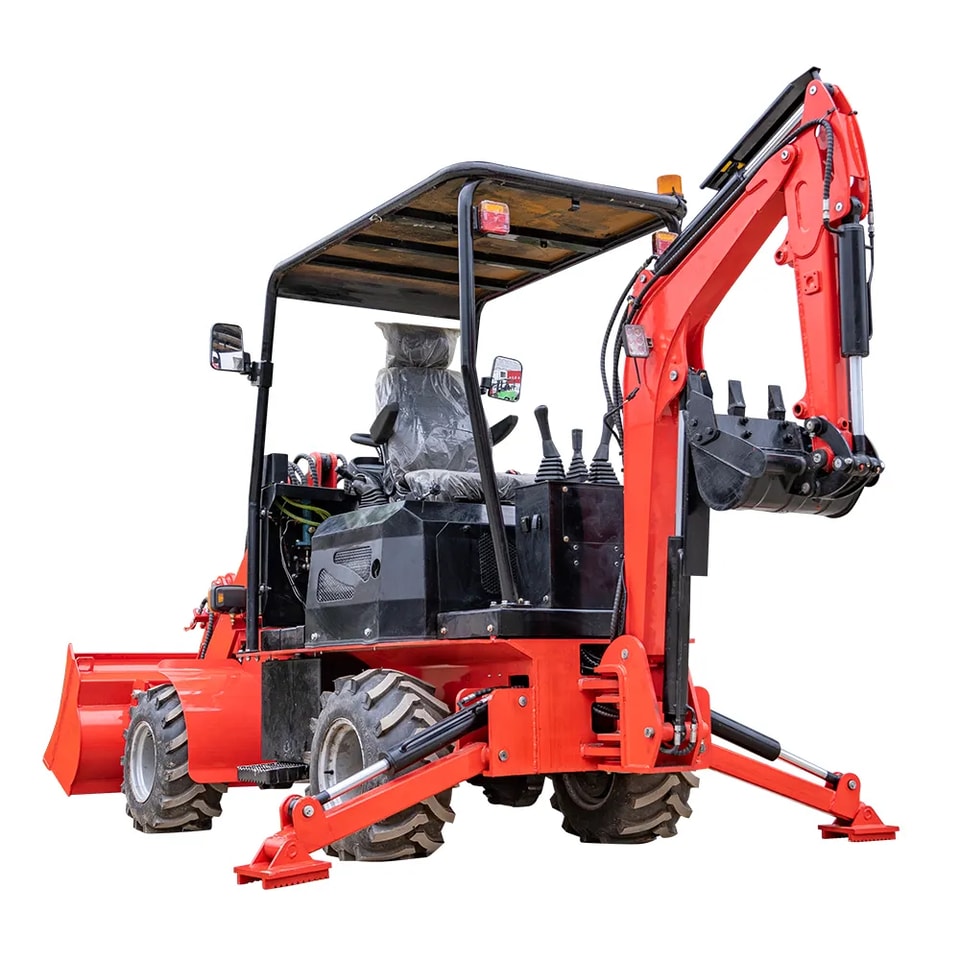

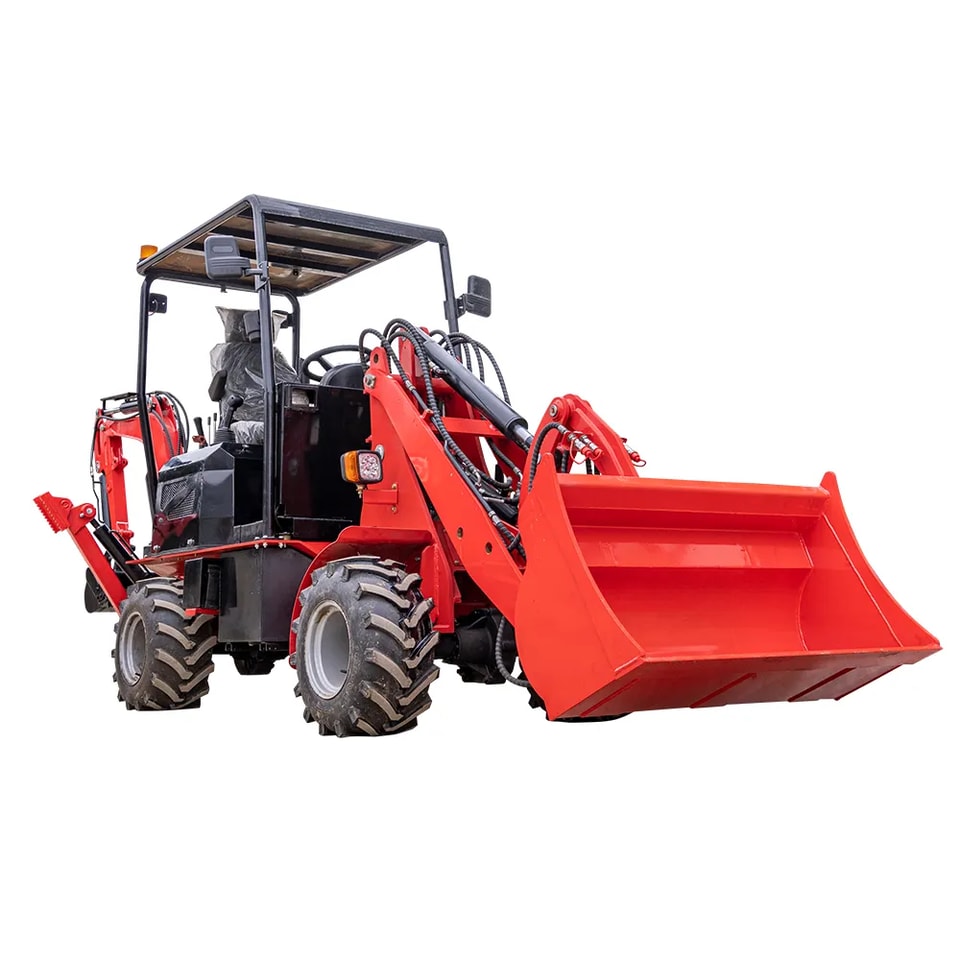

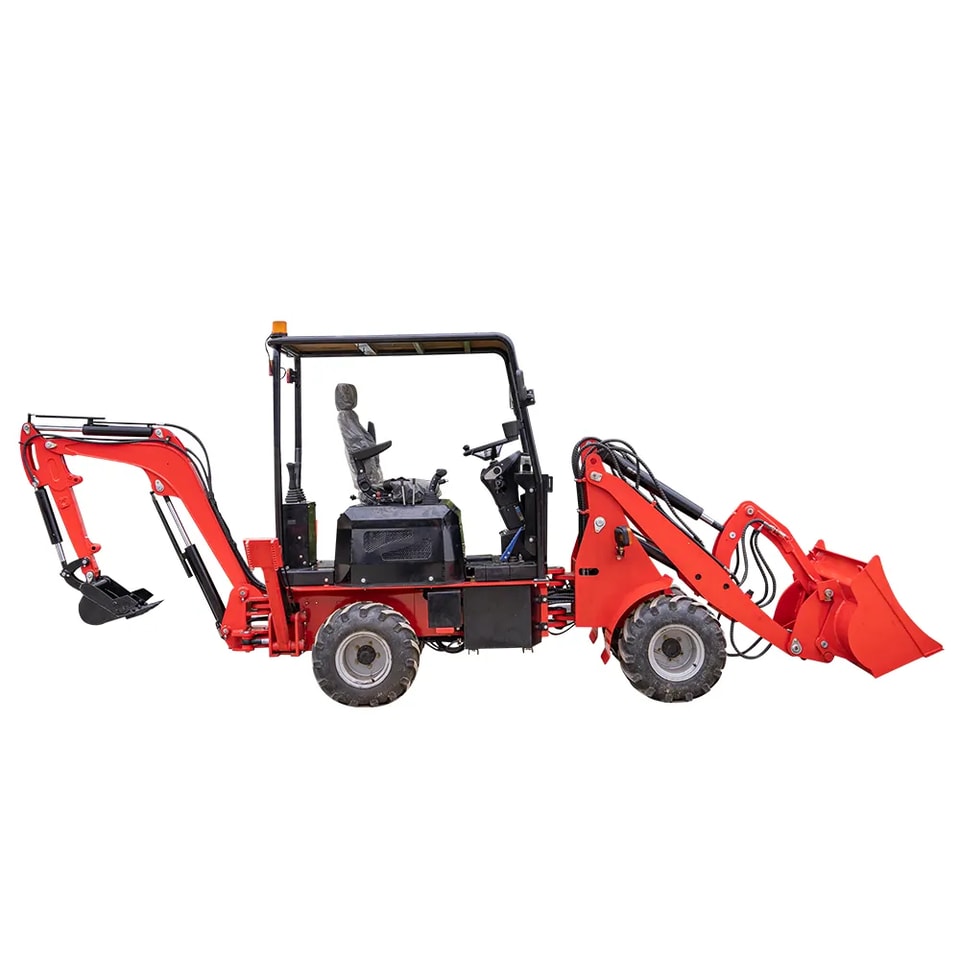

HTDL06HL Backhoe Loader

HTDL06HL Backhoe Loader Instruction

Key Features:

A versatile machine with dual capabilities—a compact yet powerful tool for efficient construction

Compact and Agile: Compact body + small turning radius, allowing it to maneuver freely in tight spaces and move between job sites with ease

Dual Functionality: Integrated loading and excavating capabilities, featuring a 0.3 m³ loader bucket and a 0.04 m³ excavator bucket, handling multiple tasks with a single machine

Powerful Performance: 18.4 kW LaiDong engine and 7.5 kN maximum traction, effortlessly handling heavy loads and complex terrain

Versatile Operation: Maximum digging depth of 1,643 mm and unloading height of 2,169 mm, covering a wide range of construction needs at varying heights and depths

Precision Hydraulics: High-flow hydraulic system ensures smooth and responsive movements, guaranteeing both operational accuracy and efficiency

Long-Lasting Operation: Optimized fluid capacity reduces downtime for refueling, ensuring worry-free continuous operation

Machine Advantages:

1. Dual-Function Design: High Efficiency with One Machine

Combines loader and excavator functions in one unit. Bucket capacity: 0.3 m³; rated load: 400 kg. Excavator bucket capacity: 0.04 m³; maximum digging depth: 1643 mm; digging reach: 2863 mm. Handles multiple scenarios—loading, excavation, and backfilling—with a single machine, reducing equipment investment.

2. Powerful Engine Configuration for Consistent, Uninterrupted Performance

Equipped with a Laidong 385L inline 3-cylinder engine, delivering a rated power of 18.4 kW at 2,400 rpm. The water-cooled 4-stroke design ensures efficient heat dissipation and sustained, stable power output. With a maximum traction force of 7.5 kN and a travel speed of 0–6 km/h, it handles complex terrain and heavy-duty operations with ease.

3. Precise Hydraulic System for Smooth, Hassle-Free Operation

The hydraulic system features travel, working, and steering pumps, delivering a maximum flow rate of 40 L/min and a system pressure of 18 MPa. With responsive operation, digging and loading movements are smooth and precise, enhancing both operational accuracy and efficiency.

4. Wide operating range to meet diverse construction needs

With a maximum digging height of 3,156 mm, a maximum unloading height of 2,169 mm, and a corresponding unloading reach of 1,120 mm, it effortlessly handles tasks ranging from high-altitude material handling to deep trench excavation, making it suitable for various applications including municipal construction, landscaping, and small-scale engineering projects.

5. Optimized Fluid Configuration for Extended Operation and Reduced Downtime

With a 25L fuel tank and a 40L hydraulic oil tank, combined with precise fluid allocation for the engine, drive axle, and braking system, this design extends single-operation runtime, reduces the frequency of refueling stops, ensures continuous construction, and improves overall operational efficiency.

6. Compact and agile chassis, ideal for working in confined spaces

With overall dimensions of just 5060 mm × 1815 mm × 2360 mm and a minimum turning radius of 2540 mm, combined with a 35° steering angle, it can maneuver flexibly through narrow construction sites, courtyards, and municipal alleys, effortlessly completing loading, unloading, and excavation tasks.
