HT-5030 Mini Dumper

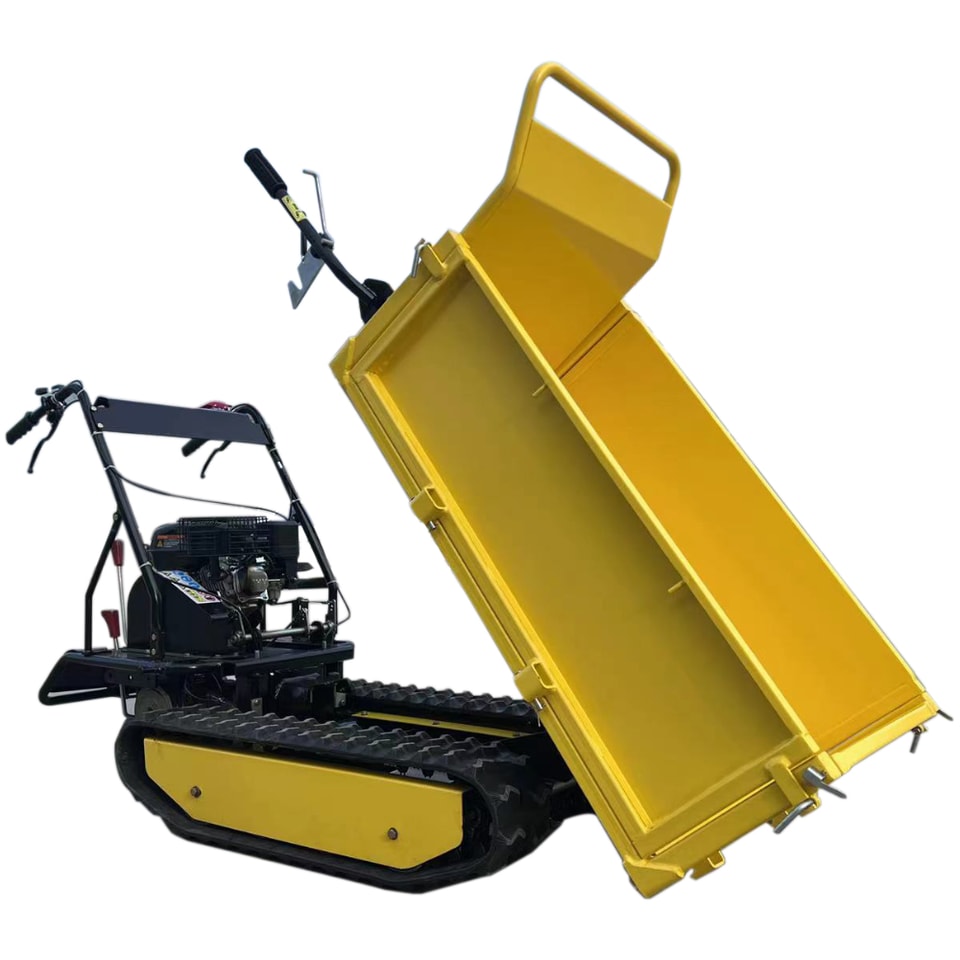

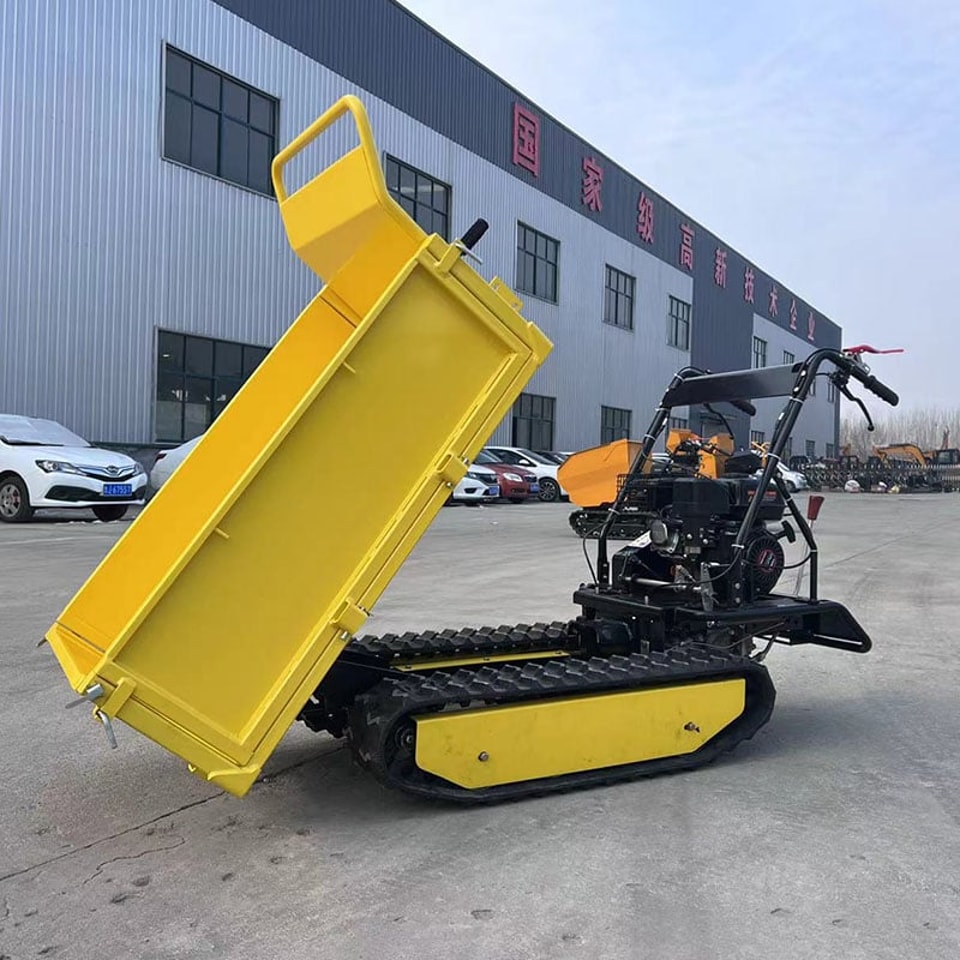

HT-5030 Mini Crawler Dumper Images

HT-5030 Mini Crawler Dumper – 300kg Load, Loncin Euro5 Engine & Compact Design

The HT-5030 mini crawler dumper is a lightweight, compact transport vehicle designed for efficient material handling in tight spaces. Powered by the Loncin 196CC air-cooled gasoline engine (Euro5 compliant), it delivers reliable performance for landscaping, small farms, orchards, and construction sites.

Key Features

• 300kg Loading Capacity: Ideal for soil, sand, mulch, and light aggregates – perfect for small-scale transport jobs.
• Ultra-Lightweight Design: Only 281kg machine weight for easy maneuverability and transport.
• Loncin 196CC Euro5 Engine: Air-cooled, gasoline-powered, emission-compliant – reliable and efficient.
• 6 Forward / 2 Reverse Transmission: High-low speed type for versatile operation across different terrains.
• Split-Type Dump Box: 1045×630×320mm box for flexible loading and unloading.
• Compact Dimensions: 1980×820×1060mm overall size – fits through narrow pathways and doorways.
• 180mm Rubber Track: Excellent stability and traction on uneven ground.

Technical Specifications at a Glance

• Model: HT-5030
• Engine: Loncin 196CC, air-cooled, gasoline, Euro5
• Loading Capacity: 300kg
• Machine Weight: 281kg
• Box Size: 1045 × 630 × 320mm (split type)
• Overall Dimension: 1980 × 820 × 1060mm
• Track Width: 180mm
• Transmission: 6 forward / 2 reverse (high-low speed)
• Start Mode: Manual
• Unload Mode: Manual
• Steering: Manual
• Driving Type: Mechanical
• Loading Quantity: 12 sets / 20GP, 24 sets / 40HQ

Applications

The HT-5030 mini crawler dumper is ideal for short-distance material transport on small farms, orchards, vineyards, nurseries, landscaping projects, and tight construction sites. Its lightweight design and compact dimensions allow it to navigate narrow pathways, slopes, and uneven terrain with ease.
