HT800 Mini Wheeled Cement Mixer

HT800 Mini Wheeled Cement Mixer Instruction

Mini Wheeled Cement Mixer HT-800 Product Features

1.  Powerful & EPA-Certified Engine System

Equipped with a 420CC single-cylinder, 4-stroke air-cooled Dajiang engine delivering 13.5HP/3600RPM rated power, the mixer meets EPA standards and runs on readily available 92# gasoline, ensuring stable performance for outdoor construction tasks.

2.  High Load Capacity & Efficient Mixing

Boasting a 380dm³ mixing drum capacity and 800KG maximum load capacity, this machine handles large batches of concrete or mortar efficiently, while the 750*900mm drum size ensures thorough mixing and uniform material consistency.

3.  Hydraulic Tipping & Labor-Saving Operation

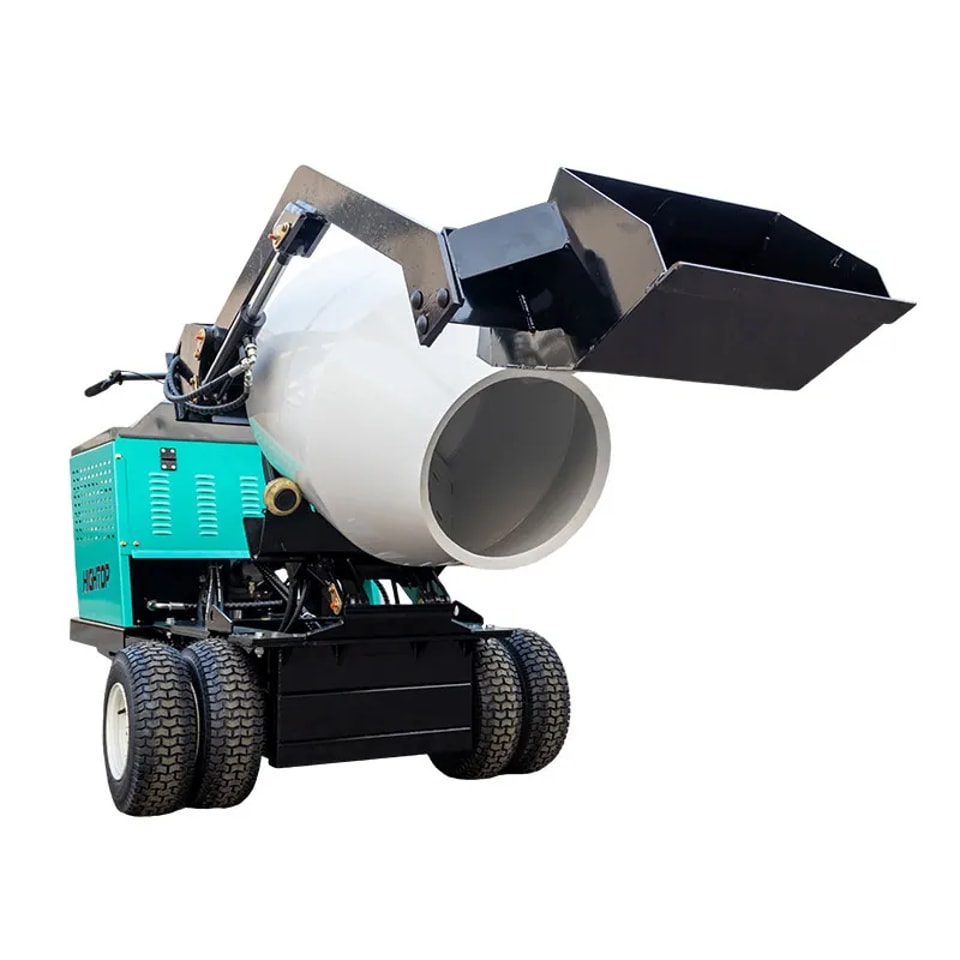

Features a 90° hydraulic self-dumping system for quick and effortless unloading of mixed materials, eliminating manual handling and significantly improving construction efficiency on job sites.

4.  Strong Terrain Adaptability

With a 26° climbing capability and 6km/h travel speed, the Wheeled -type design enables stable movement on uneven or sloped construction sites, and the 1250mm chassis width ensures excellent balance during operation and transportation.

5.  Compact & Flexible Design for Versatile Use

The machine has a compact transport size of 2370*1250*1450mm (without footrest) and an integrated size of 2880*1250*1350mm (with footrest), making it easy to transport between job sites and suitable for small-scale construction projects with limited space.

6.  Complete Wear-Part Configuration for Easy Maintenance

Comes with a full set of standard wear parts including 6 tires, 1 hydraulic oil filter, 1 air filter, and 1 throttle cable, allowing for quick replacement and reducing downtime for maintenance.

7.Reliable Air-Cooled Cooling System

Adopts a single-cylinder 4-stroke air-cooled structure for the engine, eliminating the need for a water-cooling cycle system. This design reduces failure risks, simplifies daily maintenance, and is more suitable for harsh construction environments with water shortages.

8.Cost-Effective Fuel Management

Equipped with a 6L fuel tank and compatible with widely available 92# gasoline, the mixer balances power output and fuel consumption. It supports continuous operation for extended periods without frequent refueling, lowering the overall operational costs for users.
