HTD5050 Crawler Dumper
Compact 500kg Crawler Dumper with Hydraulic Tipping: The HTD5050 crawler dumper features 500kg load capacity, Briggs & Stratton GM170F engine, 100° hydraulic tipping, and 2.88km/h speed. Compact 1500×833×124mm size. 500kg Load & 360kg Weight Efficient power-to-weight ratio. Briggs & Stratton 4.2KW 212cc, low fuel consumption. 100° Hydraulic Tipping Easy, efficient unloading. Compact Size 1500×833×124mm, 1.15m turning radius.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HTD5050 Crawler Dumper Parameter
HTD5050 Crawler Dumper Images
Features
HTD5050 Crawler Dumper Parameter
HTD5050 Crawler Dumper Parameter
| HTD5050 Crawler Dumper — Parameter Table | |
|---|---|
Engine & Power | |
| Model | HTD5050 |
| Engine | Briggs & Stratton GM170F |
| Power | 4.2KW / 3600RPM |
| Displacement | 212cc |
| Fuel type | 92# gasoline |
| Fuel consumption | ≤0.395 g/kw.h |
| Fuel tank capacity | 3.6L |
| Engine oil capacity | 0.6L |
Load & Dimensions | |
| Total weight | 360kg |
| Max. Loading capacity | 500kg |
| Overall size | 1500 × 833 × 124mm |
| Cargo box capacity | 200 dm³ |
| Track gauge | 52cm |
| Mini ground clearance | 10cm |
Hydraulic System | |
| Tipping system | Hydraulic tipping |
| Tipping angle | 100° |
| Hydraulic oil model | 46# |
| Hydraulic oil tank capacity | 15L |
Performance | |
| Walking speed | 2.88km/h |
| Climbing ability | 20° |
| Mini turning radius | 1.15m |

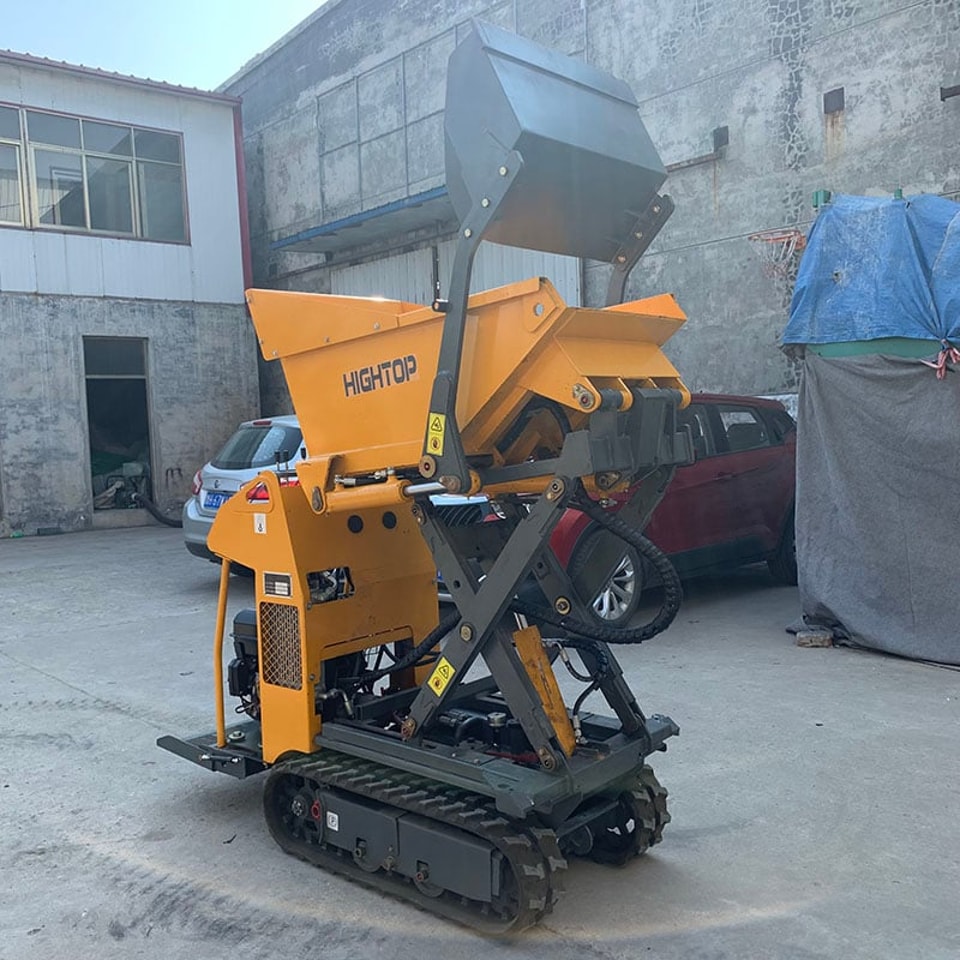

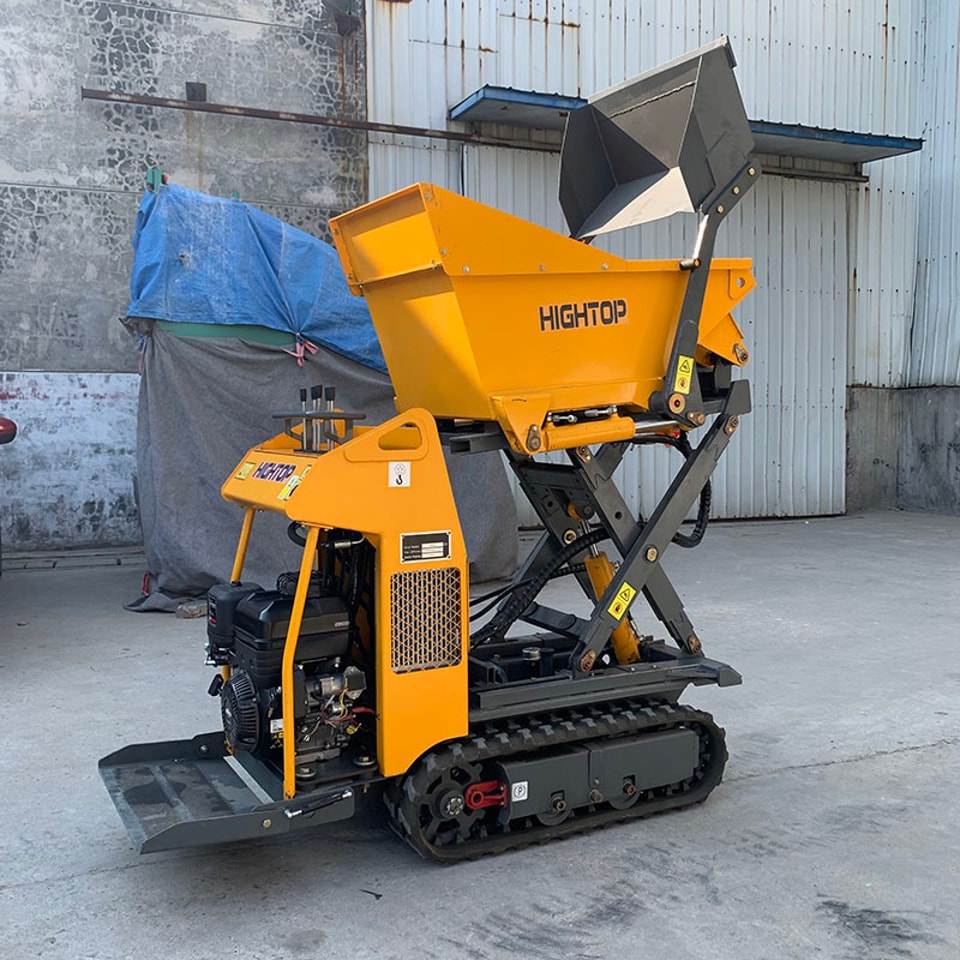

HTD5050 Crawler Dumper Images
HTD5050 Crawler Dumper Images
Features
HTD5050 Crawler Dumper – 500kg Load, Briggs & Stratton Engine & Hydraulic Tipping
The HTD5050 crawler dumper is a compact, powerful transport vehicle designed for efficient material handling on construction sites, farms, and landscaping projects. Powered by the Briggs & Stratton GM170F engine (4.2KW/3600RPM, 212cc), it delivers reliable, low-consumption performance with a fuel consumption of ≤0.395 g/kw.h.
Key Features
- 500kg Loading Capacity: Efficient single-trip transport of soil, sand, gravel, and construction materials.
- Briggs & Stratton GM170F Engine: 4.2KW power, 212cc displacement, 92# gasoline, low fuel consumption.
- Hydraulic Tipping System: 100° tipping angle for easy and efficient unloading of materials.
- Compact Dimensions: 1500×833×124mm overall size – fits through narrow pathways and doorways.
- 360kg Machine Weight: Lightweight yet durable for easy maneuverability and transport.
- 2.88km/h Walking Speed & 20° Climbing: Reliable performance on slopes and uneven terrain.
- 1.15m Mini Turning Radius: Exceptional maneuverability in tight spaces.
- 200dm³ Cargo Box Capacity: Ample volume for daily material transport needs.
Technical Specifications at a Glance
- Model: HTD5050
- Engine: Briggs & Stratton GM170F, 4.2KW/3600RPM, 212cc
- Loading Capacity: 500kg
- Machine Weight: 360kg
- Overall Dimension: 1500 × 833 × 124mm
- Cargo Box Capacity: 200dm³
- Tipping Angle: 100° (hydraulic)
- Walking Speed: 2.88km/h
- Climbing Ability: 20°
- Mini Turning Radius: 1.15m
- Track Gauge: 52cm
- Mini Ground Clearance: 10cm
- Hydraulic Oil Tank Capacity: 15L (use 46# hydraulic oil)
- Fuel Tank Capacity: 3.6L | Engine Oil Capacity: 0.6L
Applications
The HTD5050 crawler dumper is ideal for short-distance material transport on construction sites, farms, orchards, landscaping projects, and nurseries. Its compact size, hydraulic tipping system, and low fuel consumption make it a versatile and economical choice for daily material handling.
