Mini Crawler Dumper
Compact Hydraulic Crawler Dumper for Tight Sites: The HT500-3 mini crawler dumper features an 860kg operating mass, 270L hopper capacity, and 6.5HP Briggs & Stratton EPA engine. Hydraulic drive with 3.2km/h forward speed and 180 bar working pressure. 860kg Mass & 270L Hopper Compact size, big capacity. Briggs & Stratton 6.5HP 208cc EPA engine, reversing & electric start. Hydraulic Drive 180 bar pressure, 3.2km/h speed. Foldable Platform Flexible maneuverability, easy storage.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Mini Dumper Parameter
Mini Dumper Images
Features
Mini Dumper Parameter
Mini Crawler Dumper Parameter
| HT500-3 Mini Crawler Dumper — Parameter Table | |
|---|---|
Mass | |
| Max. operating mass | 860 kg |
| Transport mass | 360 kg |
Dimensions | |
| Overall (L×W×H) | 2112 × 832 × 1344 mm |
| Transport dimensions (L×W×H) | 1480 × 832 × 1344 mm |
Hydraulic System | |
| Pump | Tandem gear pump (4cc ×2) 3600rpm |
| Motor | Disc distribution cycloid motor (×2) |
| Working pressure | Max. 180 bar |
| Hydraulic flow | 28.8 L |
| Motor torque | 645 Nm each at 180 bar |
Traction & Performance | |
| Driving | Hydraulic |
| Steering | Fully hydraulic / control valve |
| Forward speed | 3.2 km/h |
| Gradeability | 15° |
| Ground clearance | 71 mm |
Engine | |
| Model | BRIGGS & STRATTON |
| Emission accordance | EPA |
| Rated power | 6.5 HP |
| Displacement | 208 cc |
| Cylinder × stroke | 68.3 × 55.9 mm |
| Fuel tank volume | 3.1 L |
| Oil volume | 0.6 L |
| Net weight | 16 kg |
| Startup | Reversing & E-starter |
Hopper | |
| Hopper volume | 270 L |
Standard Configuration | |
| 1) Traction circuit | Separate hydraulic circuit for equipment traction |
| 2) Drive controls | Forward and reverse drive controls by handle |
| 3) Cold start | Customized transition gear box for easy engine startup at low ambient temperature |
| 4) Electric start option | Option with reverse startup and electric |
| 5) Foldable platform | Foldable platform for flexible maneuverability |
| 6) Hopper protection | Detachable hopper protection |

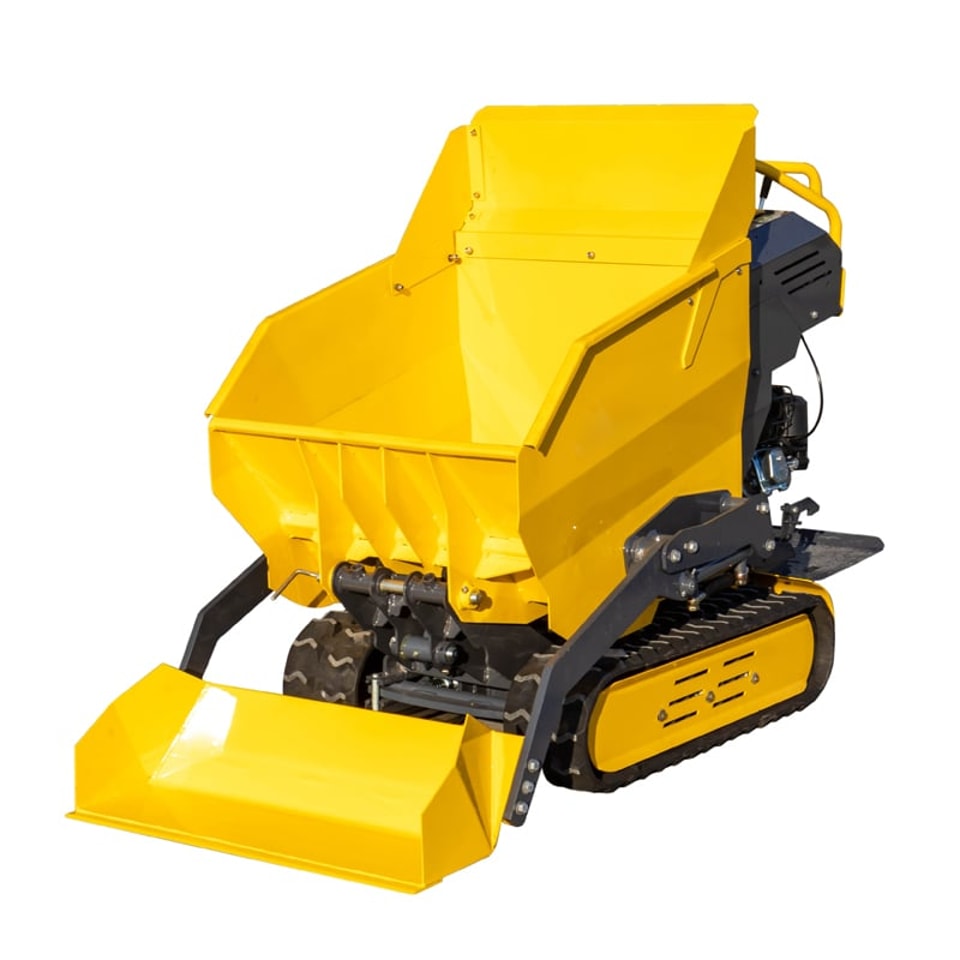

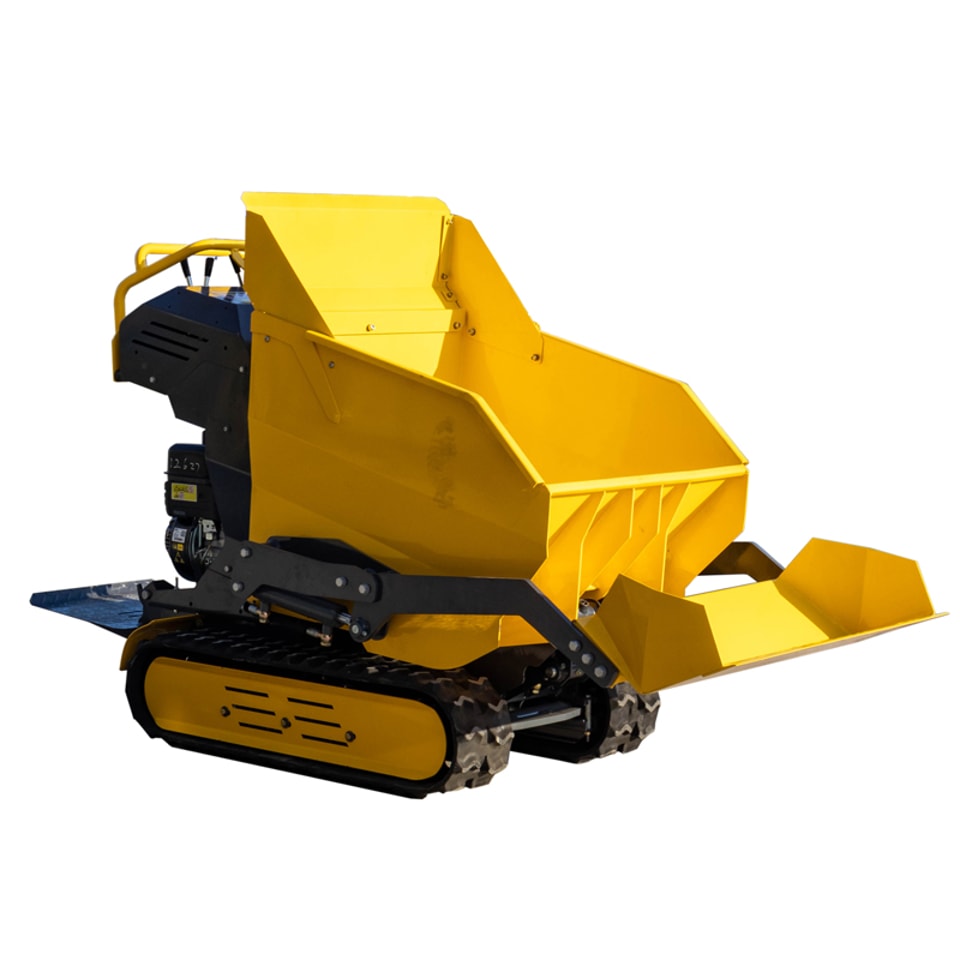

Mini Dumper Images
Mini Dumper Images
Features
Hightop Mini Crawler Dumper Series
Hightop offers a comprehensive range of mini crawler dumpers designed for efficient material transport on construction sites, farms, orchards, and landscaping projects. With load capacities ranging from 500kg to 1000kg, our dumpers feature hydraulic drive systems, reliable engines (Briggs & Stratton, Honda, Koop), and compact designs for tight spaces.
Key Features of Hightop Mini Crawler Dumpers
- Load Capacity: 500kg - 1000kg options for various material handling needs
- Hydraulic Drive: Smooth and powerful traction with hydraulic driving and steering
- Engine Options: Briggs & Stratton, Honda GX-200, Koop KD192F (Euro5 compliant)
- Compact Dimensions: Narrow chassis design fits through doorways and pathways
- Rubber Tracks: Excellent stability and traction on uneven and soft terrain
- Hydraulic Unloading: Easy and efficient dumping of materials
Applications
Our mini crawler dumpers are ideal for short-distance transport of soil, sand, gravel, construction debris, agricultural products, and landscaping materials on construction sites, farms, orchards, vineyards, and nurseries.
