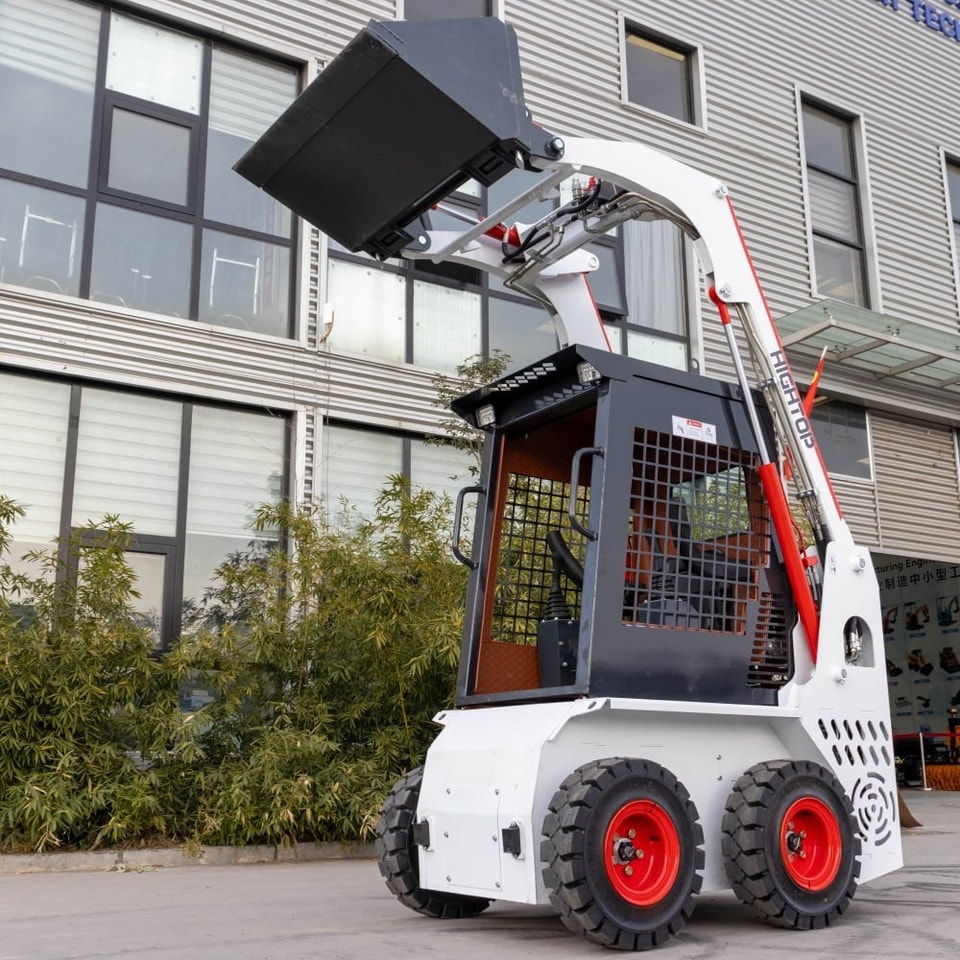

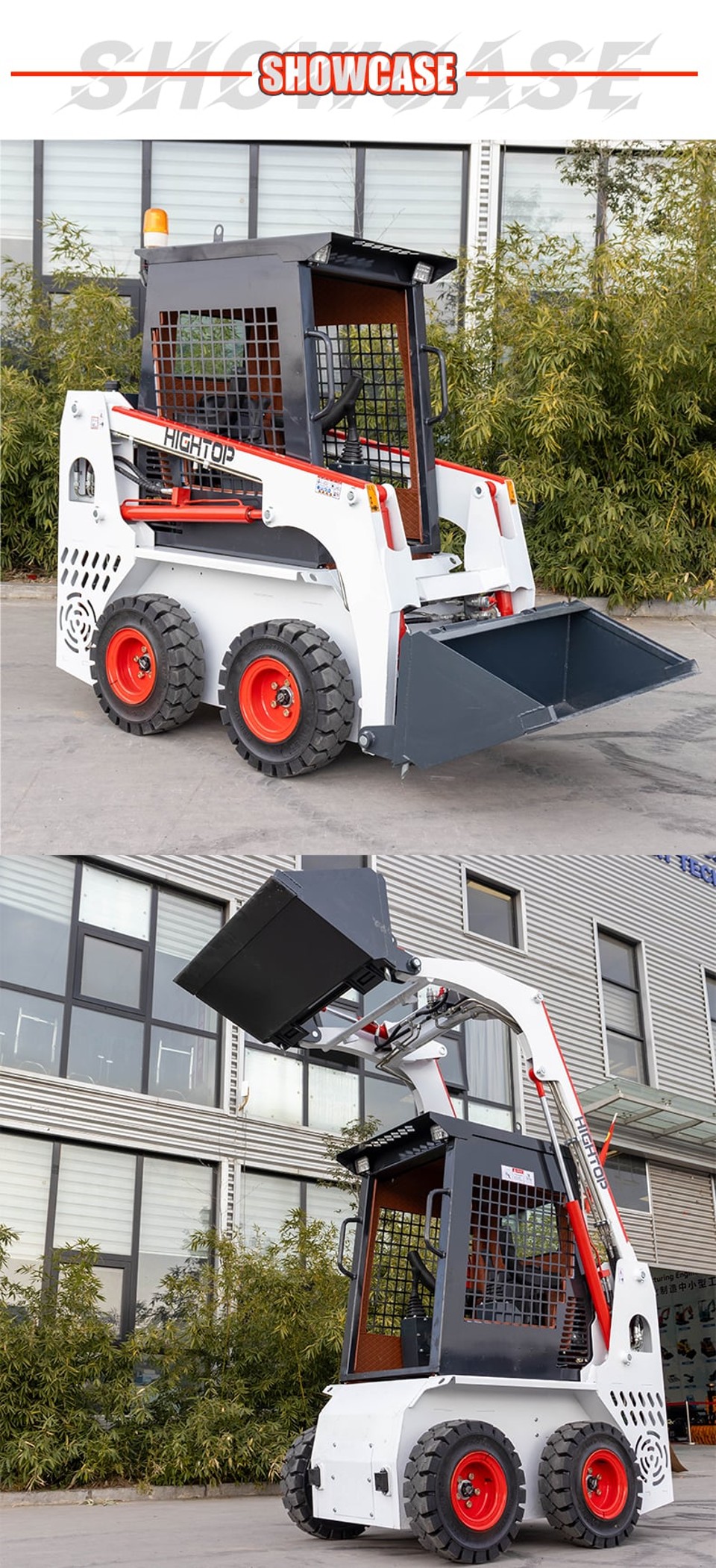

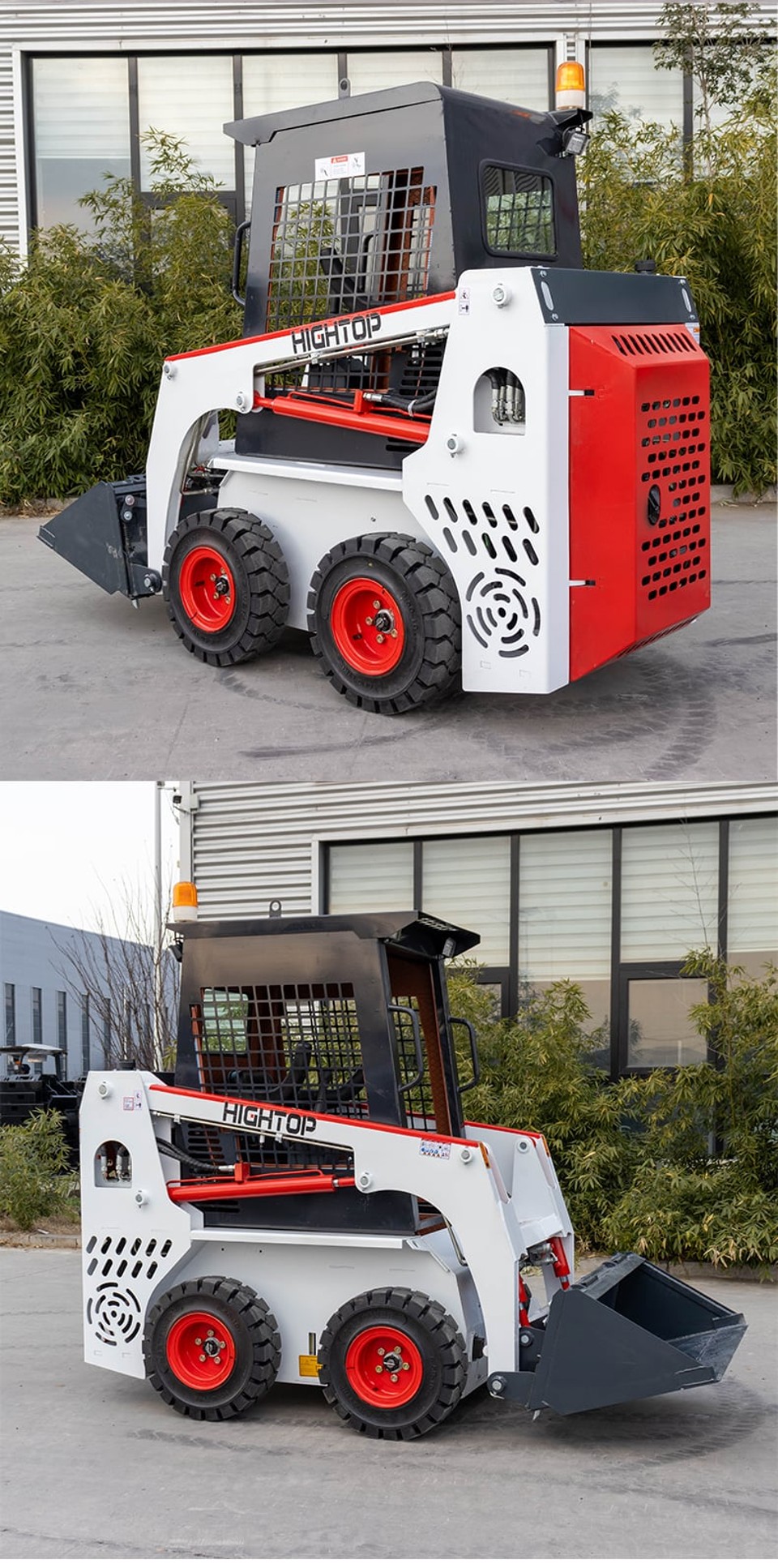

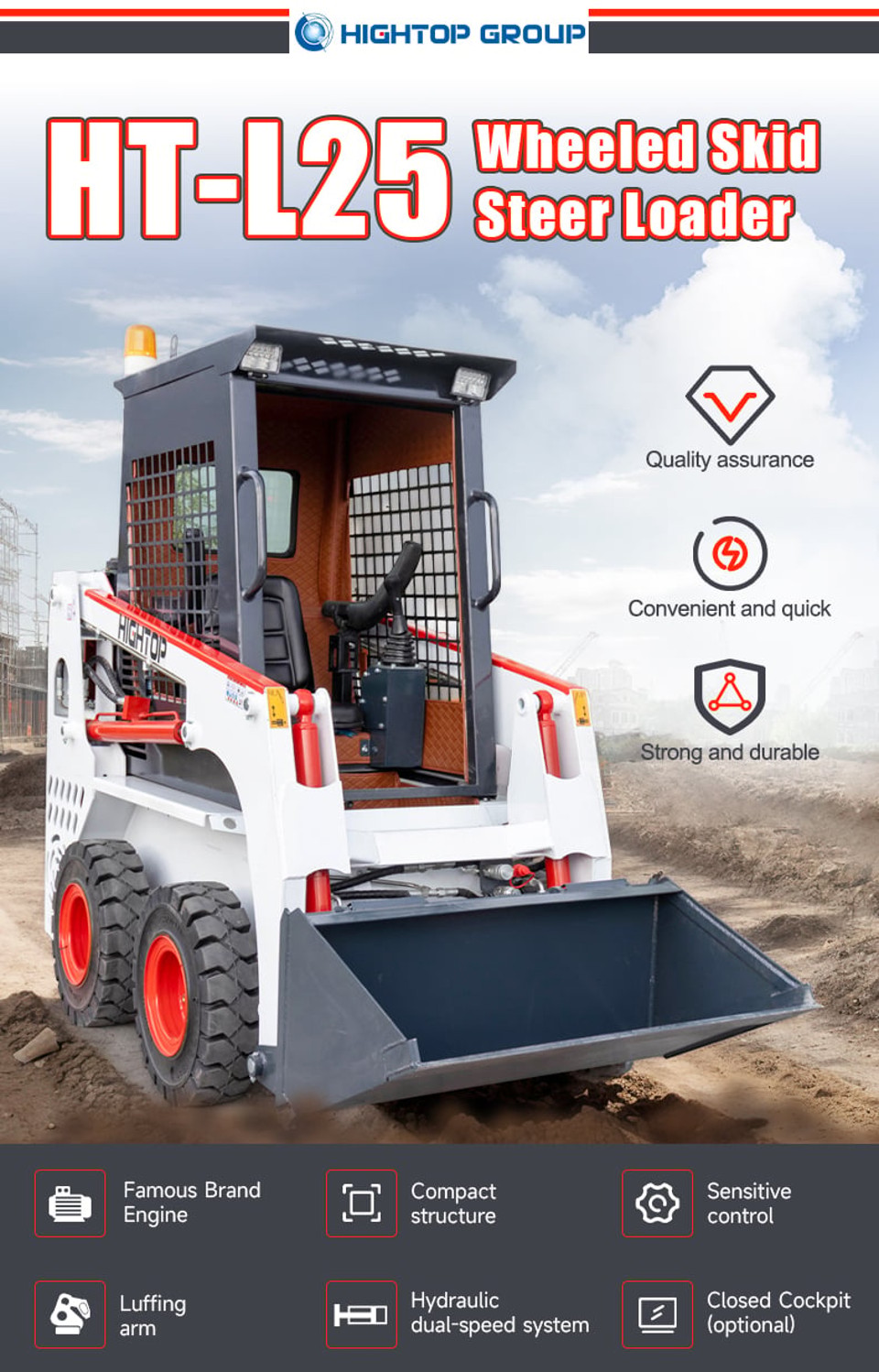

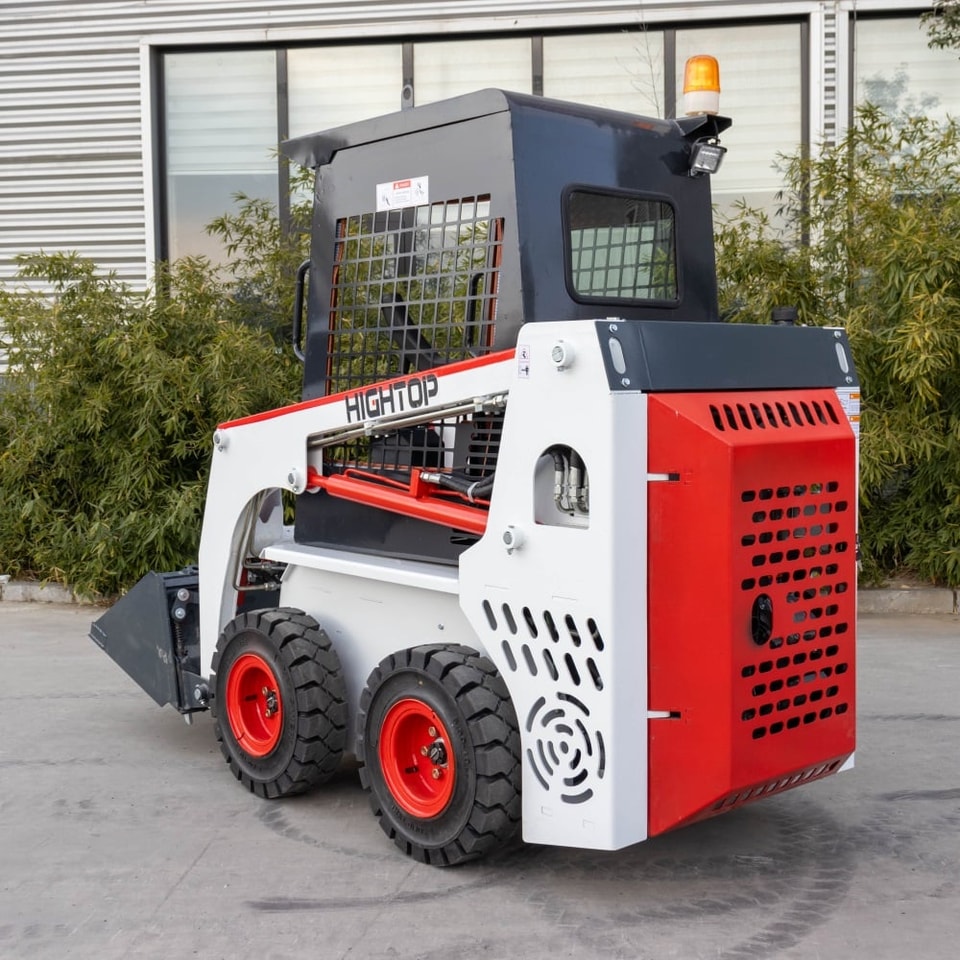

HT-L25 Wheeled Skid Steer Loader

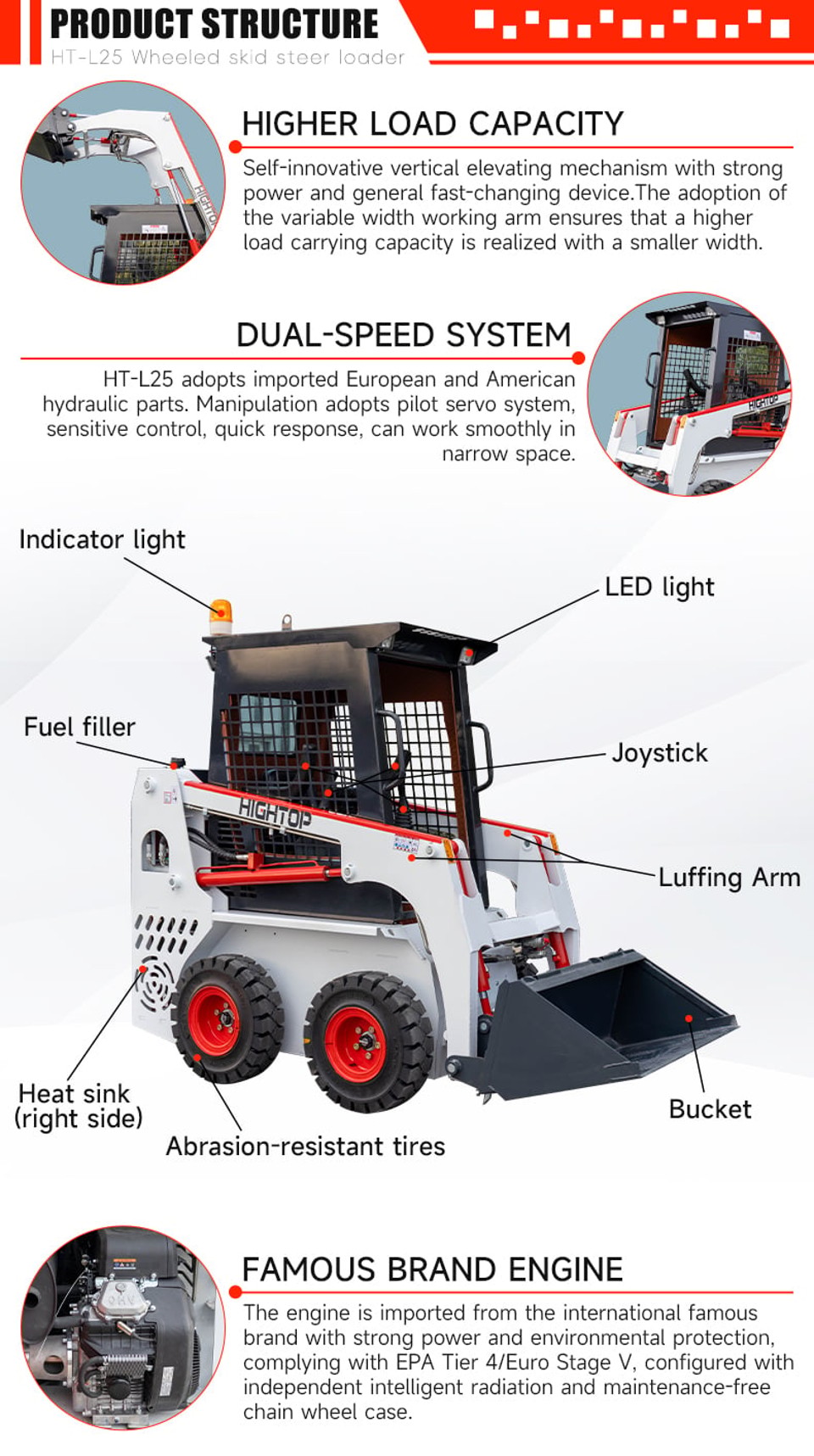

1.Higher Load Capacity
Self-innovative vertical elevating mechanism with strongpower and general fast-changing device.The adoption ofthe variable width working arm ensures that a higherload carrying capacity is realized with a smaller width.
2.Dual-Speed System
HT-L25 adopts imported European and Americanhydraulic parts.Manipulation adopts pilot servo system,sensitive control, quick response, can work smoothly in narrowr soace

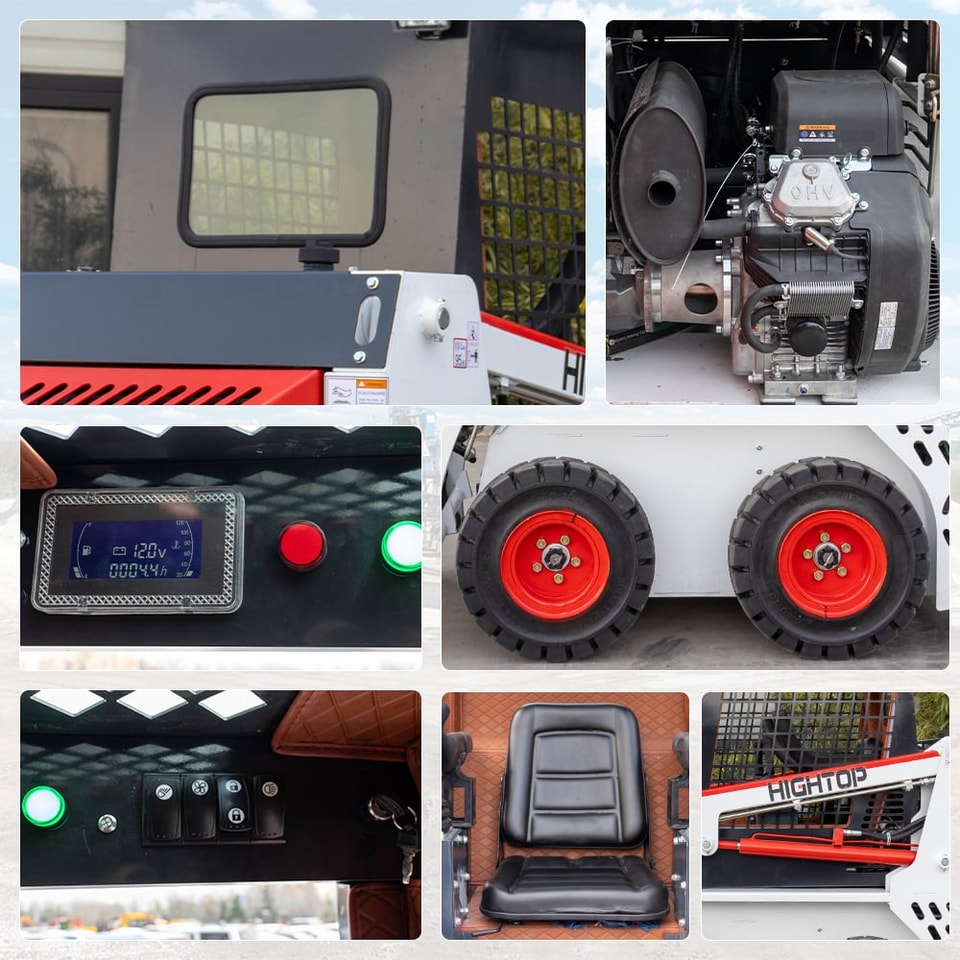

3.Famous Brand Engine
The engine is imported from the international famousbrand with strong power and environmental protection,complying with EPA Tier 4/Euro Stage V, configured withindependent intelligent radiation and maintenance-freechain wheel case.

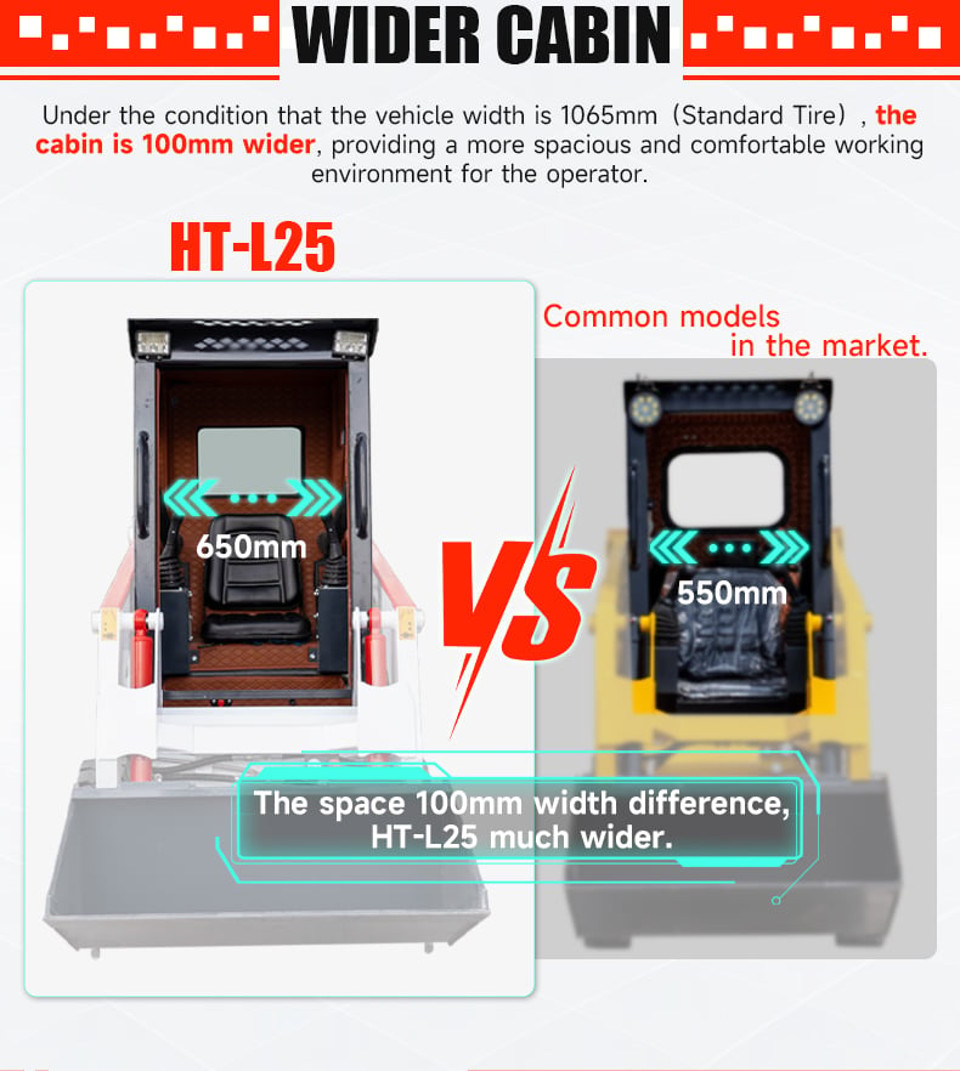

4.Widened cockpit
Under the condition that the vehicle width is 1065mm(Standard Tire) , thecabin is 100mm wider, providing a more spacious and comfortable workingenvironment for the operator.

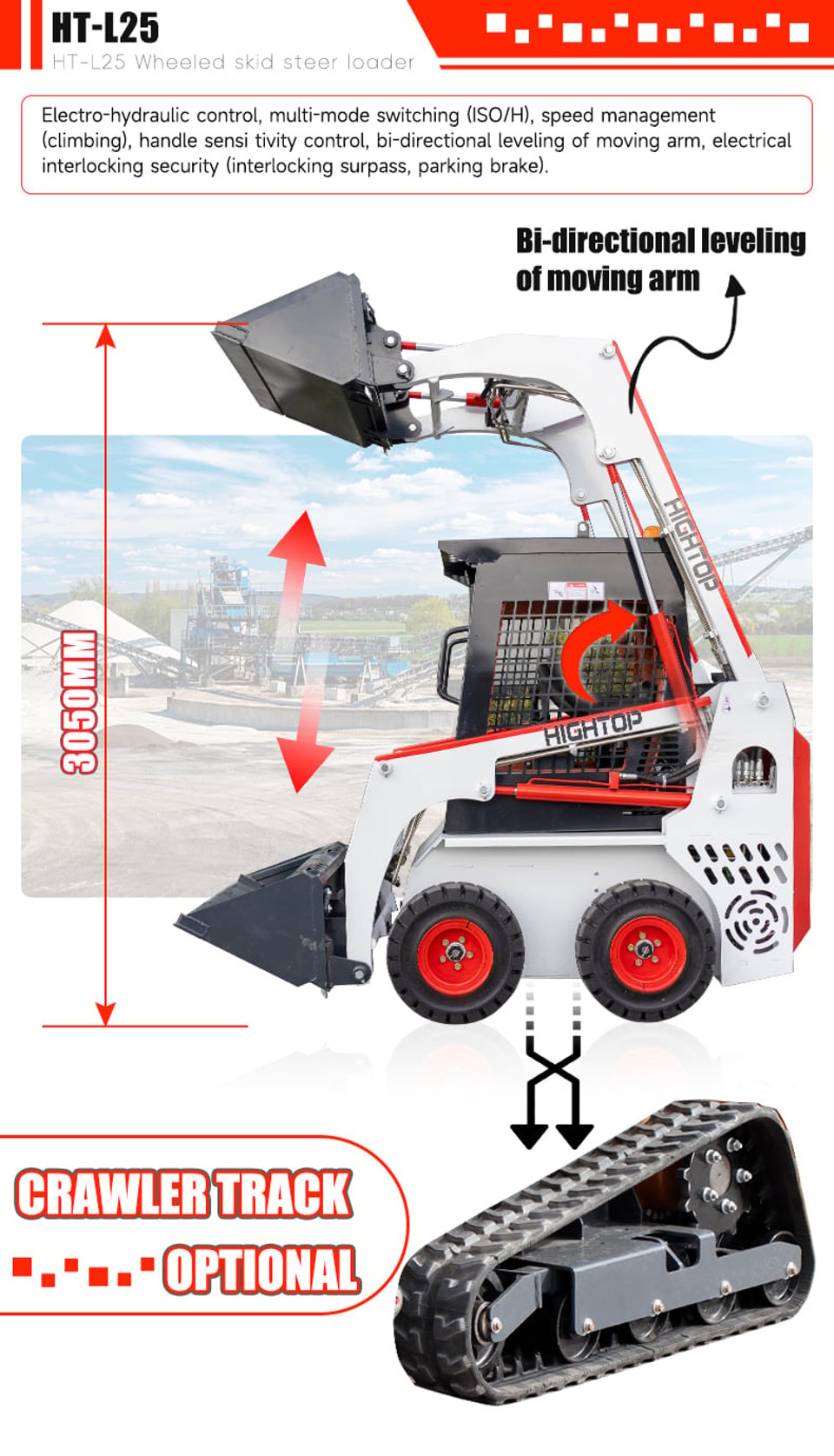

5.Bi-directional leveling of moving arm
Electro-hydraulic control, multi-mode switching (lSO/H), speed management(climbing), handle sensi tivity control, bi-directional leveling of moving arm, electricalinterlocking security (interlocking surpass, parking brake).

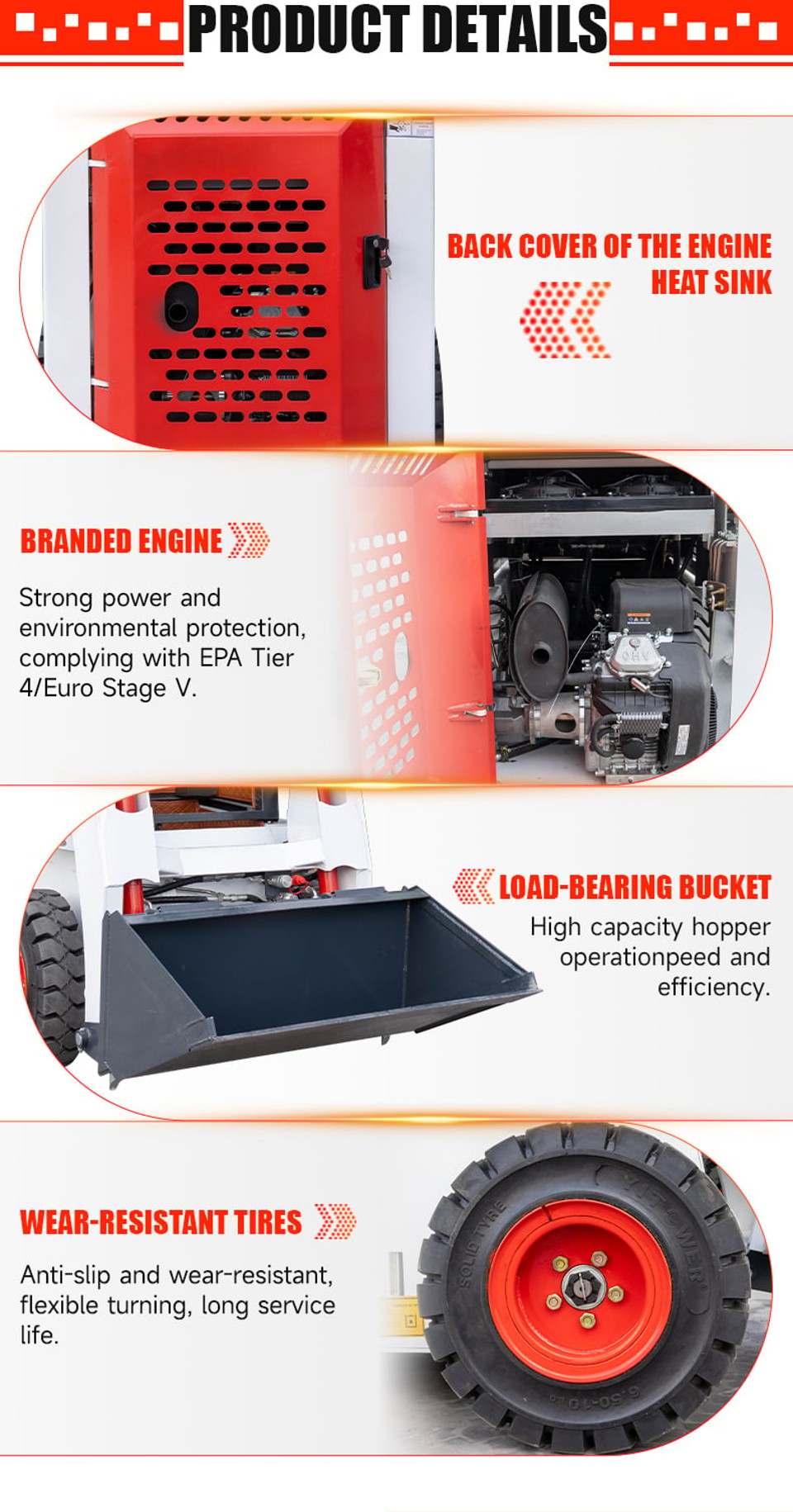

6.Back cover of the engineheat sink
Protect engine engine, auxiliary heat dissipation.
7.Load-bearing bucket
High capacity hopper operationpeed and efficiency.
8.Wear-resistant tires
Anti-slip and wear-resistant.flexible turning, long servicelife.

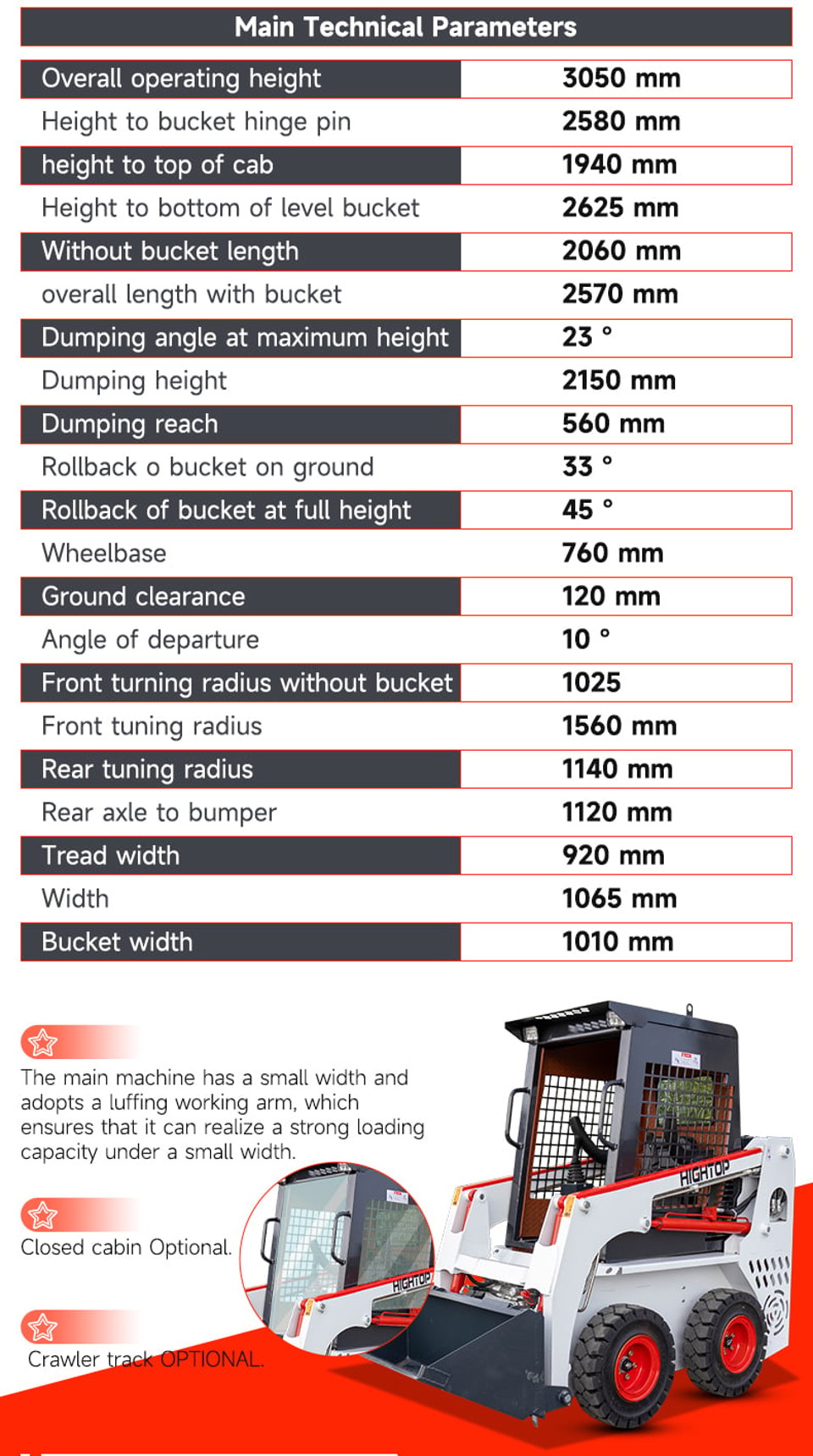

| HT-L25 Skid Steer Loader — Parameter Table | |
|---|---|
| Dimensions (Unit: mm) | |
| Overall operating height | 3050 mm |
| Height to bucket hinge pin | 2580 mm |
| height to top of cab | 1940 mm |
| Height to bottom of level bucket | 2625 mm |
| Without bucket length | 2060 mm |
| overall length with bucket | 2570 mm |
| Dumping angle at maximum height | 23° |
| Dumping height | 2150 mm |
| Dumping reach | 560 mm |
| Rollback o bucket on ground | 33° |
| Rollback of bucket at full height | 45° |
| Wheelbase | 760 mm |
| Ground clearance | 120 mm |
| Angle of departure | 10° |
| Front turning radius without bucket | 1025 mm |
| Front tuning radius | 1560 mm |
| Rear tuning radius | 1140 mm |
| Rear axle to bumper | 1120 mm |
| Tread width | 920 mm |
| Width | 1065 mm |
| Bucket width | 1010 mm |
