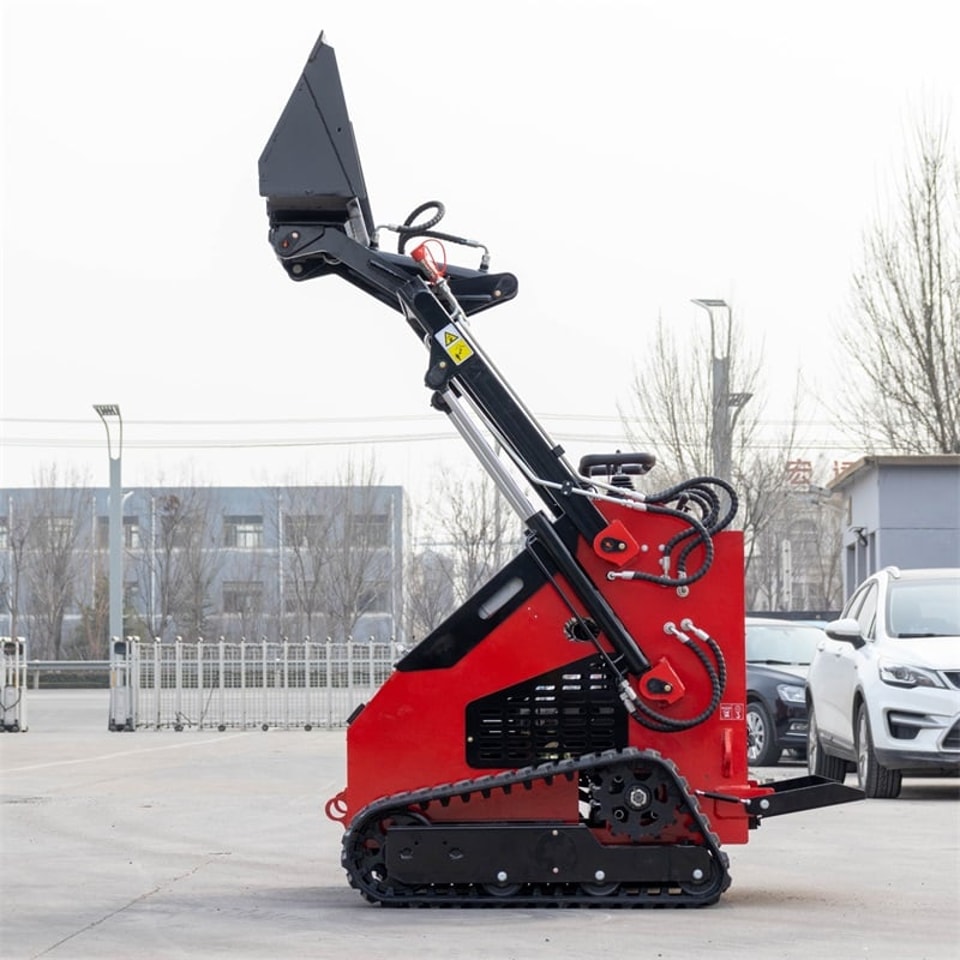

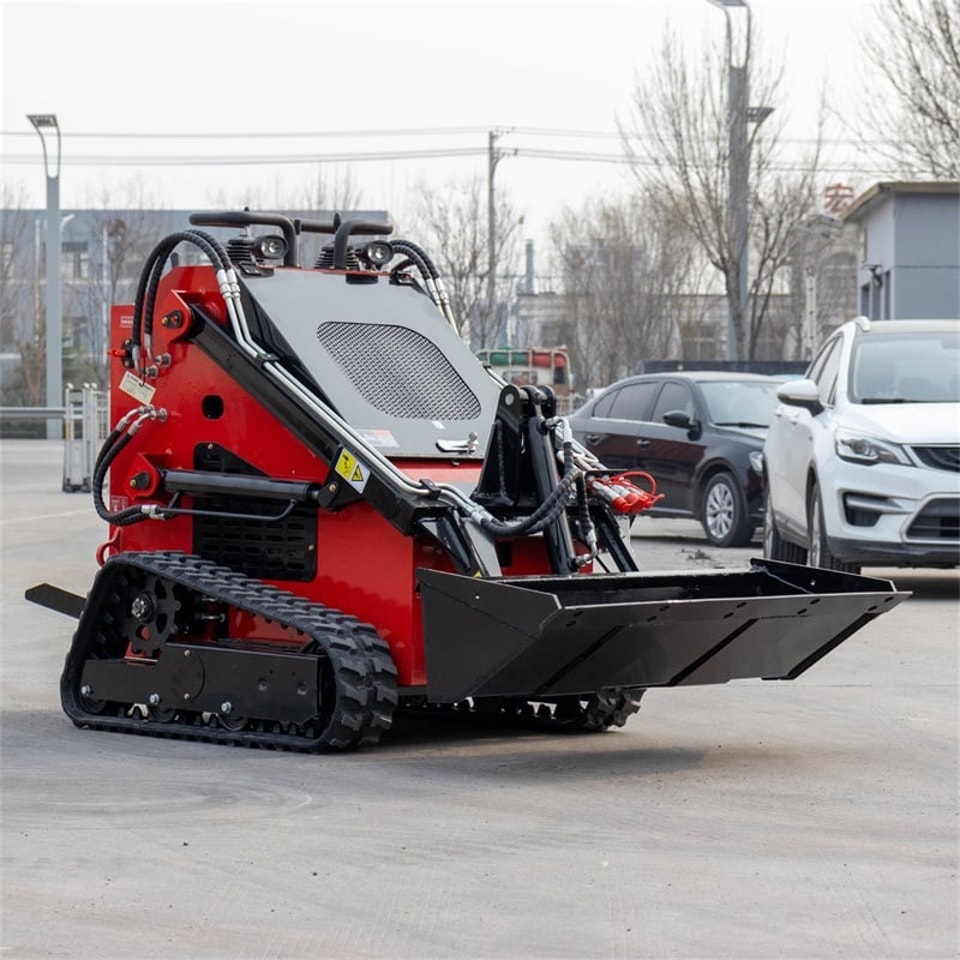

HT380T Skid Steer Loader
The HT380T compact track loader for sale is a high-efficiency mini power unit engineered for professional contractors who require maximum maneuverability in confined job sites. Superior Traction: As a dedicated compact track loader, the HT380T features a reinforced rubber track system that ensures low ground pressure and excellent stability on soft or uneven terrain. Professional Grade Components: This mini skid steer loader for sale is equipped with premium Italian hydraulic valves and high-torque motors, guaranteeing long-term reliability and precise control. Maximum Fleet ROI: Designed for easy maintenance and high durability, it is an ideal asset for rental fleets and landscaping businesses seeking a versatile, multi-functional machine. Compact Versatility: With its universal quick-attach plate, this compact track loader for sale seamlessly integrates with over 40 attachments for year-round operational utility. Inquire for factory-direct wholesale quotes on the HT380T compact track loader for sale today.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Product Introduction
Technical Parameter
Product Introduction
RATO ENGINE
This skid steer loader is powered by a premium RATO R740-1 engine with up to 16KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
EASY OPERATION
Use the handy joysticks to effortlessly adjust the speed, direction, and lifting height. For simple and accurate movement, this small skid steer is suitable for both inexperienced and seasoned landscapers.
AUTOMATIC LEVELING SYSTEM
Max.Dumping height is up to 1405mm and keeps the bucket level to the ground.Lift arm, bucket and attachments are operated separately.
EASY MAINTENANCE
The front cover plate is easy to open and supported by double rods for easy maintenance and inspection inside the cabin.
HIGH-PERFORMANCE TRACKS
The lower vehicle adopts triangular track structure, which makeswalking more stable.
FLEXIBLE OPERATION
HIGHTOP skid steer is ability to operate the lifting arm, bucket, and attachments independently enhances flexibility, precision, and control.
Technical Parameter
| HT-380T — Parameter Table | |
|---|---|
| Dimensions & Working Range | |
| Model | HT-380T |
| Max working height | 2120mm |
| Max pin height | 1865 mm |
| Max. Dumping height | 1405 mm |
| Max Dumping distance | 575mm |
| Max Dumping Angle | 37° |
| Total height | 1350 mm |
| Ground clearance | 121 mm |
| Wheel base | — |
| Overall length without bucket | 1495 mm |
| Total width | 1021 mm |
| Bucket width | 1150mm |
| Total length with bucket | 2245 mm |
| Overall length without the bucket after folding the pedal. | 1990 mm |
| Engine | |
| Engine (Optional) | RATO Engine R740-1 / Briggs & Stratton 23HP |
| Rated Power (KW) | 16Kw/3600rpm (RATO) / 17Kw/3600rpm (Briggs) |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | ≤95 |
| Hydraulic System | |
| Pressure (Mpa) | 0-17 |
| Flow rate | 0-21.6L |
| Working Performance | |
| Operating Load | 300 Kg |
| Bucket Capacity | 0.15m³ |
| Max Lifting Force | 380 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 890 Kg |
| Fluid Capacity | |
| Fuel tank | 20L |
| Engine oil | 1.7L |
| Hydraulic tank | 37L |
