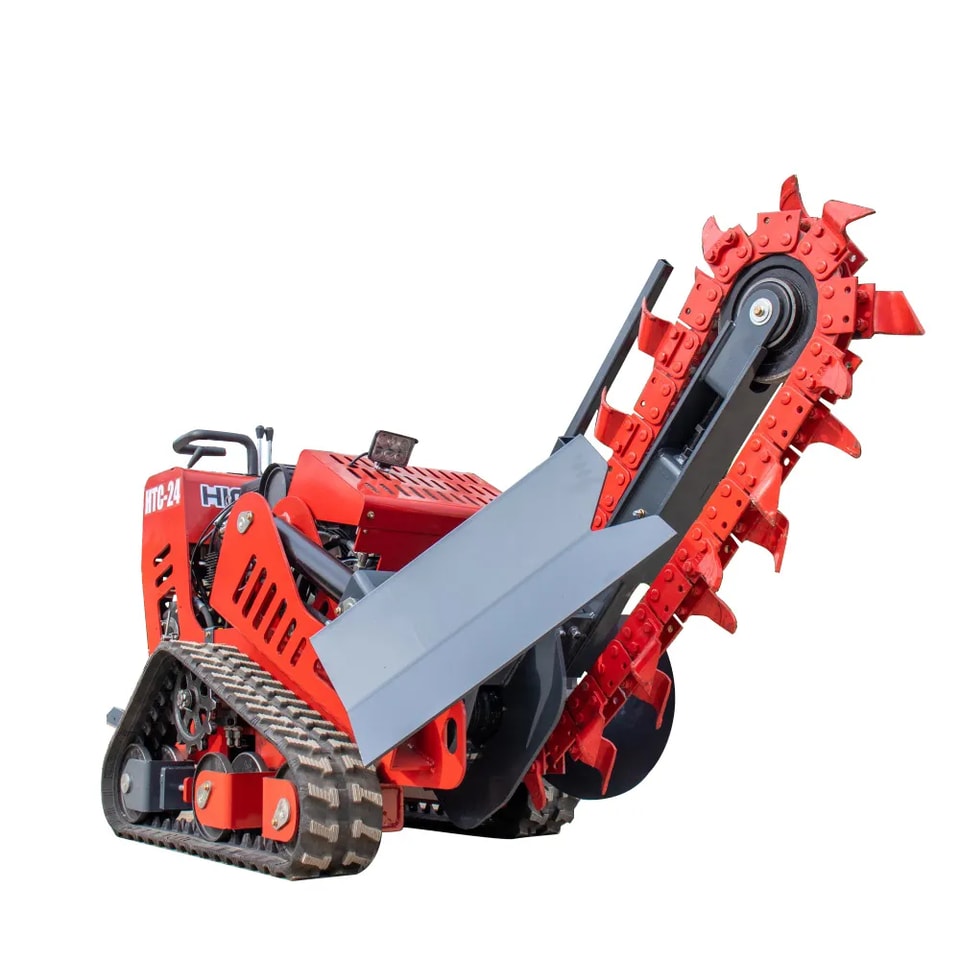

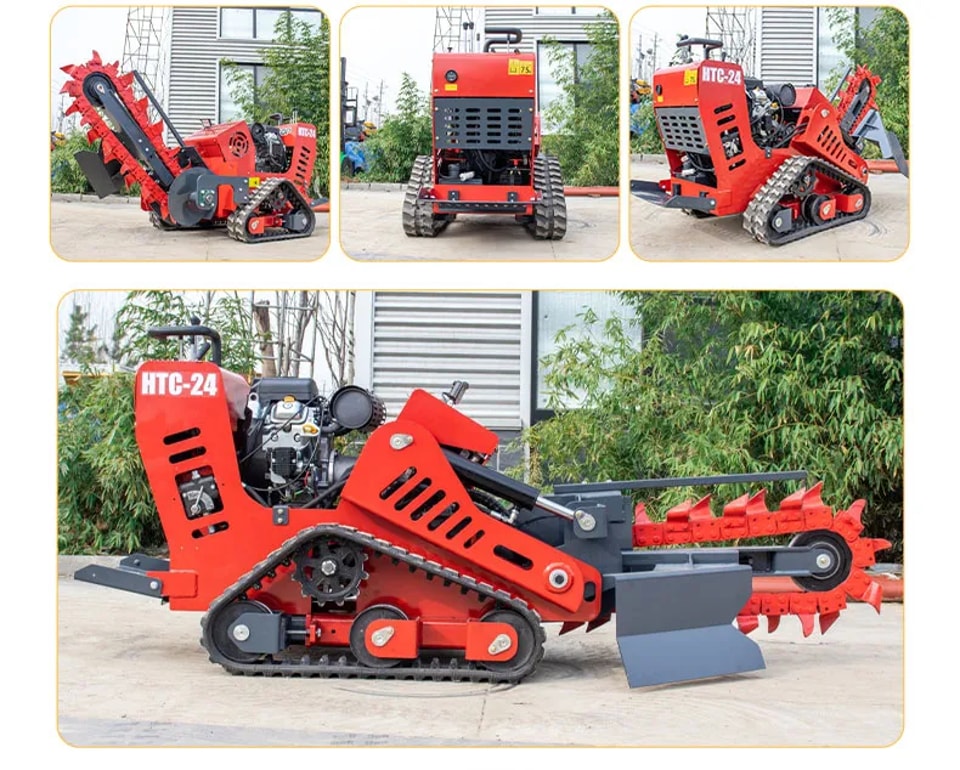

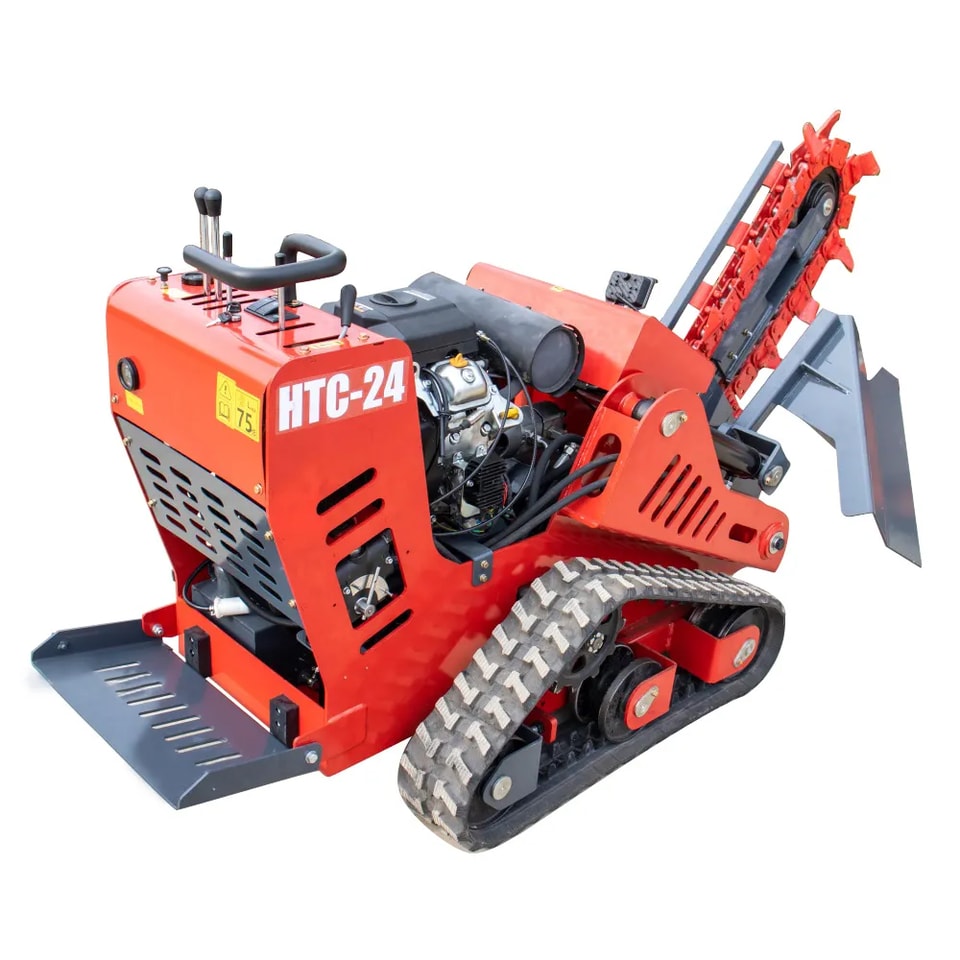

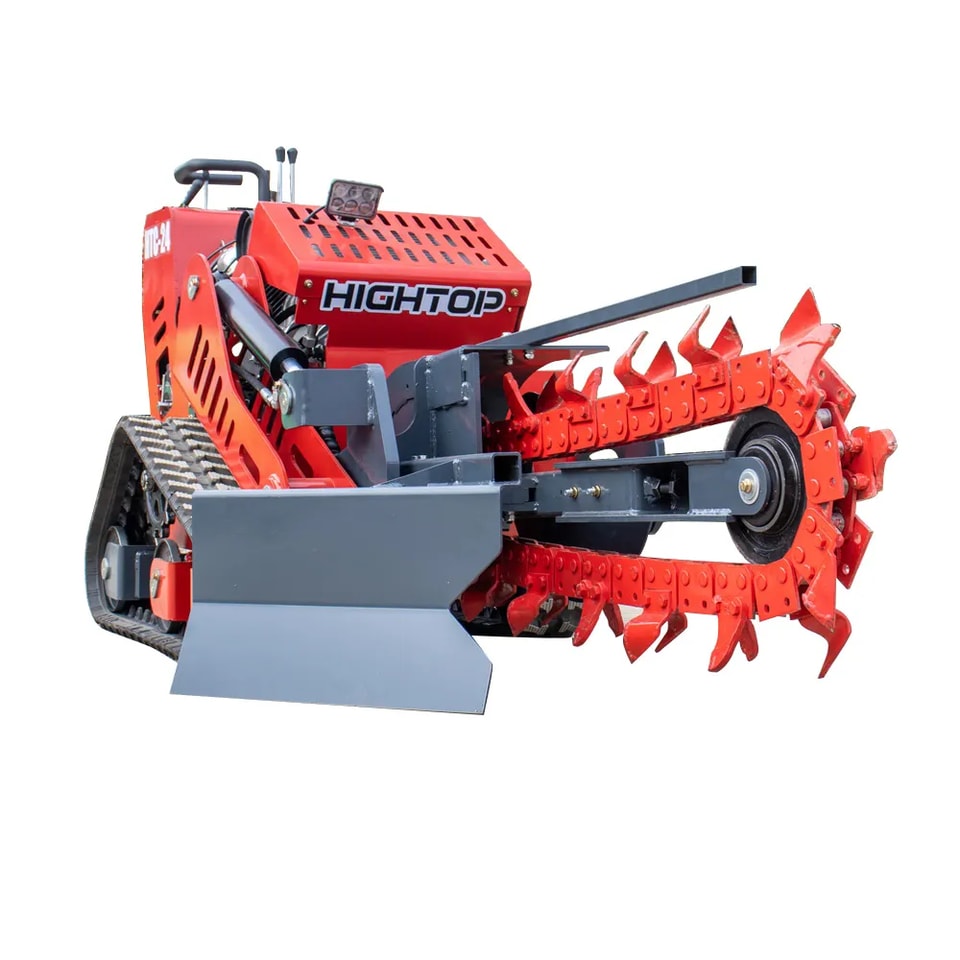

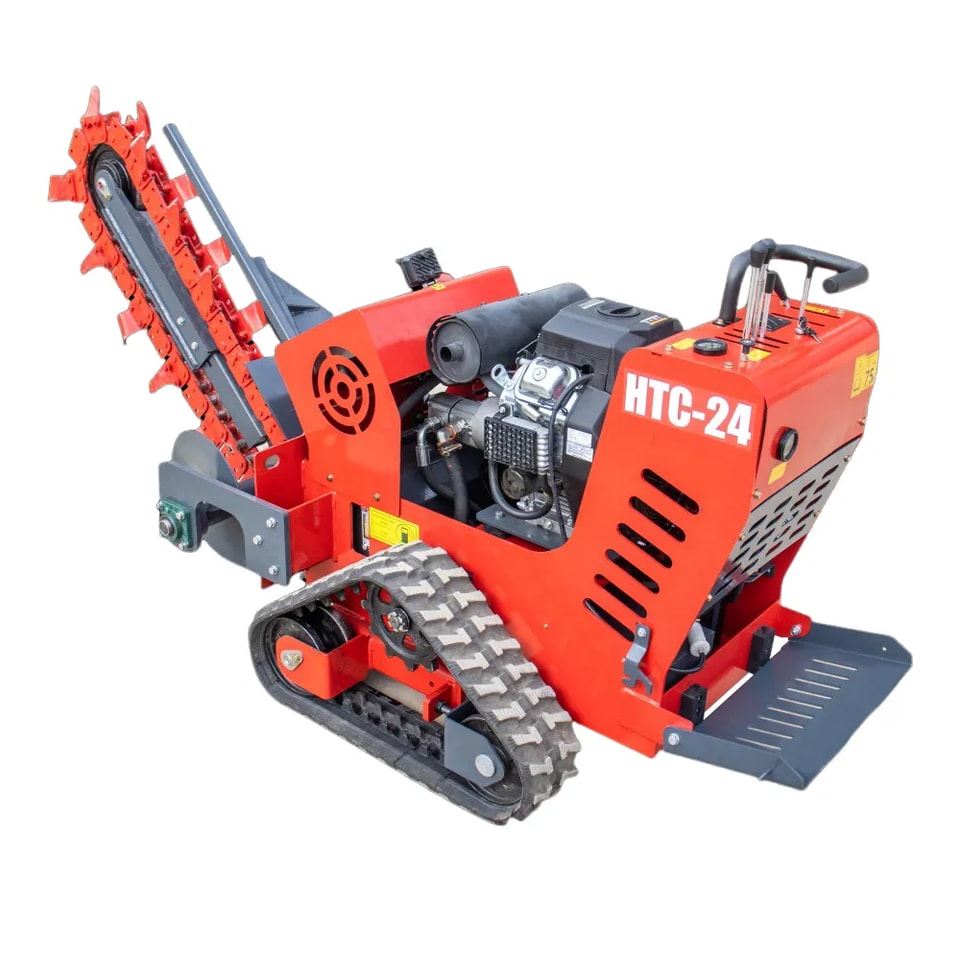

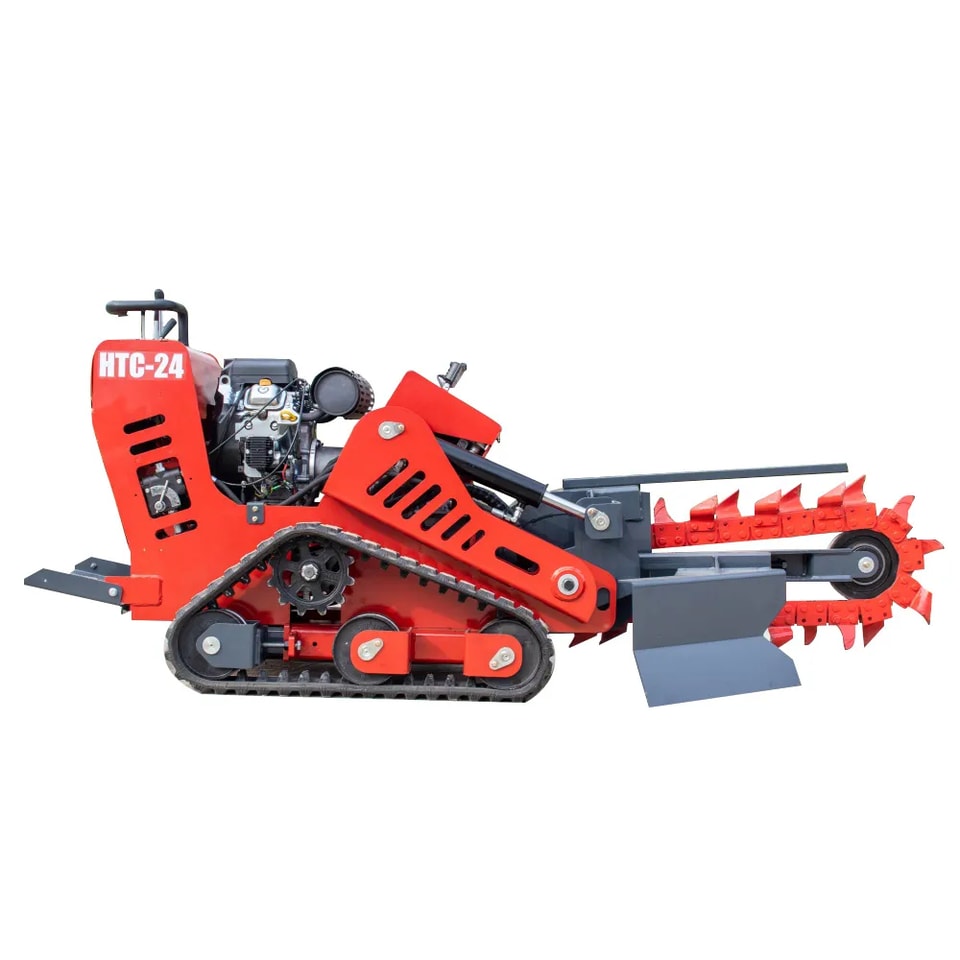

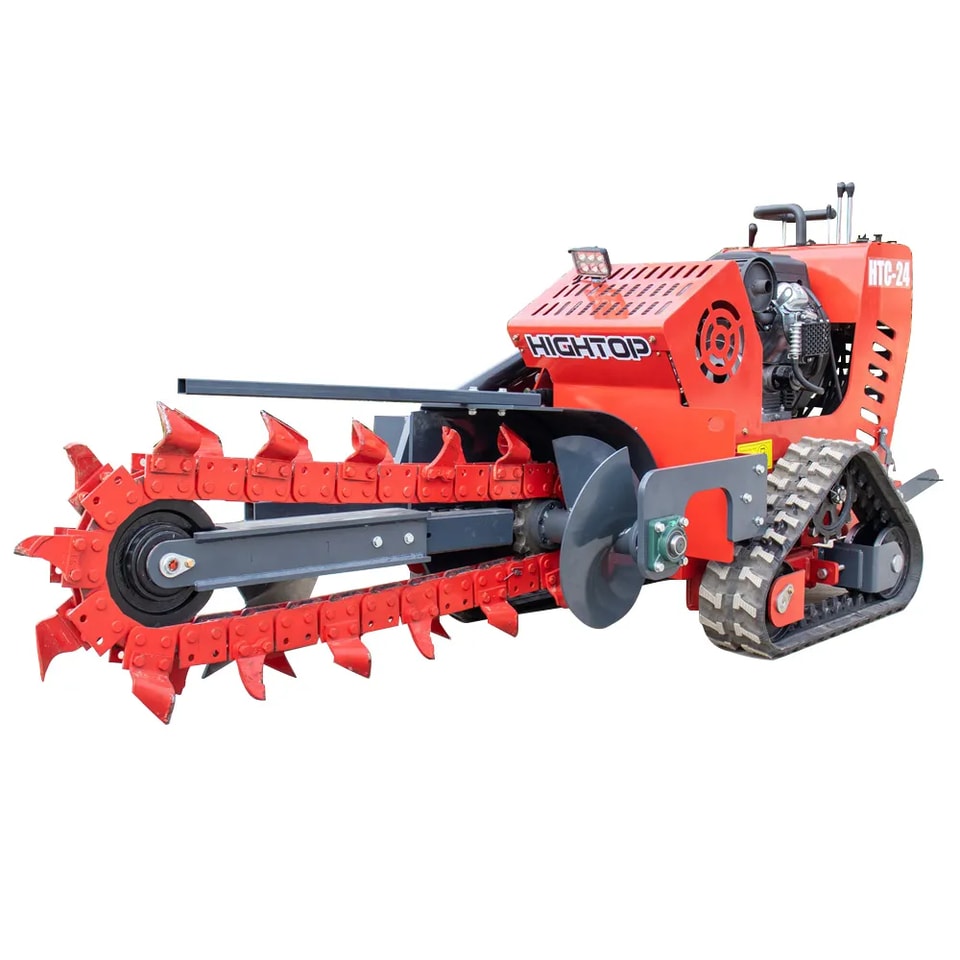

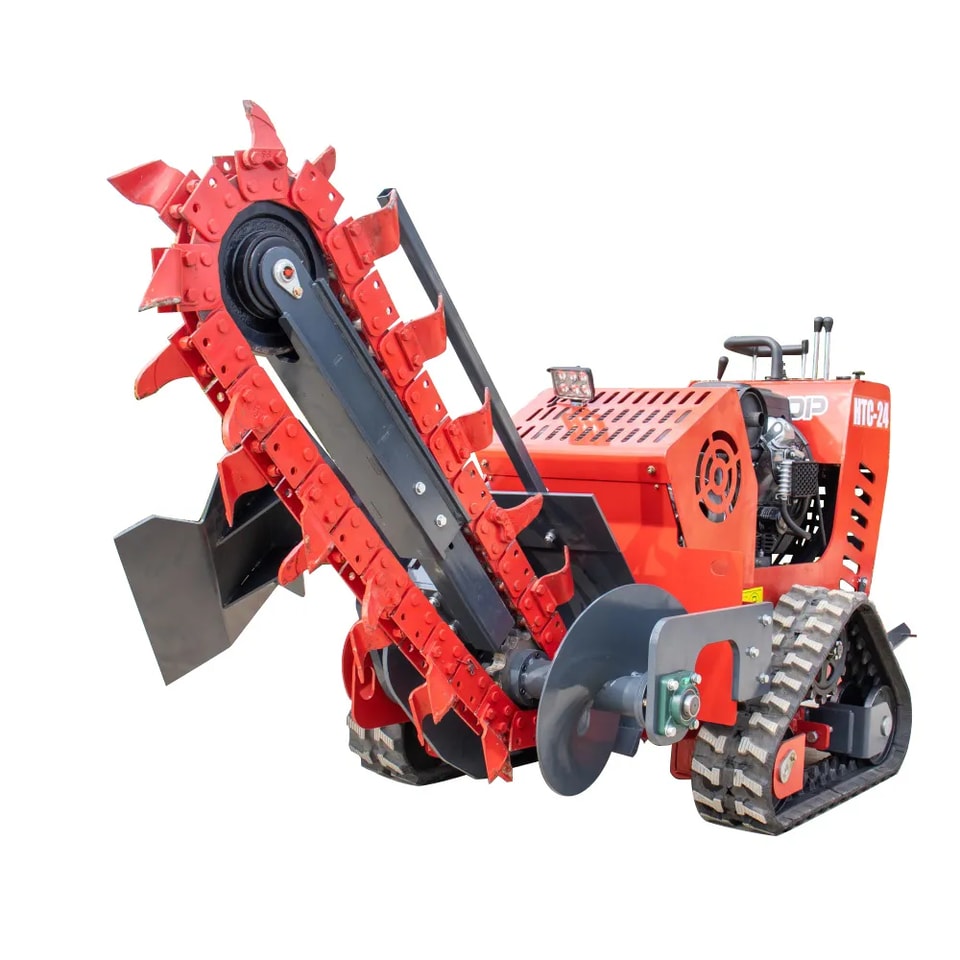

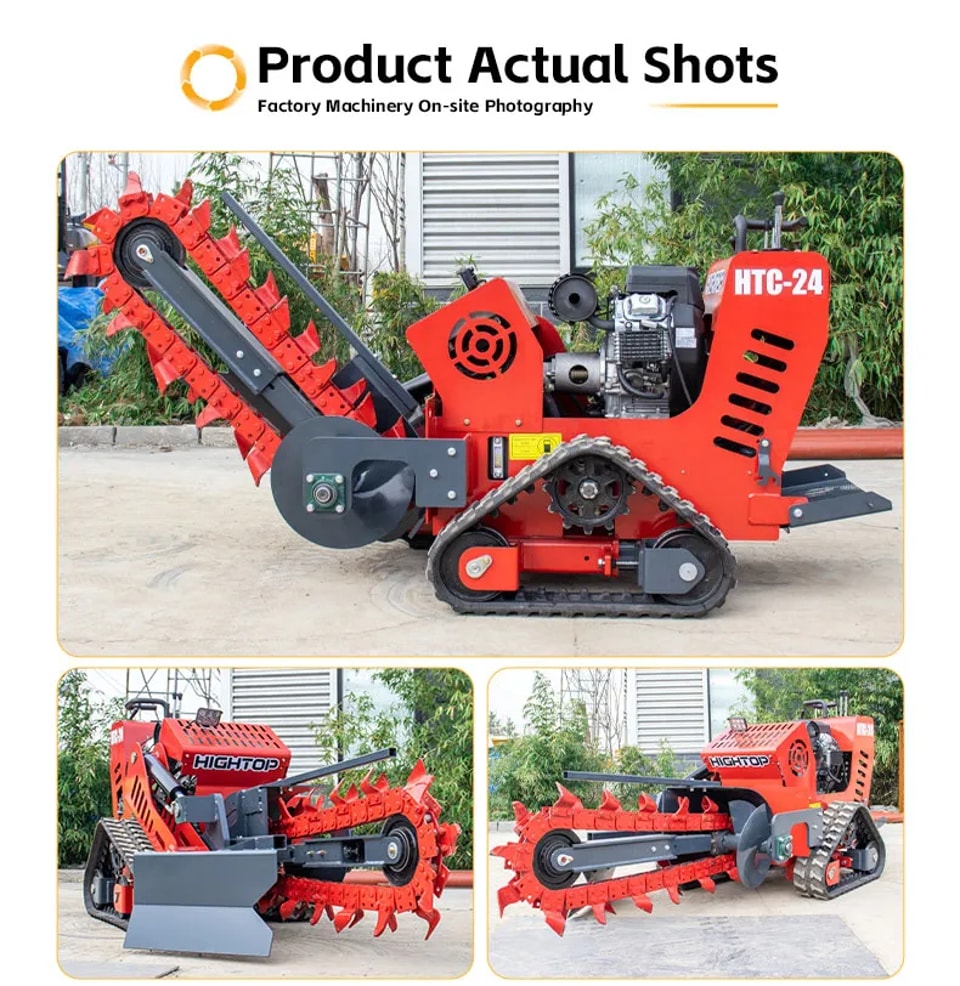

HTC24 Sliding Trencher

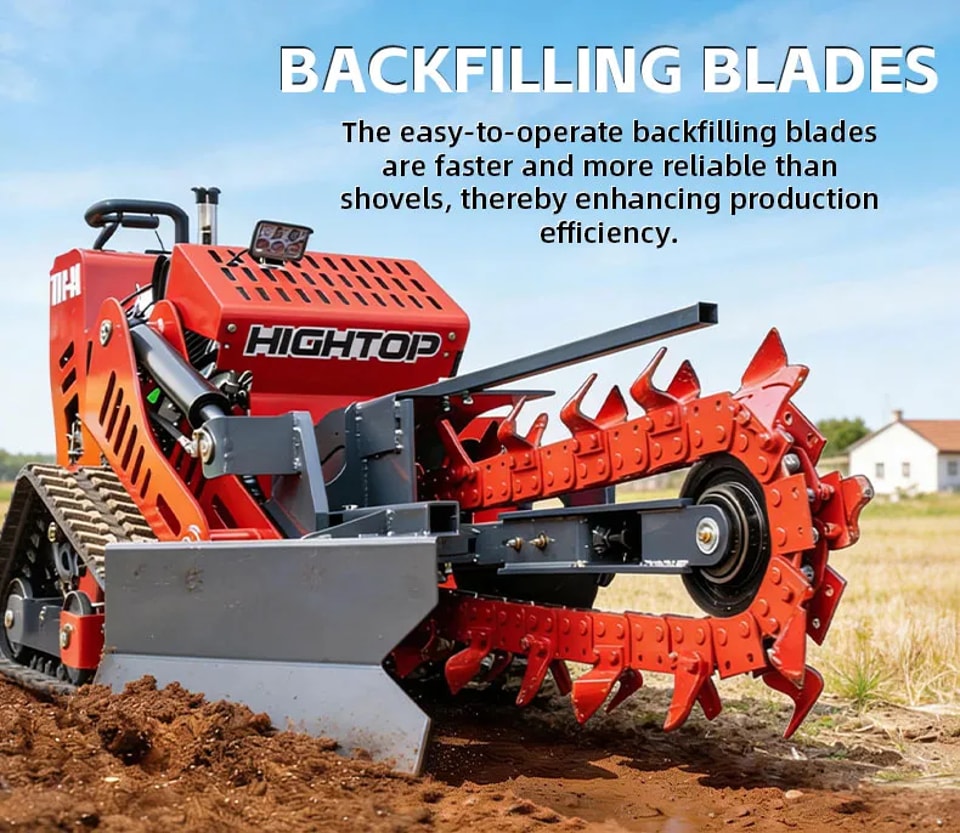

The HTC24 sliding trencher for sale is a high-performance skid steer attachment designed for precision utility trenching and large-scale landscaping projects. Featuring integrated backfilling blades and a durable sliding mechanism, it maximizes operational speed and ensures a high ROI for rental fleets and professional contractors. Inquire today for factory-direct wholesale pricing and professional B2B support on this efficient pipe and cable installation solution.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Parameter
Details
Parameter

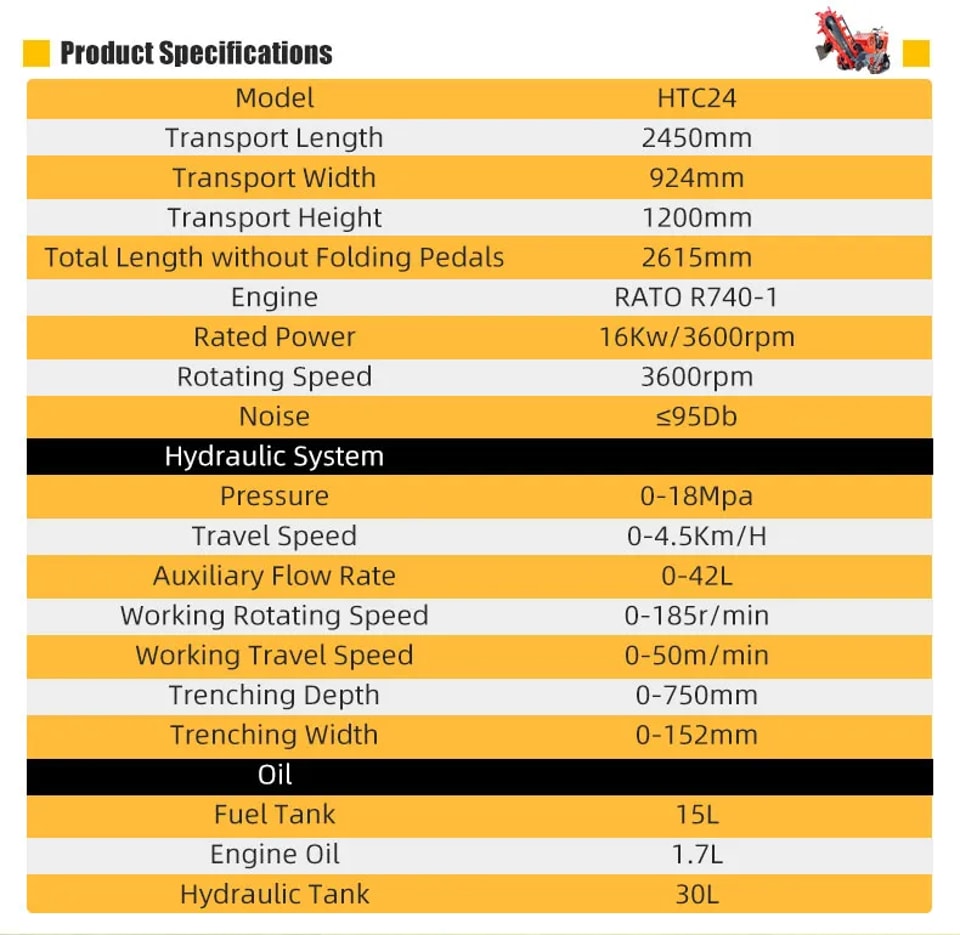

| HTC24 Sliding Trencher — Parameter Table | |
|---|---|
| Model | HTC24 |

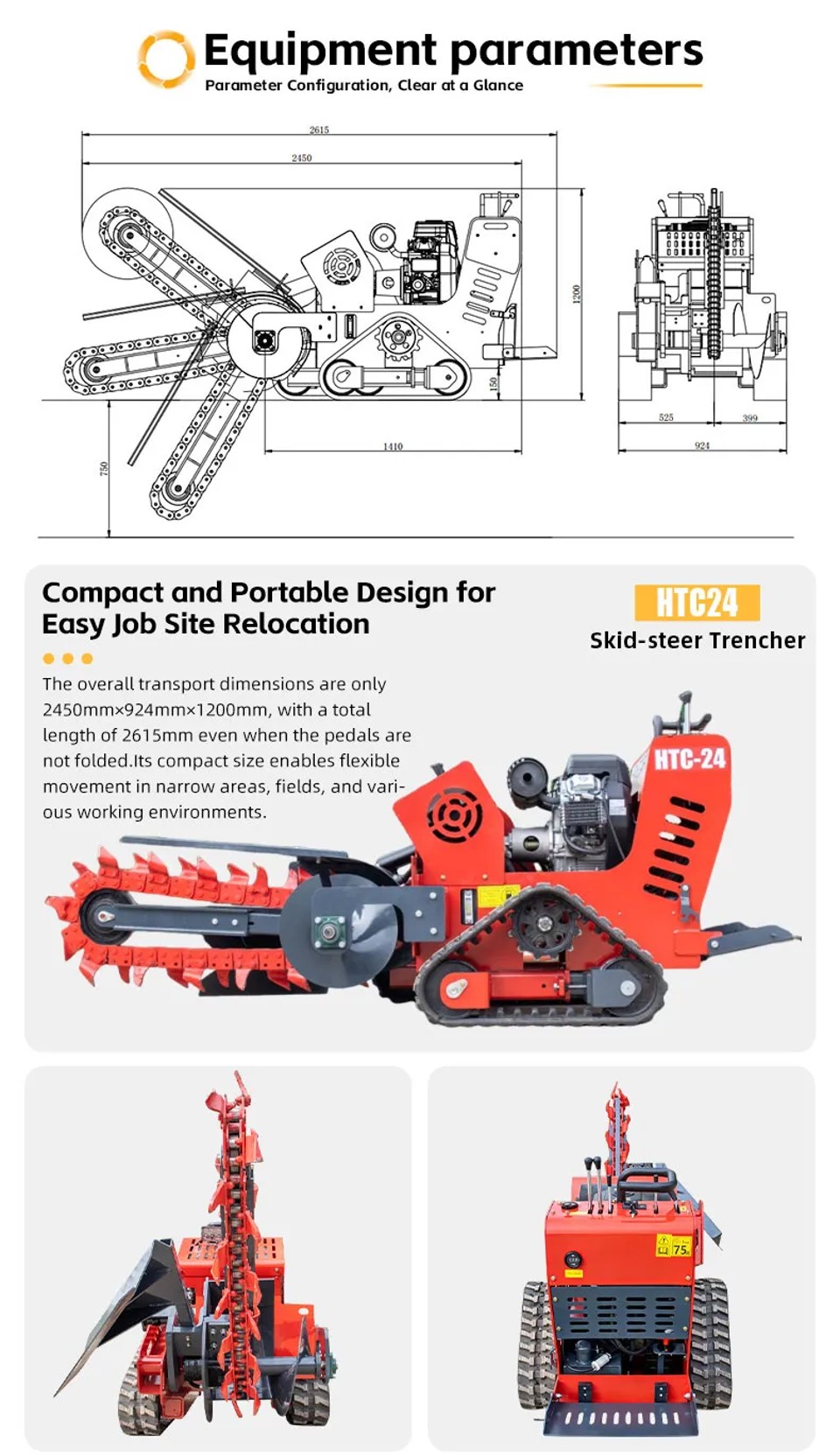

| Transport Length | 2450mm |
| Transport Width | 924mm |
| Transport Height | 1200mm |
| Total Length without Folding Pedals | 2615mm |
| Engine | |

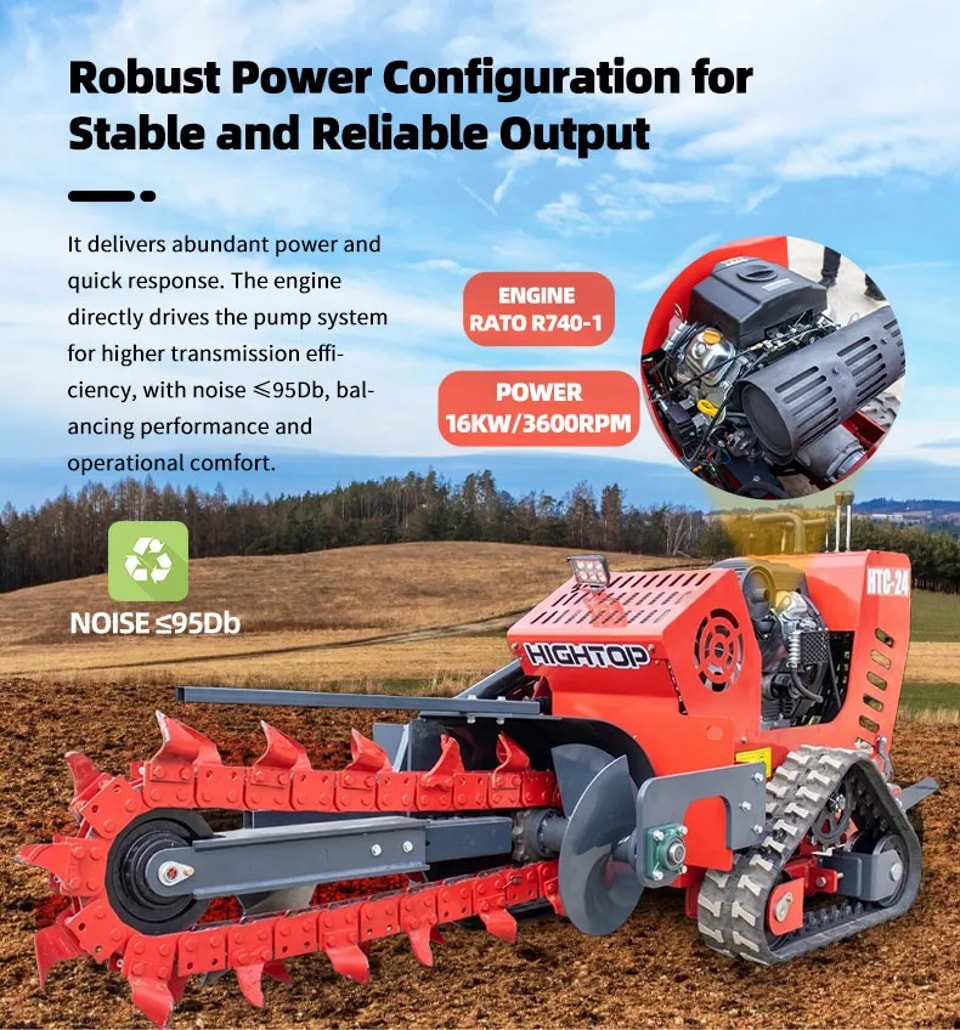

| Engine | RATO R740-1 |
| Rated Power | 16Kw/3600rpm |
| Rotating Speed | 3600rpm |
| Noise | ≤95Db |
| Hydraulic System | |
| Pressure | 0-18Mpa |
| Travel Speed | 0-4.5Km/H |
| Auxiliary Flow Rate | 0-42L |
| Working Rotating Speed | 0-185r/min |
| Working Travel Speed | 0-50m/min |
| Trenching Depth | 0-750mm |
| Trenching Width | 0-152mm |

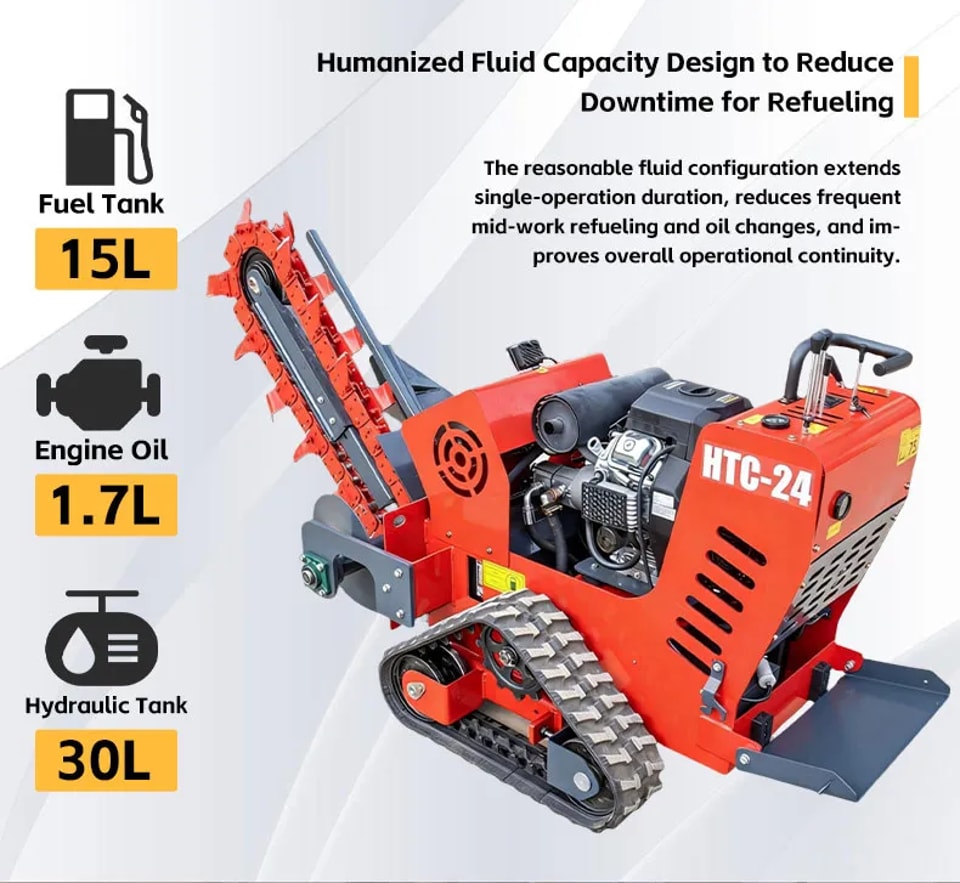

| Oil | |
| Fuel Tank | 15L |
| Engine Oil | 1.7L |
| Hydraulic Tank | 30L |

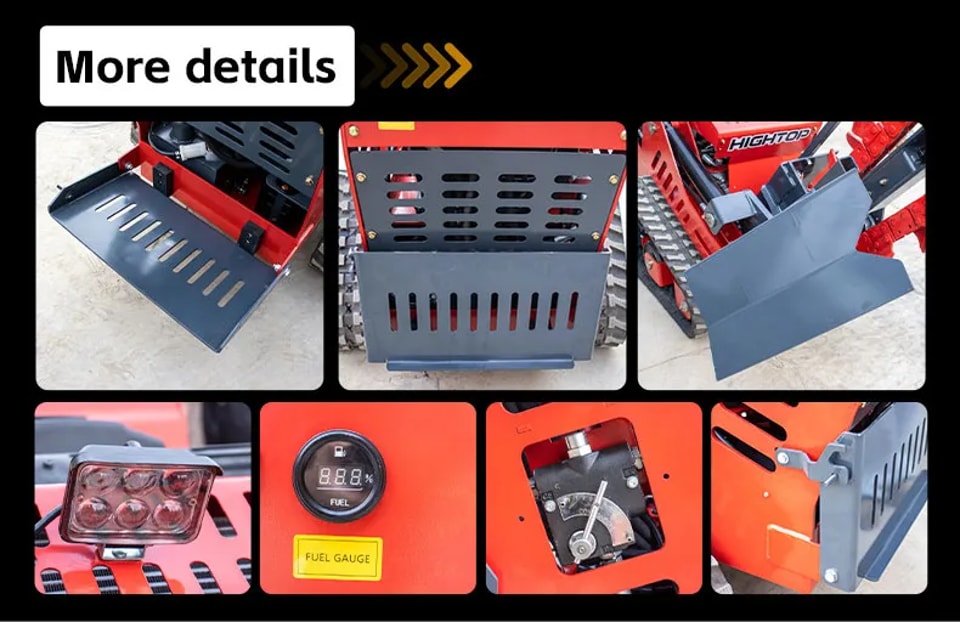

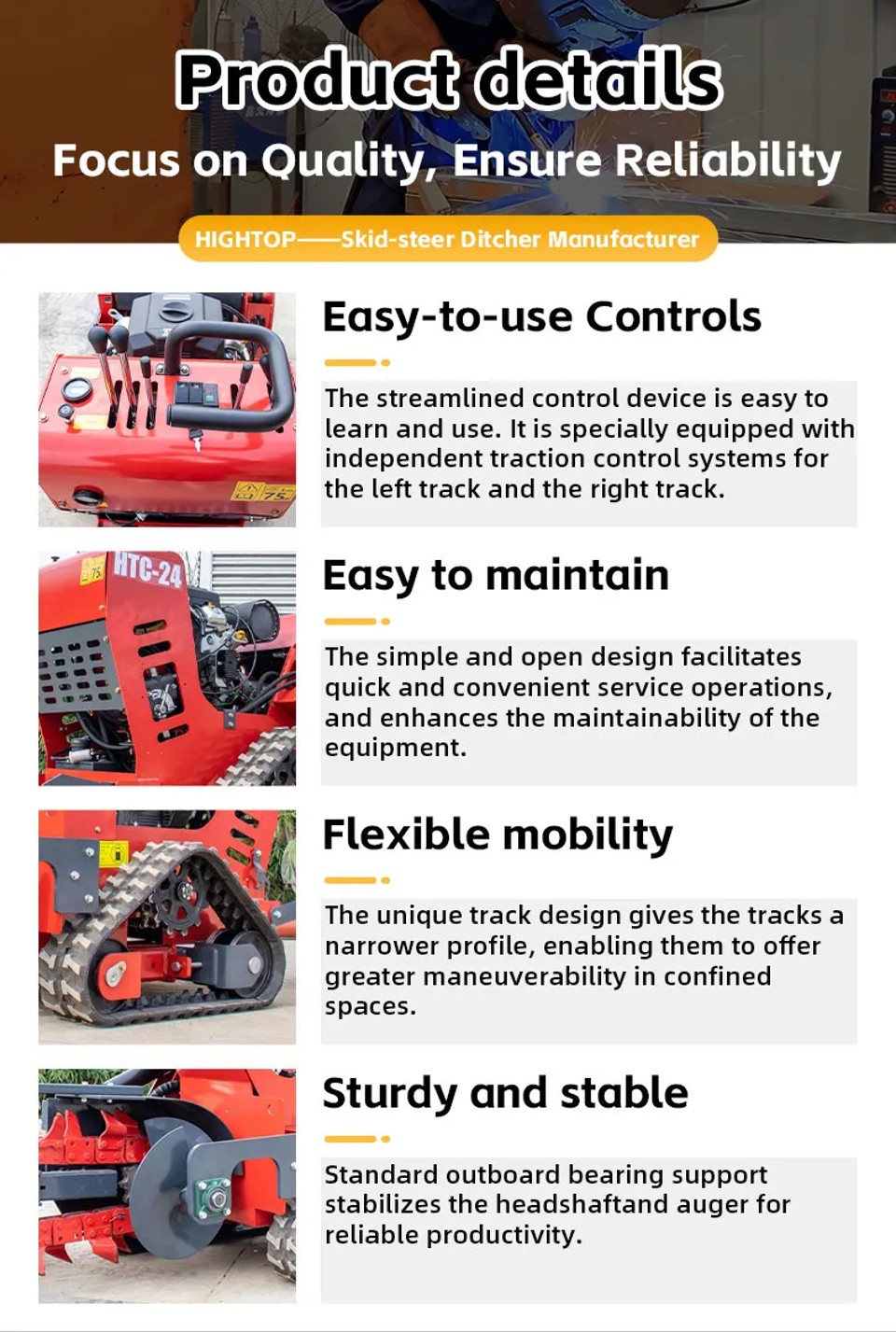

Details
HTC24 Sliding Trencher
