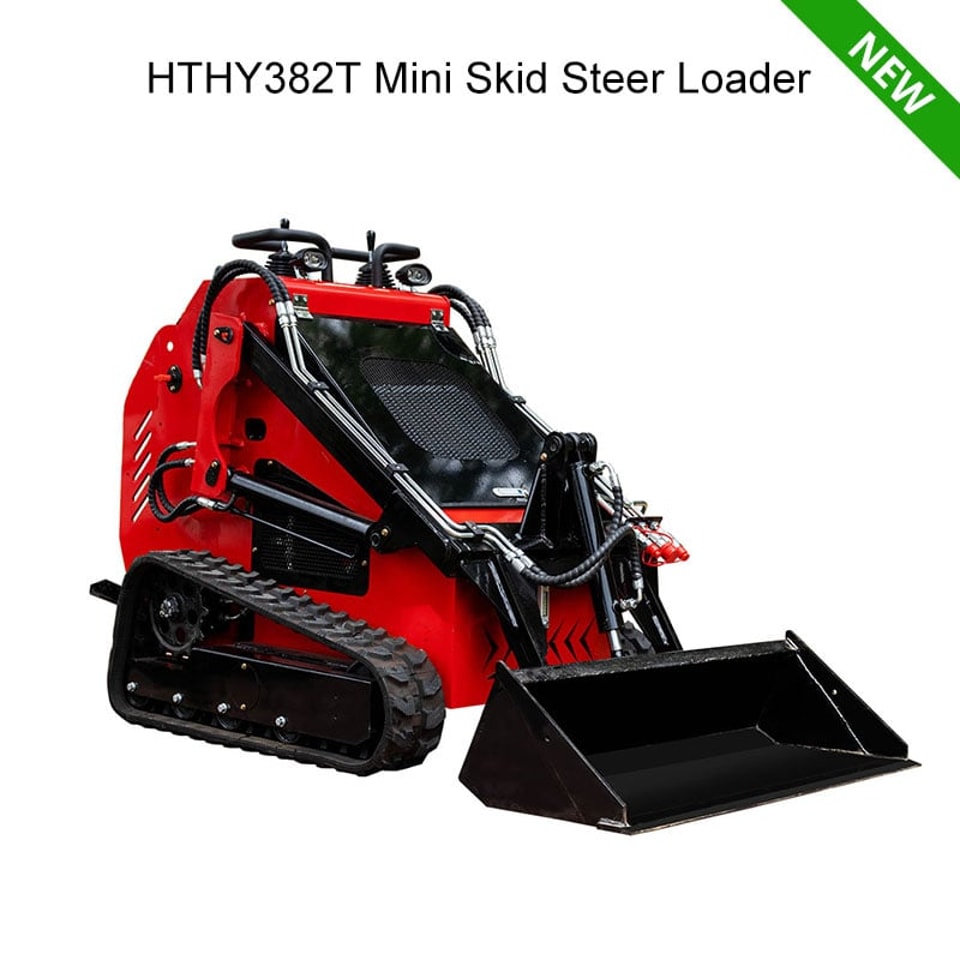

HTHY382T Mini Crawler Skid Steer Loader
| Skid Steer Loader — Parameter Table | |
|---|---|
| Dimensions & Working Range | |
| Max working height | 2105mm |
| Max pin height | 1865 mm |
| Max Dumping height | 1390 mm |
| Max Dumping distance | 600mm |
| Max Dumping Angle | 40° |
| Total height | 1415 mm |
| Ground clearance | 125 mm |
| Overall length without bucket | 1685 mm |
| Total width | 1025 mm |
| Bucket width | 1150mm |
| Total length with bucket | 2340mm |
| Overall length without the bucket after folding the pedal. | 1685mm |
| Engine | |
| Engine | ROAT R740-1 |
| Rated Power (KW) | 16.5Kw/3600rpm |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | ≤95 |
| Hydraulic System | |
| Pressure (Mpa) | 0-16 |
| Flow rate | 0-40L |
| Working Performance | |
| Operating Load | 300kg |
| Bucket Capacity | 0.15m³ |
| Max Lifting Force | 380kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 890 Kg |
| Fluid Capacity | |
| Fuel tank | 20L |
| Engine oil | 1.7L |
| Hydraulic tank | 35L |

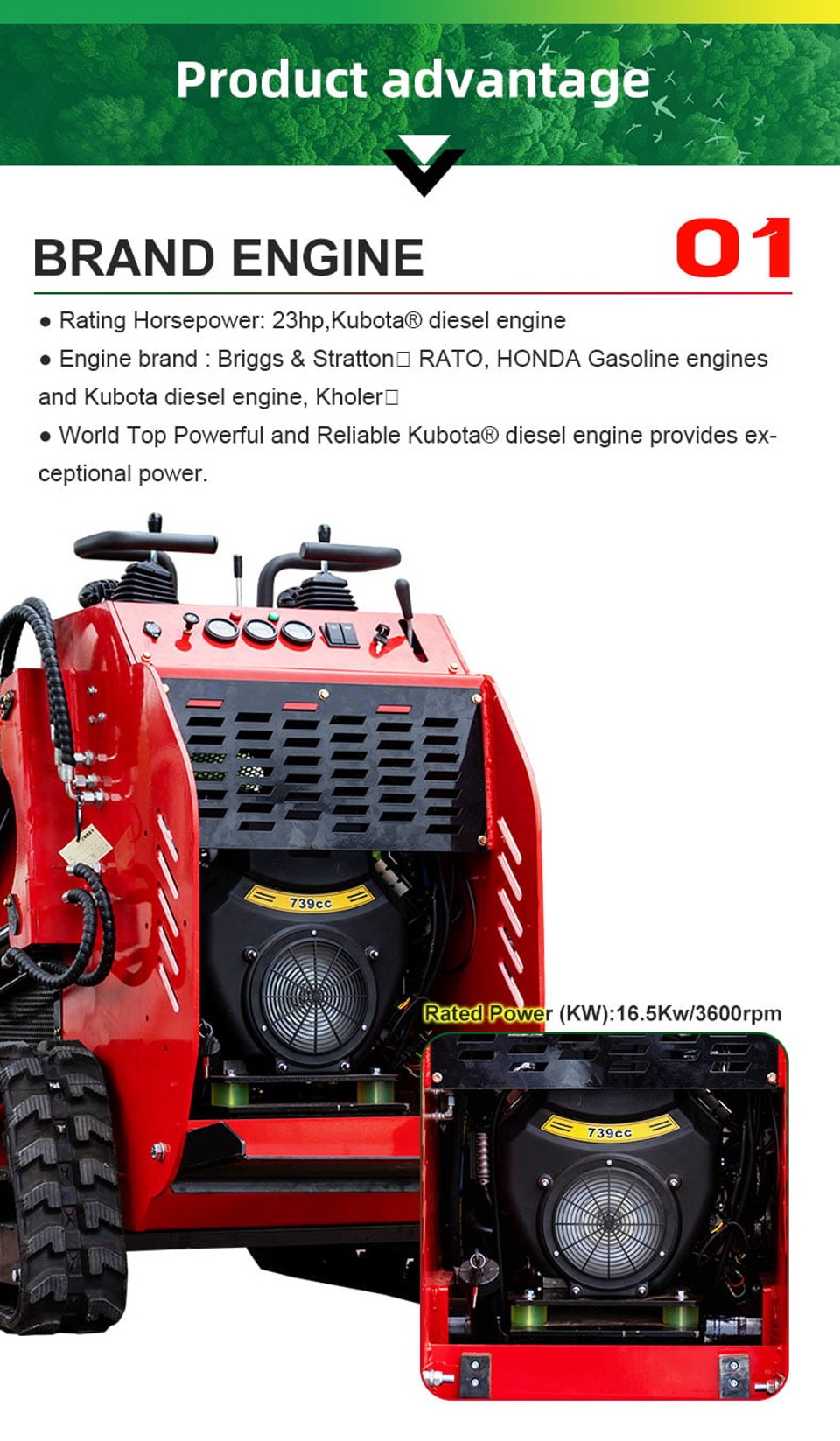

1.Brand Engine:
● Rating Horsepower: 23hp,Kubota® diesel engine
● Engine brand : Briggs & Stratton， RATO, HONDA Gasoline engines and Kubota diesel engine, Kholer；
● World Top Powerful and Reliable Kubota® diesel engine provides exceptional power.

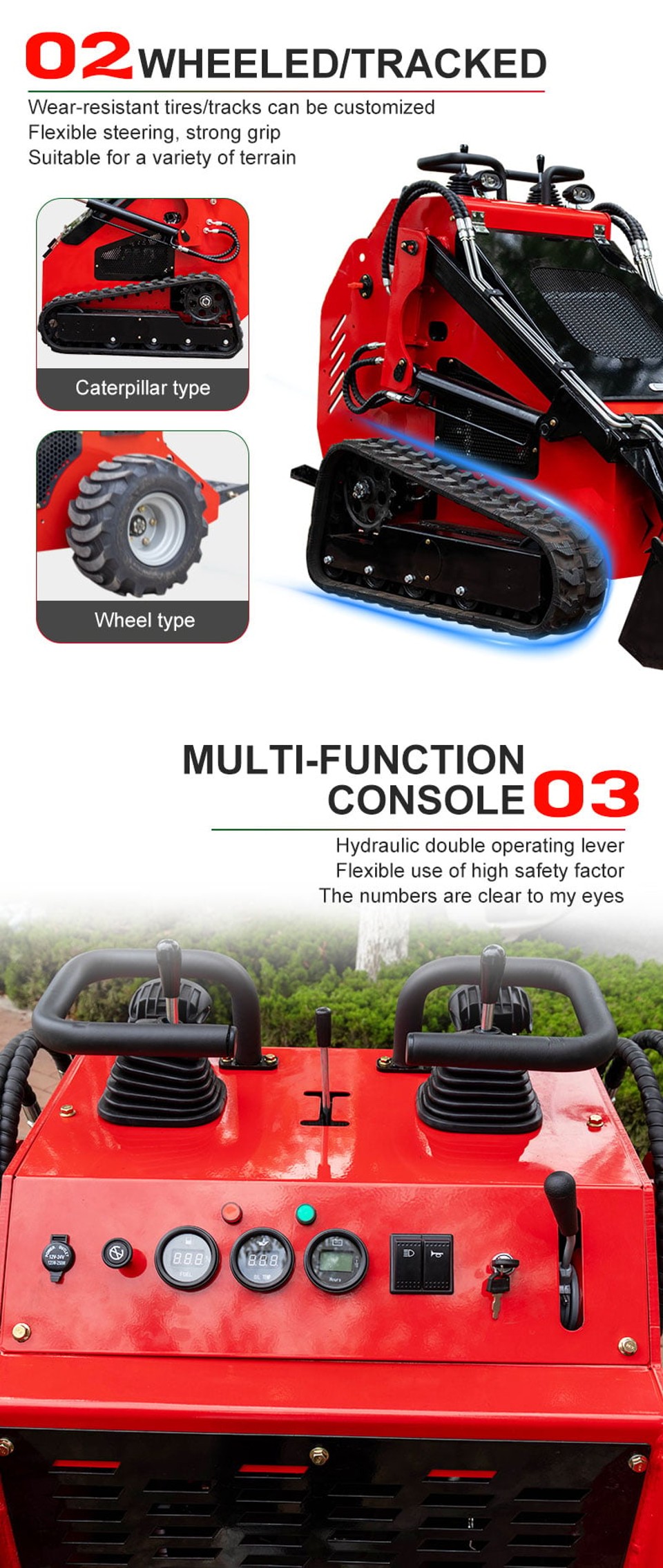

2.Wheeled/tracked
Wear-resistant tires/tracks can be customized Flexible steering, strong grip Suitable for a variety of terrain.
3.Multi-function console
Hydraulic double operating lever Flexible use of high safety factor The numbers are clear to my eyes.

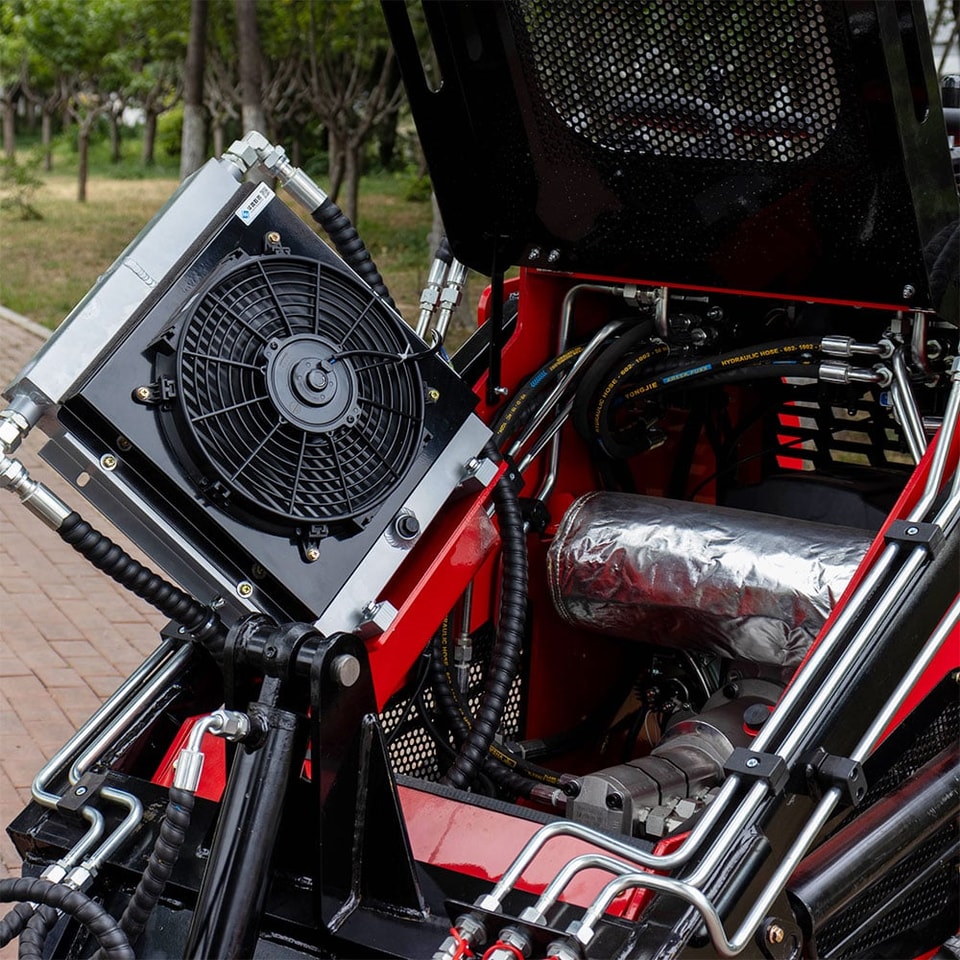

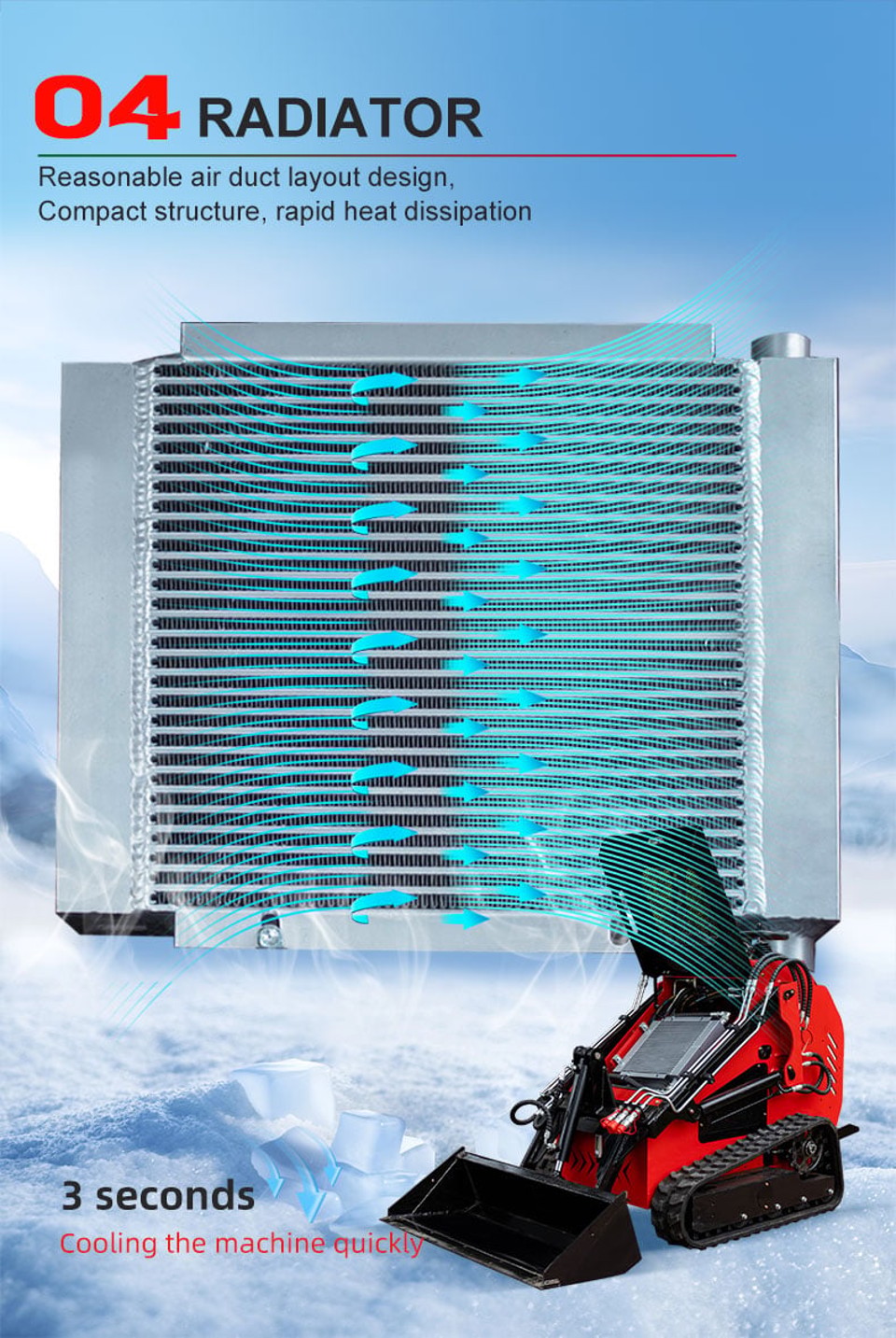

4.Radiator
3s Cooling the machine quickly.Reasonable air duct layout design, Compact structure, rapid heat dissipation.

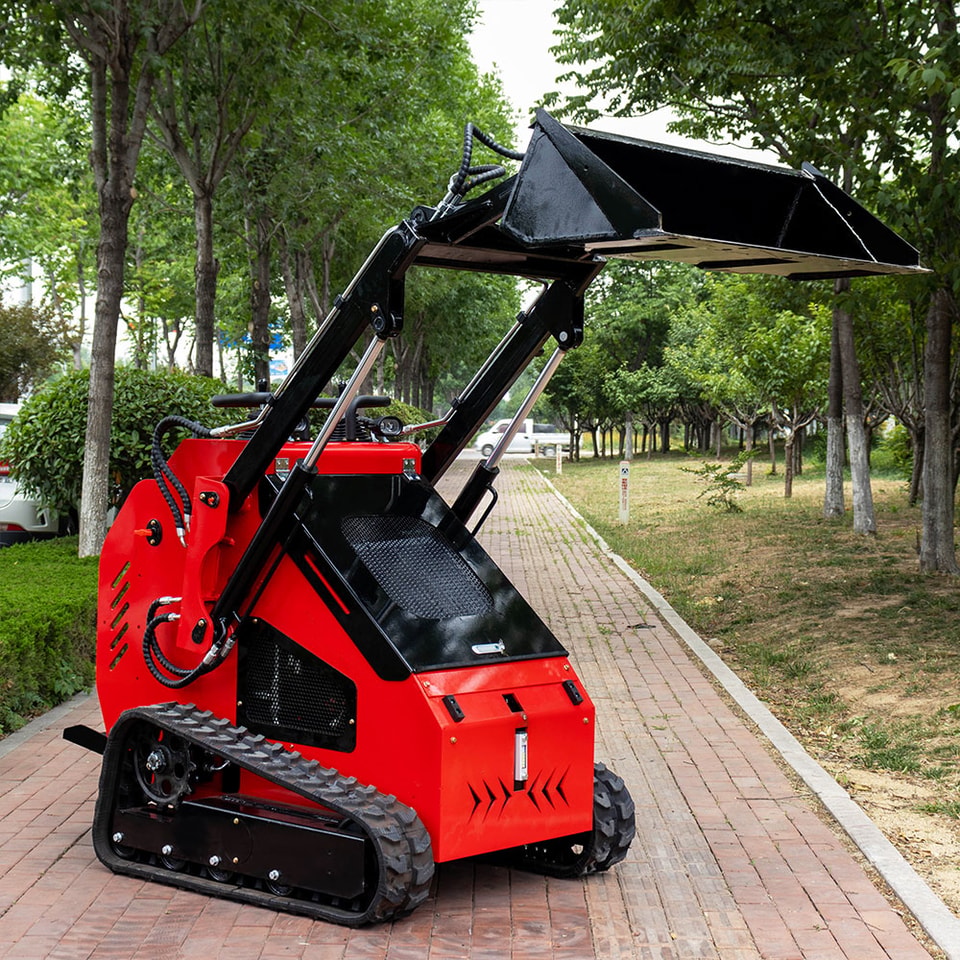

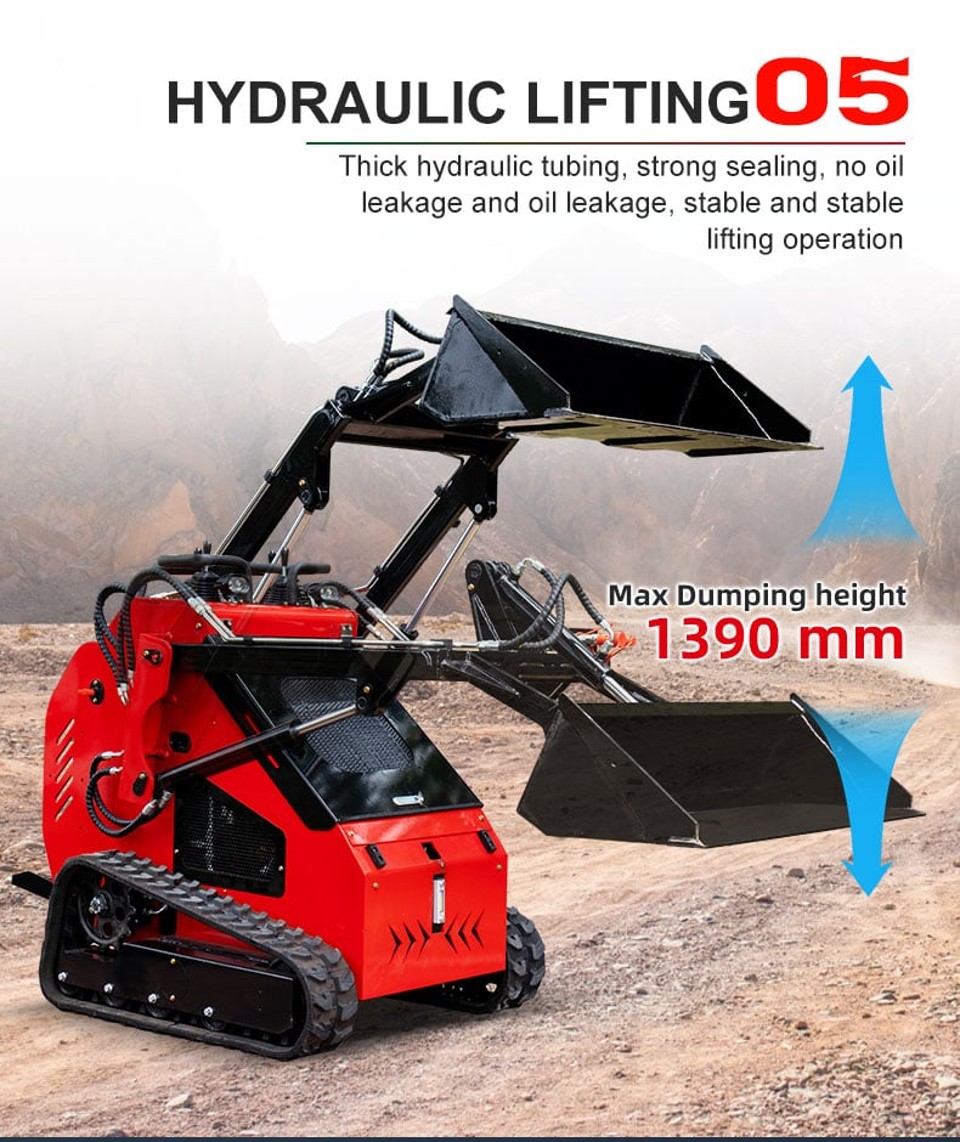

5.Hydraulic lifting
Thick hydraulic tubing, strong sealing, no oil leakage and oil leakage, stable and stable lifting operation.

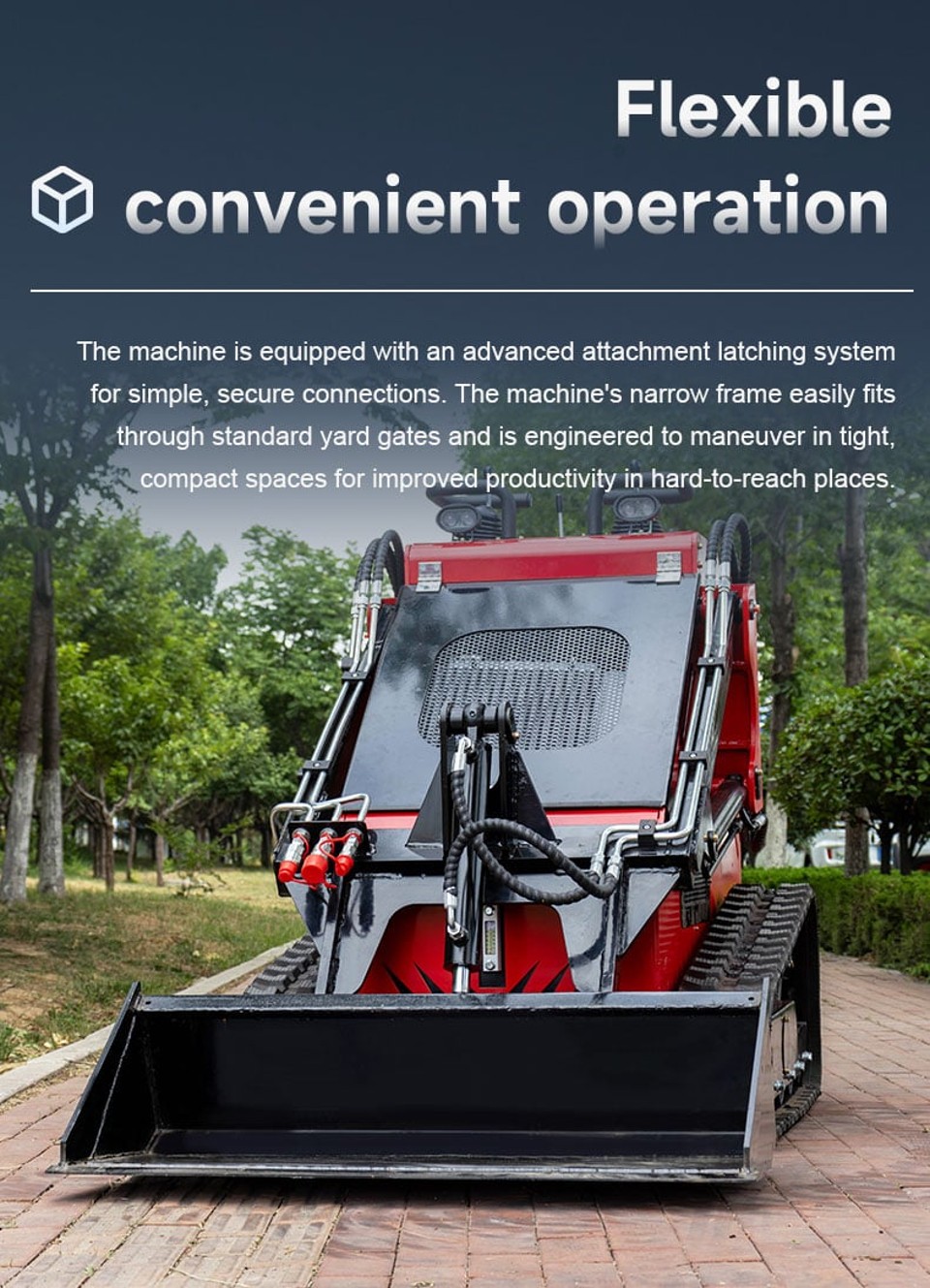

6.Convenient operation
The machine is equipped with an advanced attachment latching system for simple, secure connections. The machine's narrow frame easily fits through standard yard gates and is engineered to maneuver in tight, compact spaces for improved productivity in hard-to-reach places.

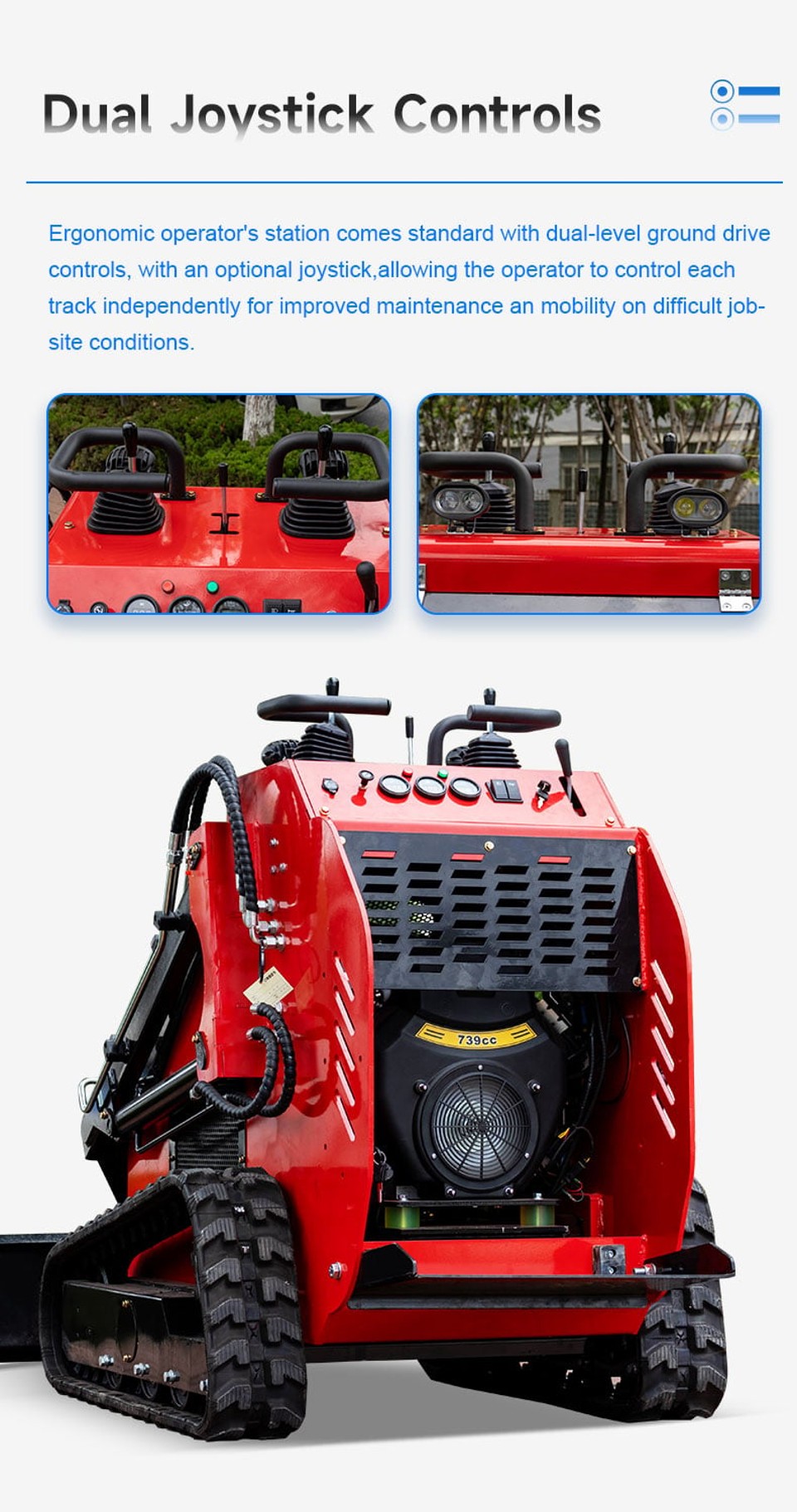

7.Dual Joystick Controls
Ergonomic operator's station comes standard with dual-level ground drive controls, with an optional joystick,allowing the operator to control each track independently for improved maintenance an mobility on difficult jobsite conditions.

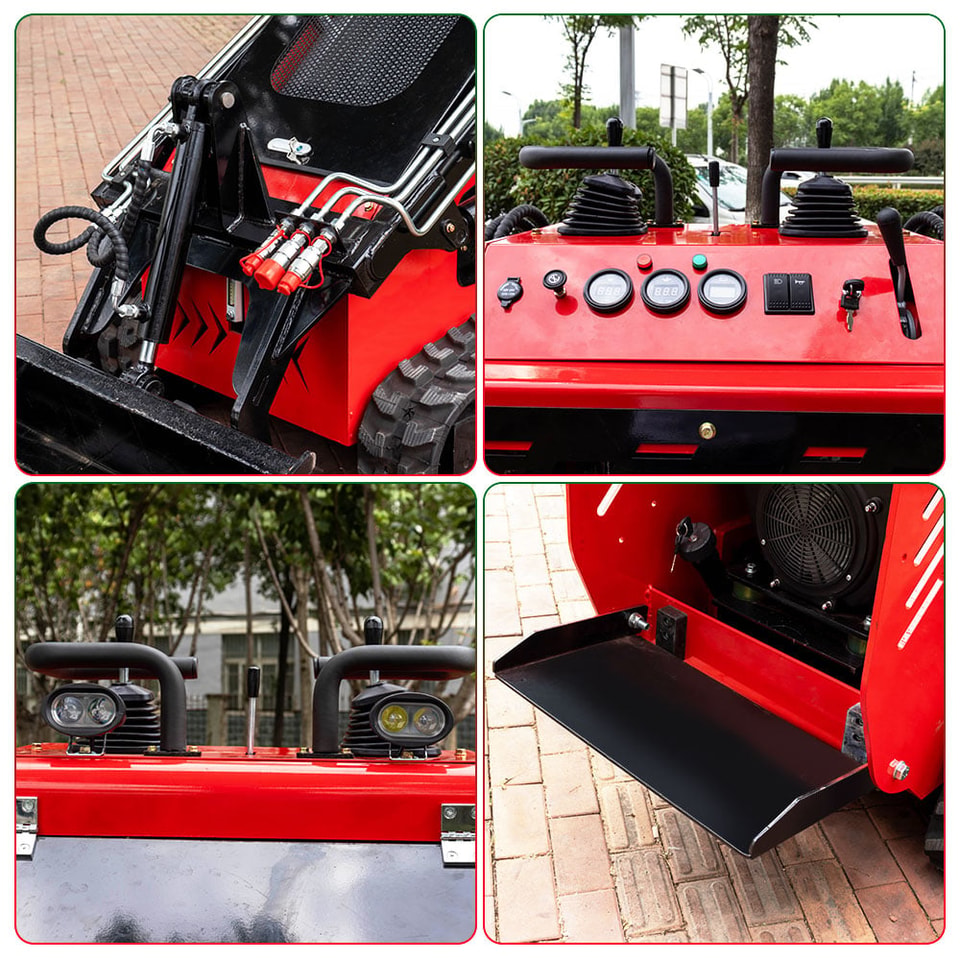

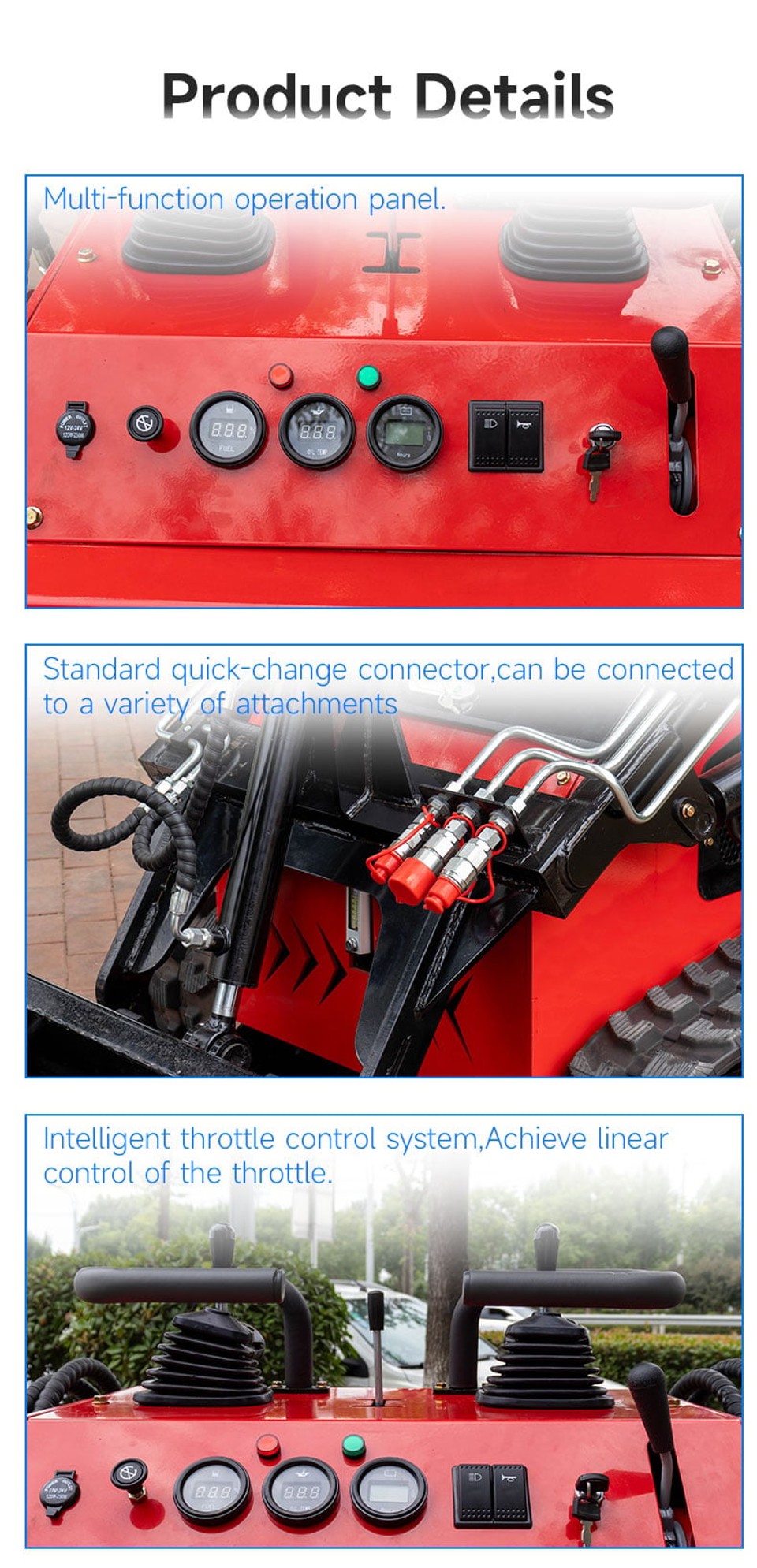

Multi-function operation panel.
Standard quick-change connector,can be connected to a variety of attachments.
Intelligent throttle control system,Achieve linear control of the throttle.

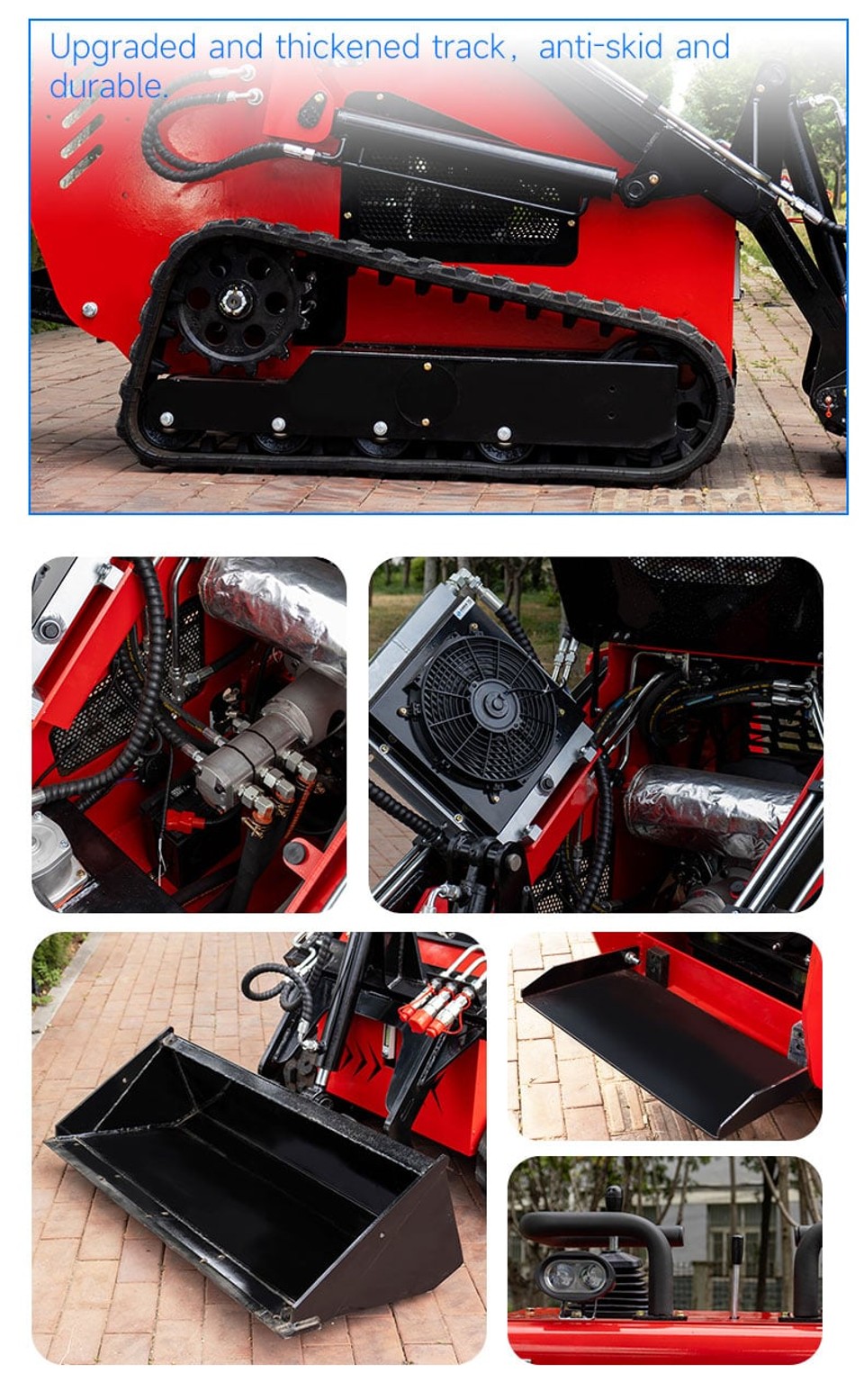

Upgraded and thickened track，anti-skid and durable.
