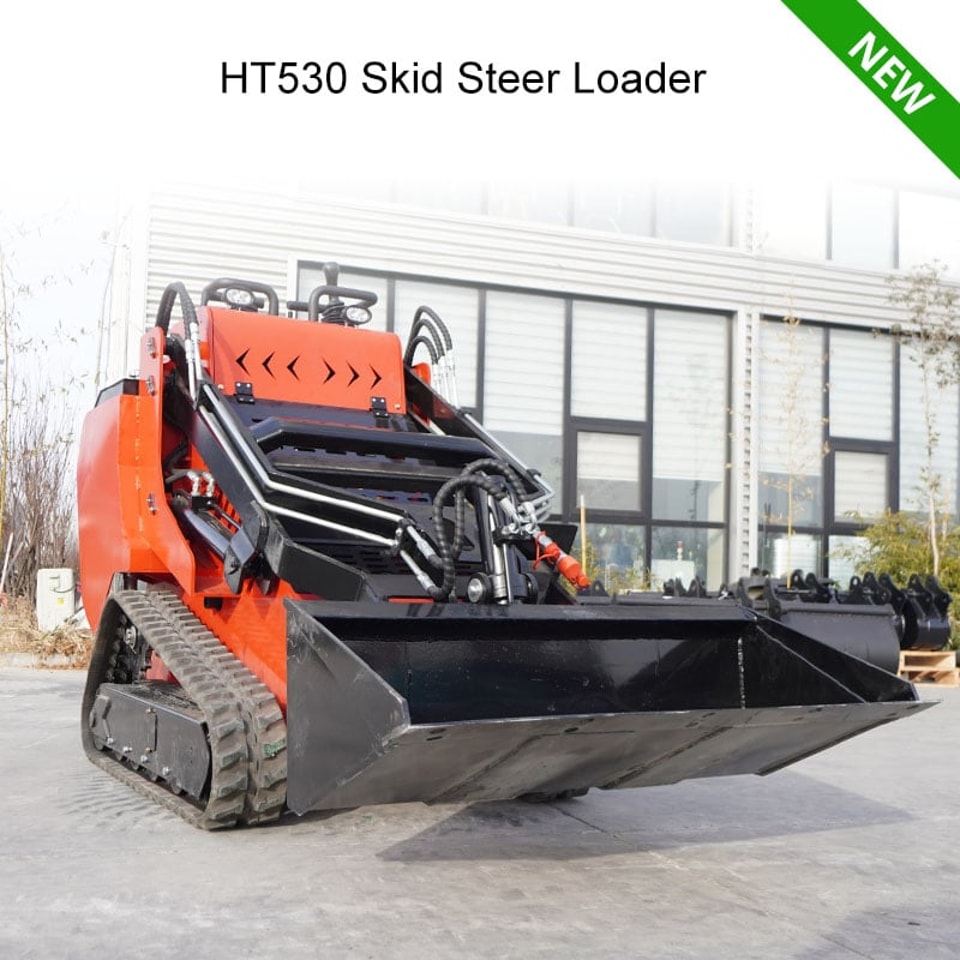

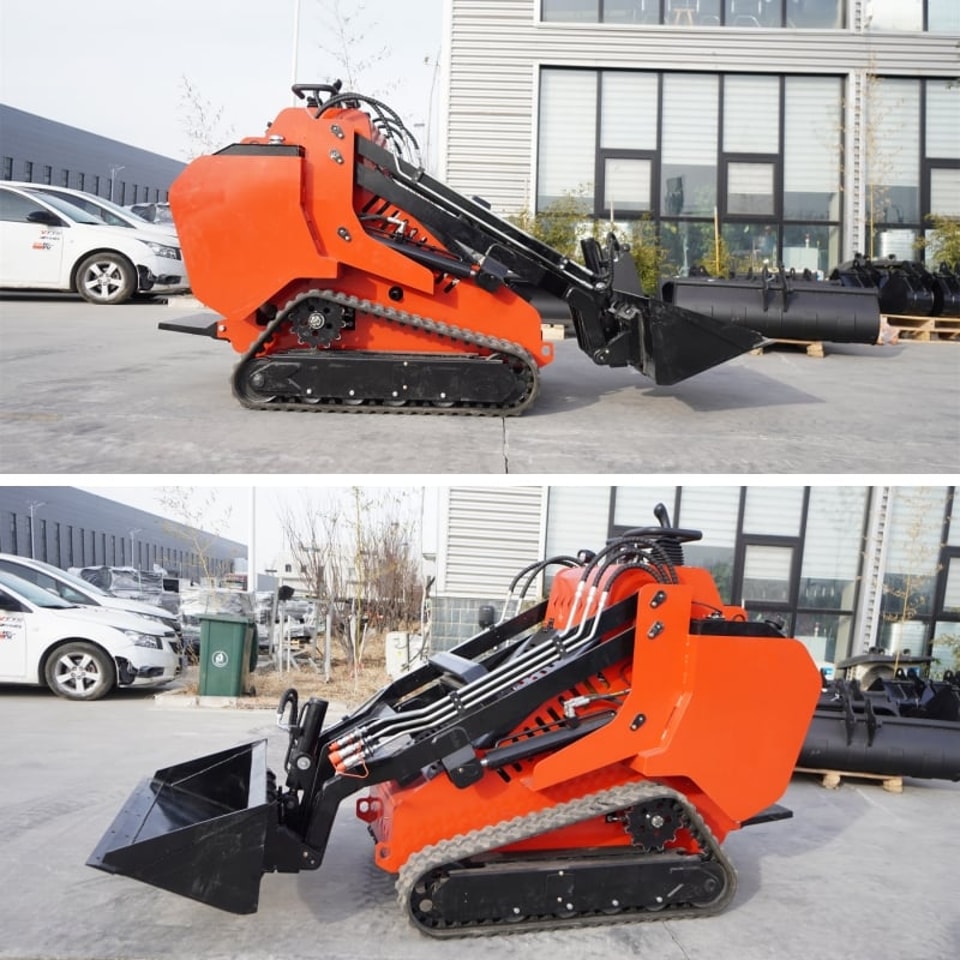

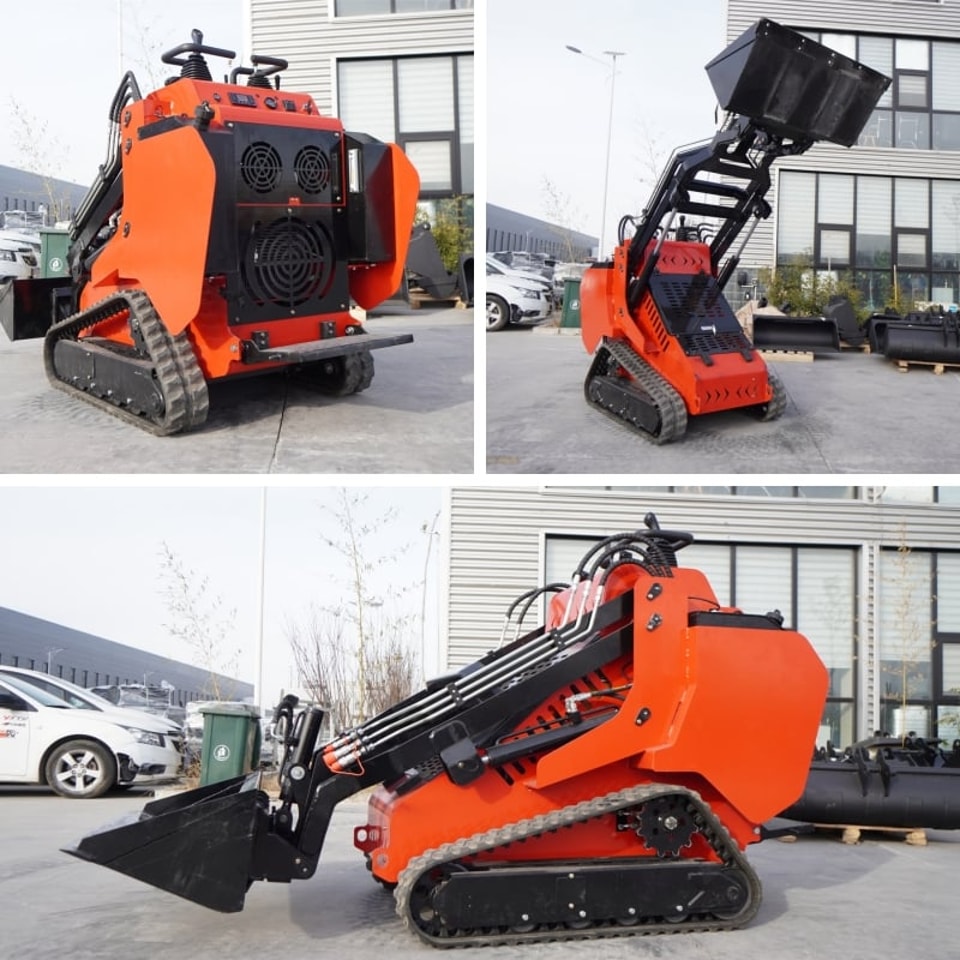

HTS530 Crawler Skid Steer Loader
HTS 530 Crawler Skid Steer Loader Instruction
1, the engine is selected from EPA and Euro V double certified diesel engine, diesel engine and high efficiency hydraulic system to provide power, can provide fast cycle time, strong breakout force and excellent propulsion ability
2, The attachments are international standard quick-change, easy to remove and replace. Using common industry interfaces, you can quickly attach attachments, including buckets, forks, auger conveyors, trenchers, stump grinders and sweepers, to quickly complete many jobs that used to take longer to do manually
3. Simple Operation
ISO joystick controls make operating and maneuvering the mini track loader easy, especially for less experienced equipment operators.
4, Easy for operators to work from a standing position
5, Compact size
Its small size allows it to squeeze through doorways and fence gates as well as work indoors. In addition, it is easy to load and transport on a trailer.
Translated with DeepL.com (free version)
| HTS530 Crawler Skid Steer Loader — Parameter Table | |
|---|---|
| Dimensions & Working Range | |
| Max working height | 2630mm |
| Max pin height | 2090 mm |
| Max Dumping height | 1535 mm |
| Max Dumping distance | 715mm |
| Max Dumping Angle | 38° |
| Total height | 1630 mm |
| Ground clearance | 150 mm |
| Wheel base | — |
| Overall length without bucket | 2220 mm |
| Total width | 1050 mm |
| Bucket width | 1150mm |
| Total length with bucket | 2745 mm |
| Overall length without the bucket after folding the pedal. | 2100 mm |
| Engine | |
| Engine | Kubota D1105 |
| Rated Power | 18.5KW |
| Rotating speed | 3000rpm |
| Noise (Db) | ≤93 |
| Hydraulic System | |
| Pressure (Mpa) | 0-17 |
| Flow rate | 0-32L |
| Working Performance | |
| Operating Load | 450 Kg |
| Bucket Capacity | 0.2m³ |
| Max Lifting Force | 530 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 1330 Kg |
| Fluid Capacity | |
| Fuel tank | 30L |
| Engine oil | 4L |
| Hydraulic tank | 35L |
