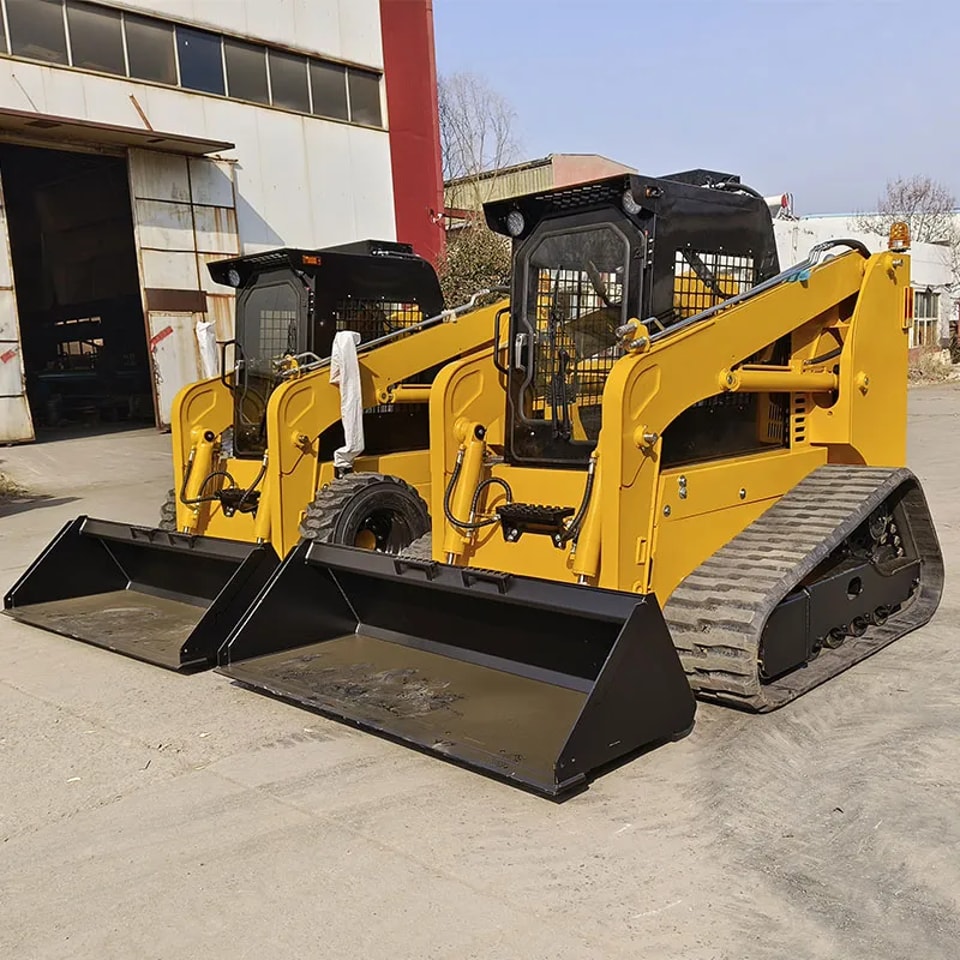

HTS125 Skid Steer Loader

HTS125 Skid Steer Loader Instruction

The HTS125 is an engineering machine suitable for a variety of work scenarios. With its stable performance, reliable power configuration, and reasonable size design, it can meet the needs of different working environments.

In terms of performance, the HTS125 offers excellent load-bearing and operational capabilities. With a working weight of 5,100 kg and a rated load capacity of 1,500 kg, it is equipped with a bucket volume of 0.75 m³, enabling it to handle a wide range of material loading tasks. Its maximum travel speed of 12/18 km/h facilitates flexible movement between work sites; with a maximum traction force of >32 kN, a maximum digging force of ≥22 kN, and a boom lifting time of 7 seconds, enhancing efficiency during operations.

In terms of the engine, the HTS125 is equipped with a Weichai WP4.1 engine, with a rated power of 103 kW/rpm (at 2,300 rpm) and a displacement of 4.088 L, meeting National III emission standards. This engine provides continuous power support for the equipment while meeting environmental requirements, making it suitable for operation in various environments.

In terms of dimensions, the HTS125 is designed with operational adaptability and convenience in mind. The maximum operating height is 4070 mm, the bucket pin height is 3150 mm, and the cab top height is 2160 mm, providing operators with a relatively comfortable operating space and visibility. The total length without the bucket is 3,000 mm, and with the bucket, it is 3,795 mm. The wheelbase is 1,500 mm, with turning radii of 1,365 mm (without the bucket), 2,200 mm (front), and 1,742 mm (rear), enabling operation in spaces with limited room. Additionally, parameters such as a 2,450 mm unloading height, 700 mm unloading distance, and a maximum unloading angle of 40° further enhance operational flexibility, accommodating various unloading scenarios.

The HTS125 demonstrates its comprehensive performance in municipal construction, agricultural production, and small-scale engineering projects, providing robust support for operational tasks.
