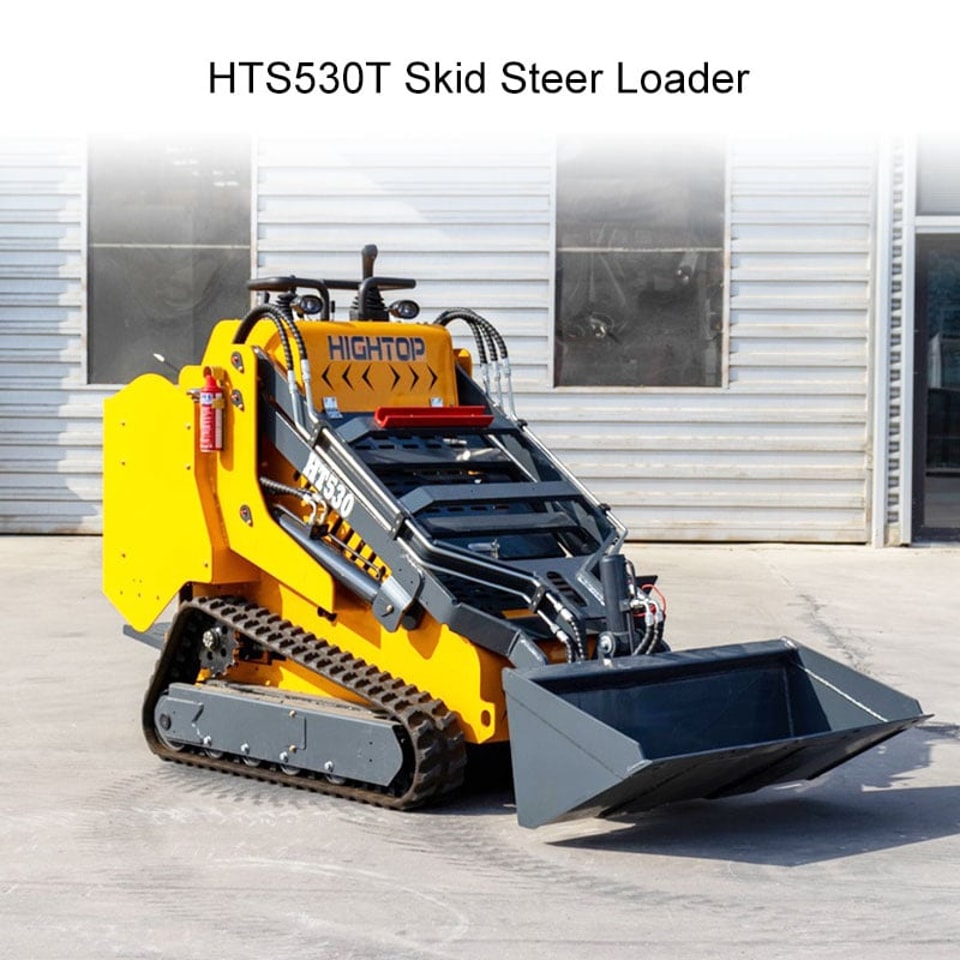

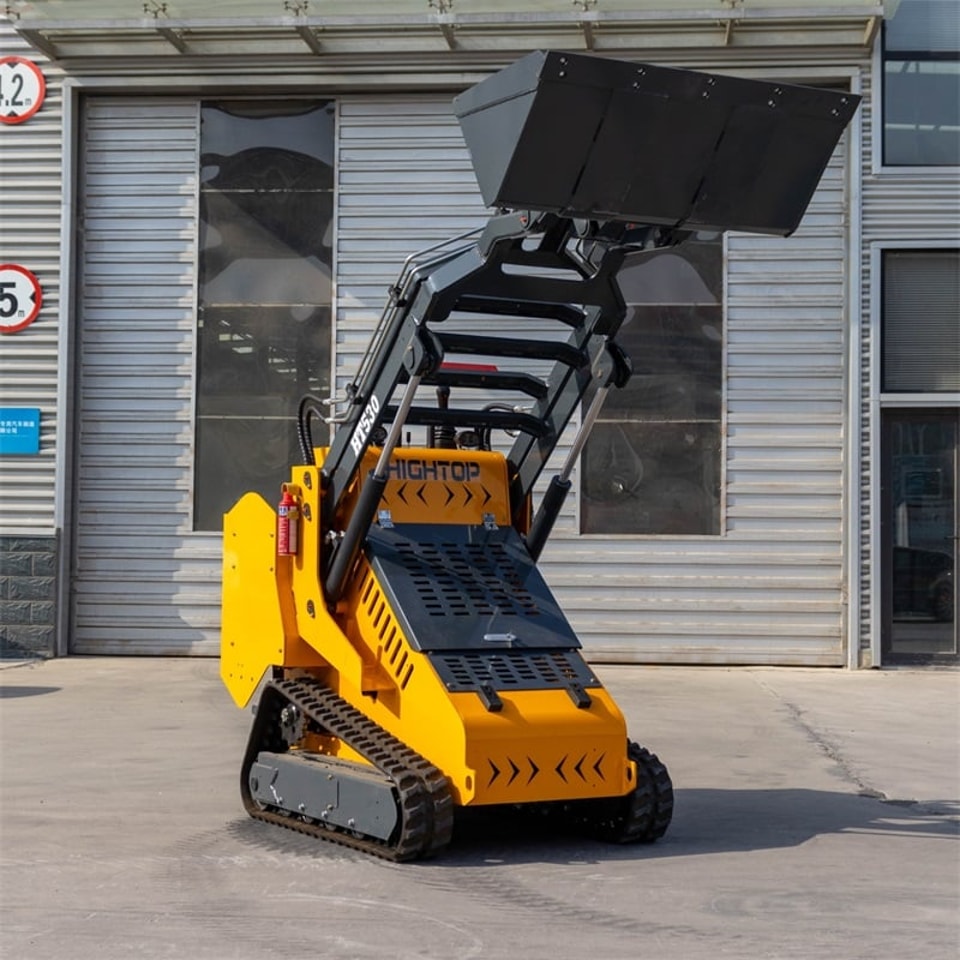

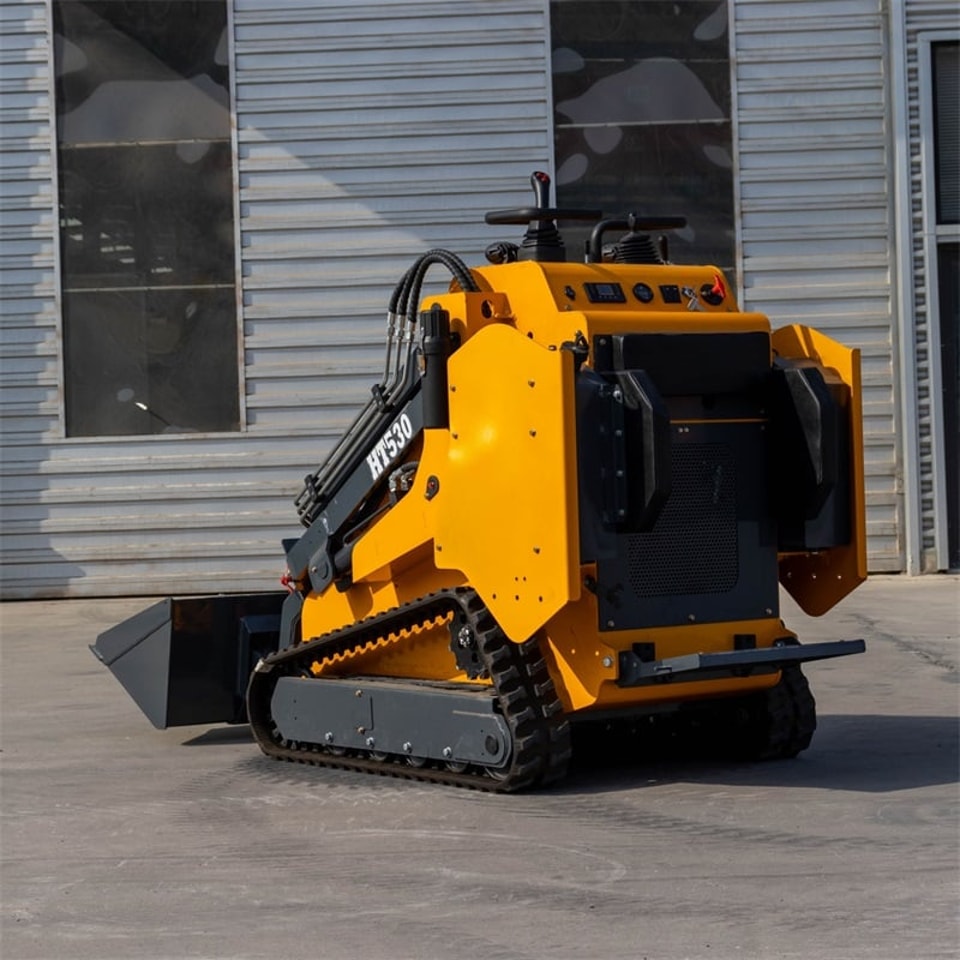

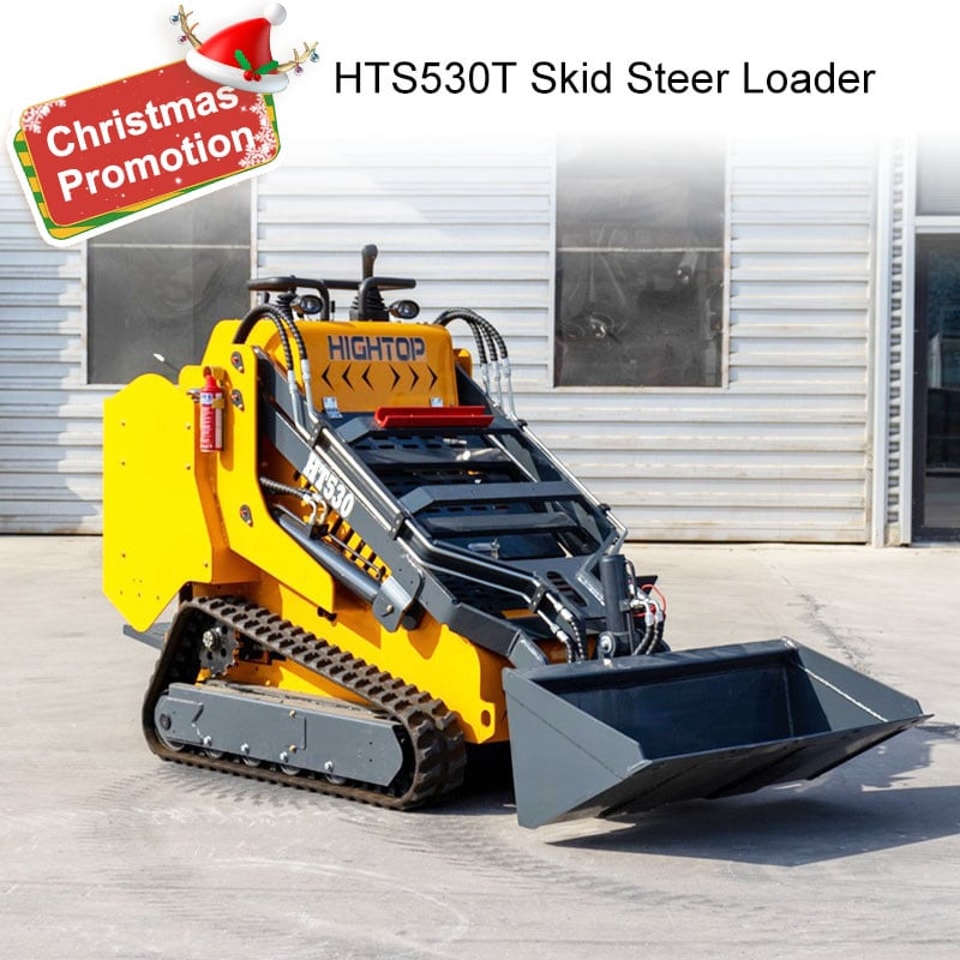

HTS530T Industrial Compact Track Loader


The HTS530T compact track loader for sale is an industrial-grade crawler skid steer loader with heavy-duty rubber tracks for superior traction and low ground pressure. Designed for equipment rental fleets and contractors, this compact track loader for sale supports over 50 attachments and is available at factory-direct wholesale pricing.

Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Request a quote WhatsApp

Downloads

File Name
Product Introduction
Technical Parameter
Product Picture
Product Introduction+

HTS530

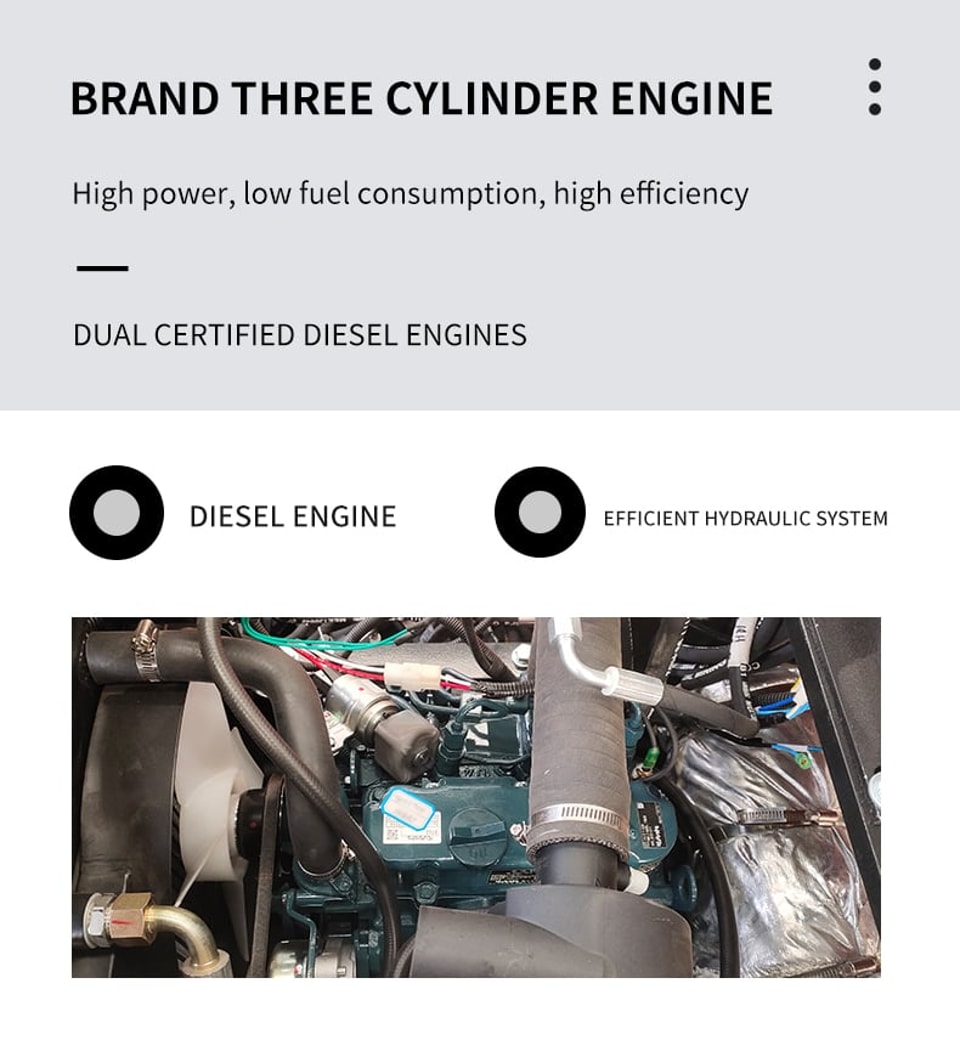

1.KUBOTA D1105 Efficient Engine

This Skid Steer Loader is powered by a premium KUBOTA D1105 engine with up to 14KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.

Longer service life: Compared to regular engines, this one has a far longer service life, guaranteeing longer performance.
Professionally guaranteed: Supported by a one-year warranty to ensure your investment is protected and you can feel at ease.

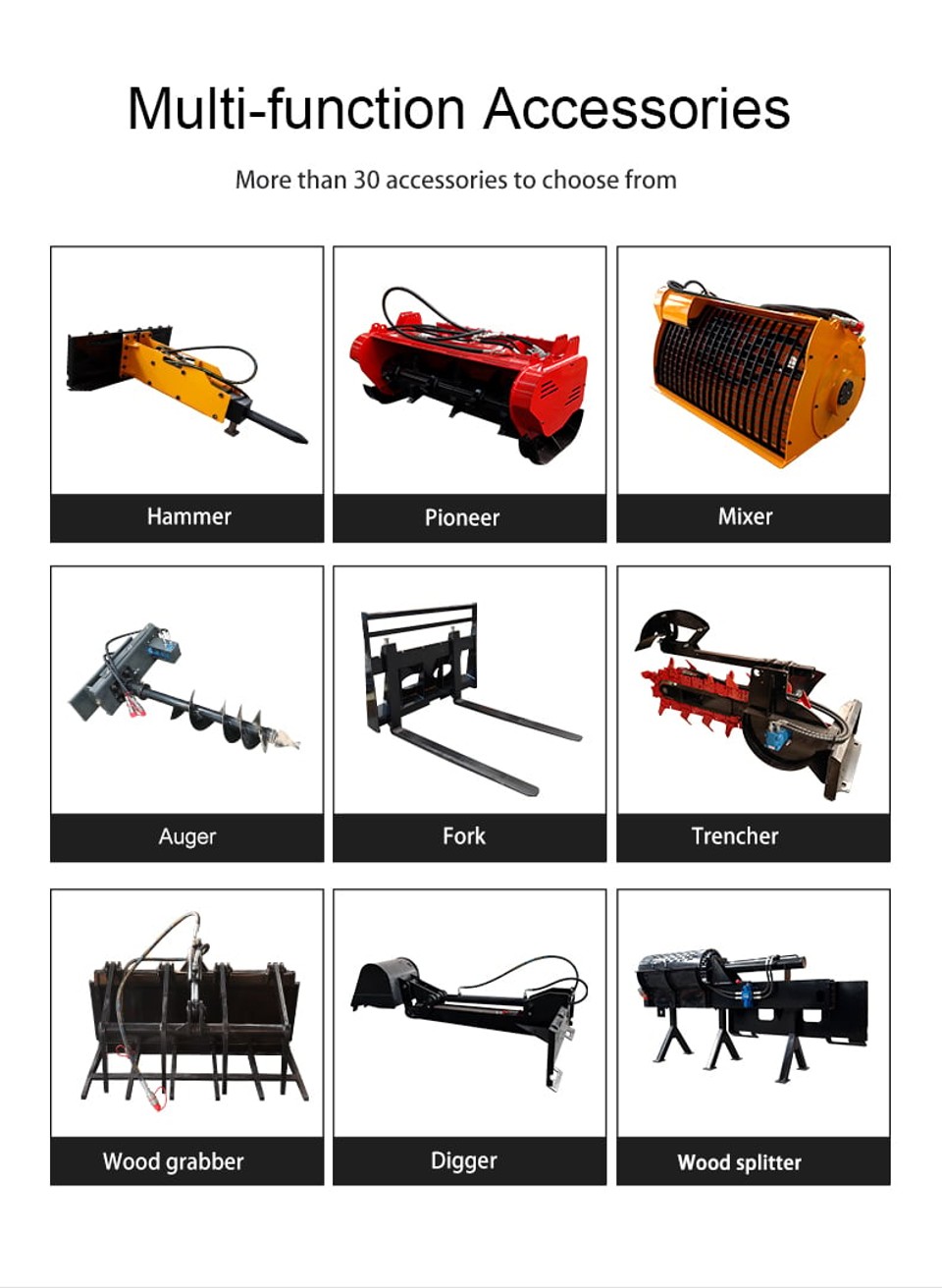

2.Suitable for Many High-volume Attachments
Different working devices can be quickly changed or hooked up at the work site, usually in just a few minutes, so that they can be used for shoveling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening, ditching, road sweeping and road compaction.

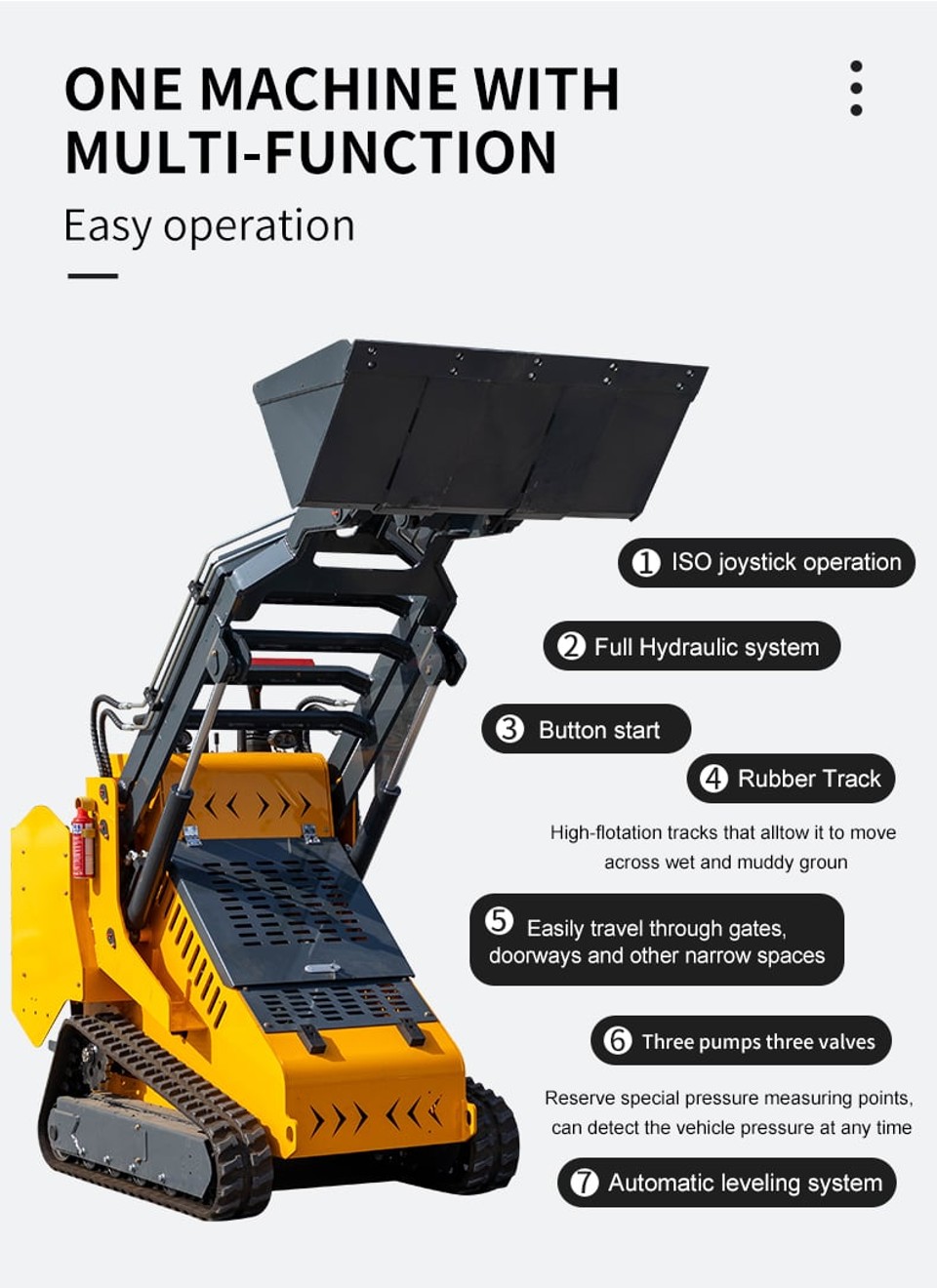

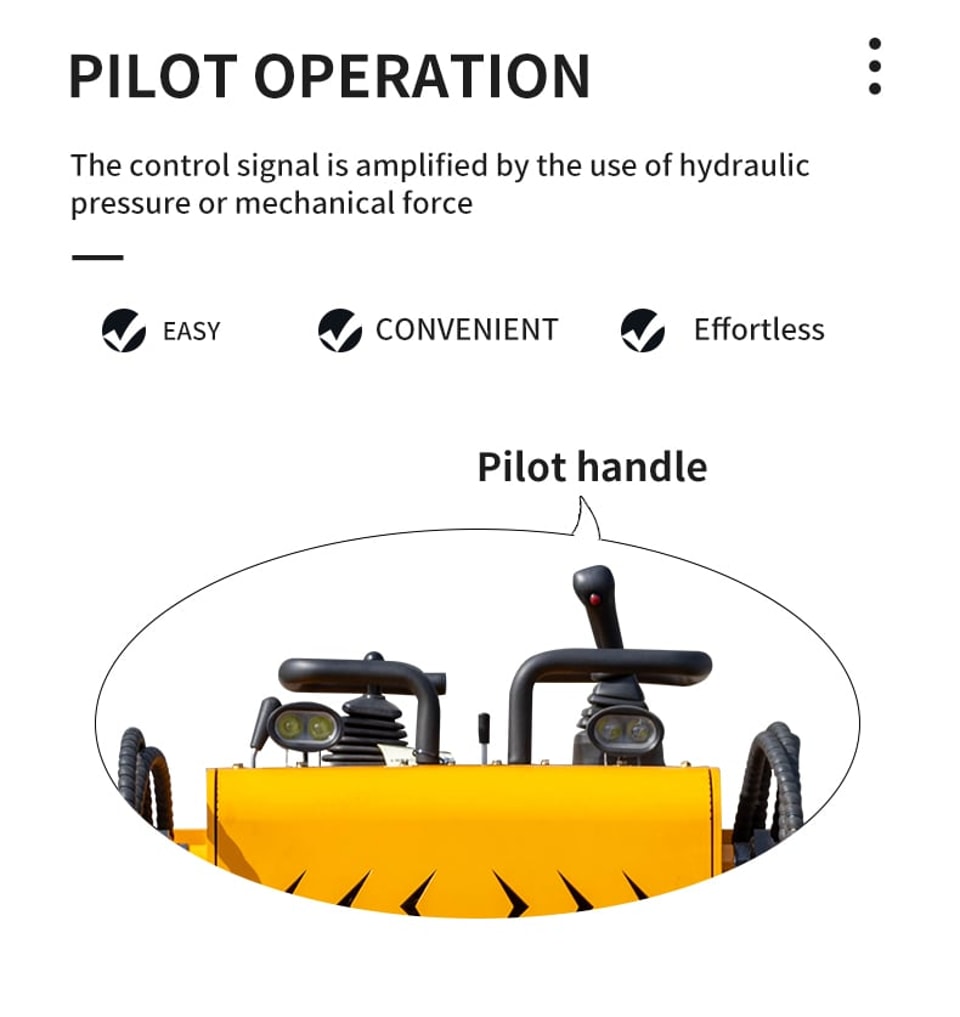

3.Easy Operation
Use the handy joysticks to effortlessly adjust the speed, direction, and lifting height. For simple and accurate movement, this small skid steer is suitable for both inexperienced and seasoned landscapers.

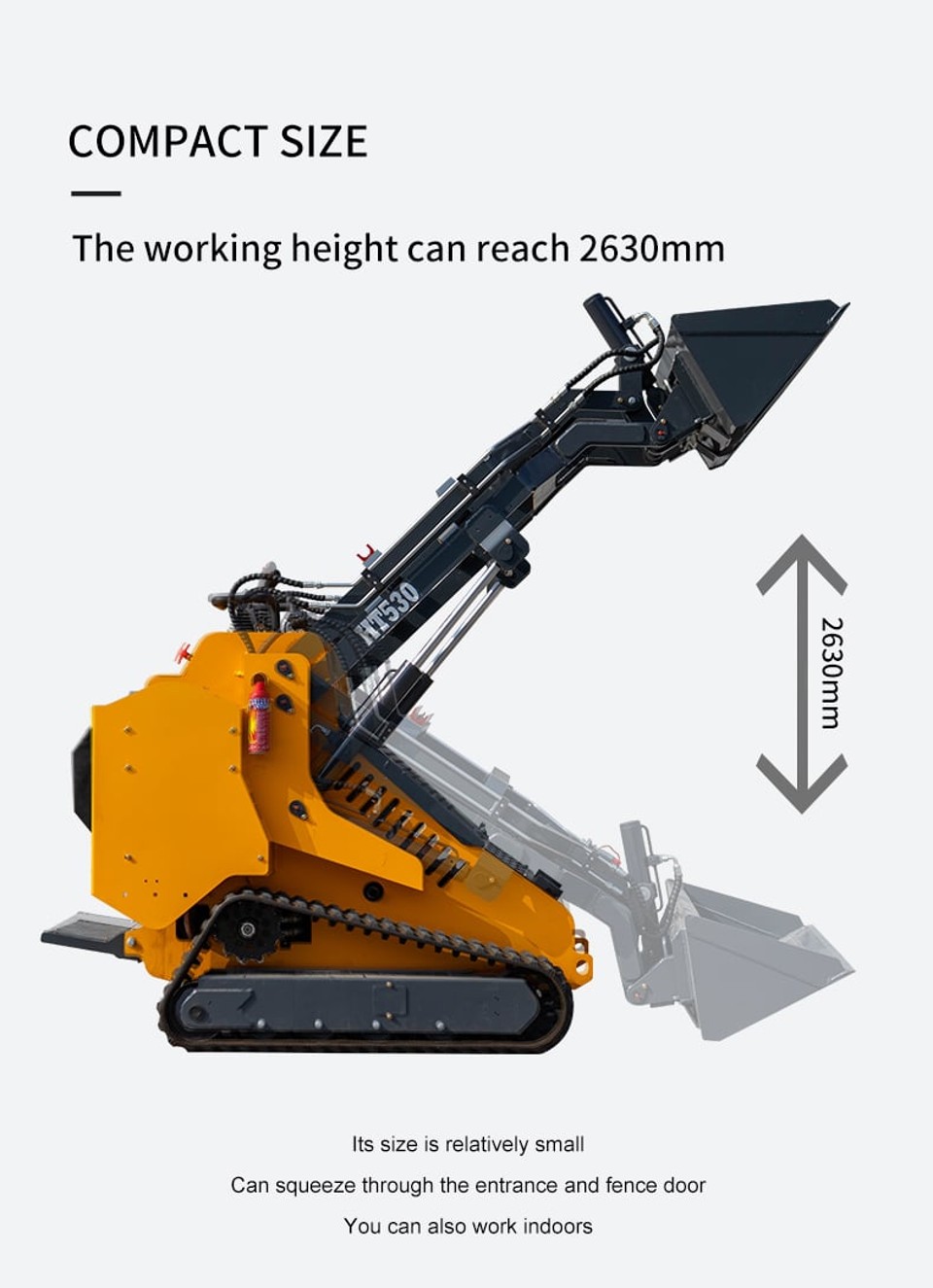

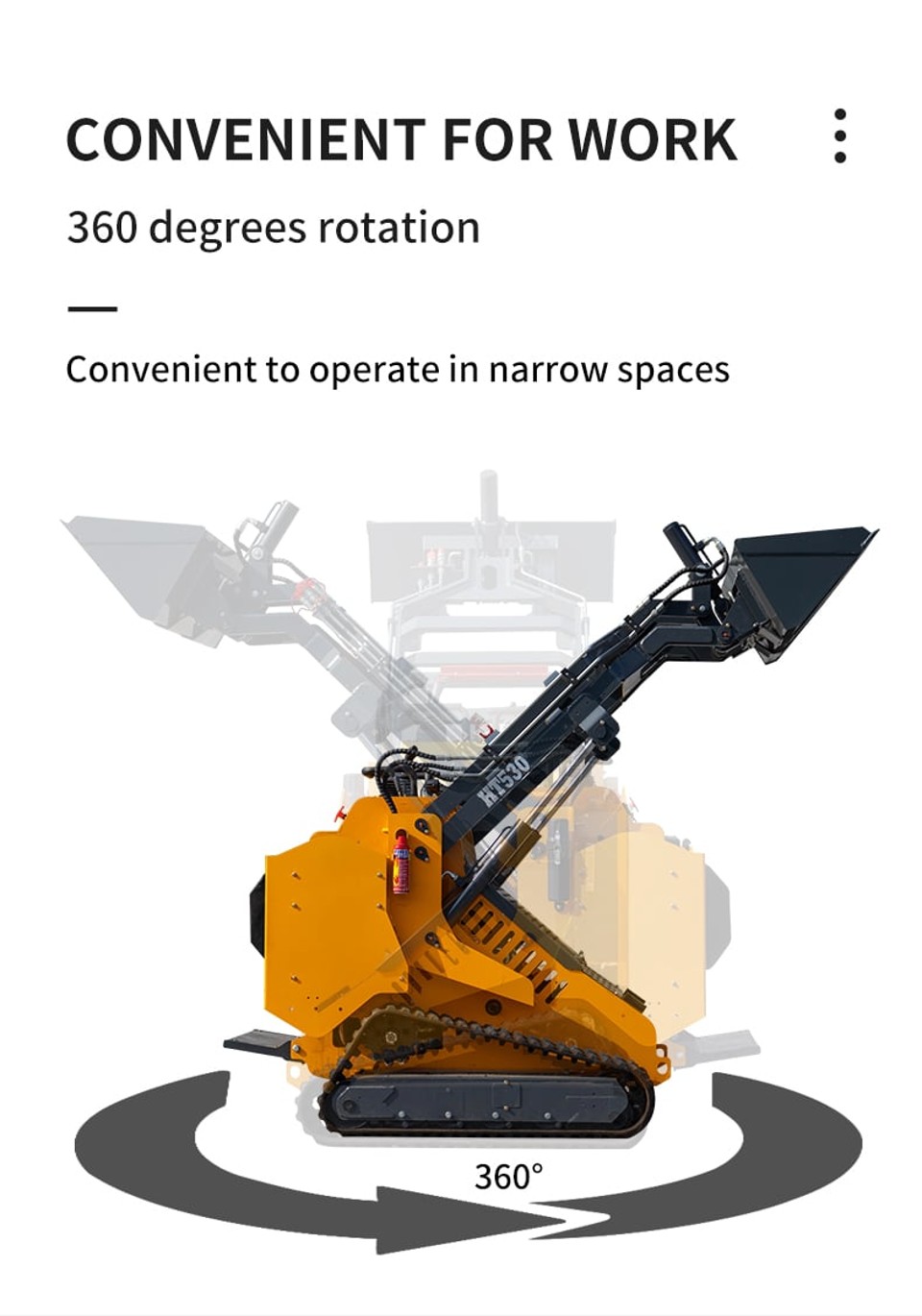

4.Compact size
Its size is relatively smallCan squeeze through the entrance and fence doorYou can also work indoors,Maximum working height up to 2630 mm

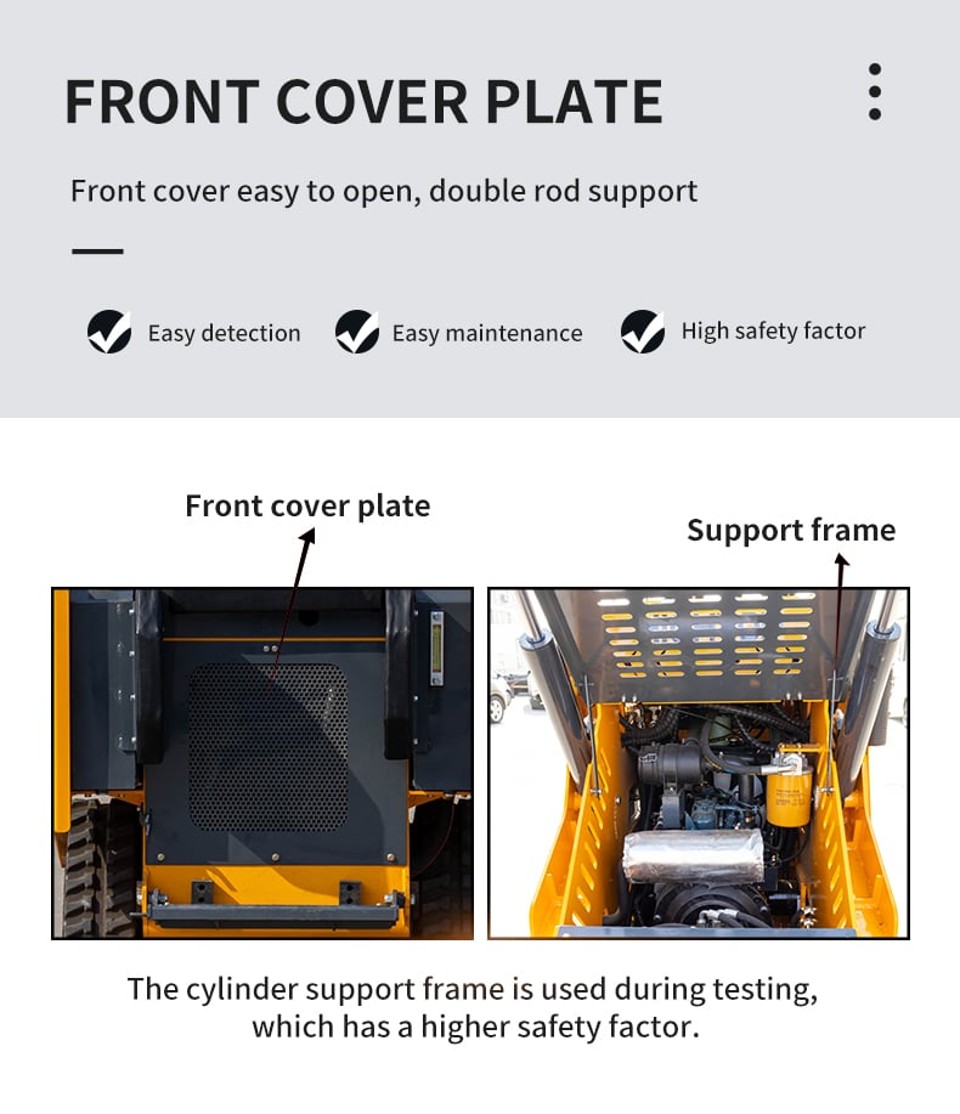

5.Easy Maintenance
The front cover plate is easy to open and supported by double rods for easy maintenance and inspection inside the cabin.The cylinder support frame is used during testing, which has a higher safety factor.

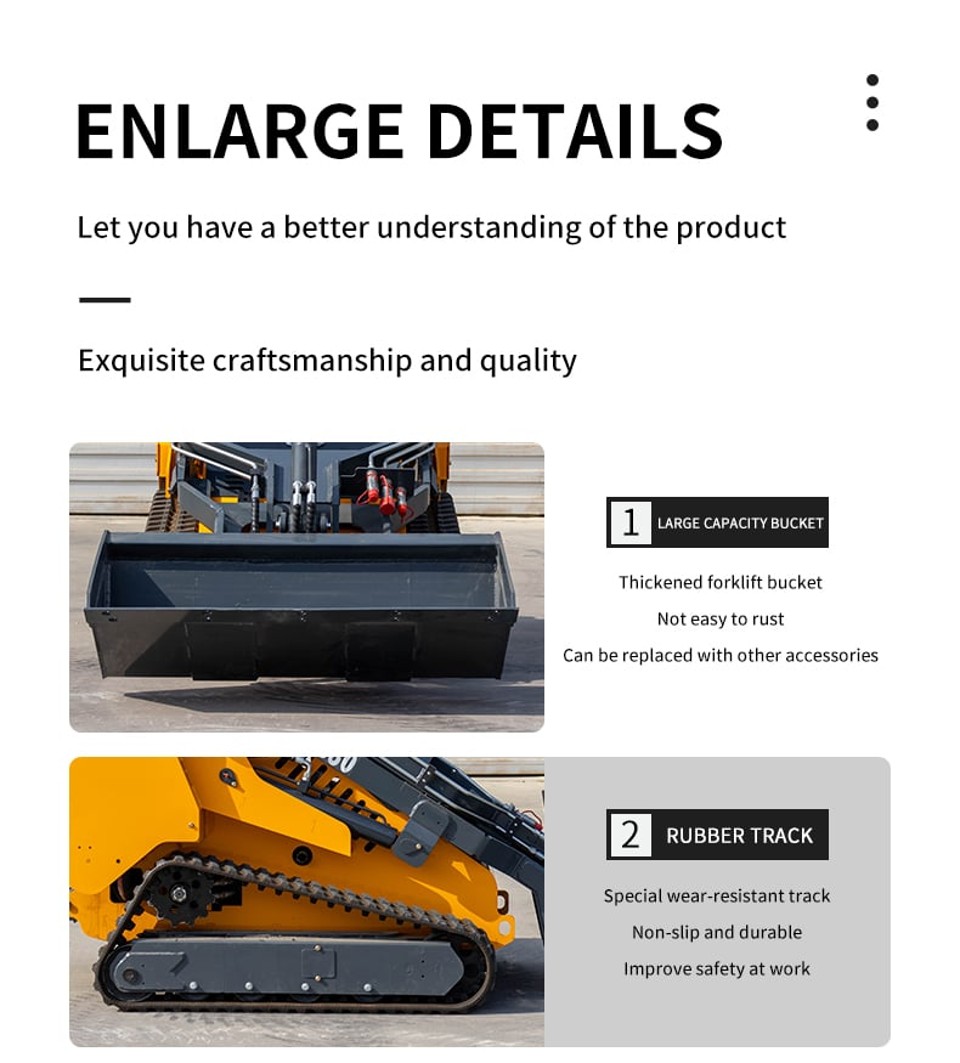

6.High-Performance Tracks
Our skid steer loader's tracks provide superior traction and stability. These tracks are backed by a gearbox attached to each drive motor, ensuring synchronized and powerful movement. This combination of tracks and gearbox drives is instrumental in conquering challenging slopes and terrains.

Technical Parameter+
HTS530T — Parameter Table
Dimensions & Working Range
ModelHTS530T
Max working height2630mm
Max pin height2090 mm
Max Dumping height1535 mm
Max Dumping distance715mm
Max Dumping Angle38°
Total height1630 mm
Ground clearance150 mm
Overall length without bucket2220 mm
Total width1050 mm
Bucket width1150mm
Total length with bucket2745 mm
Overall length without the bucket after folding the pedal.2100 mm
Engine
EngineKUBOTA D1105
Optional enginePerkins
Rated Power14KW
Rotating speed2200rpm
Noise≤93Db
Hydraulic System
Pressure0-17Mpa
Flow rate0-32L
Working Performance
Operating Load450kg
Bucket Capacity0.2m³
Max Lifting Force530 Kg
Travel Speed0-4.5Km/h
Operating Weight1330 Kg
Fluid Capacity
Fuel tank30L
Engine oil4L
Hydraulic tank35L
Product Picture+
