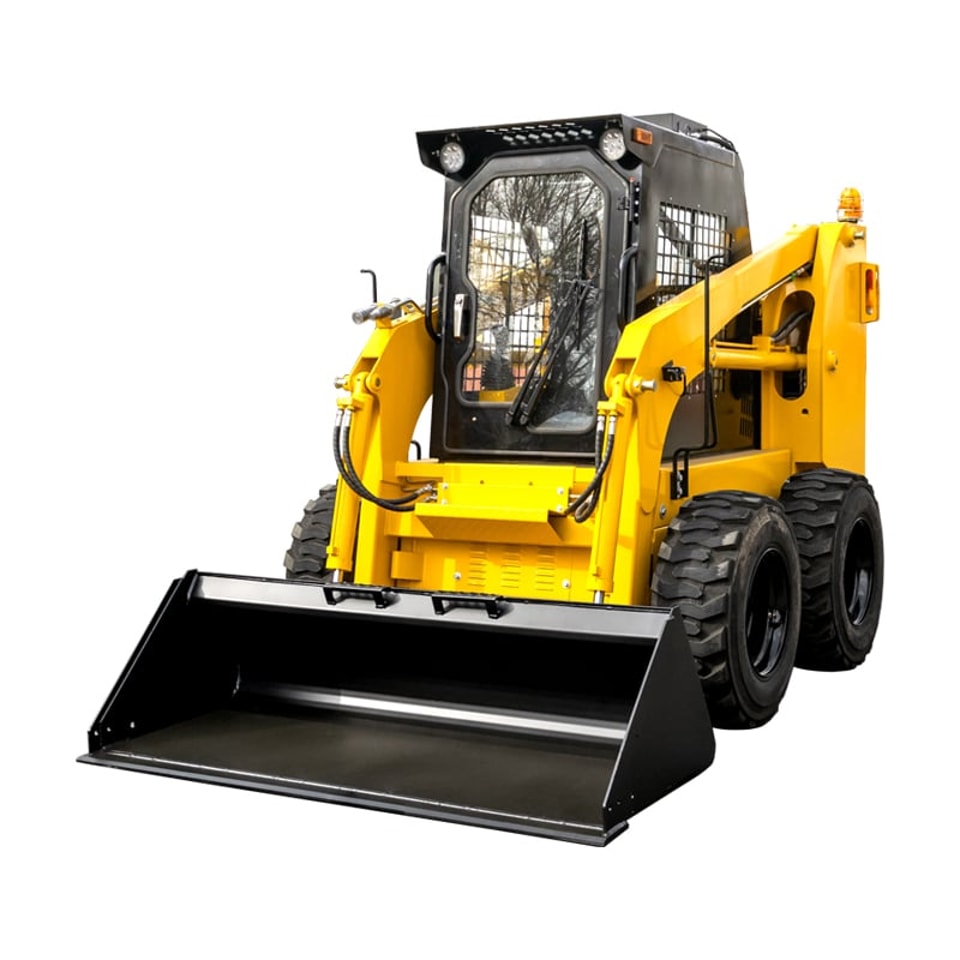

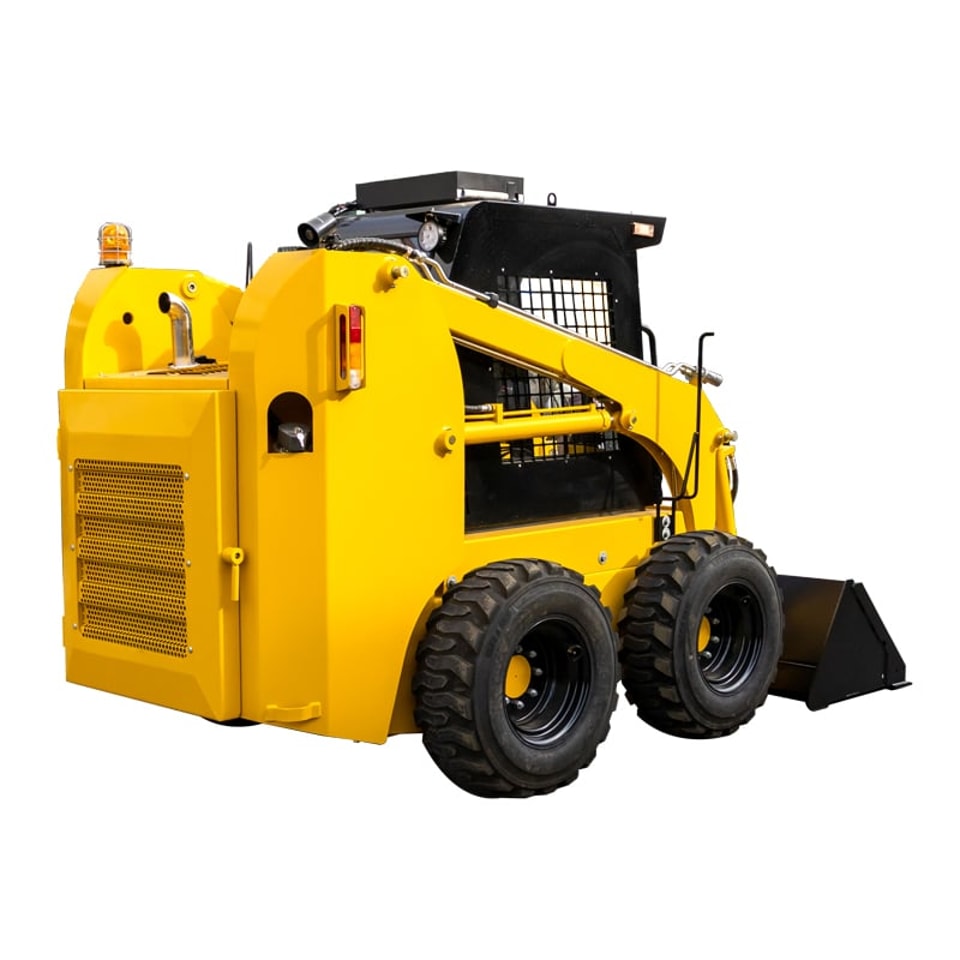

HTS60 Skid Steer Loader
The HTS60 mini skid steer loader for sale is the ultimate solution for contractors requiring maximum maneuverability in ultra-confined spaces and delicate job sites. Micro-Task Efficiency: As a premier compact utility loader, the HTS60 is specifically designed for indoor demolition, stable cleaning, and narrow garden landscaping. Agile Performance: This mini skid steer for sale features intuitive controls and a responsive hydraulic system, ensuring precise operation with a wide array of specialized attachments. Durable B2B Asset: Engineered with a simplified maintenance structure, it offers high reliability and low operating costs, making it an ideal entry-level machine for rental fleets. Wholesale Advantage: Benefit from factory-direct support and competitive wholesale pricing to maximize your business ROI and project margins. Contact us today for a quote on the highly portable and efficient HTS60 mini skid steer loader for sale.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HTS60 Skid Steer Loader Parameter
HTS60 Skid Steer Loader Parameter
| Skid Steer Loader — Parameter Table | |
|---|---|
| Performance Parameters | |
| Operating load (kg) | 850 |
| Max Speed (km/h) | 12 |
| Rated flux (L/min) | 75 |
| High Flow Flux (L/min) | / |
| Tire (track) model | 12-16.5 |
| Rated power (Kw) | 45 |
| Fuel tank capacity (L) | 80 |
| Self weight bucket (kg) | 2800 |
| Bucket capacity (m³) | 0.4 |
| Dimensions (Unit: mm) | |
| Overall operating height (mm) | 4000 |
| Height to bucket hinge pin (mm) | 3100 |
| Height to top of cab (mm) | 2160 |
| Height to bottom of level bucket (mm) | 2933 |
| Without bucket length (mm) | 2750 |
| Overall length with bucket (mm) | 3490 |
| Dumping angle at maximum height (°) | 40 |
| Dumping height (mm) | 2400 |
| Dumping reach (mm) | 750 |
| Rollback of bucket on ground (°) | 30 |
| Rollback of bucket at full height (°) | 104 |
| Wheelbase (mm) | 991 |
| Ground clearance (mm) | 205 |
| Angle of departure (°) | 20 |
| Front turning radius without bucket (mm) | 1198 |
| Front tuning radius (mm) | 1958 |
| Rear tuning radius (mm) | 1728 |
| Rear axle to bumper (mm) | 1208 |
| Tread width (mm) | 1500 |
| Width (mm) | 1880 |
| Bucket width (mm) | 1880 |
