HTSL390 Skid Steer Loader – 850kg Compact Track Loader for Tight Sites
Built for Tight Sites – 850kg of Compact Power

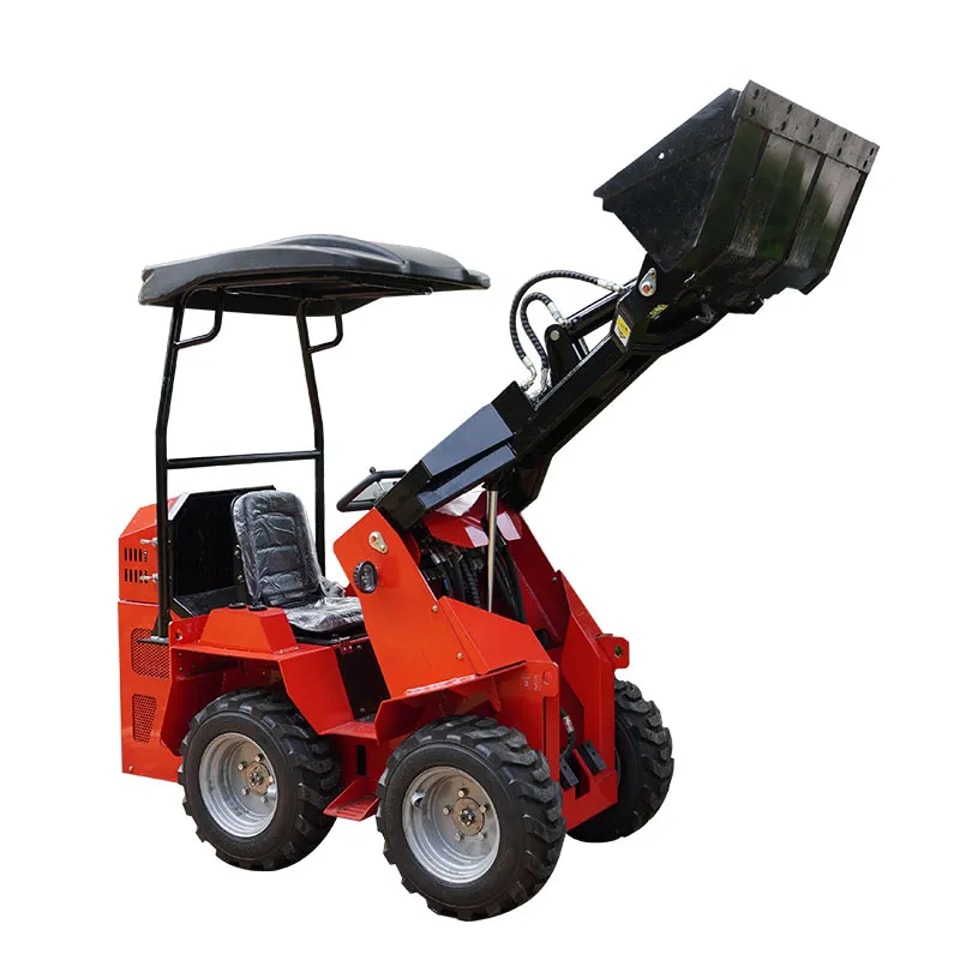

The HTSL390 is a compact track loader built for contractors, landscapers, and farmers who work in tight spaces. At just 1050mm wide, it fits through standard equipment gates and works in confined residential yards, greenhouse aisles, and narrow barn passages.
Powered by a RATO R420 engine producing 10kW at 3600rpm, the HTSL390 delivers enough power for daily loading, grading, and material handling tasks. The engine is reliable, fuel-efficient, and easy to service – parts are widely available through multiple channels.
The machine weighs 850kg and lifts 250kg – enough for most landscaping materials, feed, gravel, and debris. The 0.13m³ bucket is sized for efficient loading without overloading the machine. With a maximum lifting height of 2398mm, it clears the sides of most small dump trucks and trailers.
The hydraulic system runs at up to 17MPa with a flow rate of 18L/min – providing smooth, responsive control for precision work around foundations and landscaping features. The low-ground-pressure design means it won't tear up lawns or leave deep ruts on soft ground.

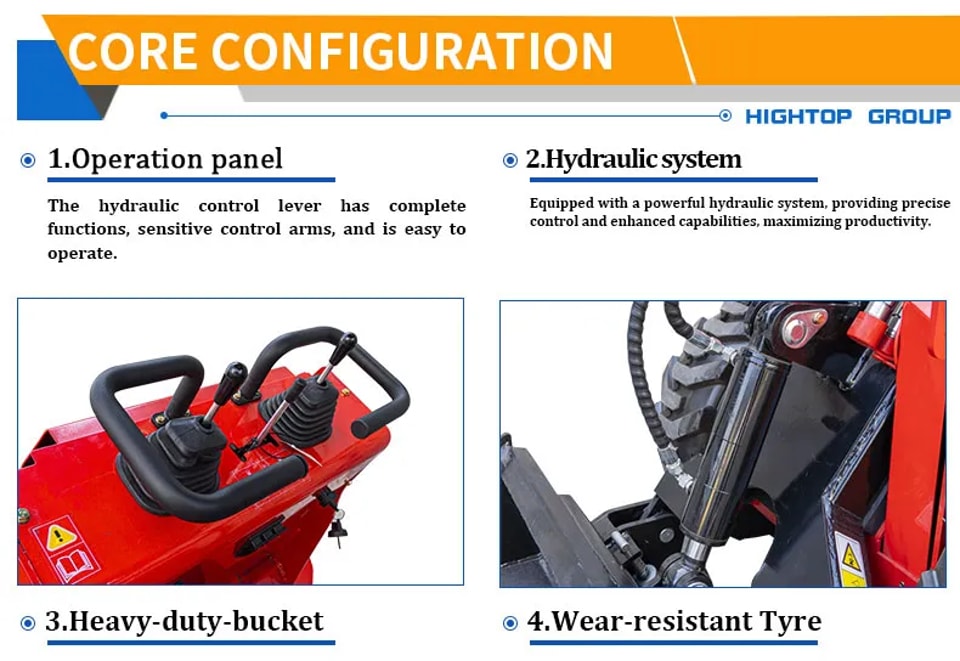

The HTSL390 also features a hydraulic control lever with complete functions and sensitive control arms – easy to operate even for less experienced operators. The heavy-duty bucket has strong load-bearing capacity, making loading and unloading effortless.

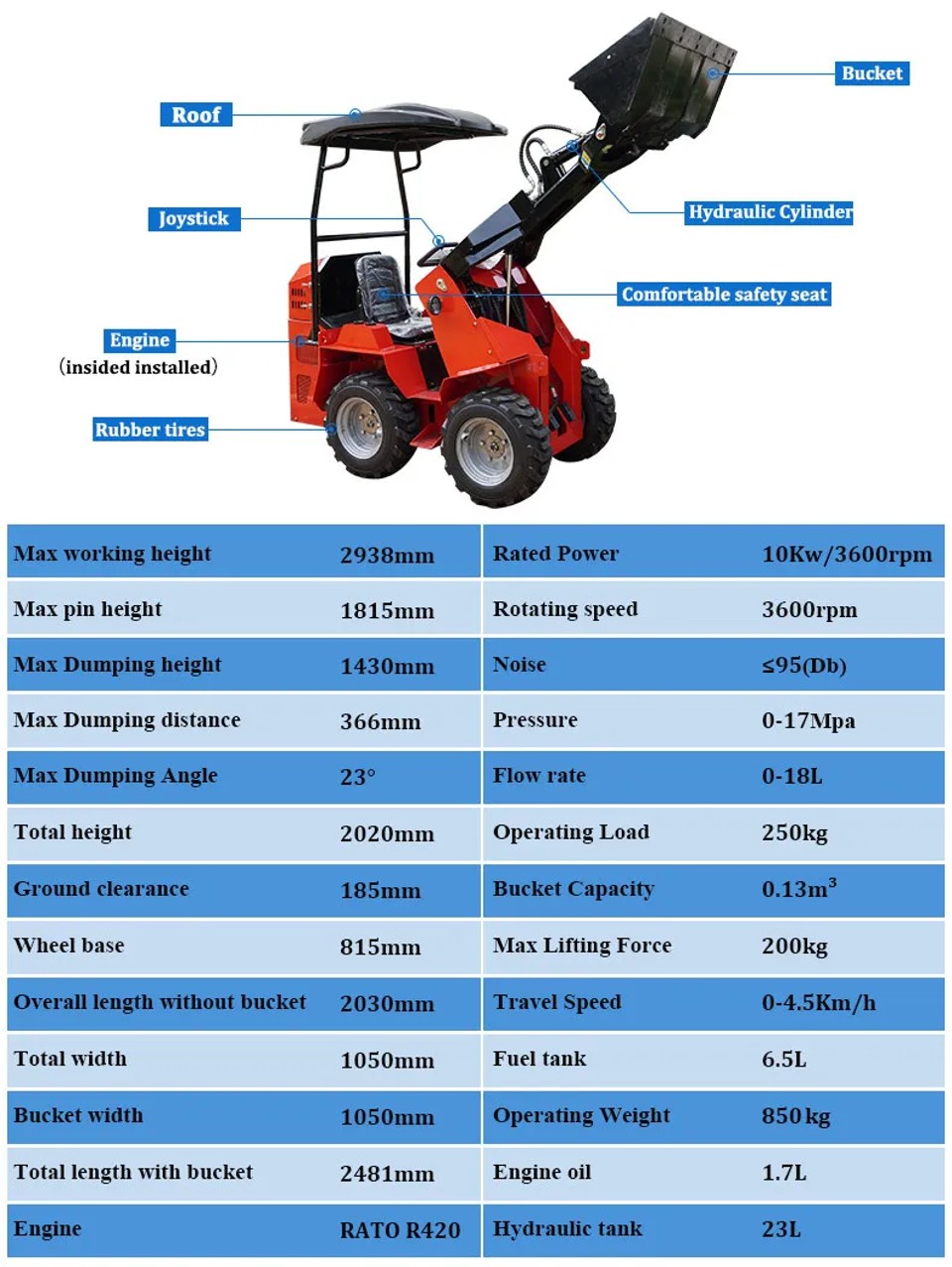

| HTSL390 Skid Steer Loader — Parameter Table | |
|---|---|
| Dimensions & Working Range (Unit: mm) | |
| Max working height | 2398mm |
| Max pin height | 1815 mm |
| Max Dumping height | 1430mm |
| Max Dumping distance | 366mm |
| Max Dumping Angle | 23 |
| Total height | 2020mm |
| Ground clearance | 185 mm |
| Wheel base | 815 |
| Overall length without bucket | 2030mm |
| Total width | 1050mm |
| Bucket width | 1050mm |
| Total length with bucket | 2481mm |
| Engine | |
| Engine | RATO R420 |
| Rated Power (KW) | 10Kw/3600rpm |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | ≤95 |
| Hydraulic System | |
| Pressure (Mpa) | 0-17 |
| Flow rate | 0-18L |
| Performance Parameters | |
| Operating Load | 250KG |
| Bucket Capacity | 0.13m³ |
| Max Lifting Force | 200 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 850kg |
| Oil | |
| Fuel tank | 6.5L |
| Engine oil | 1.7L |
| Hydraulic tank | 23L |

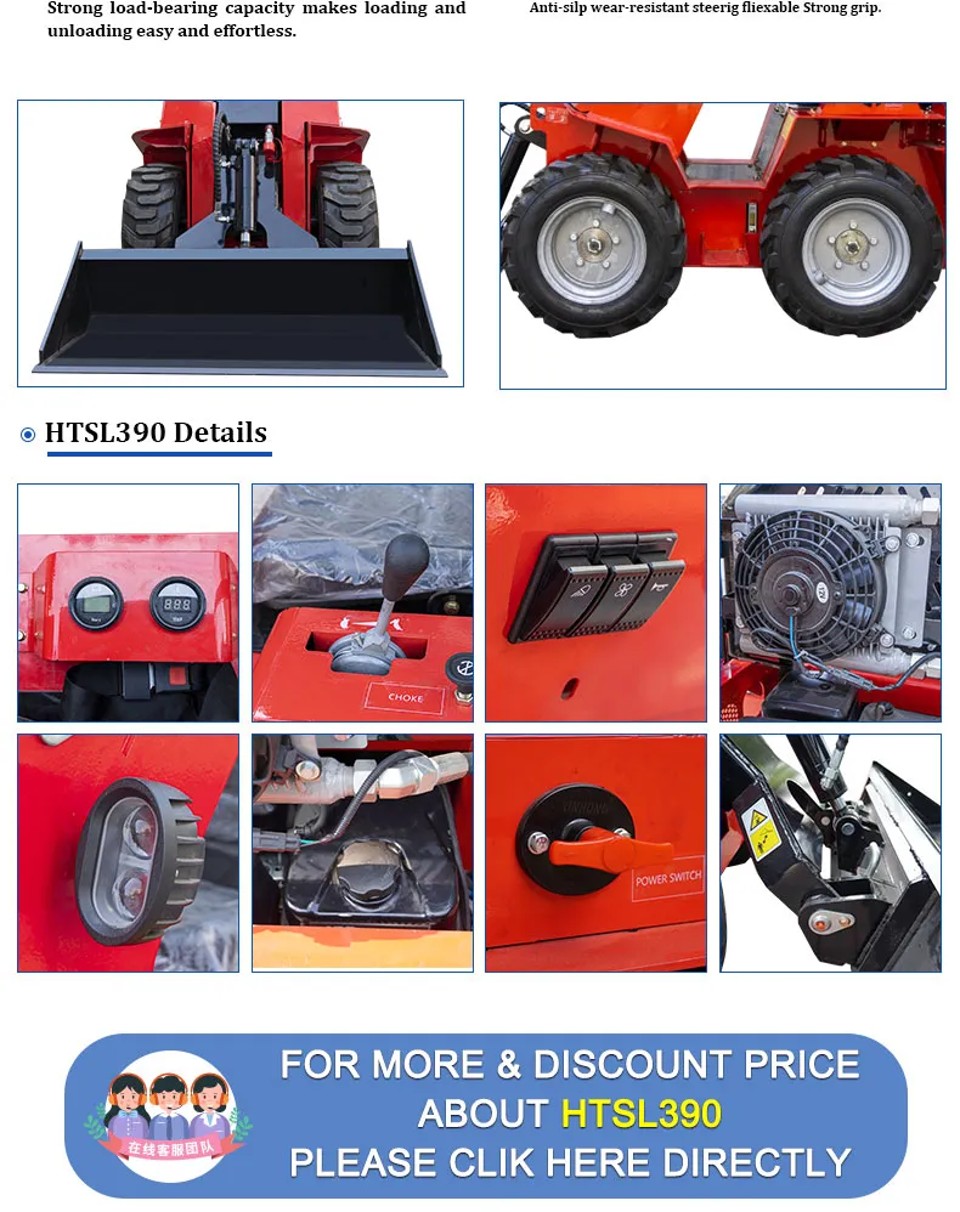

HTSL390 Skid Steer Loader Details
Frequently Asked Questions
How wide is the HTSL390? Will it fit through a gate?
The machine is 1050mm wide (1.05 meters). It will fit through most equipment gates and wider garden gates. If you have a standard pedestrian gate (80-90cm wide), this machine won't fit – consider a smaller model.
How much can the HTSL390 lift?
The rated operating load is 250kg. The maximum lifting force is 200kg. That's enough for most landscaping materials – mulch, gravel, sand, feed, and debris. For heavier loads like pallets of concrete blocks, you'll need a larger machine.
What engine does the HTSL390 use?
It's powered by a RATO R420 engine, producing 10kW at 3600rpm. RATO is a well-established engine manufacturer, and parts are available through multiple channels. The engine is fuel-efficient and easy to service.
What's the difference between a skid steer loader and a compact track loader?
A skid steer loader has wheels. A compact track loader has rubber tracks. The HTSL390 uses rubber tracks, which provide better traction on soft ground, lower ground pressure (less damage to lawns), and better stability on slopes. Tracks are slower on hard surfaces but more capable on mud, snow, and uneven terrain.

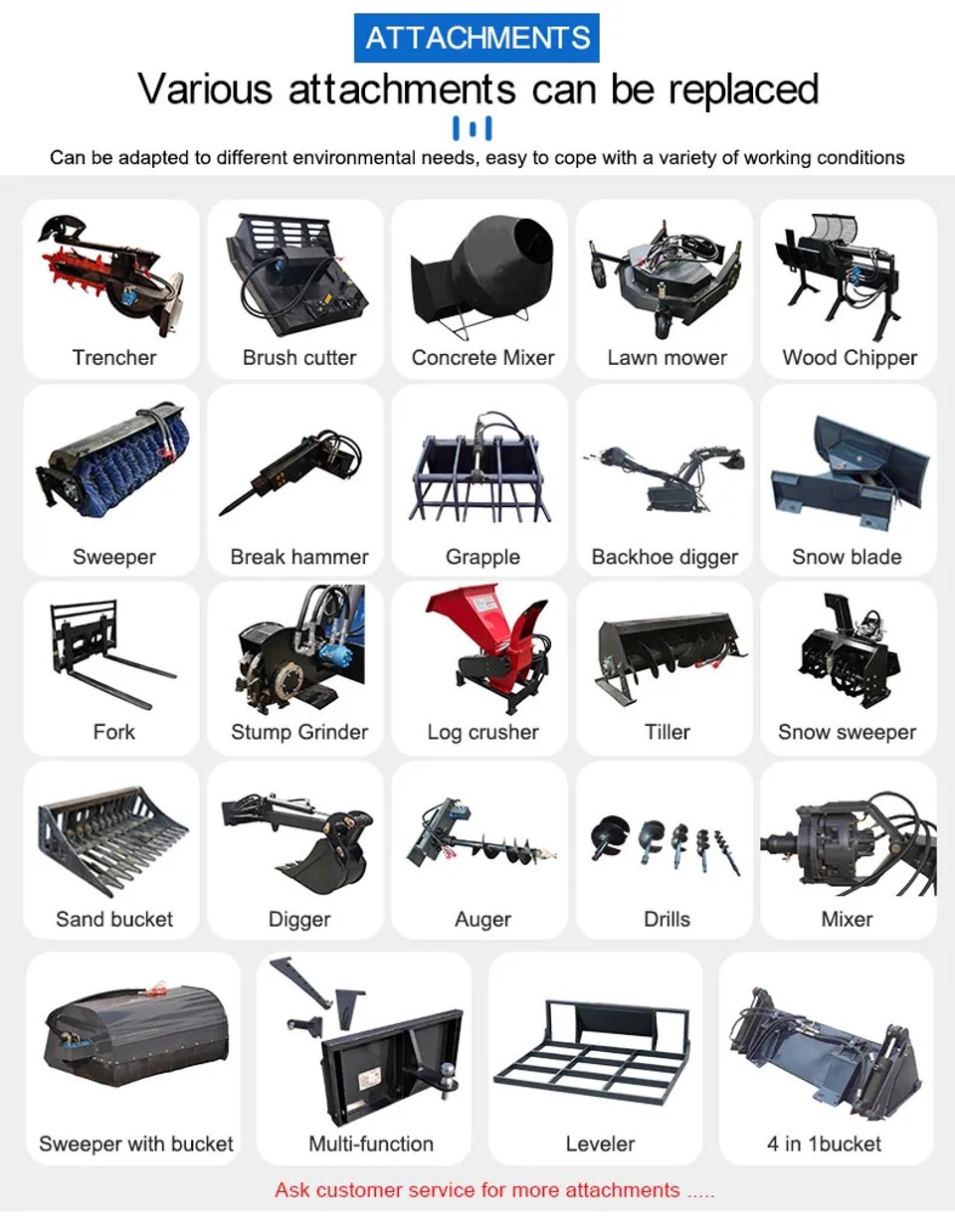

What attachments are available for the HTSL390?
The HTSL390 accepts standard mini skid steer attachments – buckets (various widths), pallet forks, augers, grading blades, and sweepers. Quick-hitch systems are available for fast attachment swaps.
How fast can the HTSL390 travel?
Maximum travel speed is 4.5 km/h – fast enough to move between work areas on a job site, but not designed for long-distance travel. Transport it on a trailer between sites.
