HTV1000 Fits Tight Work Areas Without Sacrificing Control
Access Can Be the First Limitation on a Small Jobsite

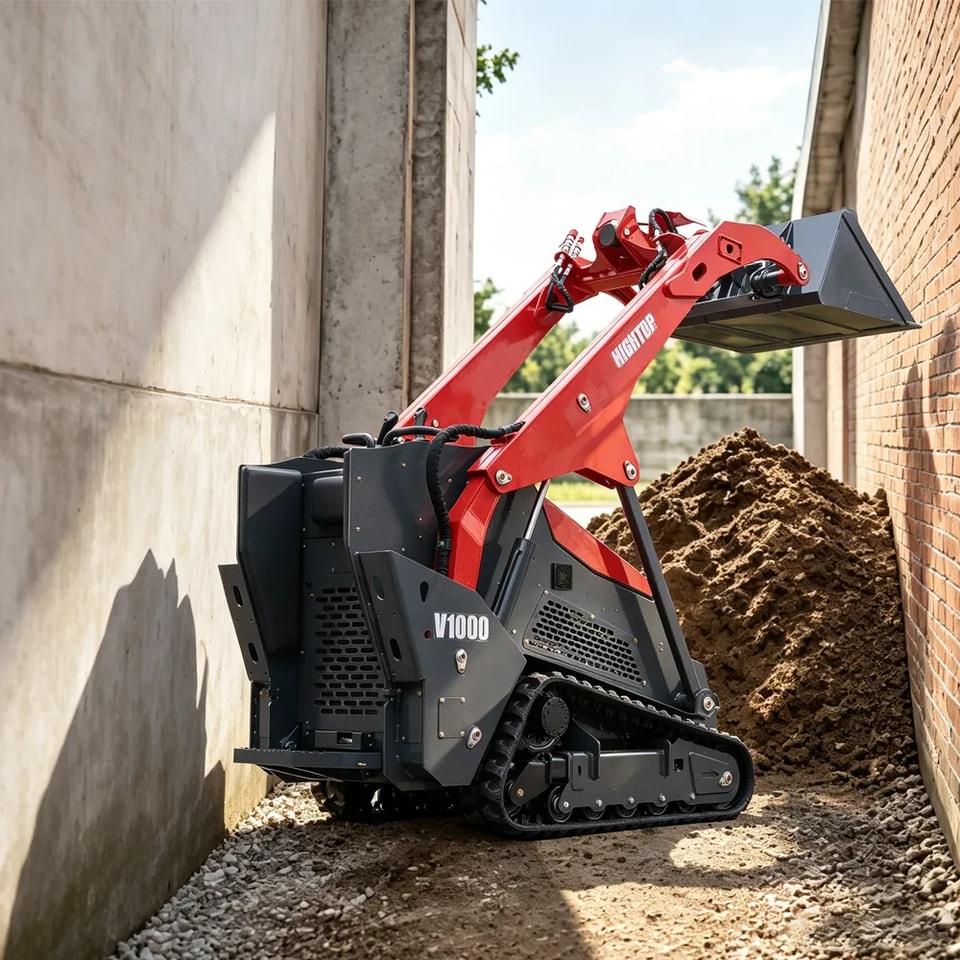

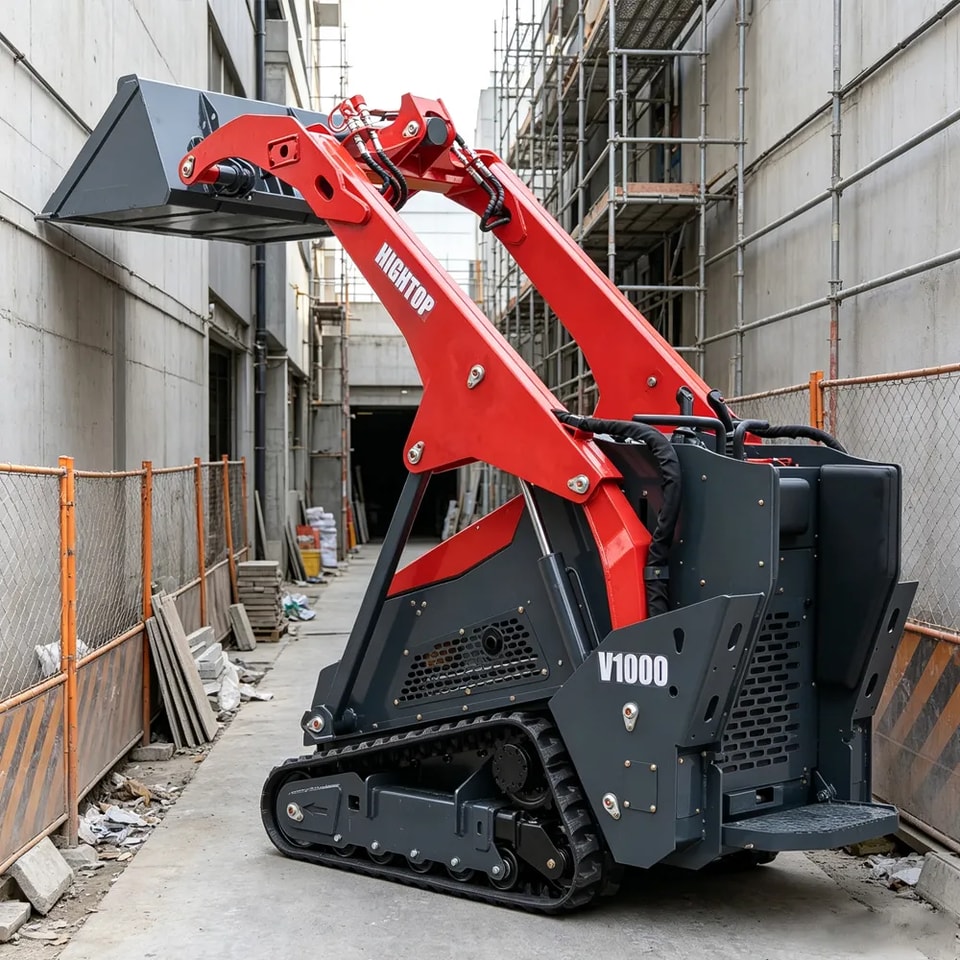

For contractors working around buildings, workshops, yards and restricted work areas, machine width can determine whether a loader can reach the job at all. The HTV1000 has an overall width of 1000 mm including the tracks and a body width of approximately 980 mm. Its 3000 mm overall length and 1495 mm height create a compact machine profile for skid steer loader for narrow access applications.
Control Matters When Working Close to Obstacles

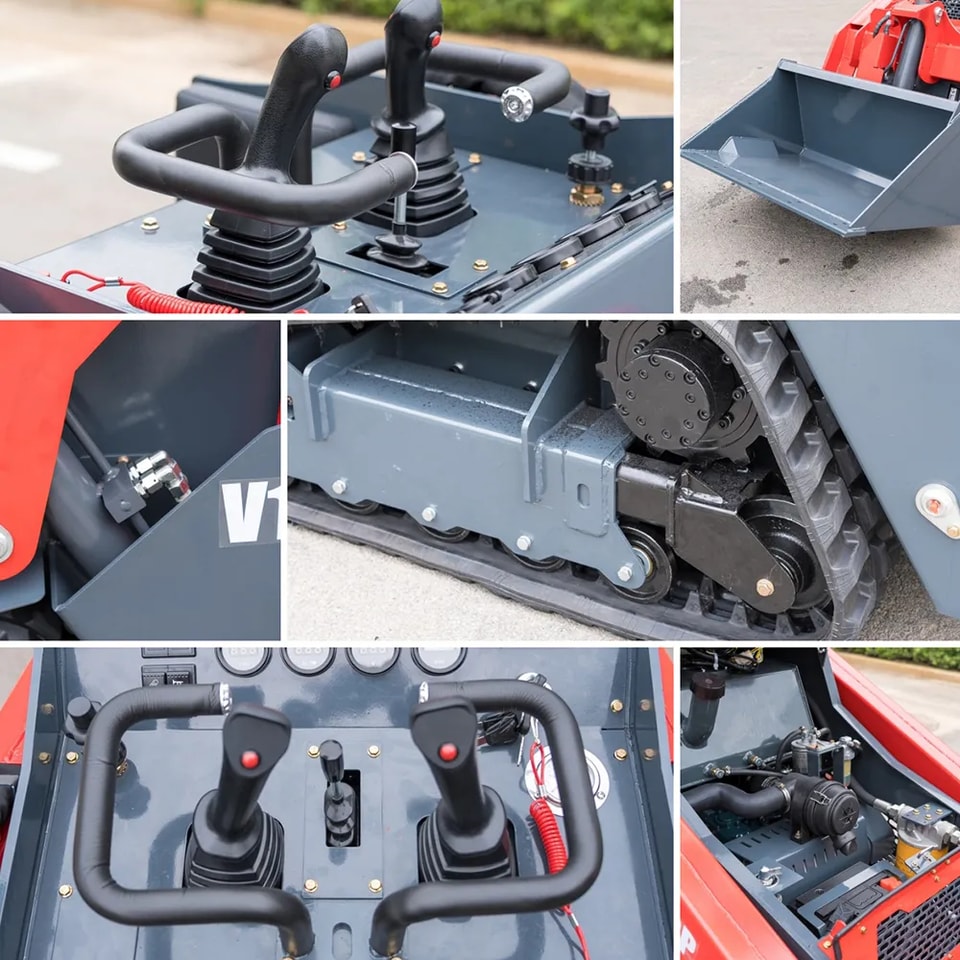

The HTV1000 uses a pilot-operated hydraulic control system. The hydraulic circuit uses a piston pump with 4–45 ml/r displacement and a rated speed of 2200 r/min. For operators moving material close to walls, structures or other obstacles, the control arrangement is an important procurement consideration rather than simply a power specification.
Kubota Diesel Power in a Compact Package
A Kubota D1105-E4 engine supplies 17.1 kW at 3000 rpm. The machine has a 0–4.5 km/h travel speed range and a stated gradeability of 30°. With 185 mm minimum ground clearance, the HTV1000 can be evaluated for contractors looking for a compact track loader for construction, yard work or confined material-handling tasks.
Check Reach and Service Access Before Buying

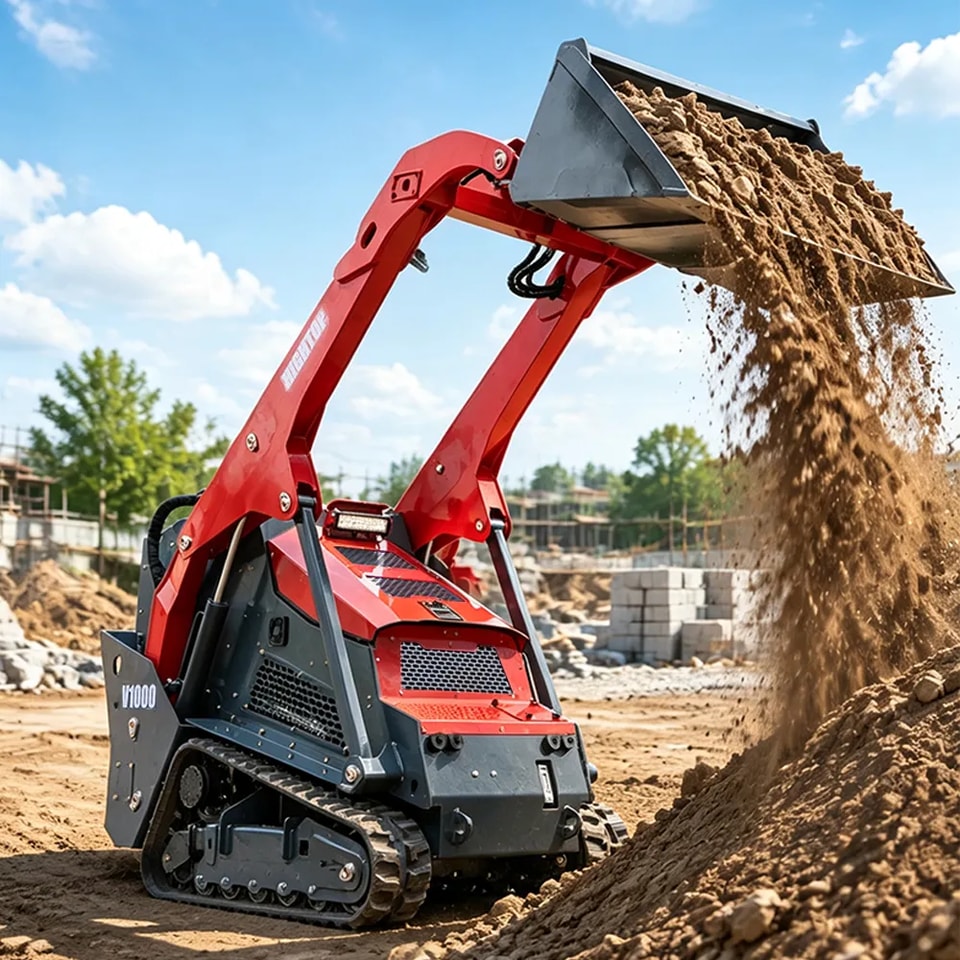

The loader provides a 1814 mm dump height and 1020 mm dump reach. A front-opening hood provides access to the engine, radiator, filters and hydraulic components for routine inspection and servicing. These details matter to rental companies and small contractors comparing equipment based on daily usability, maintenance access and jobsite flexibility.
Prepare the Export Configuration Around the Job
For an overseas purchase, buyers should confirm the intended application, attachment requirements, destination and quantity before requesting a quotation. Export buyers can also ask about available attachments, spare parts support and shipping assistance, while dealers can discuss supply requirements for their local market.
| Parameter | Specification |
|---|---|
| Model | HTV1000 |
| Machine Type | Skid-Steer Loader |
| Engine Model | Kubota D1105-E4 |
| Engine Power | 17.1 kW / 3000 rpm |
| Gradeability | 30° |
| Travel Speed | 0–4.5 km/h |
| Rear Swing Radius | 1276 mm |
| Maximum Height from Bucket Horizontal to Ground | 2400 mm |
| Dump Height (Tilted Bucket, Tip to Ground) | 1814 mm |
| Dump Reach | 1020 mm |
| Minimum Ground Clearance | 185 mm |
| Maximum Overall Length (Including Bucket & Foot Pedal) | 3000 mm |
| Overall Width (Including Tracks) | 1000 mm |
| Body Width | Approximately 980 mm |
| Overall Height | 1495 mm |
| Hydraulic Oil Tank | 31.5 L |
| Diesel Fuel Tank | 28 L |
| Piston Pump Displacement | 4–45 ml/r |
| Piston Pump Rated Speed | 2200 r/min |
FAQ About the HTV1000 Compact Skid Steer Loader
Can the HTV1000 work in very narrow access areas?
The overall width including tracks is 1000 mm, while the body width is approximately 980 mm. Buyers should compare these dimensions with their actual gates, passages, workshop entrances or other access points before ordering.
What engine is used on the HTV1000?
The HTV1000 uses a Kubota D1105-E4 diesel engine rated at 17.1 kW at 3000 rpm. This specification is useful for contractors comparing compact skid steer loaders by engine configuration.
What makes the HTV1000 suitable for confined work?
Its 1000 mm overall width, approximately 980 mm body width and 1495 mm overall height give buyers a compact dimensional profile. The pilot-operated hydraulic system also provides controlled operation when working around obstacles.
Does the HTV1000 use pilot-operated hydraulics?
Yes. The machine uses a pilot-operated hydraulic system. Its piston pump has a displacement range of 4–45 ml/r and a rated speed of 2200 r/min.
What is the dump height of the HTV1000?
The specified dump height, measured from the tilted bucket tip to the ground, is 1814 mm. The listed dump reach is 1020 mm.
Can the HTV1000 load material into a truck?
The official specifications provide a 1814 mm dump height and 1020 mm dump reach. Whether these dimensions suit a particular truck depends on the truck's side height and the required loading position, so buyers should compare the dimensions before purchasing.
What is the travel speed of the HTV1000?
The listed travel speed is 0–4.5 km/h. Actual operating speed depends on the working conditions and task being performed.
How does the front-opening hood help with maintenance?
The front-opening hood provides access to the engine, radiator, filters and hydraulic components. This arrangement allows operators or service personnel to reach key maintenance areas during routine inspections.
Is the HTV1000 suitable for rental companies?
Rental buyers can evaluate the model according to the types of confined-access jobs common in their local market. Width, hydraulic control, dump dimensions and maintenance access are useful points to verify before adding the machine to a rental fleet.
What should contractors check before ordering an HTV1000?
Contractors should first confirm access dimensions, required dumping height and reach, working conditions, hydraulic requirements and the intended attachment. The destination and quantity should also be provided when requesting an export quotation.
Can overseas buyers request spare parts and shipping assistance?
Yes. Export buyers can request spare parts support and shipping assistance as part of the purchasing discussion. Providing the destination and machine requirements helps establish the appropriate quotation and shipping arrangement.
Can dealers request an HTV1000 export quotation?
Yes. Dealers and equipment importers can request pricing based on destination, quantity and configuration requirements. Dealer cooperation can be discussed alongside attachment requirements, spare parts support and export logistics.
