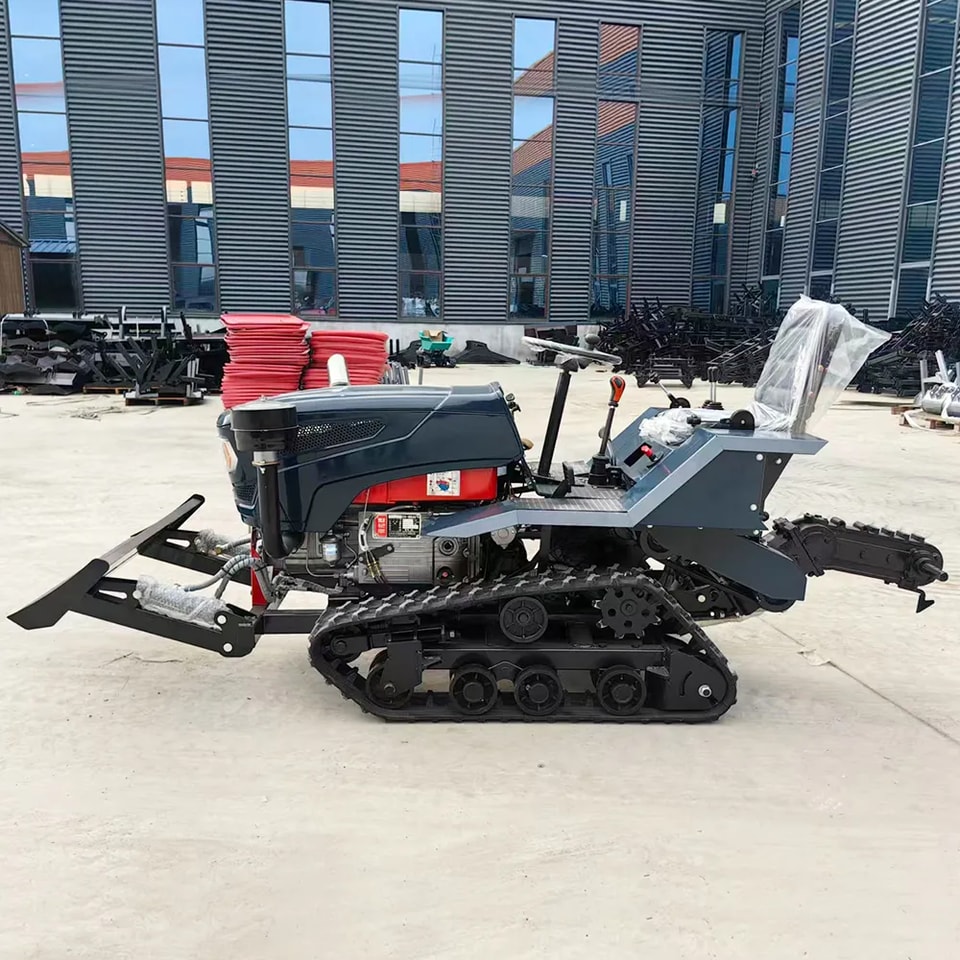

HTCT35H Compact Crawler Tractor for Tight Orchards
Owning a piece of land comes with a unique set of challenges, especially when that land is planted with valuable crops on uneven terrain. For farmers and property managers, the constant struggle is finding a machine agile enough to move between narrow rows yet robust enough to handle daily chores.
The HTCT35H crawler tractor was engineered with this precise challenge in mind. Unlike bulky, wheeled tractors that can compact soil or damage root systems, this machine utilizes a robust crawler undercarriage. This design spreads the 880kg operating weight evenly, significantly reducing ground pressure. The result? You can work in your orchard, vineyard, or nursery even after a rainfall, minimizing soil compaction and protecting your crops' root health. Its impressive 30° climbing angle makes it a reliable partner for hillside operations.
This is not just a tractor; it's a mobile power station. The rear PTO delivers 330 rpm via a gearbox-type configuration, providing reliable power for a range of implements. Whether you're using the rotary tiller to prepare seedbeds or the harvester for seasonal collection, the engine is tuned for consistent performance. And when the job calls for earthmoving, the optional bulldozer blade, loader bucket, or excavator arm transforms this unit into a true multi-functional tool.
We understand that reliability is paramount. The electric start and mechanical steering are straightforward, simplifying operation for anyone on the crew. This simplicity extends to servicing, with accessible components that reduce downtime and make routine checks quick and hassle-free. It's a practical solution designed for those who value efficiency, allowing you to focus on the job at hand, not troubleshooting complex electronics. For a compact tractor that offers traction, versatility, and simplicity, the HTCT35H is an investment in your land's productivity.
| Model | HTCT35H |
| Machine Type | Crawler Tractor (Agricultural) |
| Overall Dimensions (L×W×H) | 2300 × 1120 × 1500 mm |
| Unladen Weight | 880 kg |
| Engine Model | KM35-YT |
| Engine Power | 26.4 kW @ 2200 rpm |
| Starting Method | Electric Start |
| Ground Clearance | 220 mm |
| Track Gauge | 820 mm |
| Track Length (On Ground) | 1000 mm |
| Track Width | 180 / 200 mm |
| Max. Travel Speed | 20 km/h |
| Max. Climbing Angle | 30° |
| Gearbox Ratios | 6 Forward / 2 Reverse |
| Steering Control | Mechanical Steering (Single-side Independent Braking) |
| Hydraulic System Displacement | 10 ml/r |
| Hydraulic System Pressure | 18 MPa |
| Max. Tractive Force | 6 kN |

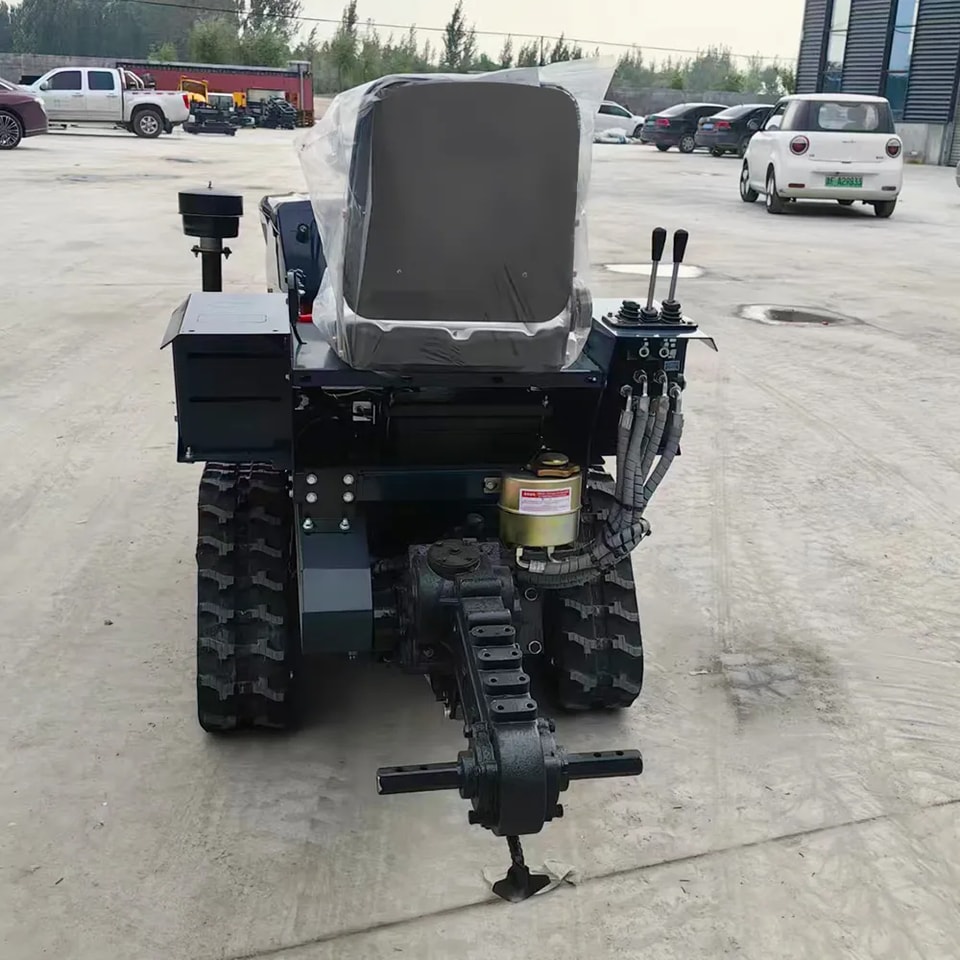

| Rear PTO Type | Gearbox Type |
| Rear PTO Speed | 330 rpm |
| Rear Coupling Spacing | 110 mm × 170 mm |

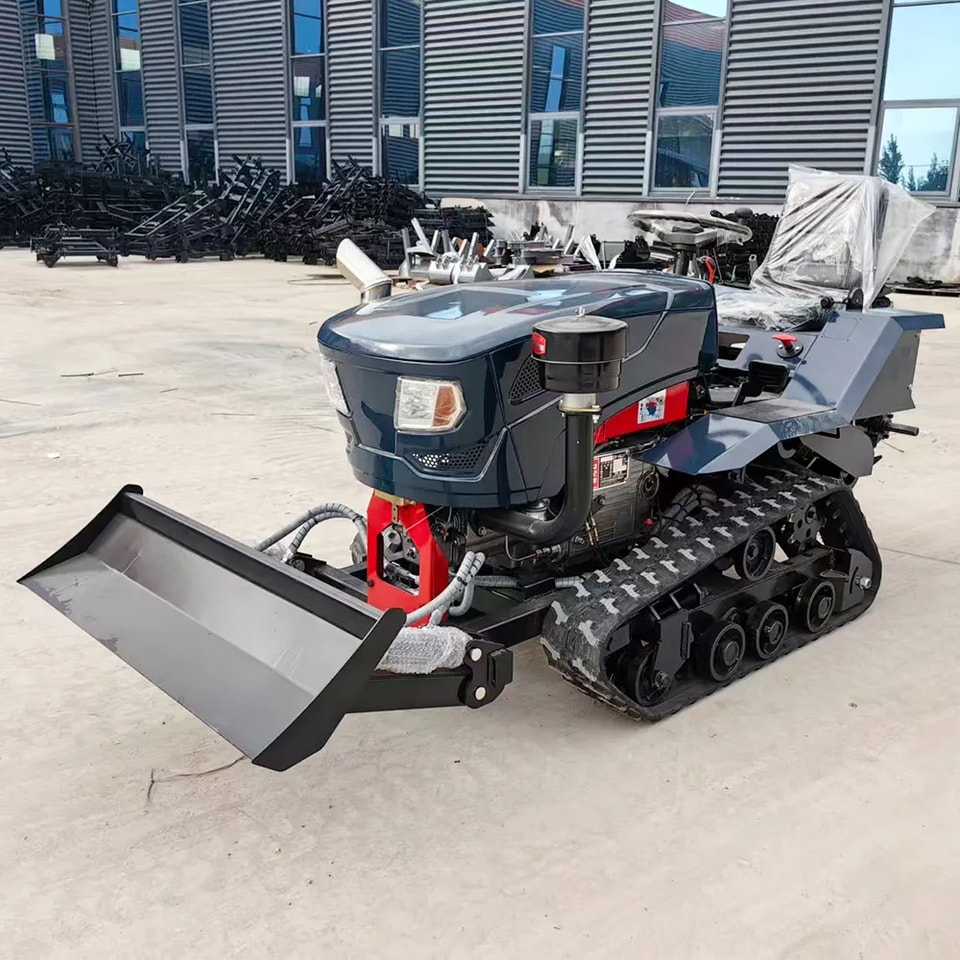

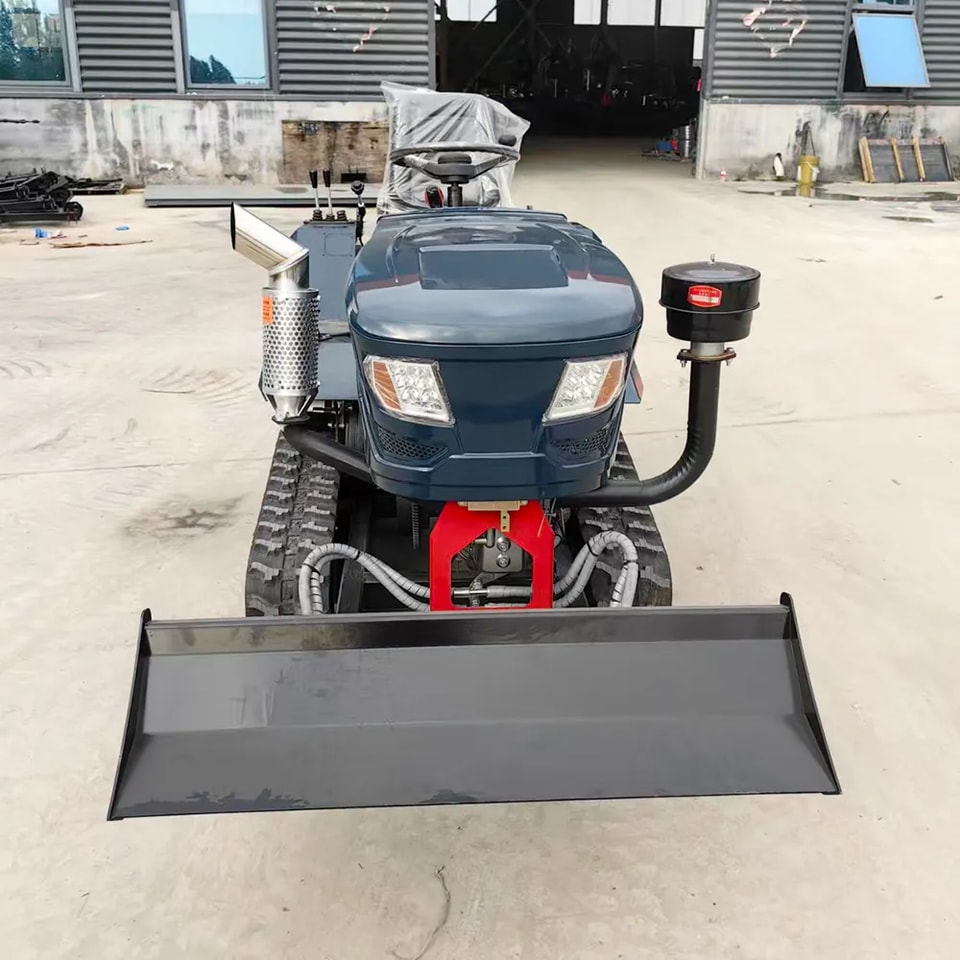

| Compatible Attachments | Bulldozer Blade, Loading Bucket, Excavator Arm, Ditching Machine, Harvester, Rotary Tiller |
Q1: What makes a crawler tractor better than a wheeled tractor for orchard work?
The primary advantage is reduced soil compaction and better traction. The tracks distribute the machine's weight over a larger area, protecting fragile root systems and allowing you to work in muddy or soft conditions without getting stuck. The lower center of gravity also provides greater stability on slopes compared to traditional wheeled tractors.
Q2: Can the HTCT35H be used for more than just farming?
Absolutely. Beyond agricultural tasks like tilling and harvesting, you can equip it with a bulldozer blade for light grading and snow removal, a loader bucket for moving materials, or an excavator arm for digging drainage ditches or planting trees. This makes it incredibly useful for landscaping, property maintenance, and even small construction projects.
Q3: Is this tractor easy to operate and maintain?
Yes. It features a simple, reliable electric start and mechanical steering system, which is straightforward to use and less prone to complex electronic failures. The design prioritizes easy access to key components for daily checks and routine maintenance, minimizing the need for specialized tools or technicians.
Q4: Can I get spare parts and attachments shipped to my location?
Yes, as an exporter of agricultural machinery, we provide full support for spare parts and a wide range of attachments to suit your specific operational needs. Contact us to discuss your requirements and we'll arrange shipping accordingly.
Q5: What is the typical fuel consumption for the HTCT35H?
Fuel consumption is dependent on workload and soil conditions. However, the engine is designed for efficiency, and the machine's lightweight design means it doesn't require excessive power to operate, making it economical for routine tasks and helping you keep operating costs under control.
Q6: What is the difference between the HTCT35H and the HTCT35S?
The HTCT35H is specifically configured for dry land and standard agricultural operations like orchards and open fields. The HTCT35S variant, by contrast, features a higher ground clearance design, making it more suitable for environments with tall crops or where under-vehicle clearance is a priority.
