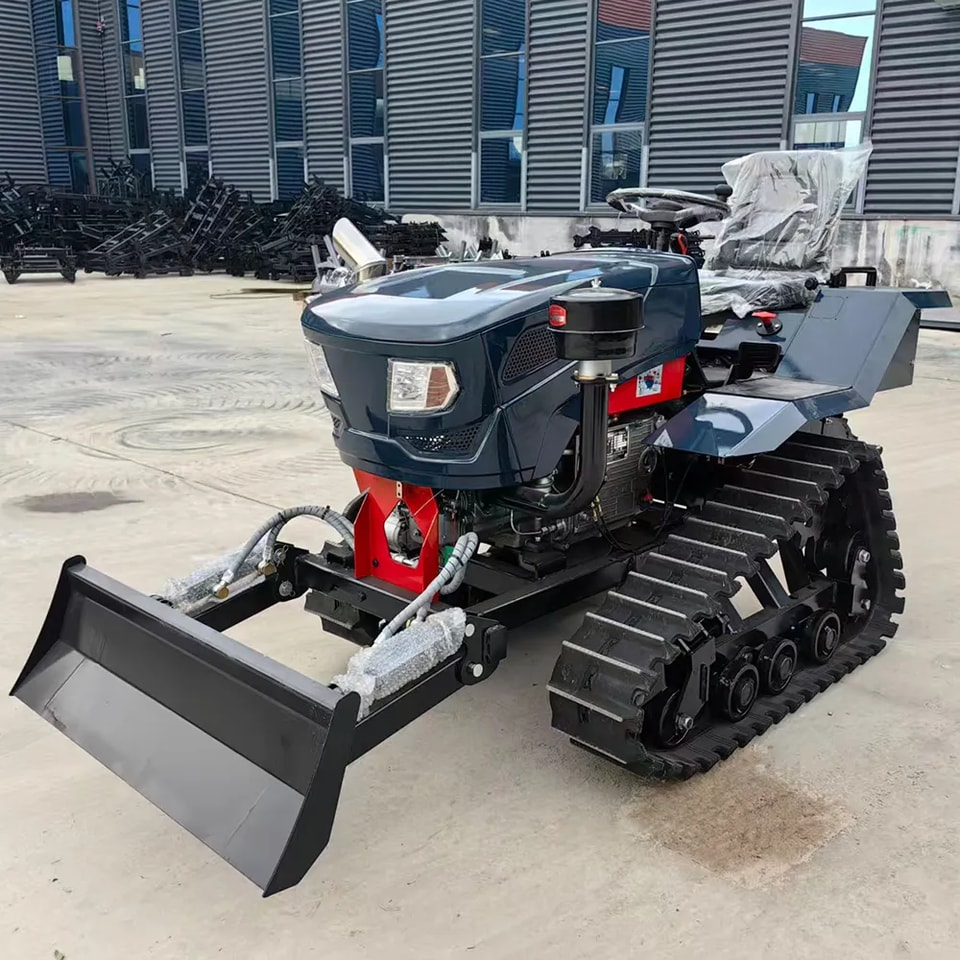

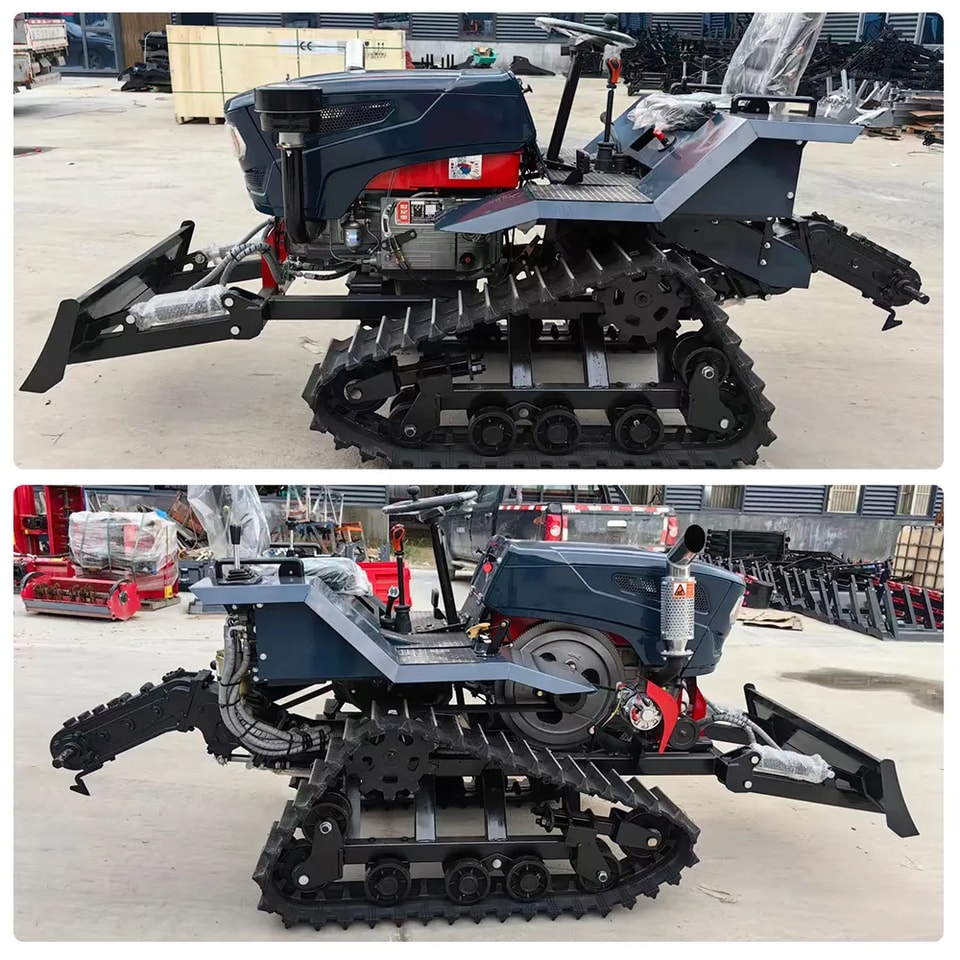

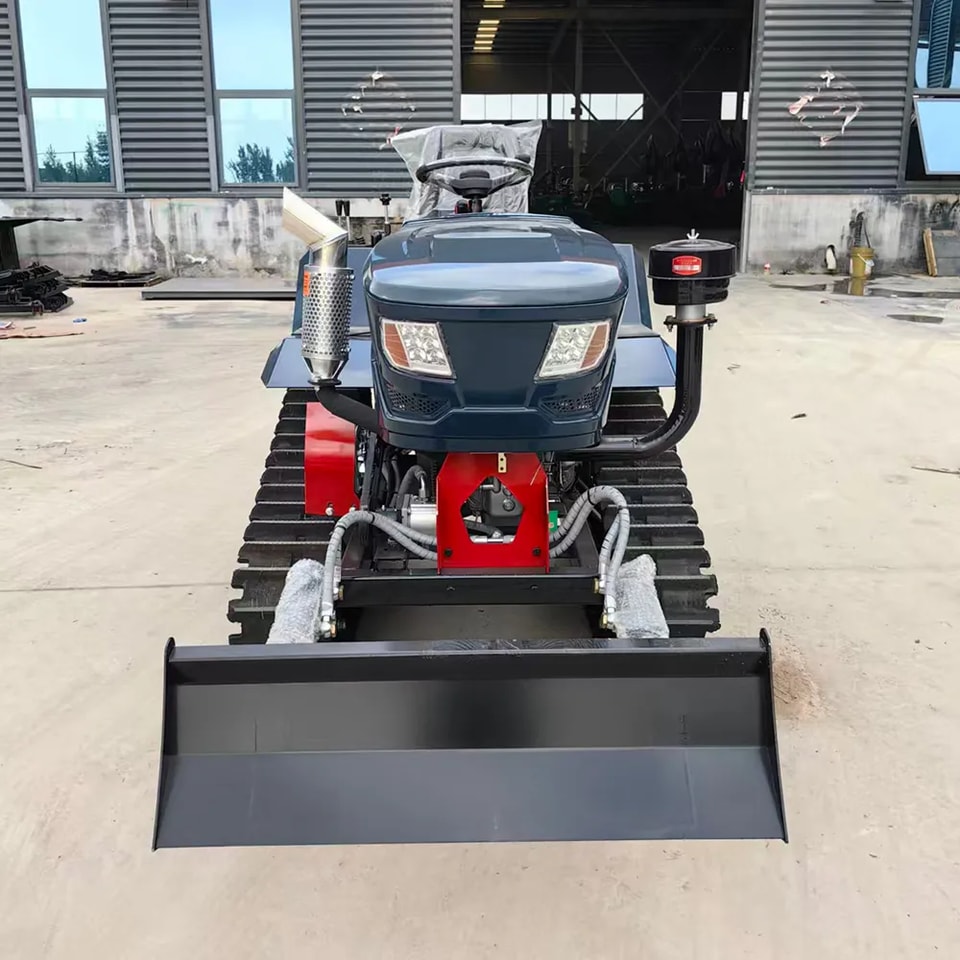

HTCT35S Tackles Paddy Fields and Uneven Farm Ground
When Farm Ground Makes Conventional Traction Difficult
Paddy fields, cultivated farmland and uneven agricultural areas can place different demands on a tractor than ordinary dry-road operation. The HTCT35S uses rubber crawler tracks with a 250 mm track width, 820 mm track gauge and 420 mm ground clearance. This configuration gives agricultural operators a tracked platform suited to working conditions where ground clearance and continuous track contact are important.
Built Around Paddy Fields, Orchards and Greenhouses
The machine is specified for farmland cultivation, orchard management, greenhouse operations and paddy field applications. Instead of focusing on one crop or attachment, the HTCT35S provides a compact agricultural platform that can be configured for different seasonal tasks. Its 25 km/h maximum travel speed also supports movement between working areas when the operating conditions allow.
Match the Tractor to the Implement
The HTCT35S supports several listed attachments, including a bulldozer blade, loading bucket, excavator arm, ditching machine, harvester and rotary tiller. The rear PTO uses a gearbox-type configuration and operates at 330 rpm. For buyers comparing a crawler tractor for paddy fields or a tracked tractor for orchard cultivation, attachment compatibility should be checked together with the required working operation.
Technical Details That Matter in Procurement
The KM35-YT engine delivers 26.4 kW at 2200 rpm. The tractor has a maximum tractive force of 6 kN, a maximum climbing angle of 30°, hydraulic pressure of 18 MPa and hydraulic system displacement of 10 ml/r. Mechanical steering and single-side independent braking provide the specified control arrangement.
For Agricultural Contractors, Dealers and Importers
With an unladen weight of 880 kg and overall dimensions of 2300 × 1120 × 1500 mm, HTCT35S gives overseas buyers a defined configuration to evaluate for agricultural machinery distribution and field operations. Buyers can request a quotation based on destination, attachment requirements and order quantity, with export shipping, spare parts support and dealer cooperation discussed as part of procurement.
| Parameter | Specification |
|---|---|
| Model | HTCT35S |
| Machine Type | Crawler Tractor |
| Overall Dimensions (L × W × H) | 2300 × 1120 × 1500 mm |
| Engine Model | KM35-YT |
| Engine Power | 26.4 kW / 2200 rpm |
| Starting Method | Electric Start |
| Unladen Weight | 880 kg |
| Ground Clearance | 420 mm |
| Track Gauge | 820 mm |
| Track Length | 1000 mm |
| Track Width | 250 mm |
| Maximum Travel Speed | 25 km/h |
| Maximum Climbing Angle | 30° |
| Gearbox Ratios | 6 Forward Gears / 2 Reverse Gears |
| Steering Control Method | Mechanical Steering |
| Steering System | Single-side Independent Braking |
| Hydraulic System Displacement | 10 ml/r |
| Hydraulic System Pressure | 18 MPa |
| Maximum Tractive Force | 6 kN |
| Rear Power Take-Off Configuration | Gearbox Type |
| Rear Power Take-Off Speed | 330 rpm |
| Rear Coupling Spacing | 110 × 170 mm |
| Compatible Attachments | Bulldozer Blade, Loading Bucket, Excavator Arm, Ditching Machine, Harvester, Rotary Tiller |
FAQ About HTCT35S Crawler Tractor
Can the HTCT35S be used in paddy fields?
Yes. Paddy field applications are specifically listed for the HTCT35S. Its crawler configuration, 250 mm track width and 420 mm ground clearance are relevant specifications for buyers evaluating a crawler tractor for paddy field farming.
What agricultural applications is the HTCT35S designed for?
The listed applications include farmland cultivation, orchard management, greenhouse operations and paddy field work. The actual attachment and operating configuration should be selected according to the specific agricultural task.
Why is the 420 mm ground clearance important for this tractor?
Ground clearance affects how much space is available between the machine chassis and the working surface. The HTCT35S has a specified ground clearance of 420 mm, which is an important specification when evaluating the machine for uneven agricultural terrain and field operations.
What engine does the HTCT35S crawler tractor use?
The HTCT35S uses a KM35-YT engine with a rated specification of 26.4 kW at 2200 rpm. It uses an electric starting system.
What attachments can be installed on the HTCT35S?
The listed attachment options include a bulldozer blade, loading bucket, excavator arm, ditching machine, harvester and rotary tiller. Buyers should confirm the required attachment configuration when requesting a quotation.
Is the HTCT35S suitable for orchard cultivation?
Yes. Orchard management is one of the applications specified for the model. Buyers should evaluate the tractor's 820 mm track gauge, 250 mm track width, overall dimensions and required attachment when planning orchard operations.

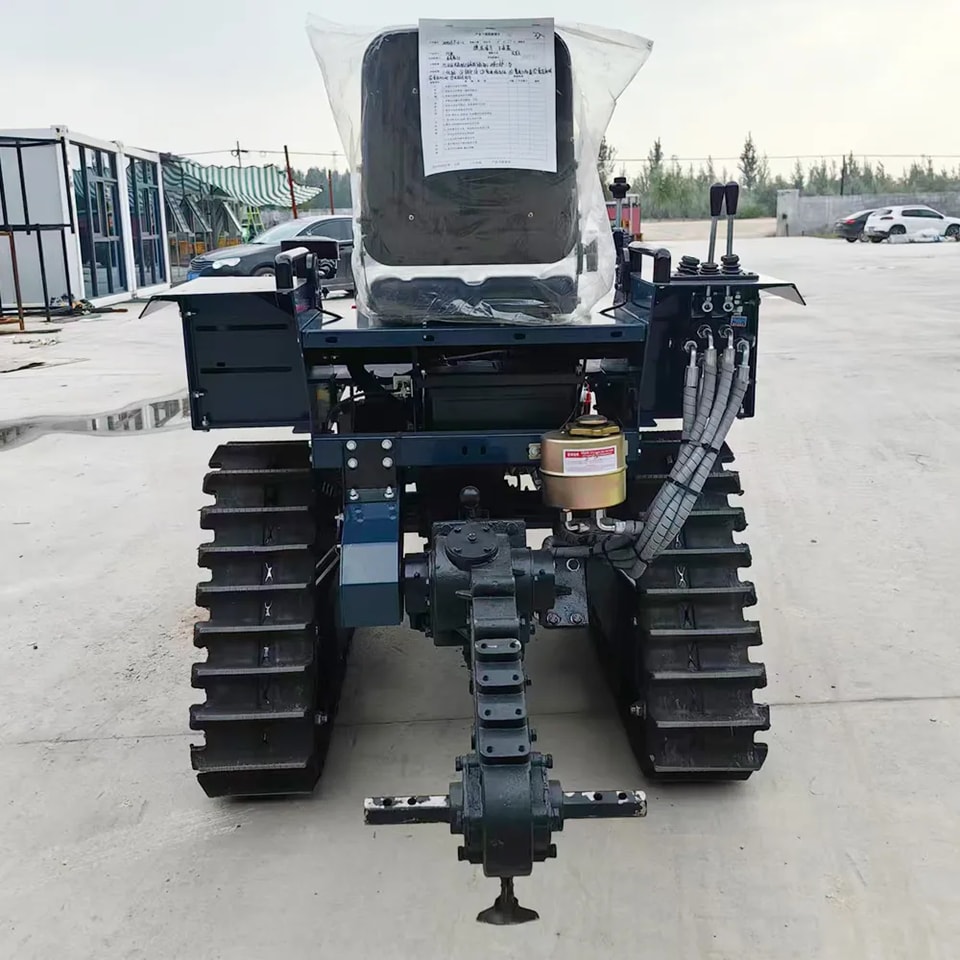

Does the HTCT35S have a rear PTO?
Yes. The HTCT35S uses a gearbox-type rear power take-off with a specified PTO speed of 330 rpm. PTO compatibility should be checked against the selected agricultural implement.
What hydraulic capacity information is available for the HTCT35S?
The official specifications list hydraulic system displacement at 10 ml/r and hydraulic system pressure at 18 MPa. These figures should be considered when matching the tractor with hydraulic attachments.
How much does the HTCT35S weigh?
The listed unladen weight is 880 kg. Buyers planning international transport should confirm the final machine configuration and shipping arrangement before calculating freight requirements.
Can agricultural machinery dealers request export support for the HTCT35S?
Yes. Dealers, distributors and project buyers can request pricing based on destination, quantity and attachment requirements. Export shipping assistance, spare parts support and dealer cooperation can also be discussed during procurement.
Can the HTCT35S be used with a rotary tiller?
Yes. A rotary tiller is included among the listed compatible attachments. Buyers should confirm the complete implement configuration and PTO requirements before placing an order.
What should buyers confirm before ordering an HTCT35S?
For an export purchase, buyers should confirm the destination country, required attachment, quantity, shipping requirements and spare parts needs. This helps establish the appropriate quotation and delivery arrangement.
