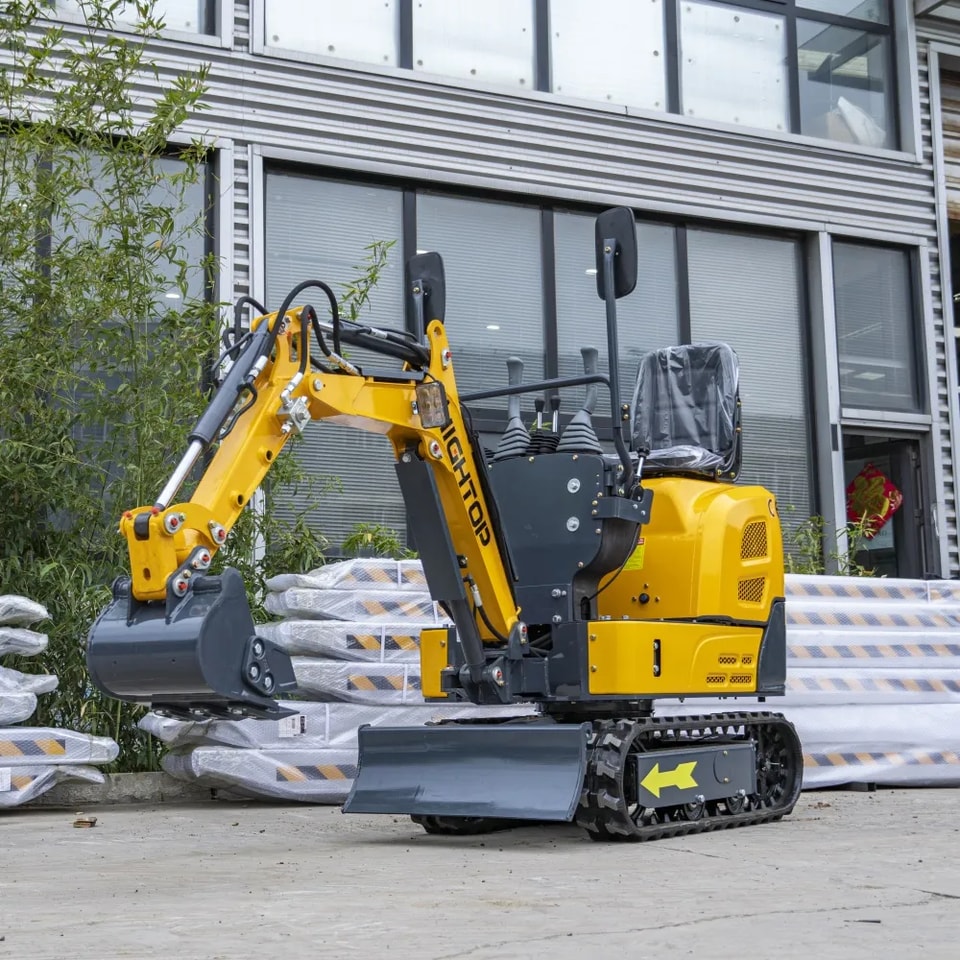

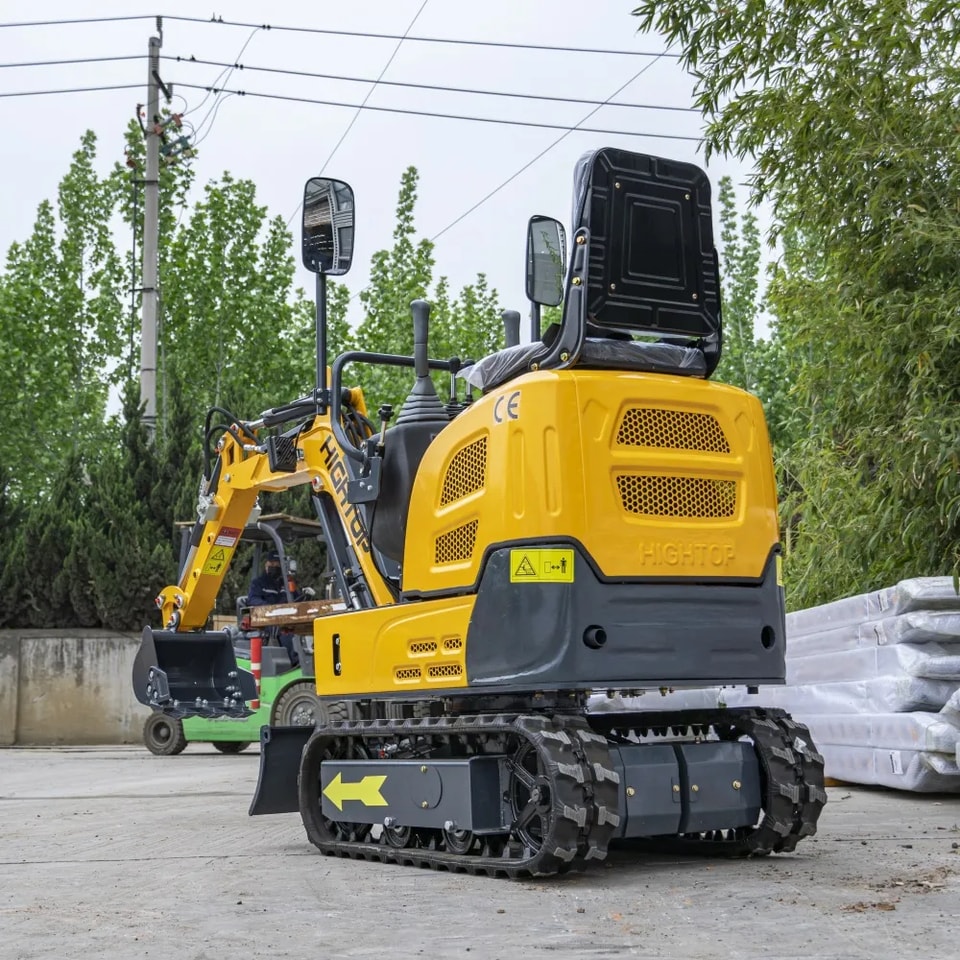

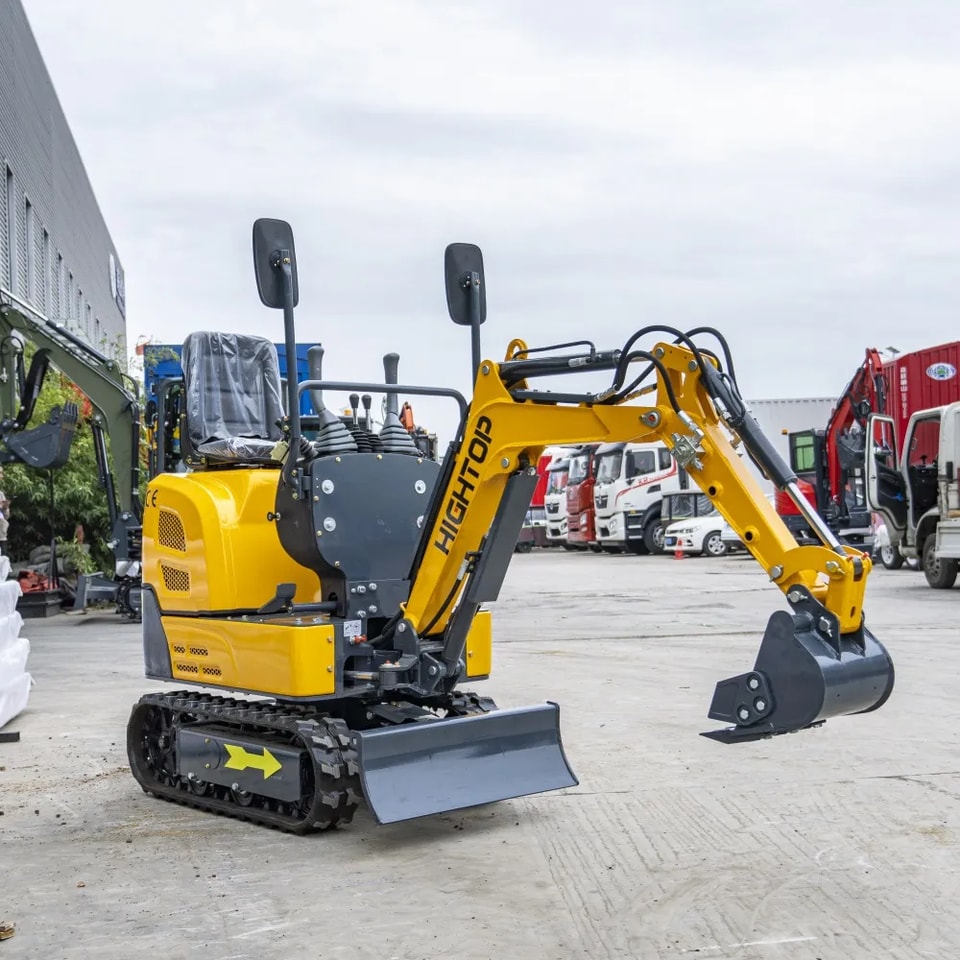

HT06 Mini Excavator

HT06 Mini Excavator Instruction

1. Ultra-compact Design for Effortless Maneuverability

•Overall transport length: 1,889 mm; total width: 700 mm; total height: 2,086 mm

•Easily accesses narrow spaces such as indoor areas, yards, and basements, addressing the challenge of operating large equipment

• Rear turning radius of just 650 mm, eliminating concerns about collisions with surrounding objects during operation and ensuring peace of mind for precision work

2. Versatile Performance, Suitable for Multiple Scenarios

• Maximum digging height: 2017 mm; maximum digging depth: 1118 mm; maximum digging reach: 2025 mm

• Maximum dumping height of 1284mm and minimum swing radius of 1239mm, meeting the needs of various scenarios such as landscaping, interior renovation, and pipeline installation

• 30° gradeability, easily handling complex terrain such as construction site ramps and garden steps

3. Lightweight and Portable, Hassle-Free Site Transfers

• Total operating weight of just 600 kg; no need for a large trailer—can be transported by a standard pickup truck

• Significantly reduces transportation costs and relocation difficulties, ideal for frequent operations across multiple sites and projects

• 0.01 m³ bucket capacity allows for precise control of material volume, preventing waste

4. Reliable Core, Stable and Durable

• Equipped with Runtong R300 or Briggs & Stratton engines, delivering stable power output and excellent fuel economy

• Tengfei main valve precisely controls hydraulic movements, ensuring fast response and high efficiency

• Features high-quality pins that are wear-resistant and durable, effectively extending the machine’s service life and reducing maintenance costs

5. Thoughtful Details, Hassle-Free Operation

• Dozer blade ground clearance: 92 mm; digging depth: 93 mm, enabling rapid site leveling and dredging operations

• Standard track plate width: 150 mm, with low ground pressure to prevent damage to lawns, pavers, and other surfaces

• Track contact length: 782 mm; total track length: 1126 mm, ensuring stable travel and reduced risk of tipping

6. Flexible Options, Customized to Your Needs

• Rearview Mirror Option: Choose based on your work environment. Simplify the configuration to reduce costs when working in open areas, or add a rearview mirror to improve visibility and safety on complex terrain.

• Canopy options: Remove the canopy for indoor precision work to accommodate low ceilings; install it for outdoor operations to increase stability. A rain cover can also be added to the canopy for greater comfort.

• Balances practicality with cost control to meet the personalized needs of different users
