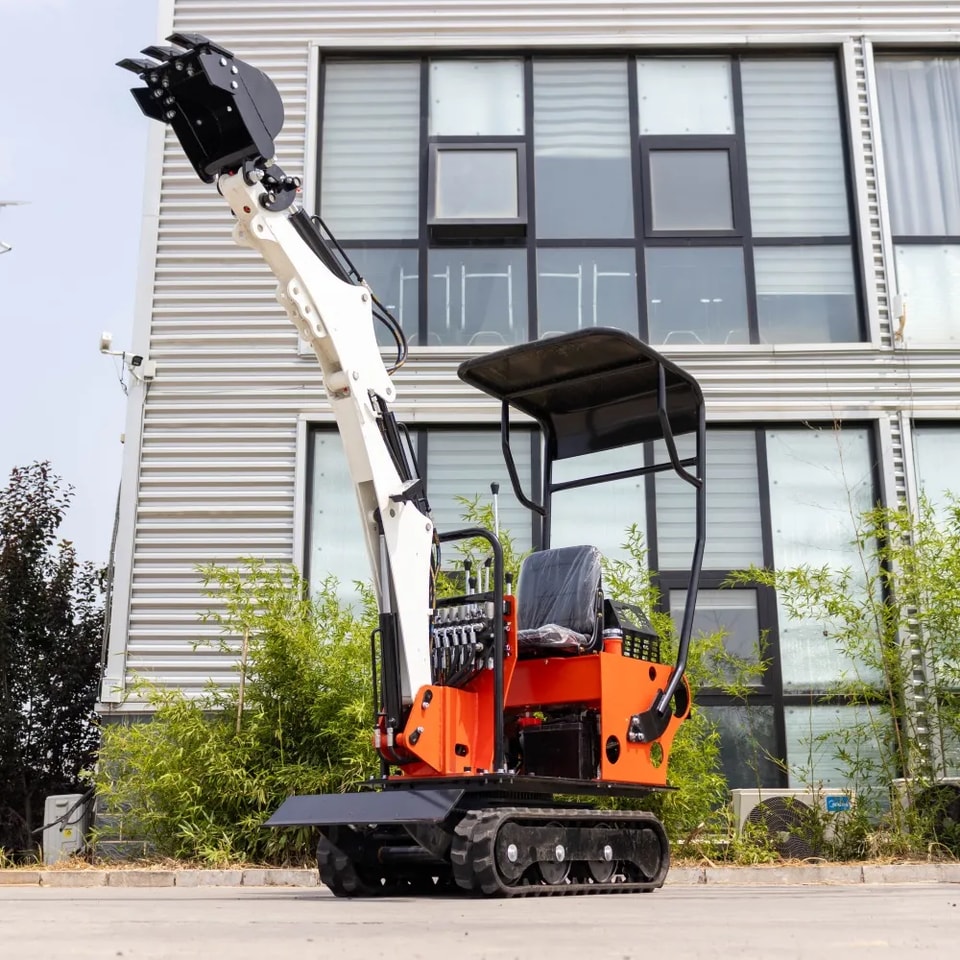

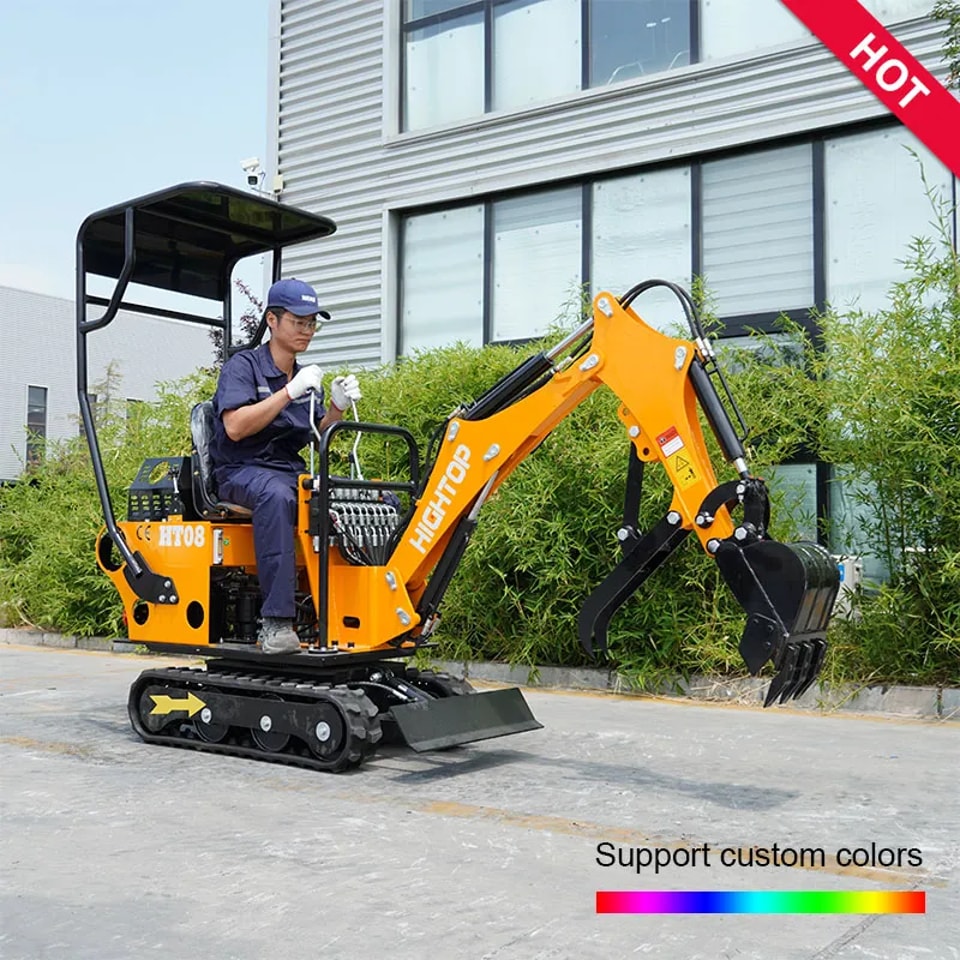

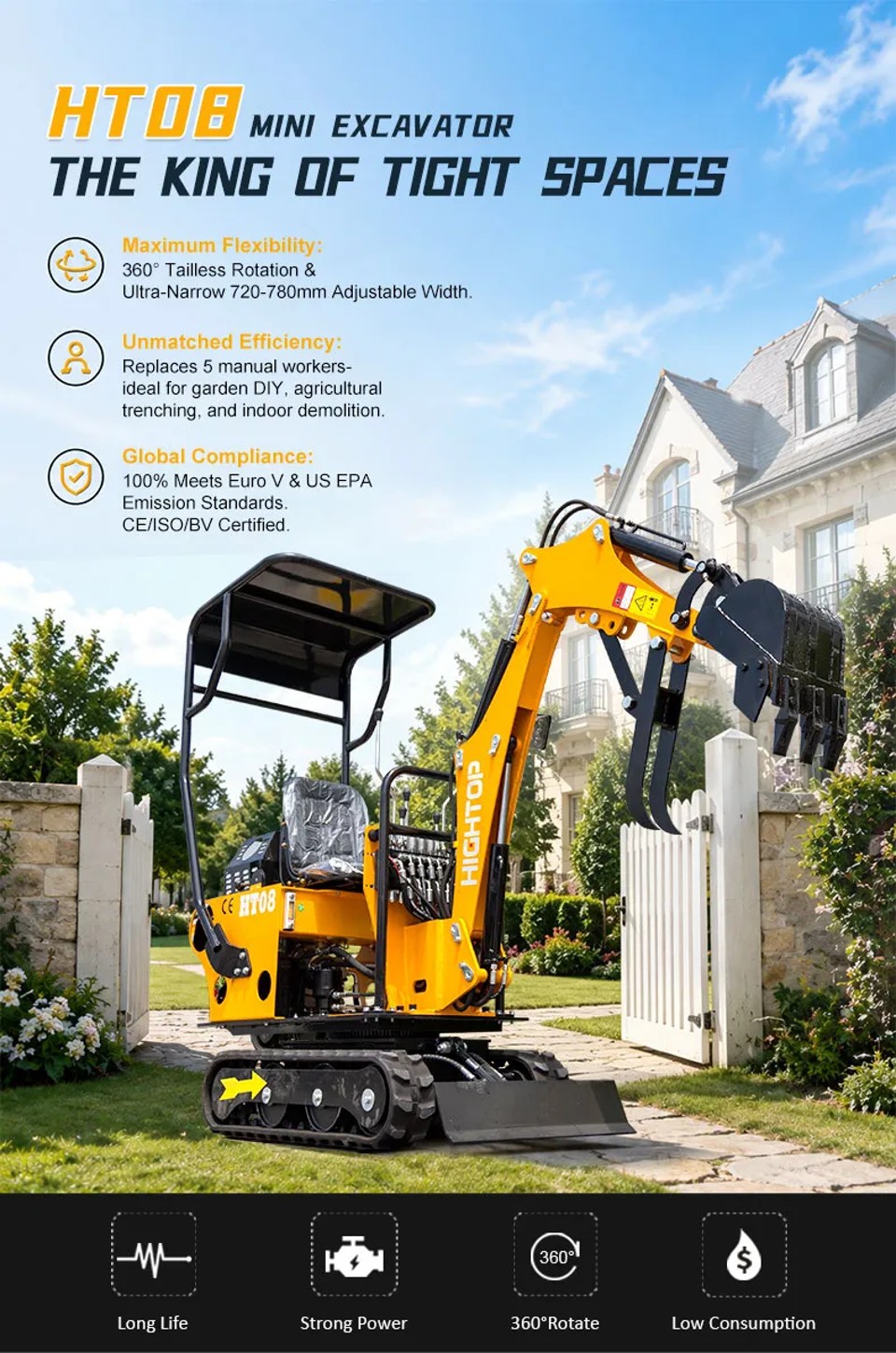

HT08 Mini Excavator
The HT08 0.8-ton micro digger for sale is a highly cost-effective compact hydraulic excavator designed for maximum portability in tight residential gardens and small-scale demolition. Featuring a durable air-cooled engine and low maintenance costs, this small crawler excavator provides an ideal entry-level solution with a superior ROI for rental fleets and farm inventories. Inquire today for factory-direct wholesale pricing and professional B2B support on our ultra-compact digging machinery.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Specification
Features
Description

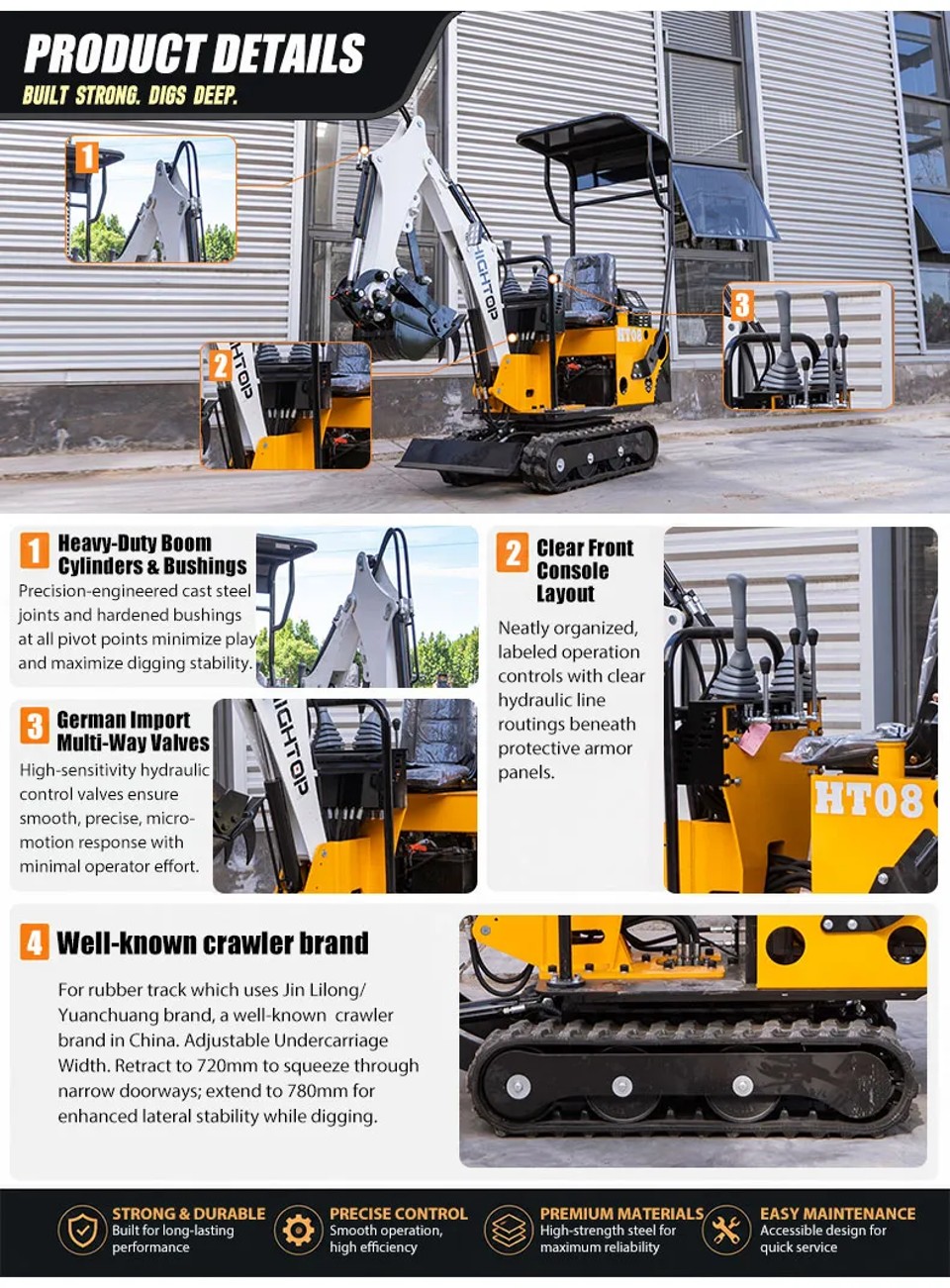

HT08 Mini Excavator Advantage
1. Unique big arm structure design

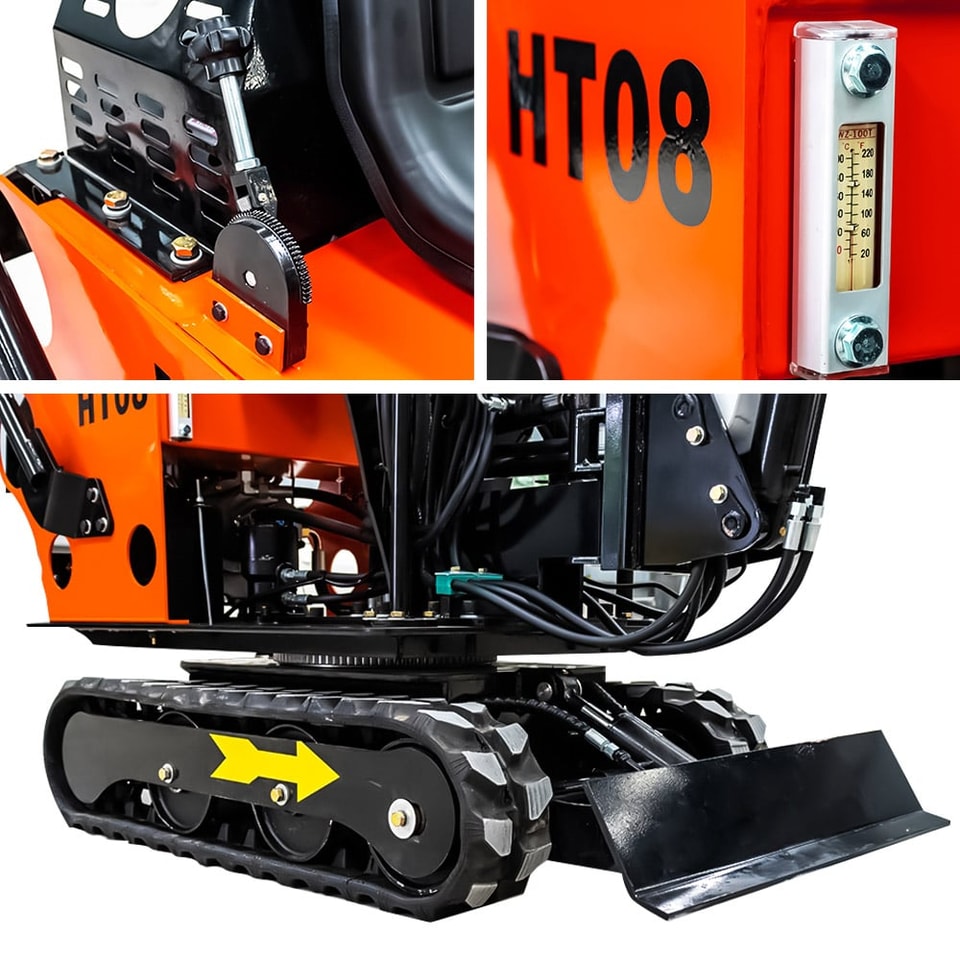

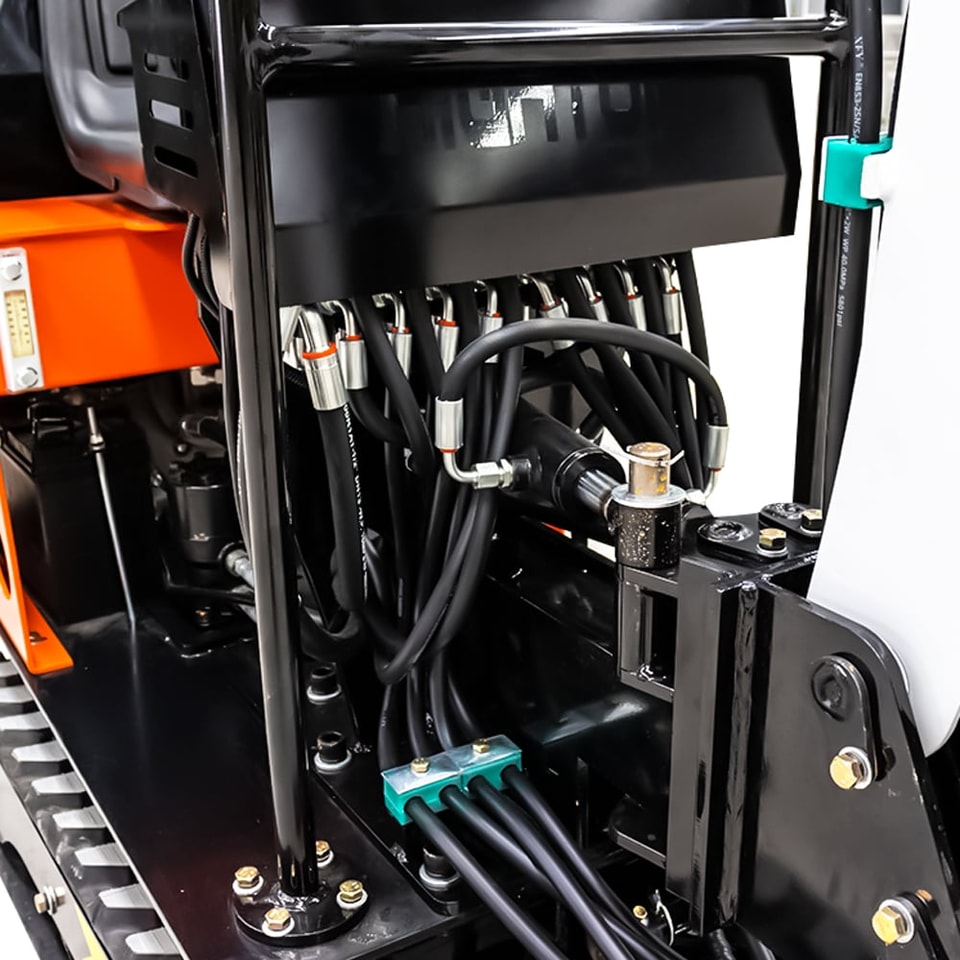

2. The operation front pipeline is clear.
The protective cover shields the pipeline from damage.

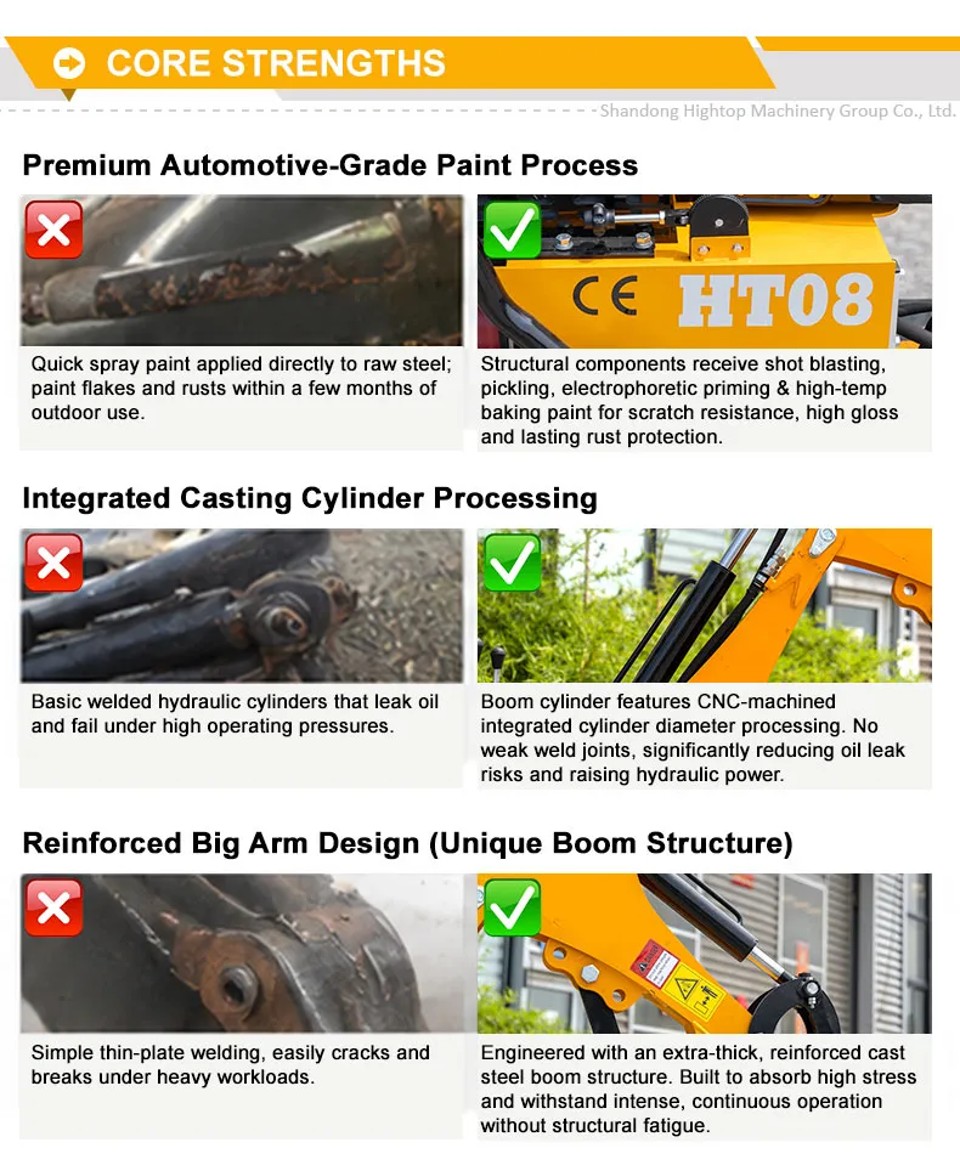

3. The boom cylinder adopts the well-known brand
The cylinder is designed integrated, which is more advanced than the welding technology.
4. All structural parts are finely processed.
All structural parts are finely processed.
Shot blasting, pickling, and baking finish process are adopted.
The surface has high gloss and high paint adhesion.
Specification

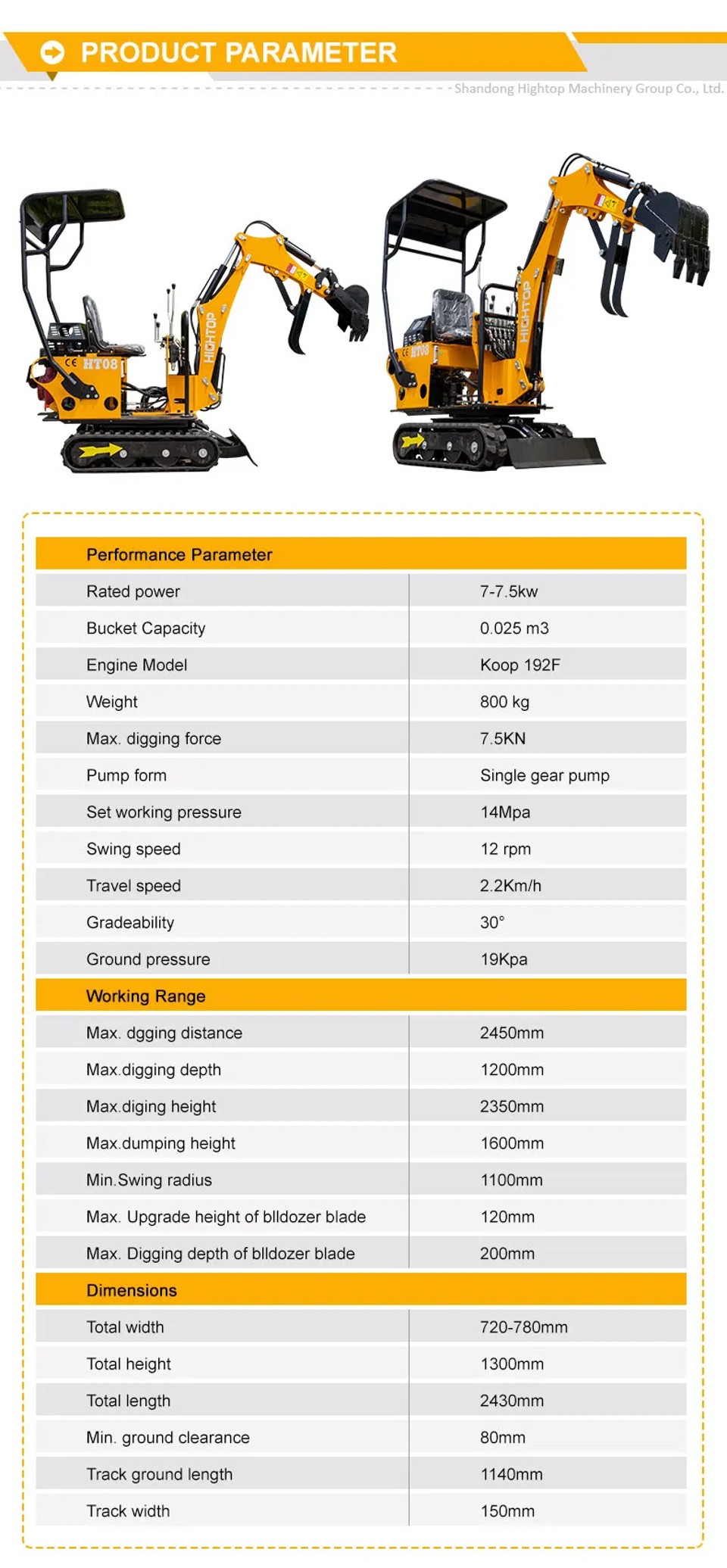

| HT08 0.8T Mini Excavator — Parameter Table | |
|---|---|
| Performance Parameters | |
| Model | HT08 |
| Rated power | 7kw~7.5w |

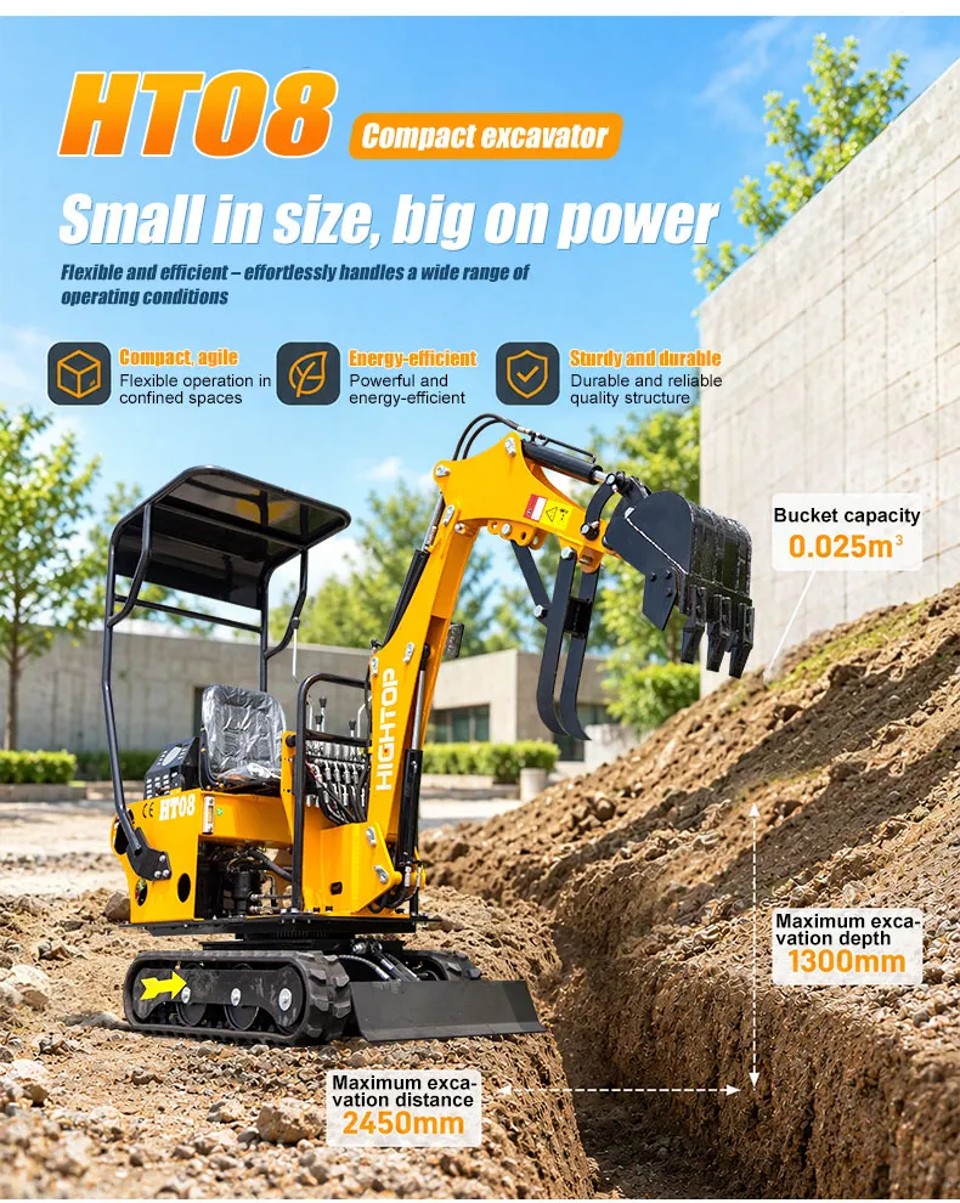

| Bucket Capacity | 0.025 m³ |
| Bucket width | 340mm |

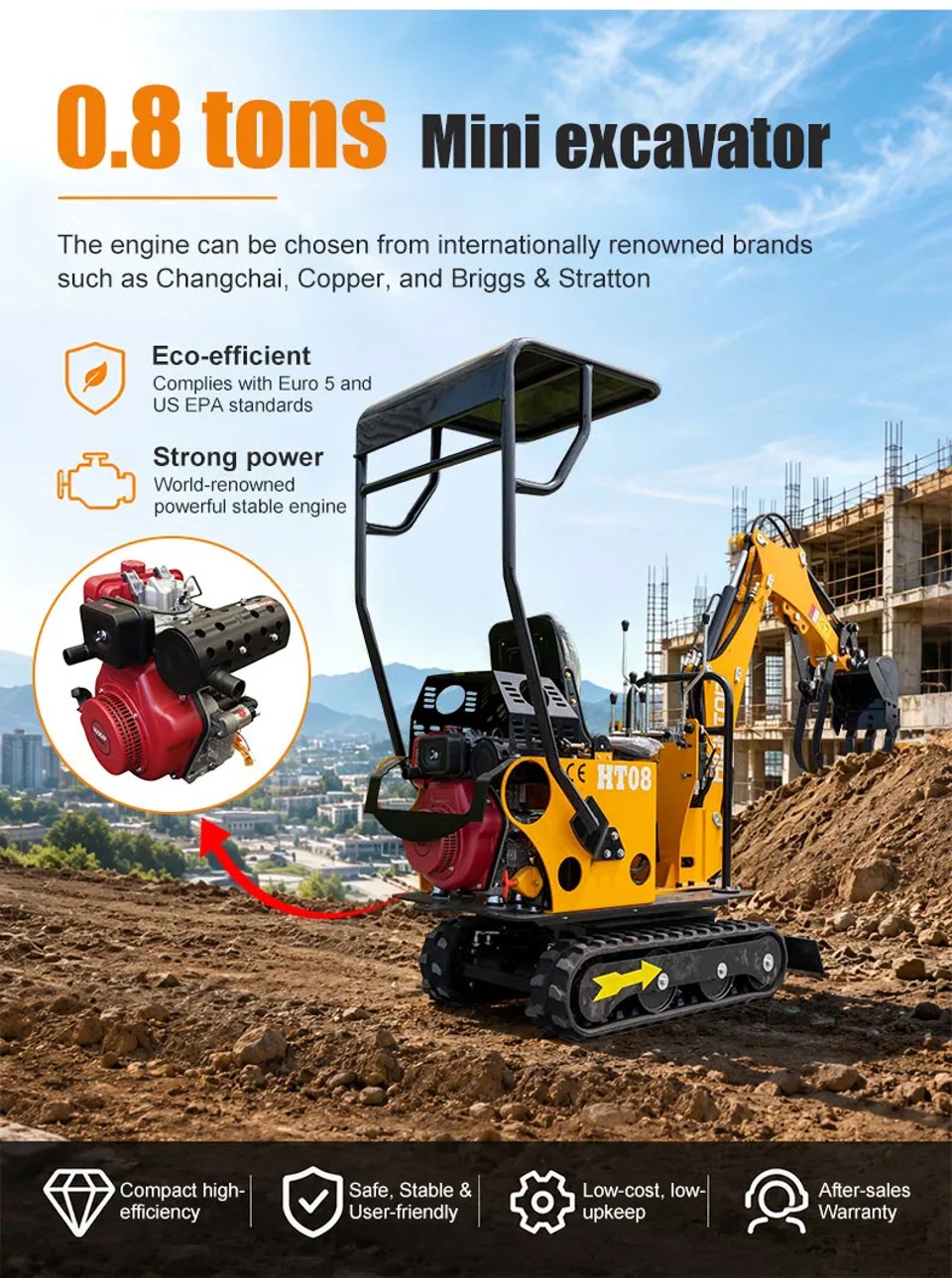

| Engine Model | KOOP 192F |
| Optional Engine | BRIGGS&STRATTON |
| Operating Weight | 800 kg |
| Pump form | Single gear pump |
| Set working pressure | 14Mpa |
| Swing speed | 12 rpm |
| Travel speed | 2.2Km/h |
| Gradeability | 30° |
| Ground pressure | 19Kpa |
| Max. digging force | 7.5KN |
| Dimensions (Unit: mm) | |
| Total width | 720-780mm |
| Total height | 1300mm |
| Total length | 2430mm |
| Min. ground clearance | 80mm |
| Track ground length | 1140mm |
| Track width | 150mm |
| Working Range (Unit: mm) | |
| Max.digging distance | 2450mm |
| Max.digging depth | 1200mm |
| Max.digging height | 2350mm |
| Max.dumping height | 1600mm |
| Min.Swing radius | 1100mm |
| Bulldozer Blade (Unit: mm) | |
| Max. Upgrade height of bulldozer blade | 120mm |
| Max. Digging depth of bulldozer blade | 200mm |
