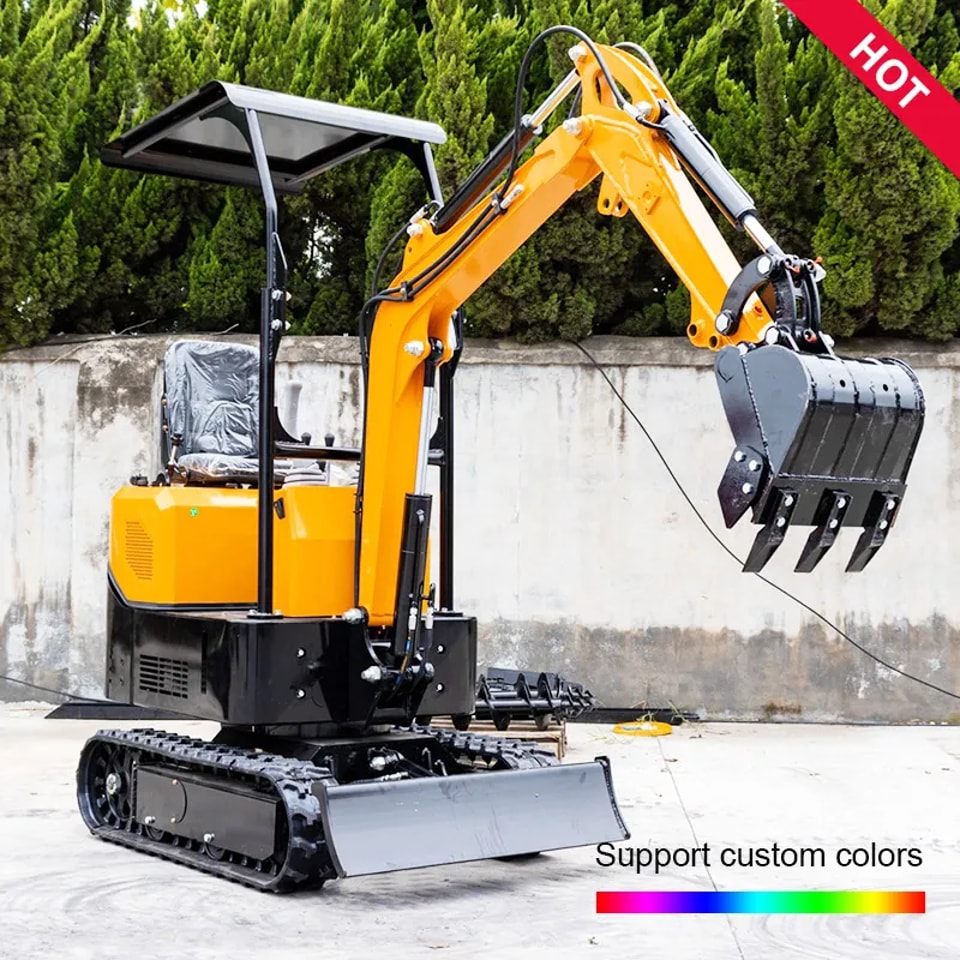

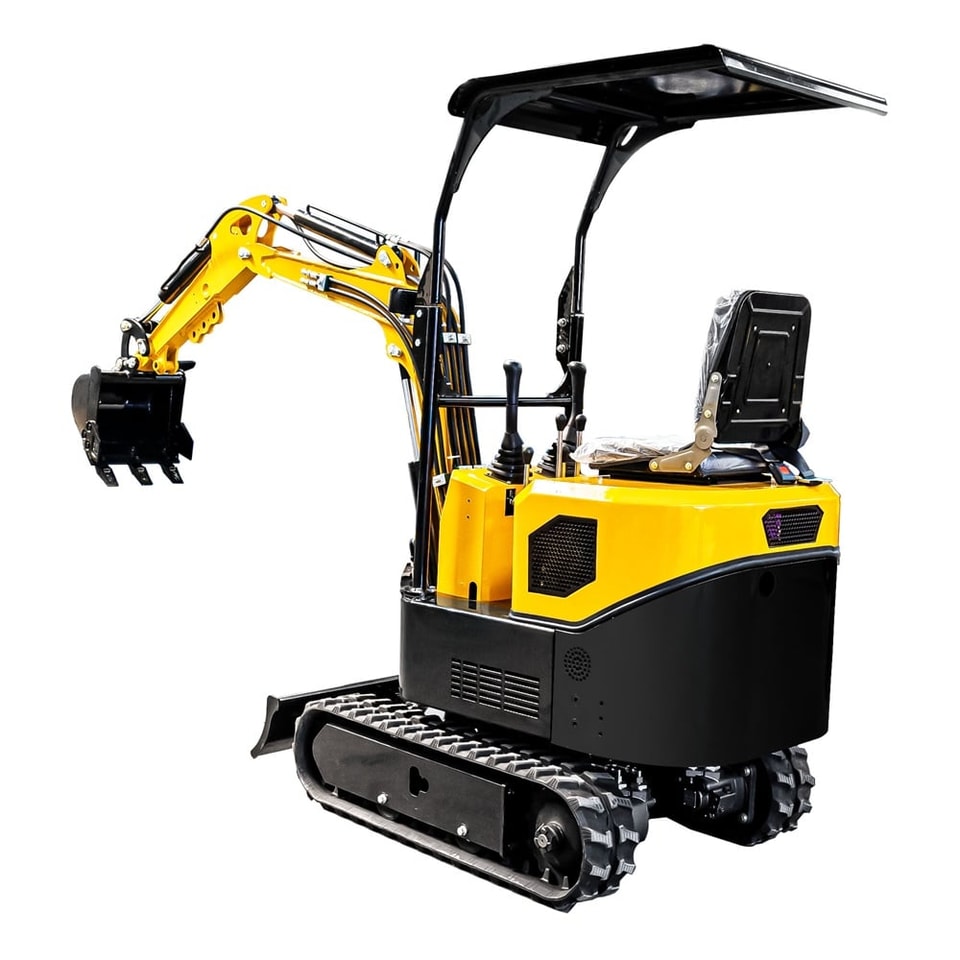

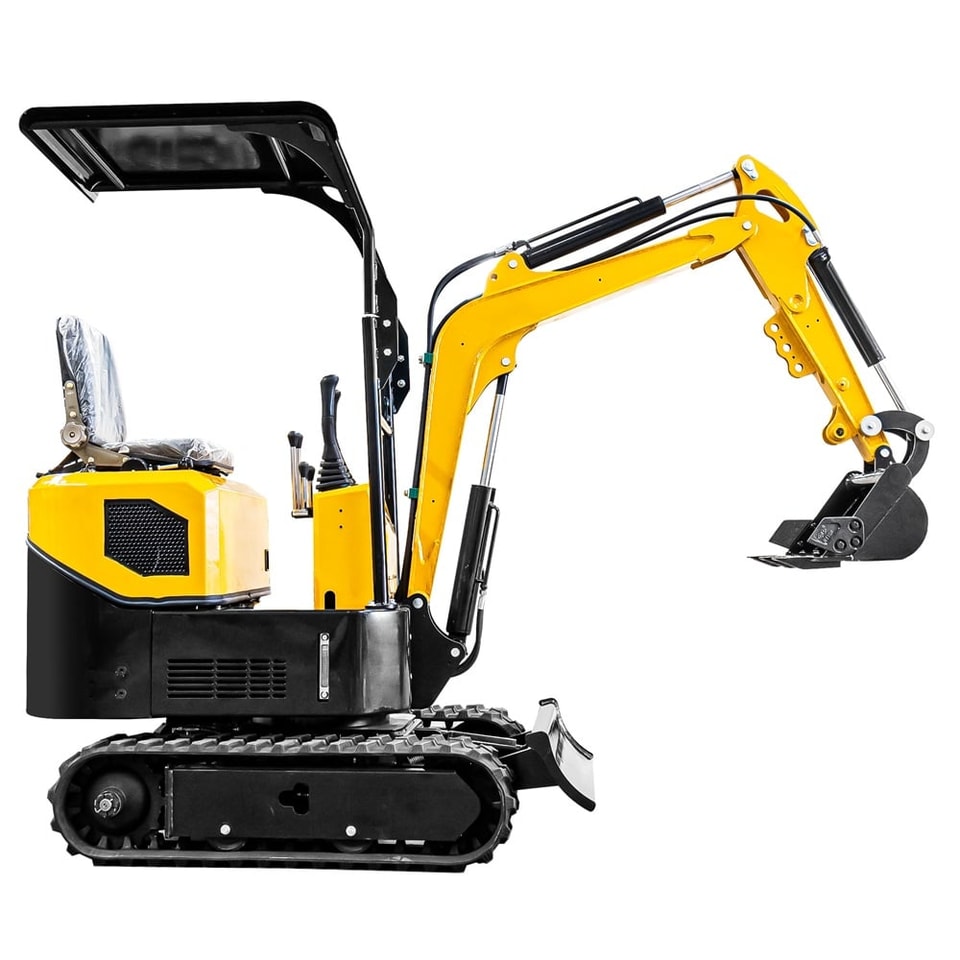

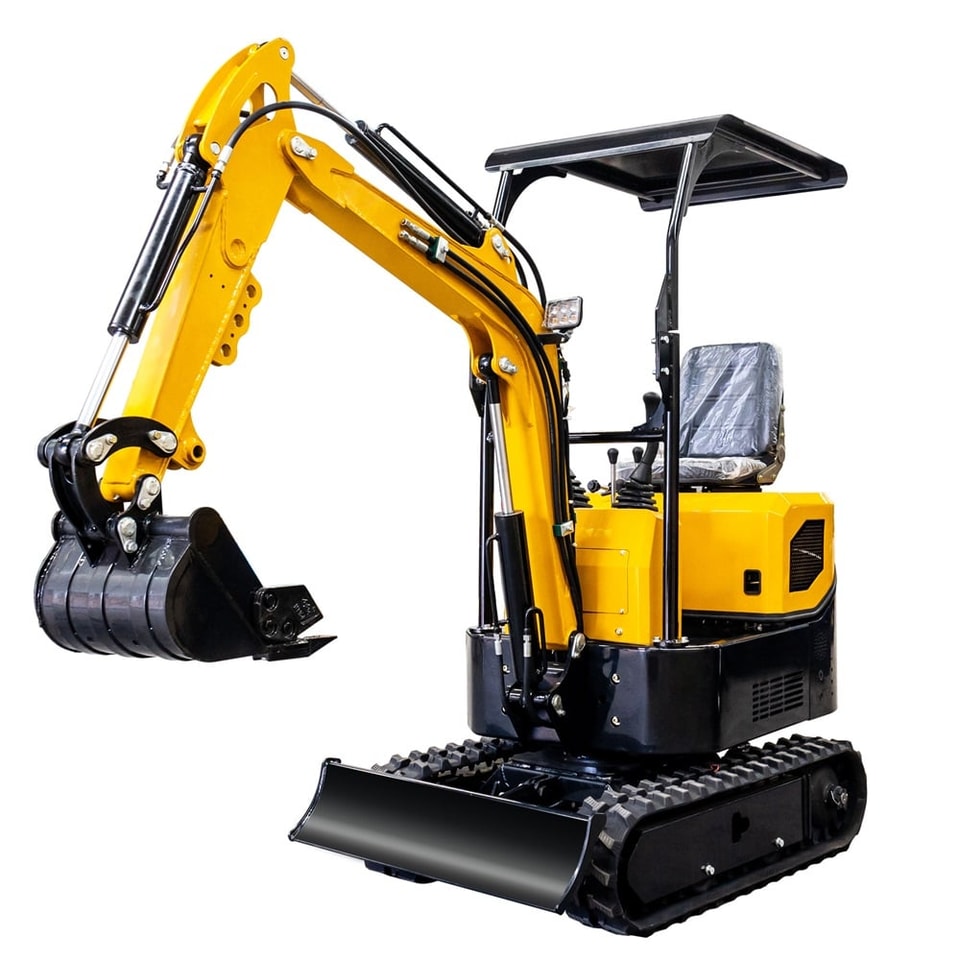

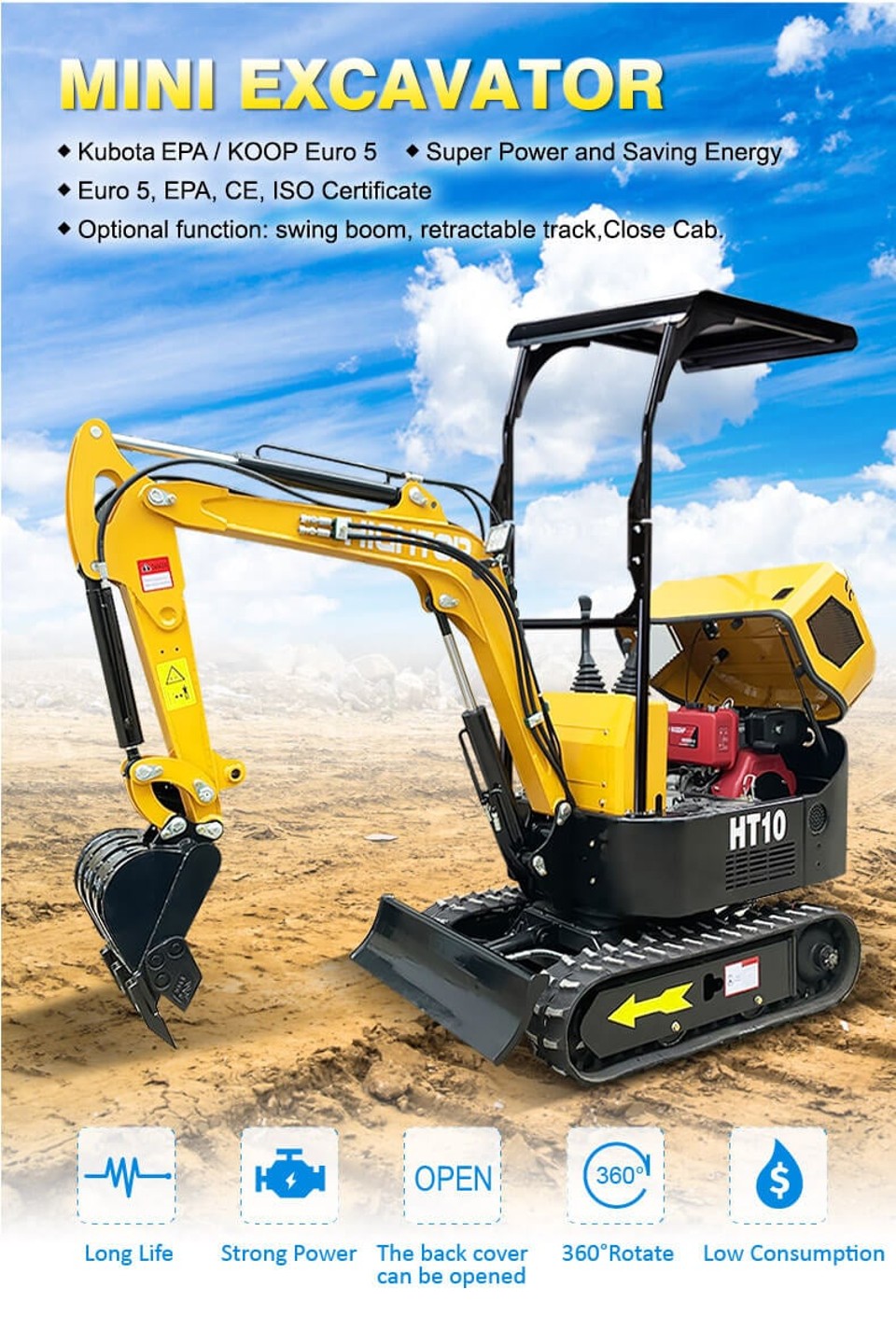

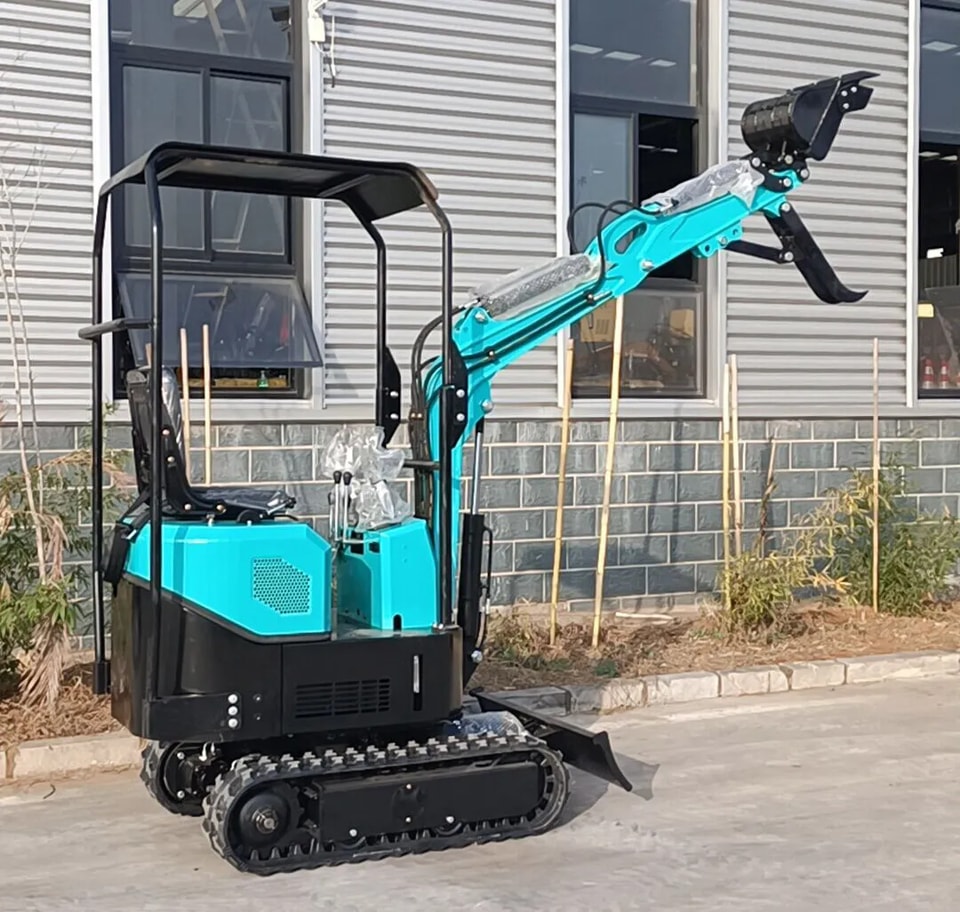

HT10C 1T Mini Excavator
HT10C 1T Mini Excavator Advantage
1 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.

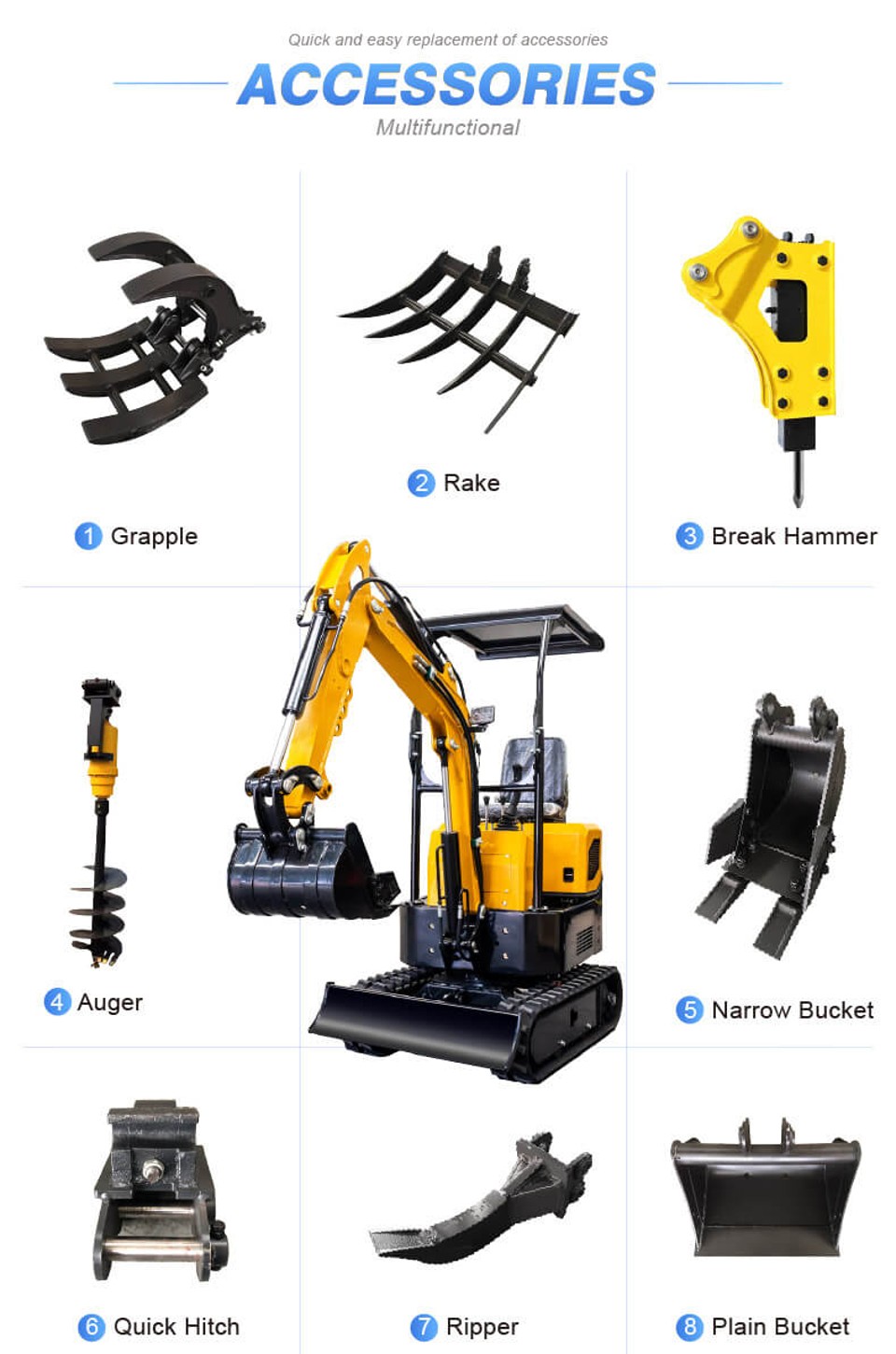

4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.

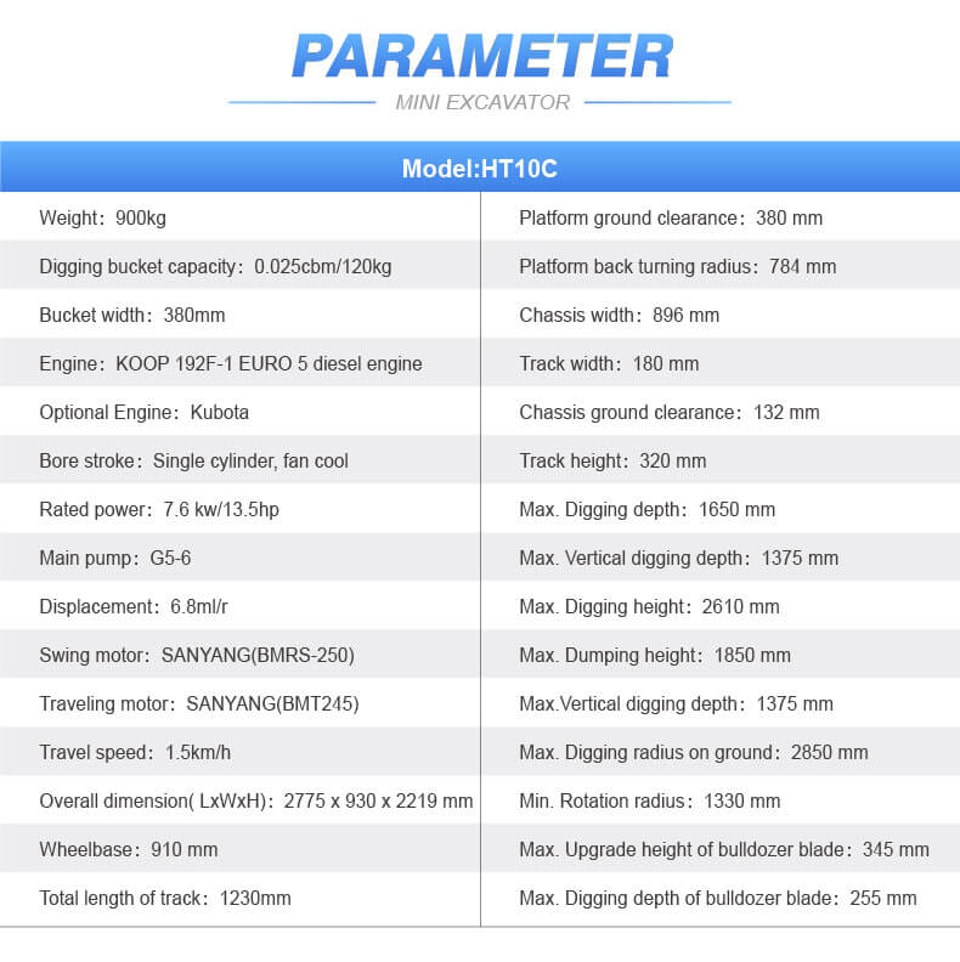

| HT10C 1T Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT-10C |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm / 120kg |
| Bucket width | 380mm |
| Engine | |
| Engine | KOOP (192F) |
| Optional Engine | BRIGGS & STRATTON YANMAR |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 7kw @ 3000r/min |
| Hydraulic System | |
| Main pump | G5-6 |
| Displacement | 6.8ml/r |
| Swing motor | SANYANG (BMRS-250) |
| Traveling motor | SANYANG (BMT-245) |
| Travel speed | 1.5km/h |
| Main Dimensions (Unit: mm) | |
| Overall dimension (L × W × H) | 2775 × 930 × 2219 mm |
| Wheelbase | 910 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Operating Range (Unit: mm) | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Bulldozer Blade (Unit: mm) | |
| Max. Upgrade height of bulldozer blade | 345mm |
| Max. Digging depth of bulldozer blade | 255mm |
