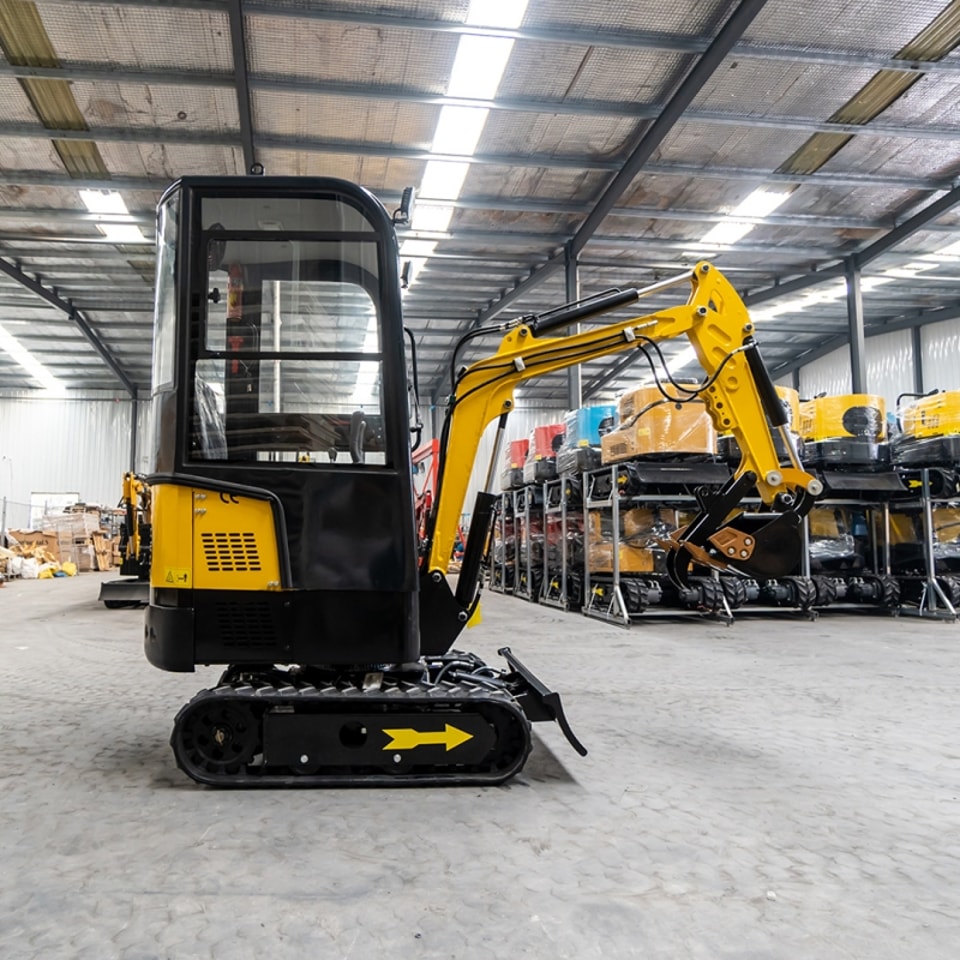

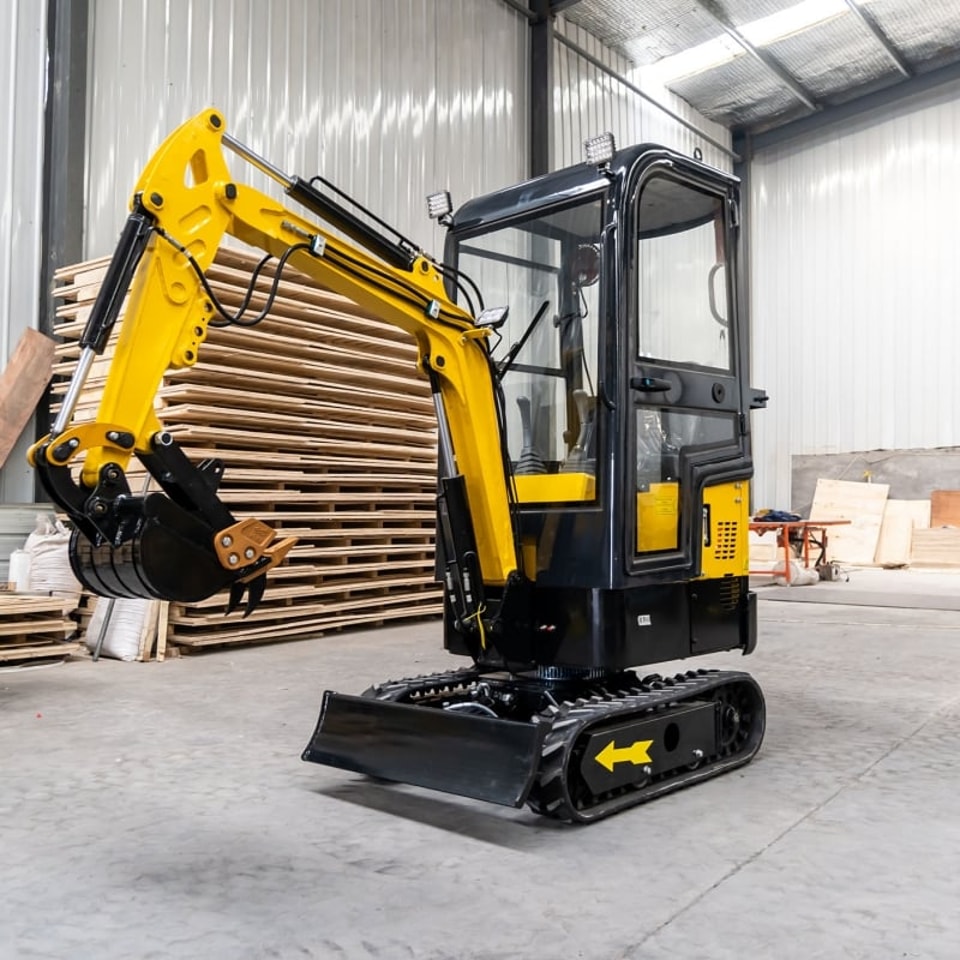

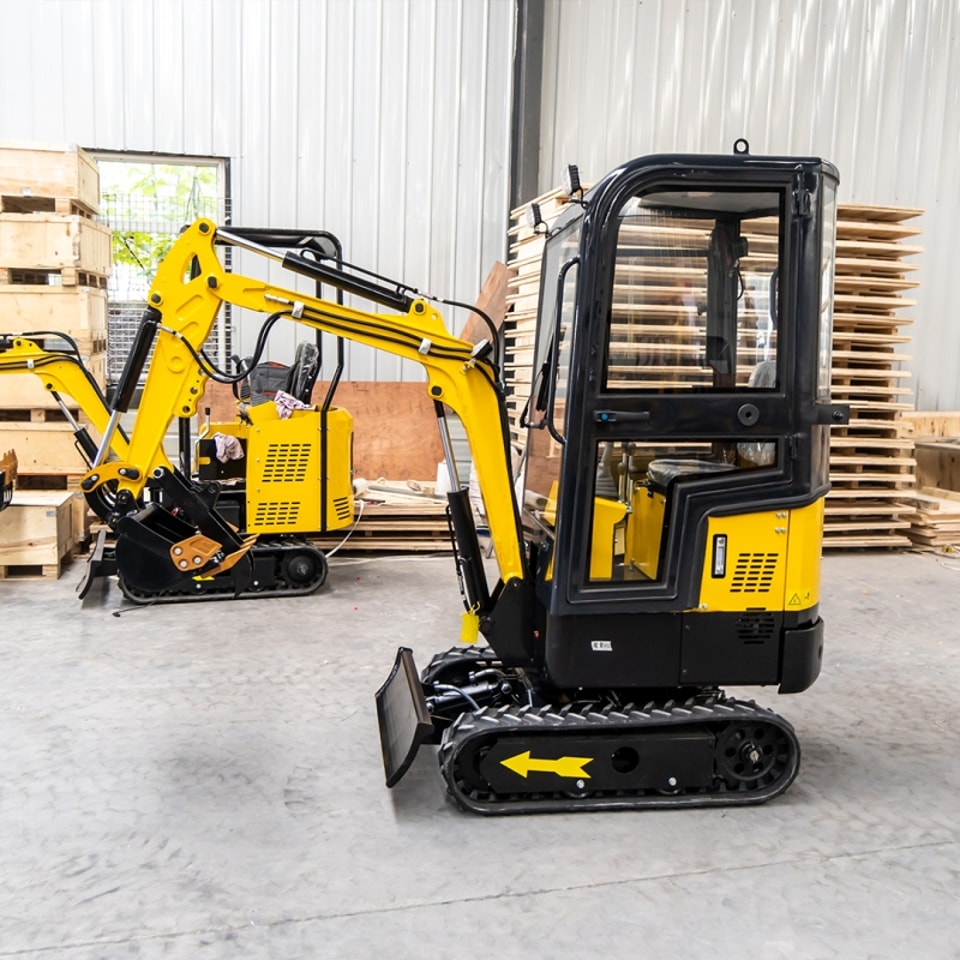

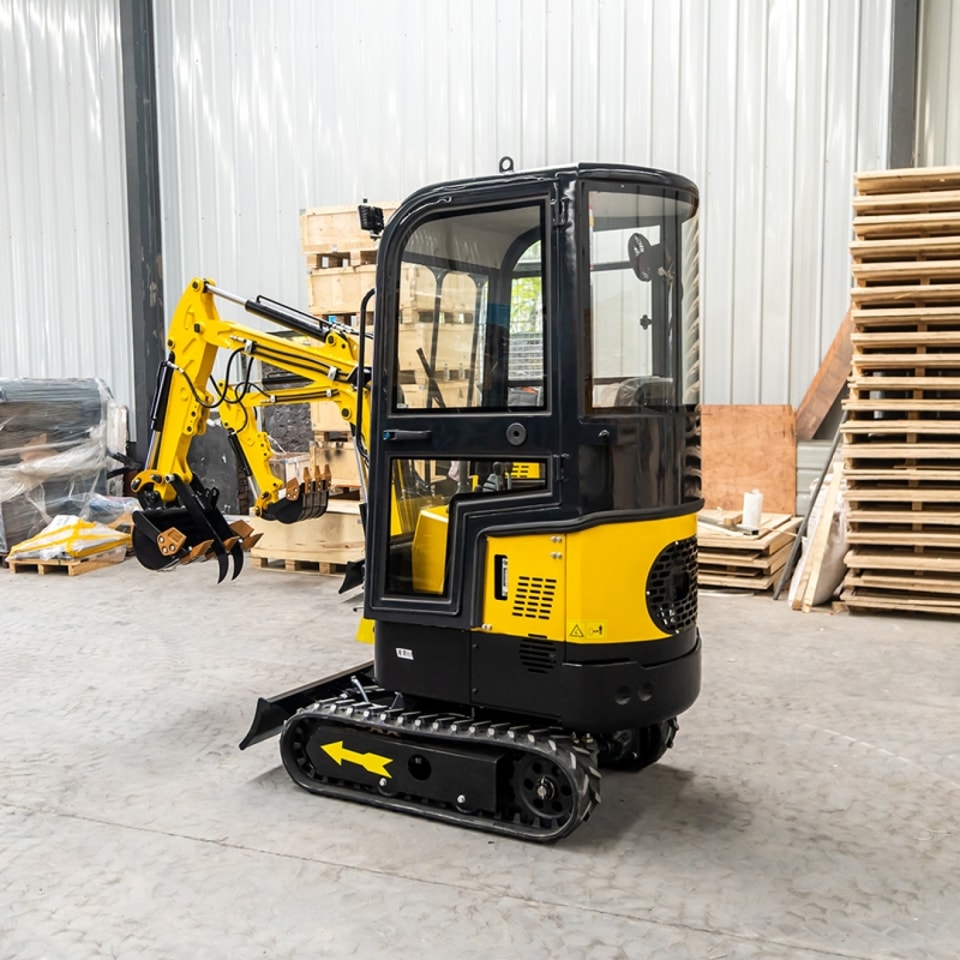

HT10B Mini Excavator With Cab
The HT10B is a 1-ton mini excavator for jobs where a big machine just won't fit – think backyards, indoor demo, or digging between buildings. You can narrow the tracks to 830mm, walk it through a standard garden gate, then spread them to 1000mm once you're inside. No fence panels to remove. No door frames to knock out.
Small diggers tip easy – that's just physics. So we bolted a 100kg iron block to the rear. It shifts the weight back, so the tracks stay flat when you're yanking out roots or lifting a heavy bucket. The boom swings 60 degrees left and right too. That means you can dig right next to a wall and still dump into a cart without turning the whole machine around.
Runs on a Koop 192F diesel. Need EPA or EU compliance? We've got Briggs & Stratton or Yanmar options. Digs 1650mm deep. Swap the bucket for an auger, a rake, or a thumb – quick hitch makes it fast. Folds down low enough to roll through a standard doorway. Good for trenching, stumps, breaking concrete, or cleaning up a barn.
We used common parts – single-cylinder diesel, standard hydraulics – so you're not hunting for weird components when something wears out. Steel is treated to fight rust. We ship factory-direct, no dealer markup.
Tell us what you're digging, and we'll suggest the right bucket and options. Get your quote here.
| Operational Metric – Verified Factory-Direct Specifications | |
|---|---|
| Model Designation | Hightop HT10B (1 Ton Micro Crawler Excavator) |
| Operating Net Mass | 1000 Kg (Includes standard bucket and 100kg rear ballast) |
| Retractable Track Range | 830 mm to 1000 mm (Retractable via hydraulic control) |
| Engine Powertrain | Koop 192F Diesel / Optional Briggs & Stratton Air-Cooled |
| Boom Swing Capability | 60 Degrees Left / 60 Degrees Right (Independent of frame) |
| Max Digging Depth | 1650 mm (Perfect for standard residential utility piping) |
| Max Loading Height | 1850 mm (Easily clears the side of standard dump trailers) |
| Standard Undercarriage | Heavy-Duty 180mm Rubber Tracks (Will not crack pavement) |
Q1: Can the Hightop HT10B walk through a standard backyard fence or house gate?
A: Yes. The adjustable hydraulic tracks compress down to just 830mm wide. Since most house doors and garden gates are at least 85cm wide, this 1 ton excavator glides inside smoothly without removing fence panels.
Q2: Why did you add an extra 100kg weight to the back of this mini excavator?
A: Lightweight diggers tend to rock or roll over when pulling roots. The 100kg rear iron ballast shifts the machine's balance backward, keeping the tracks flat and stable during heavy bucket operations.
Q3: What makes the boom swing feature important for residential landscaping projects?
A: Traditional fixed booms require you to twist the whole tractor to dump soil. The 60-degree boom swing lets you dig right next to a concrete wall while pivoting the arm to load a cart sideways.
