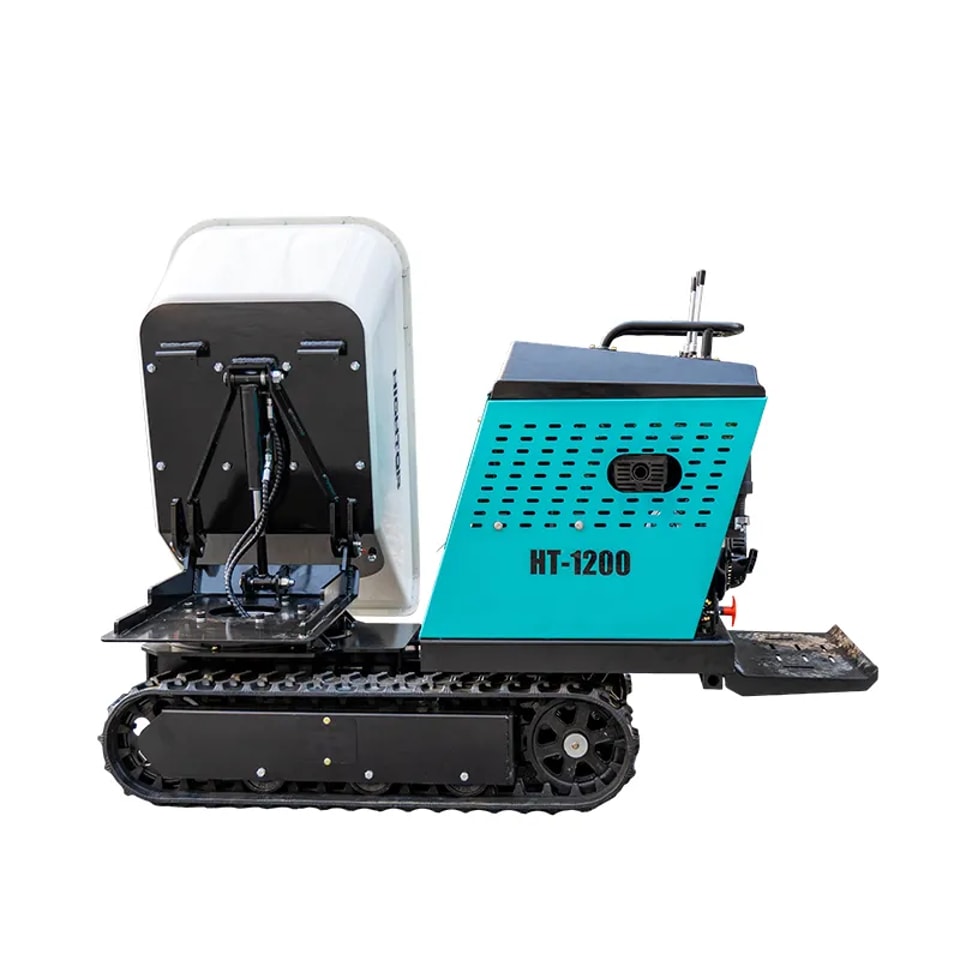

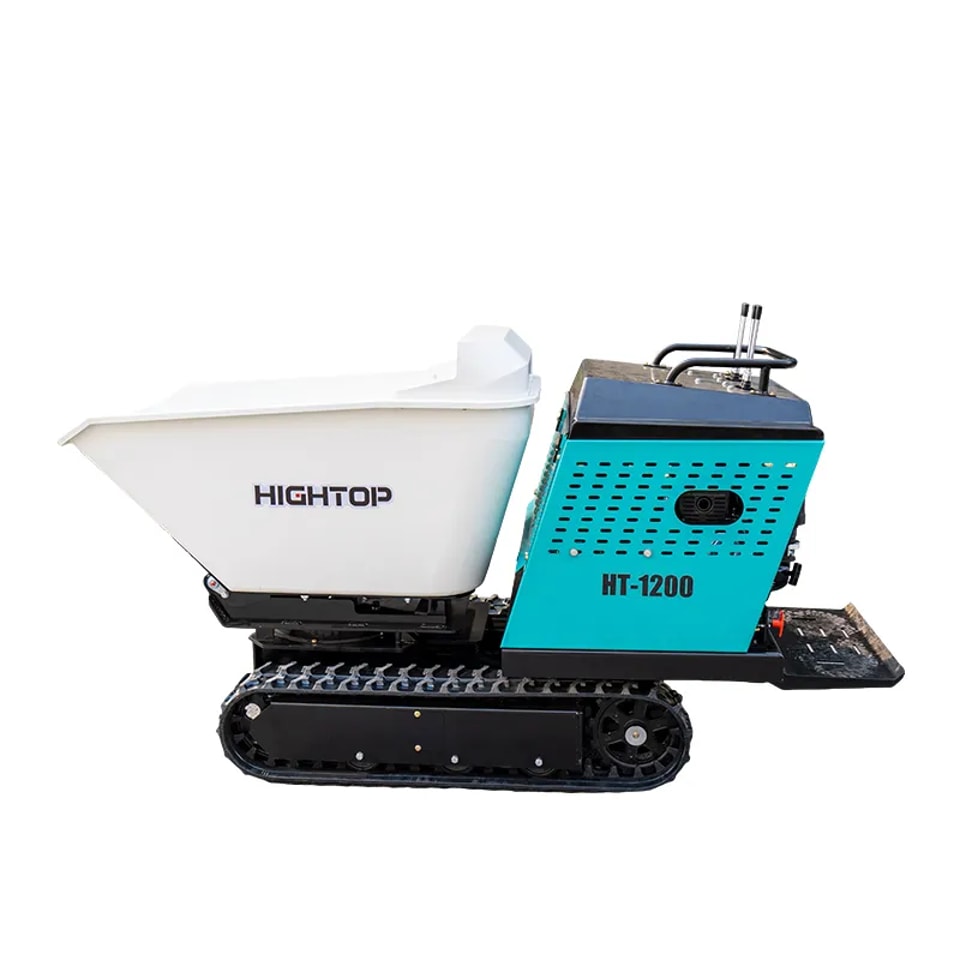

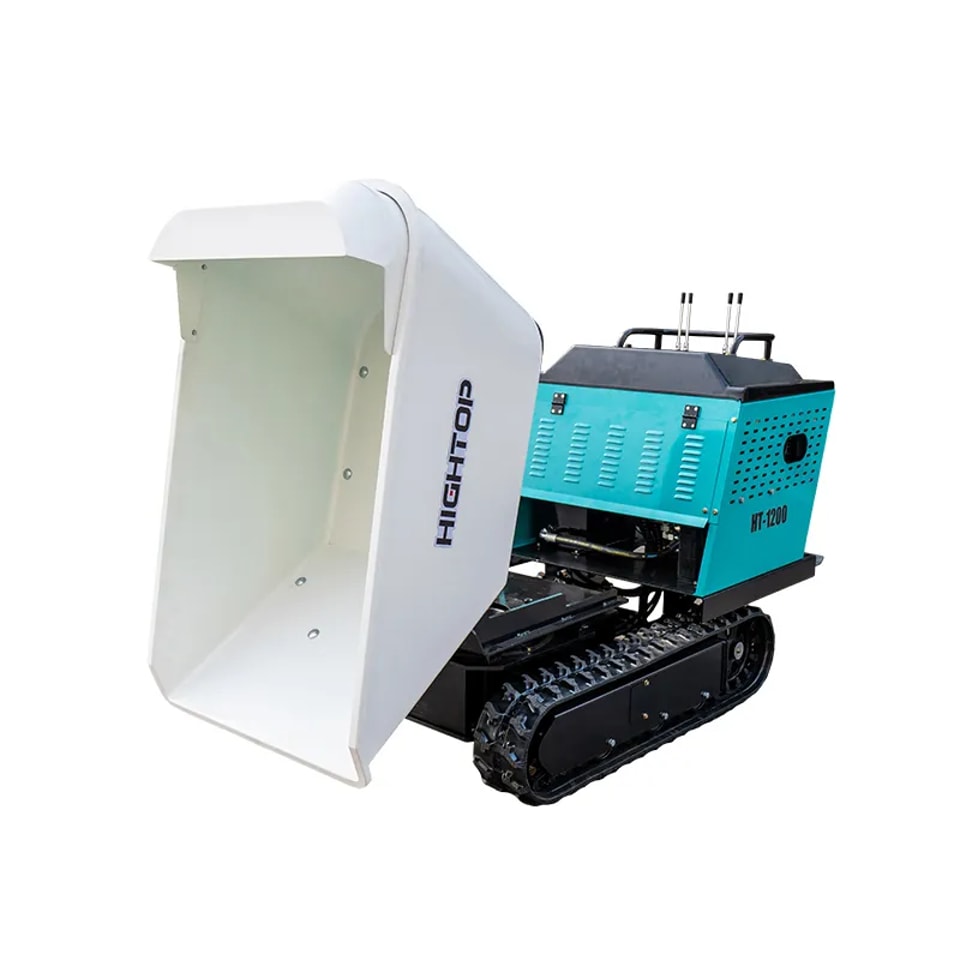

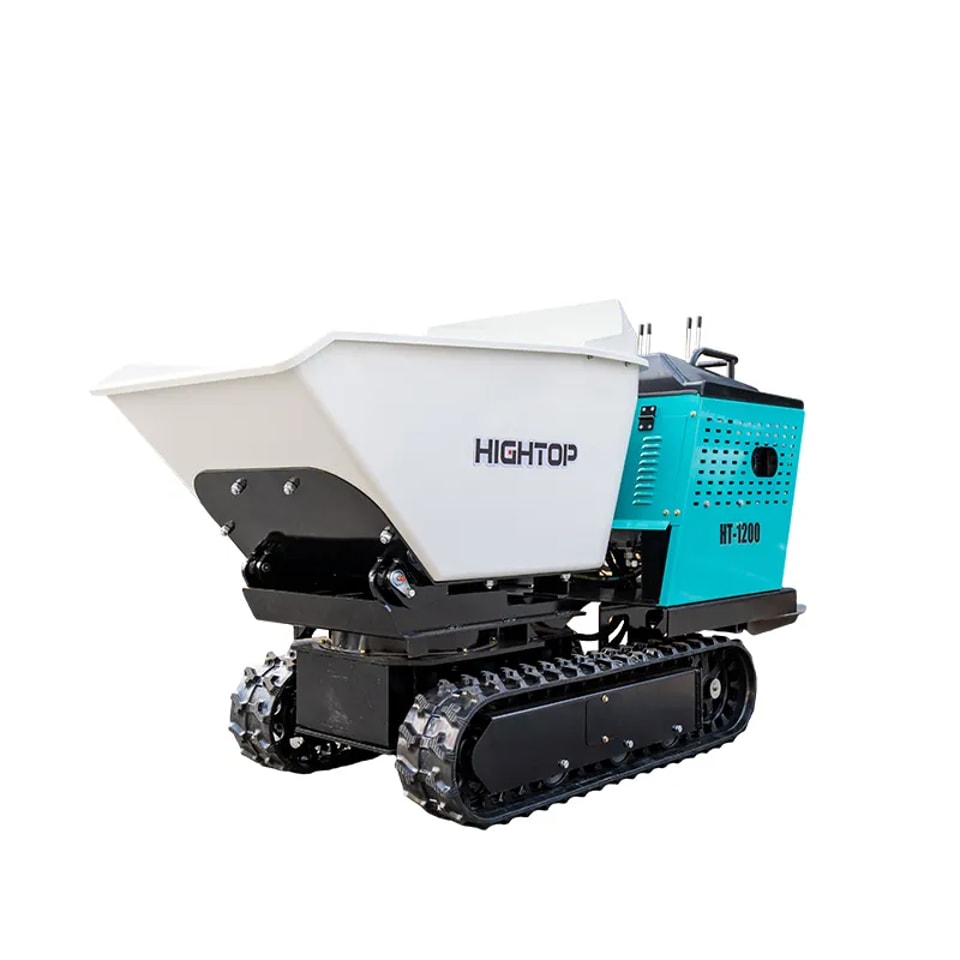

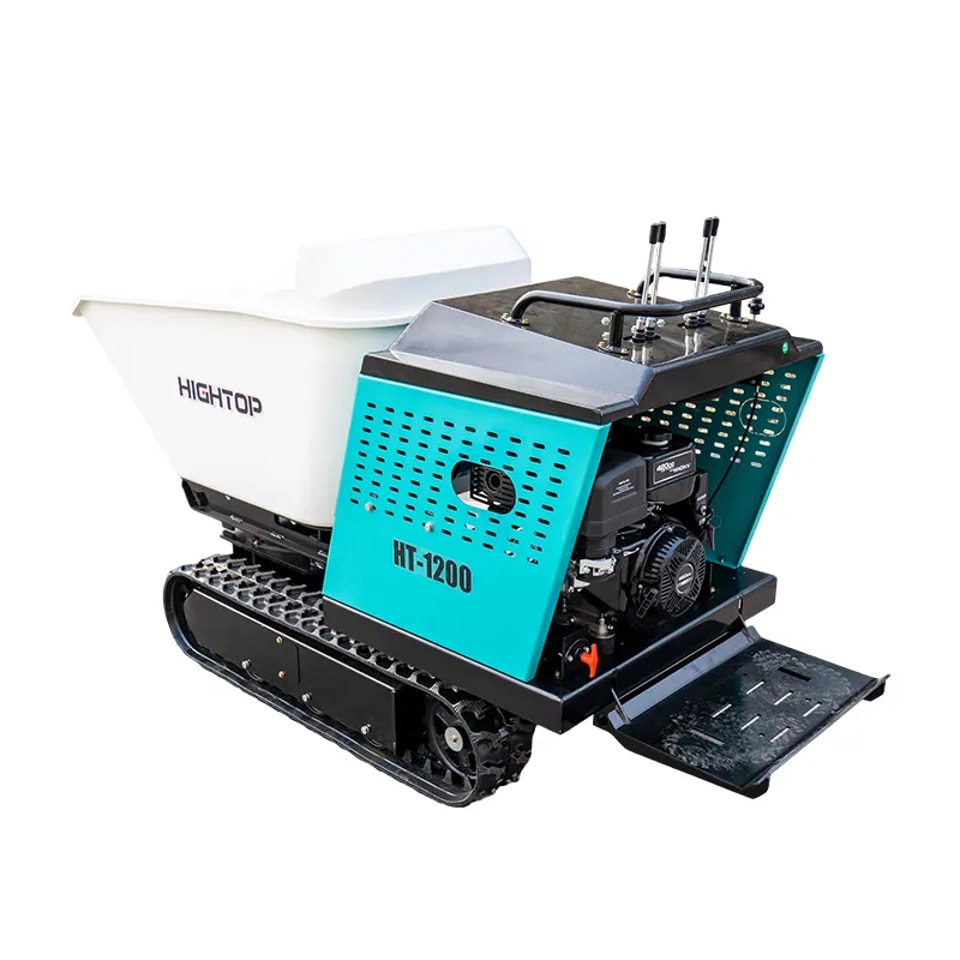

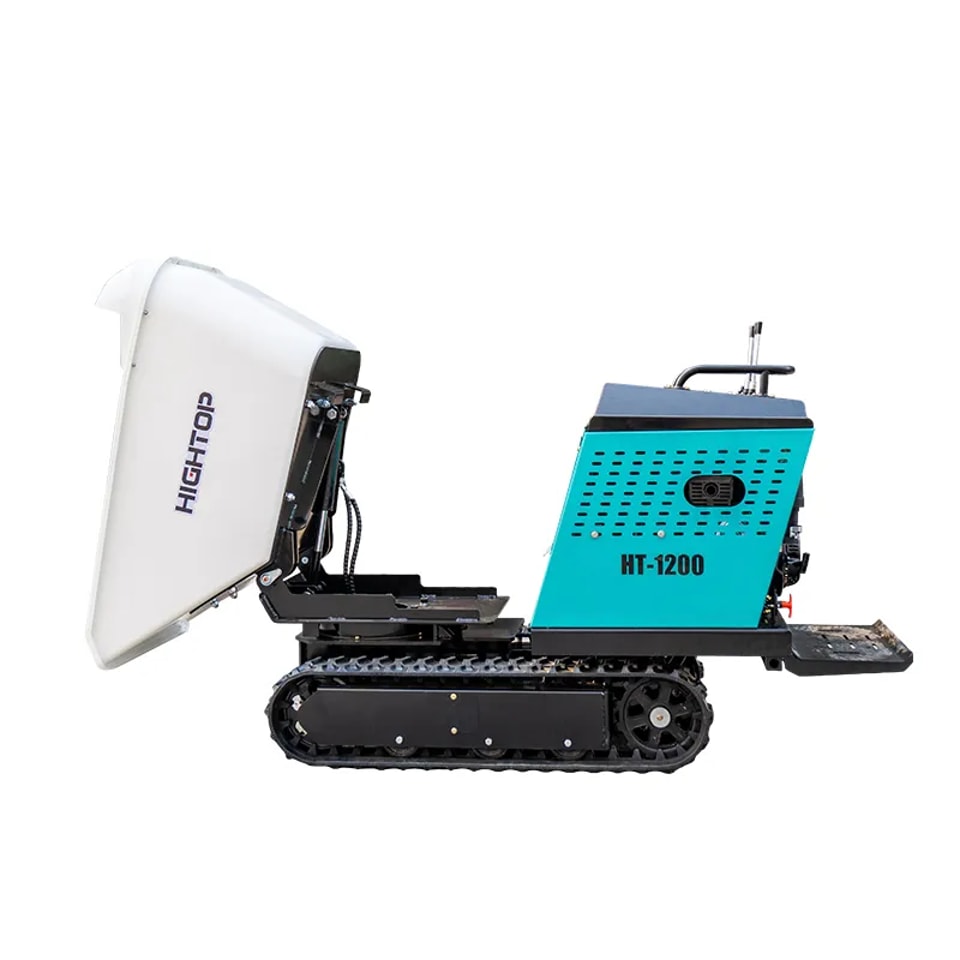

HT1200 Crawler Rotation Dump Truck
Heavy-Duty 1200KG Crawler Dumper with 180° Rotating Dump: The HT1200 crawler rotation dump truck features a 13.5HP Ducar engine, 1200KG load capacity, and 180° hydraulic rotating dump. Rubber tracks conquer slopes up to 25°. 1200KG Load & 13.5HP Powerful 420CC engine, heavy-duty handling. 180° Hydraulic Rotation Multi-angle dumping, independent or synchronous control. 25° Climbing & Rubber Tracks All-terrain traction on mud and rugged ground. 594dm³ Cargo Box 1300×800×600mm capacity for bulk materials.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Parameter
Description
HT1200 Crawler Rotation Dump Truck – 1200KG Load, 180° Hydraulic Dump & 25° Climbing
The HT1200 crawler rotation dump truck is a heavy-duty material handling solution powered by a 420CC Da Jiang (Ducar) engine rated at 13.5HP. With a maximum load capacity of 1200KG, it eliminates the inefficiency and fatigue of manual labor on construction sites, farms, and rugged terrain.
Key Features
- Powerful Engine: 420CC 13.5HP Ducar engine (EPA certified, 4-stroke, air-cooled) delivers robust power for heavy loads.
- 1200KG Load Capacity: Handles substantial material volumes in a single trip, maximizing work efficiency.
- 180° Hydraulic Rotation Dump: Hydraulic dump system with left/right 180° rotation. Tilt and rotation can be controlled independently or synchronously for multi-angle dumping.
- All-Terrain Rubber Tracks: Engineered rubber tracks provide superior traction and durability, conquering muddy, rugged, and complex terrain with ease.
- 25° Climbing Capability: Stable chassis design enables robust slope climbing on construction sites and uneven ground.
- User-Friendly Controls: Centralized control panel with clearly labeled buttons enables quick mastery and precise operation.
- Low Maintenance Design: Reinforced critical components with clearly marked wear parts (hydraulic filter, air filter) ensure long-term reliability.
Specifications at a Glance
- Engine: Ducar 420CC, single cylinder, EPA, 4-stroke, air-cooled, 13.5HP/3600RPM
- Fuel: 92# Gasoline, 6L tank capacity
- Max Load: 1200KG | Net Weight: 700KG
- Travel Speed: 5.2km/h | Climbing: 25°
- Cargo Box: 1300×800×600mm (594dm³ capacity)
- Machine Dimensions: 2395×890×1350mm (with footrest)
- Chassis Width: 890mm | Crawler: 180×72×41
Parameter
HT1200 Crawler Rotation Dump Truck Parameter
| HT1200 Crawler Rotation Dump Truck — Parameter Table | |
|---|---|
Engine & Power | |
| Power Model | Ducar |
| Power Type | Single Cylinder, EPA, 4-Stroke, Air-Cooled |
| Total Displacement | 420CC |
| Rated Power | 13.5HP / 3600RPM |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 6L |
Load & Dimensions | |
| Maximum Load Capacity | 1200KG |
| Net Weight | 700KG |
| Machine Dimensions (with footrest) | 2395 × 890 × 1350mm |
| Cargo Box Dimensions | 1300 × 800 × 600mm |
| Cargo Box Capacity | 594dm³ |
| Chassis Width | 890mm |
Performance & Operation | |
| Travel Speed | 5.2km/h |
| Climbing Capacity | 25° |
| Tipping Method | Hydraulic Tipping |
| Rotation Angle | 180° Left/Right |
| Crawler Model | 180 × 72 × 41 |
