HT1300 Multi Functional Ultra Buggy
Heavy-Duty 1300KG Ultra Buggy with Hydraulic Dump: The HT1300 multi-functional ultra buggy features a 13.5HP DUCAR engine, 1300KG load capacity, hydraulic dump bucket, and 26° climbing ability. Built for factories, warehouses, and construction sites. 1300KG Load & 13.5HP Powerful DUCAR 420CC engine. Hydraulic Dump Bucket One-click loading/unloading, rust-resistant. 26° Gradeability Conquers slopes and uneven terrain. Thickened Carriage Heavy-duty steel, strong load-bearing.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Introduction
Parameter
Introduction

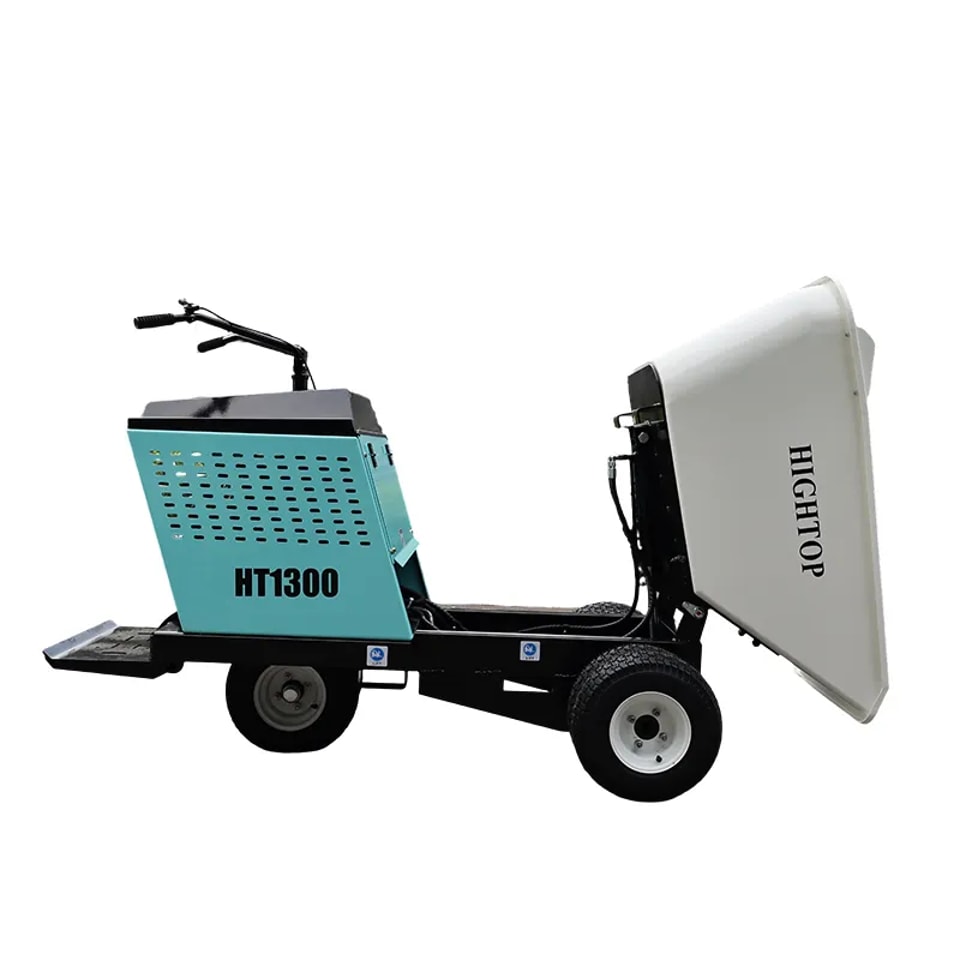

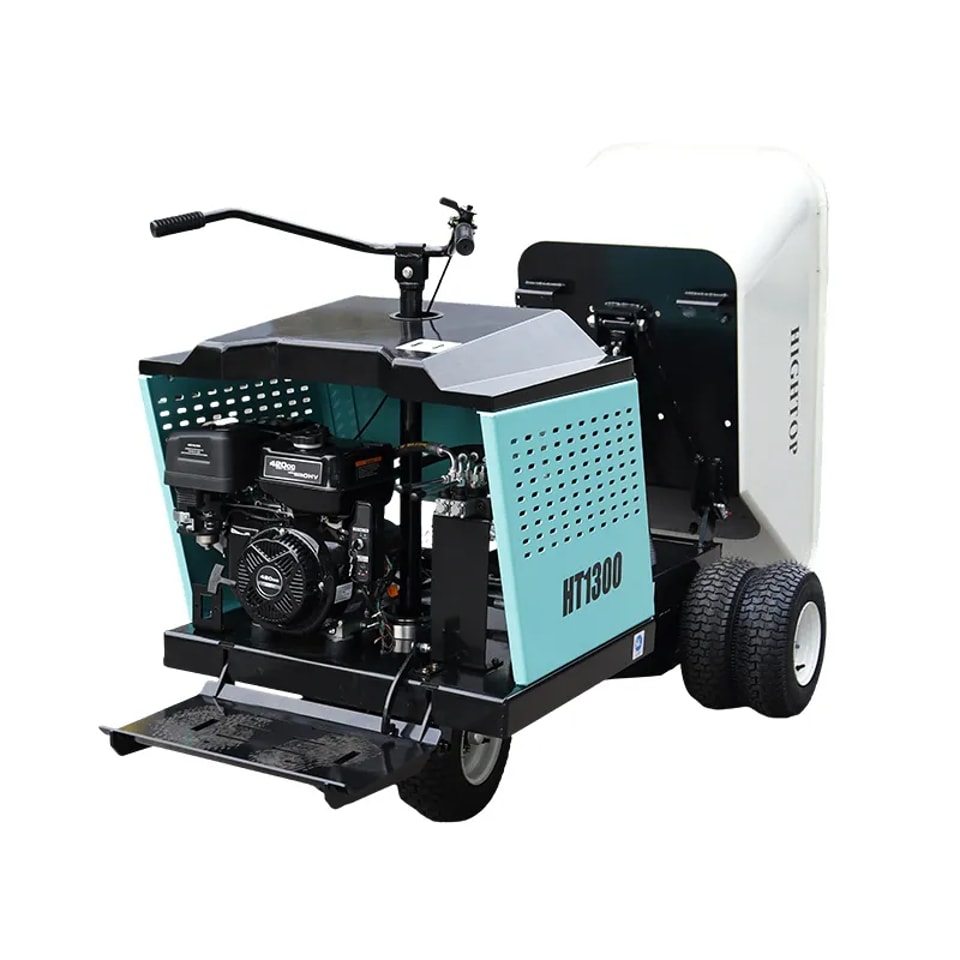

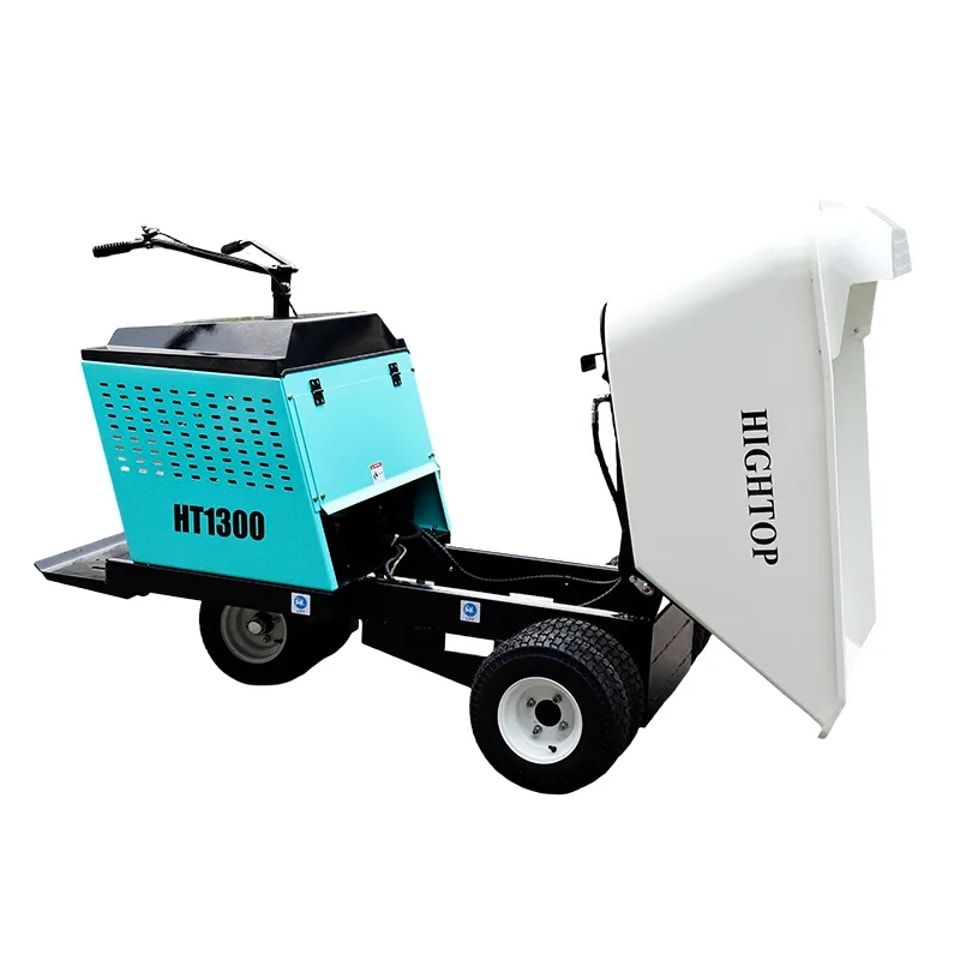

HT1300 Multi Functional Ultra Buggy – 1300KG Load, Hydraulic Dump & 26° Climbing
The HT1300 multi-functional ultra buggy is a heavy-duty utility vehicle designed for material transport across factories, warehouses, construction sites, brick factories, coal mines, and garbage dumps. Powered by a DUCAR 420CC engine (13.5HP), it delivers reliable performance under various operating conditions.
Key Features
- 1300KG Load Capacity: Handles substantial loads in a single trip, maximizing work efficiency.
- 13.5HP DUCAR Engine: 420CC, 4-stroke, air-cooled, EPA compliant – powerful and stable.
- 26° Gradeability: Conquers slopes and uneven terrain with ease.

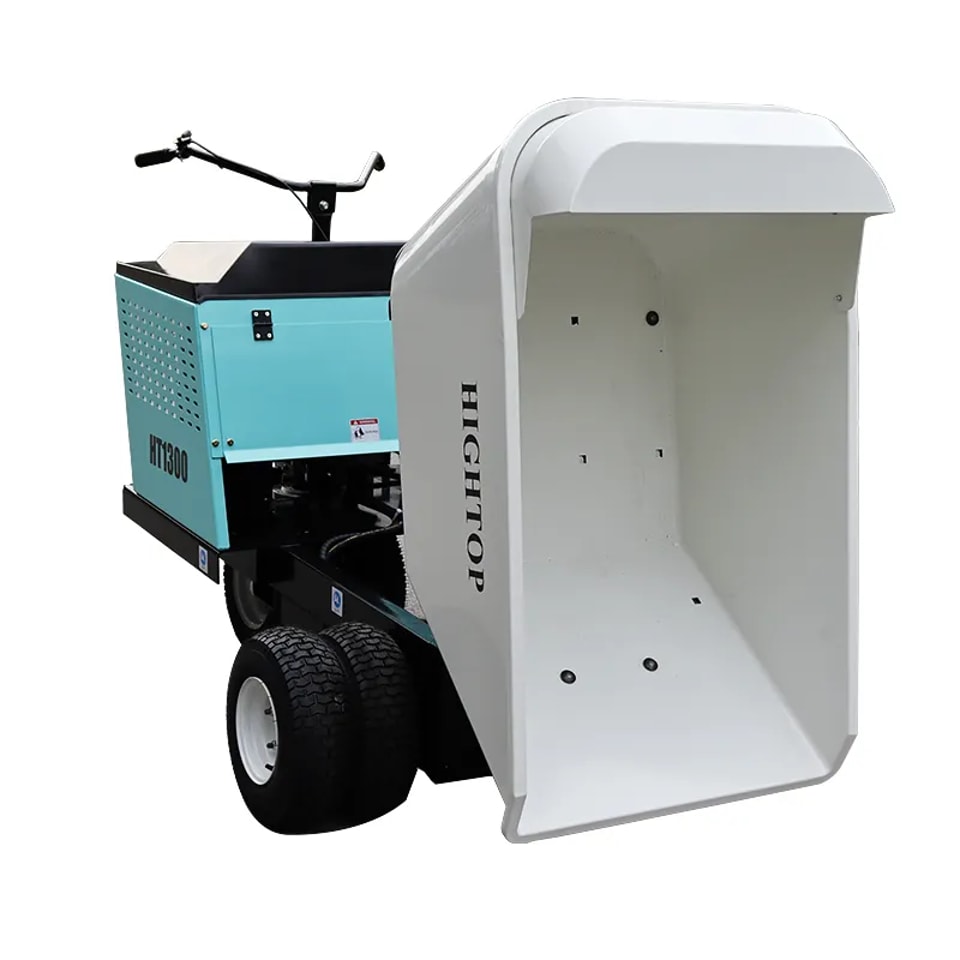

- Hydraulic Dump Bucket: One-click hydraulic lifting for easy loading and unloading – rust-resistant design.
- Wear-Resistant & Anti-Skid Tires: Suitable for various terrains, providing excellent traction and durability.
- Thickened Carriage: Heavy-duty steel plate construction with strong load-bearing capacity.
- Manned Foot Pedal: Convenient operator platform for easier control and access.
Applications
The HT1300 ultra buggy is ideal for material handling in factories, warehouses, garbage dumps, brick factories, coal mines, and construction sites. Its robust design and hydraulic dump system make it a versatile solution for industrial and commercial transport needs.
Parameter
HT1300 Multi Functional Ultra Buggy Parameter
| HT1300 Multi Functional Ultra Buggy — Parameter Table | |
|---|---|
Engine & Power | |
| Power model | DUCAR |
| Power type | Horizontal bar / EPA / Four-stroke / Air-cooled |
| Displacement | 420CC |
| Rated power | 13.5HP / 3600RPM |
| Fuel type | 92# Gasoline |
| Fuel tank capacity | 6L |
Load & Dimensions | |
| Max. load capacity | 1300KG |
| Weight (net) | 480KG |
| Body size (excluding footrest) | 2130 × 1250 × 1400mm |
| Body size (including foot pedal) | 2360 × 1250 × 1400mm |
| Box dimensions | 1400 × 800 × 600mm |
| Chassis width | 1250mm |
| Container capacity | 594L |
Performance & Components | |
| Tipping method | Hydraulic tipping bucket |
| Gradability | 26° |
| Tires | 6 (wear-resistant & anti-skid) |
| Hydraulic oil filter element | 1 |
| Air filter element | 1 |
| Accelerator cable | 1 |
