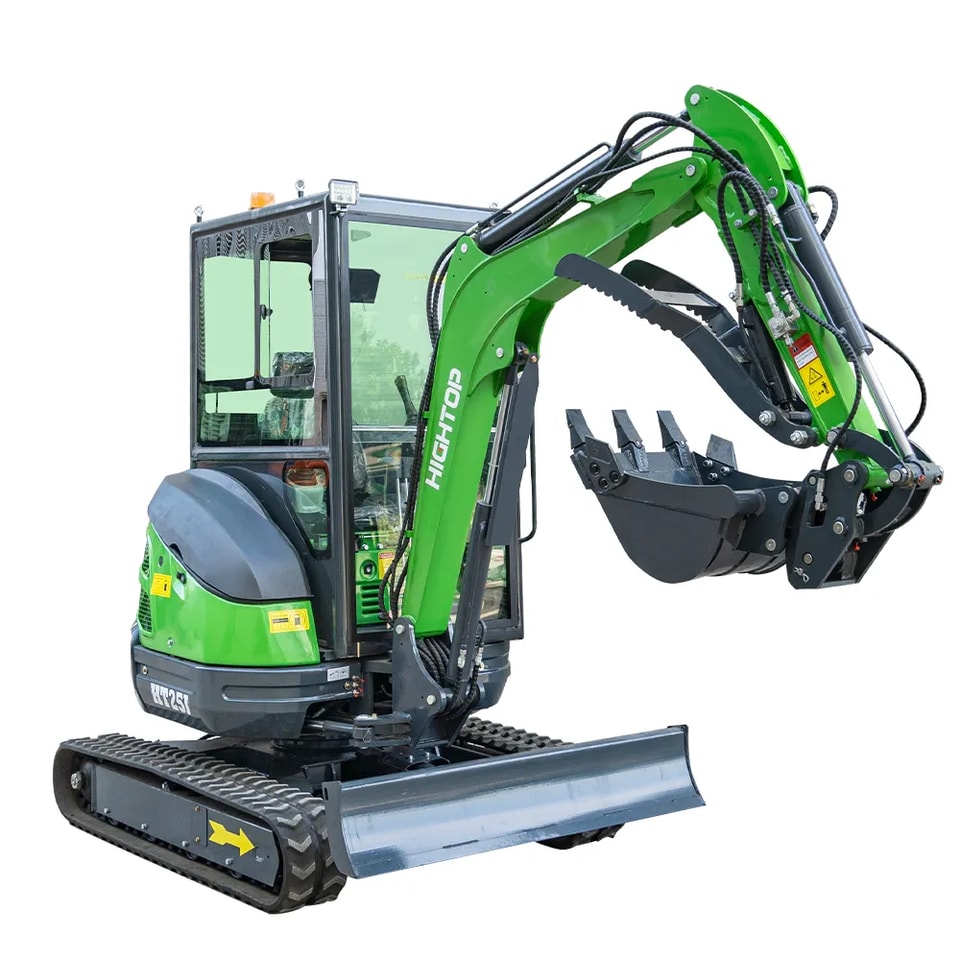

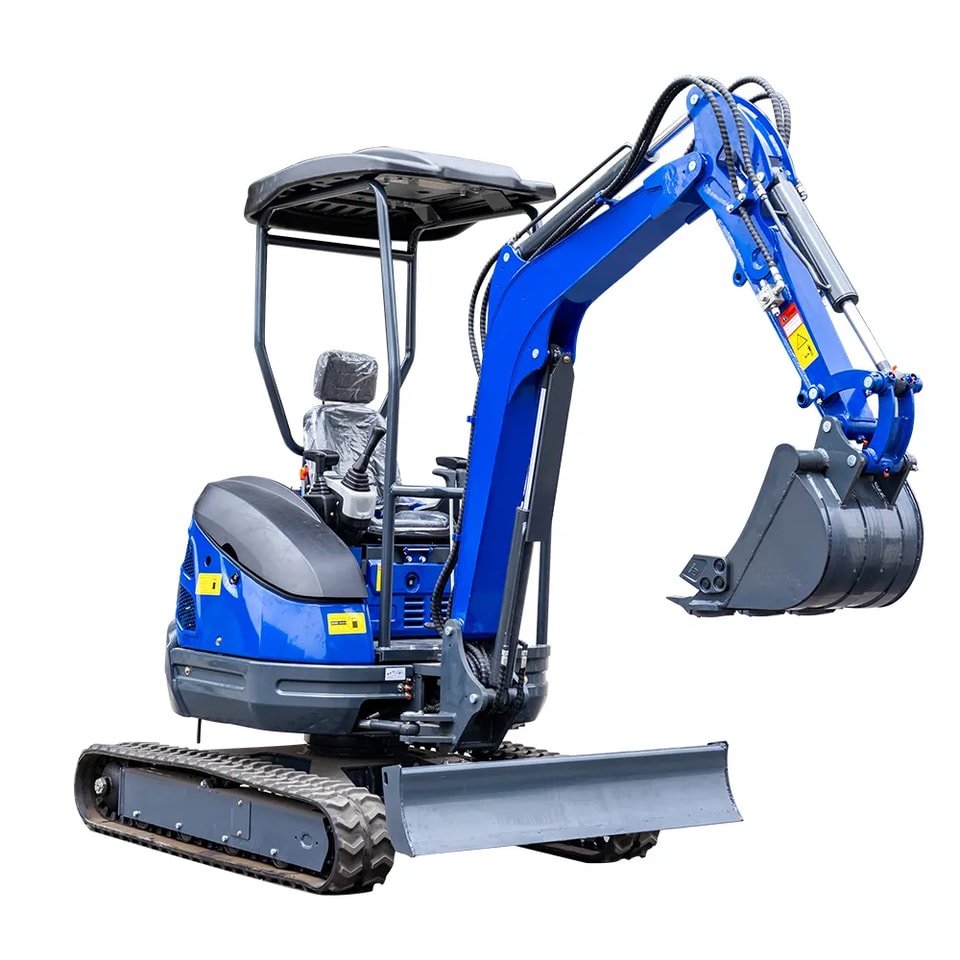

HT25J Mini Excavator – Compact Power for Tight Spaces
Compact & Versatile Mini Excavator: The HT25J Mini Excavator combines powerful performance with a 1850 kg operating weight and 0.04 m³ bucket capacity. Ideal for landscaping, basement renovation, municipal works, and wood grabbing – fits through narrow spaces with 1400 mm total width. 1850 kg Operating Weight – Stable & easy to transport on standard trailers. Quanchai V13-016 Engine – 18.9 kW / 2200 rpm, 3-cylinder direct injection, low fuel consumption. 4+5 Spool Main Valve – 16 MPa system pressure for precise, powerful control. Strong Climbing Ability (30°) – Handles mountains, slopes, muddy sites without slipping.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Specifications
Features
Specifications

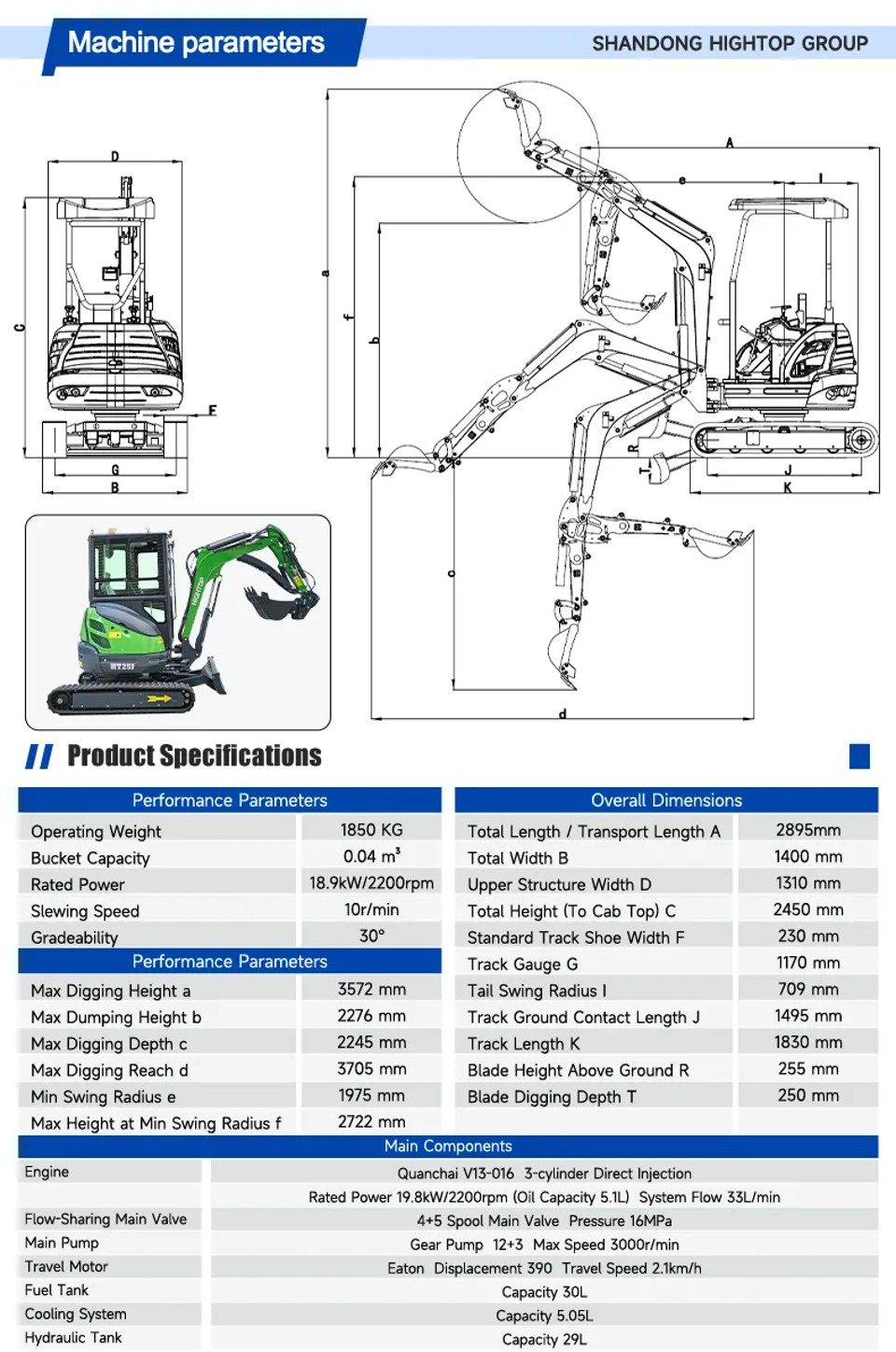

HT25J Mini Excavator — Technical Specifications
| HT25J Mini Excavator — Technical Specifications | |
|---|---|

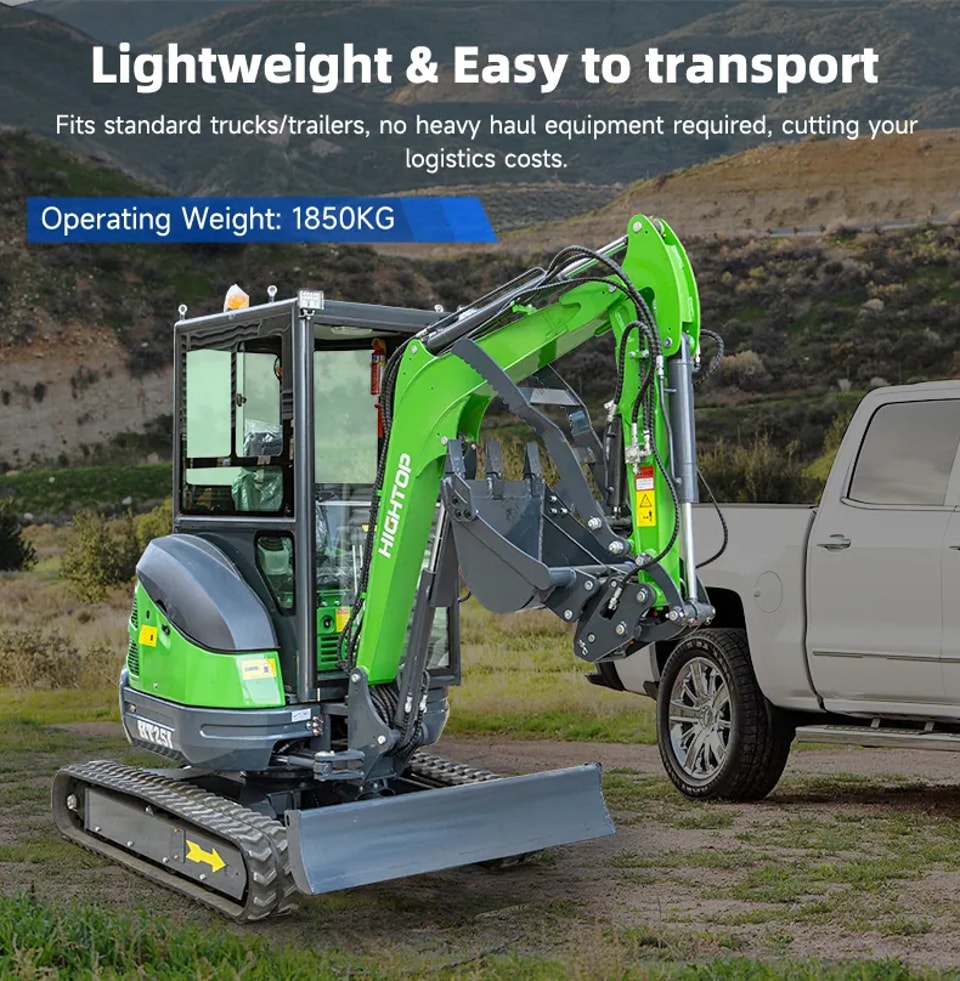

| Operating Weight | 1850 kg |
| Bucket Capacity | 0.04 m³ |
| Rated Power | 18.9 kW / 2200 rpm |
| Slewing Speed | 10 r/min |
| Gradeability | 30° |
| Max Digging Height (a) | 3572 mm |
| Max Dumping Height (b) | 2276 mm |
| Max Digging Depth (c) | 2245 mm |
| Max Digging Reach (d) | 3705 mm |
| Min Swing Radius (e) | 1975 mm |
| Max Height at Min Swing Radius (f) | 2722 mm |
| Total Length / Transport Length (A) | 2895 mm |

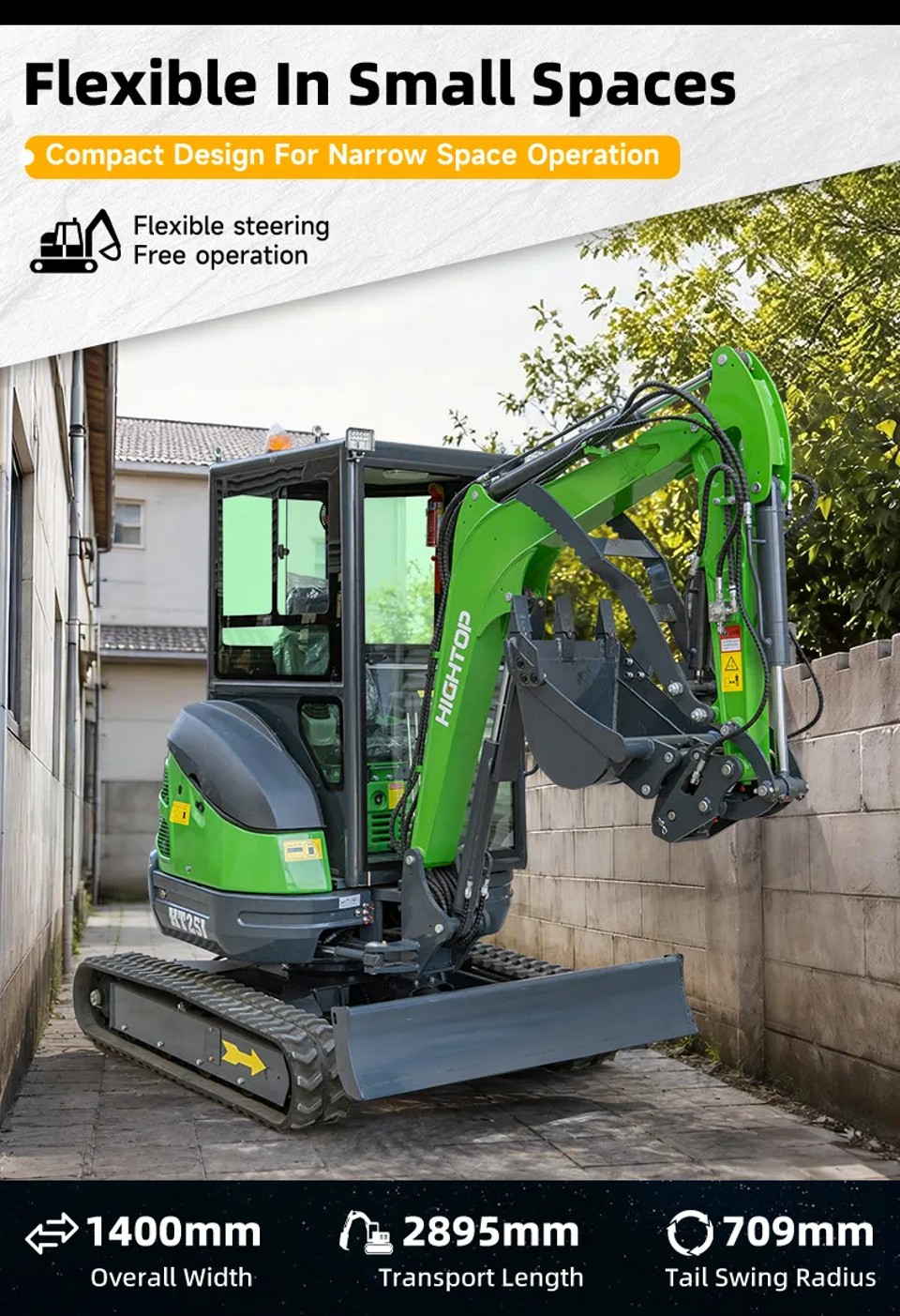

| Total Width (B) | 1400 mm |
| Upper Structure Width (D) | 1310 mm |
| Total Height (To Cab Top) (C) | 2450 mm |
| Standard Track Shoe Width (F) | 230 mm |
| Track Gauge (G) | 1170 mm |
| Tail Swing Radius (I) | 709 mm |
| Track Ground Contact Length (J) | 1495 mm |
| Track Length (K) | 1830 mm |
| Blade Height Above Ground (R) | 255 mm |
| Blade Digging Depth (T) | 250 mm |

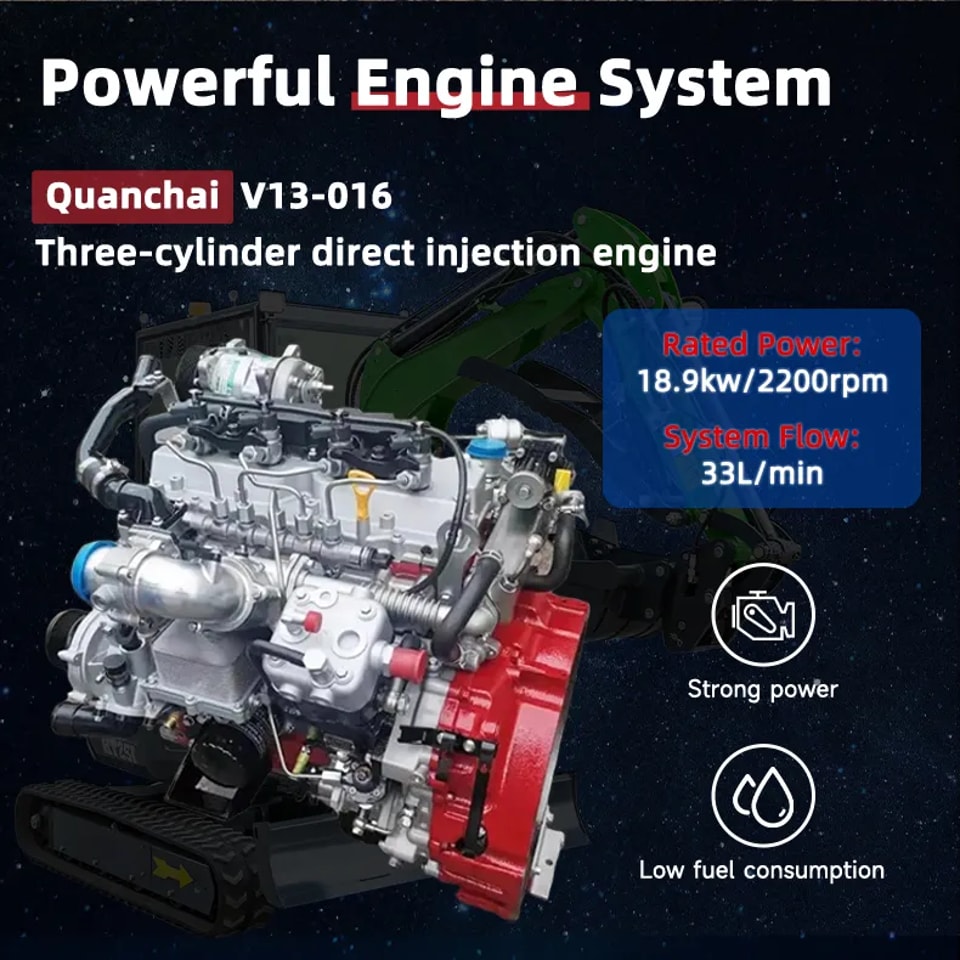

| Engine Model | Quanchai V13-016 3-cylinder Direct Injection |
| Engine Rated Power | 19.8 kW / 2200 rpm (Oil Capacity 5.1L) |
| System Flow | 33 L/min |

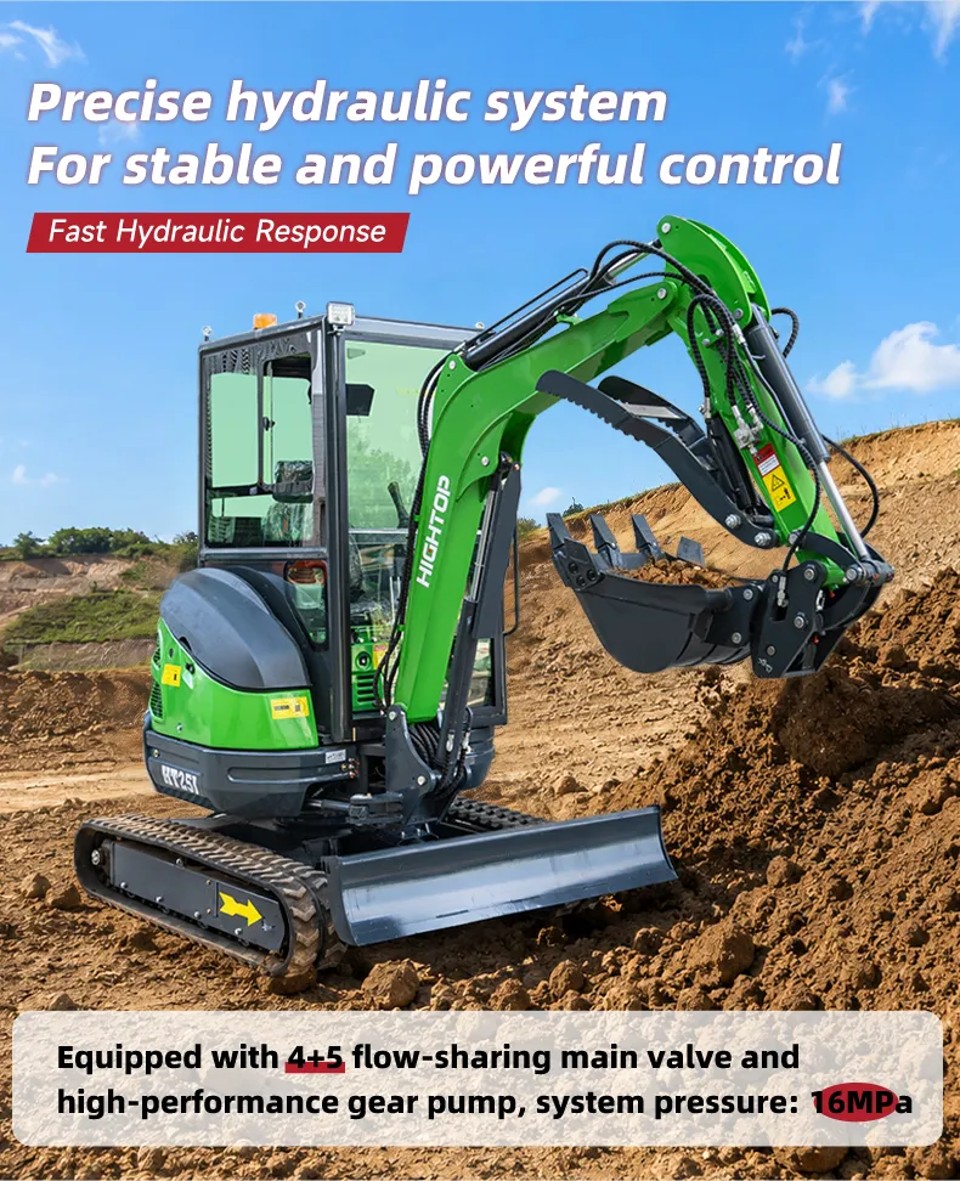

| Main Valve | 4+5 Spool Flow-Sharing Main Valve, Pressure 16 MPa |
| Main Pump | Gear Pump 12+3, Max Speed 3000 r/min |

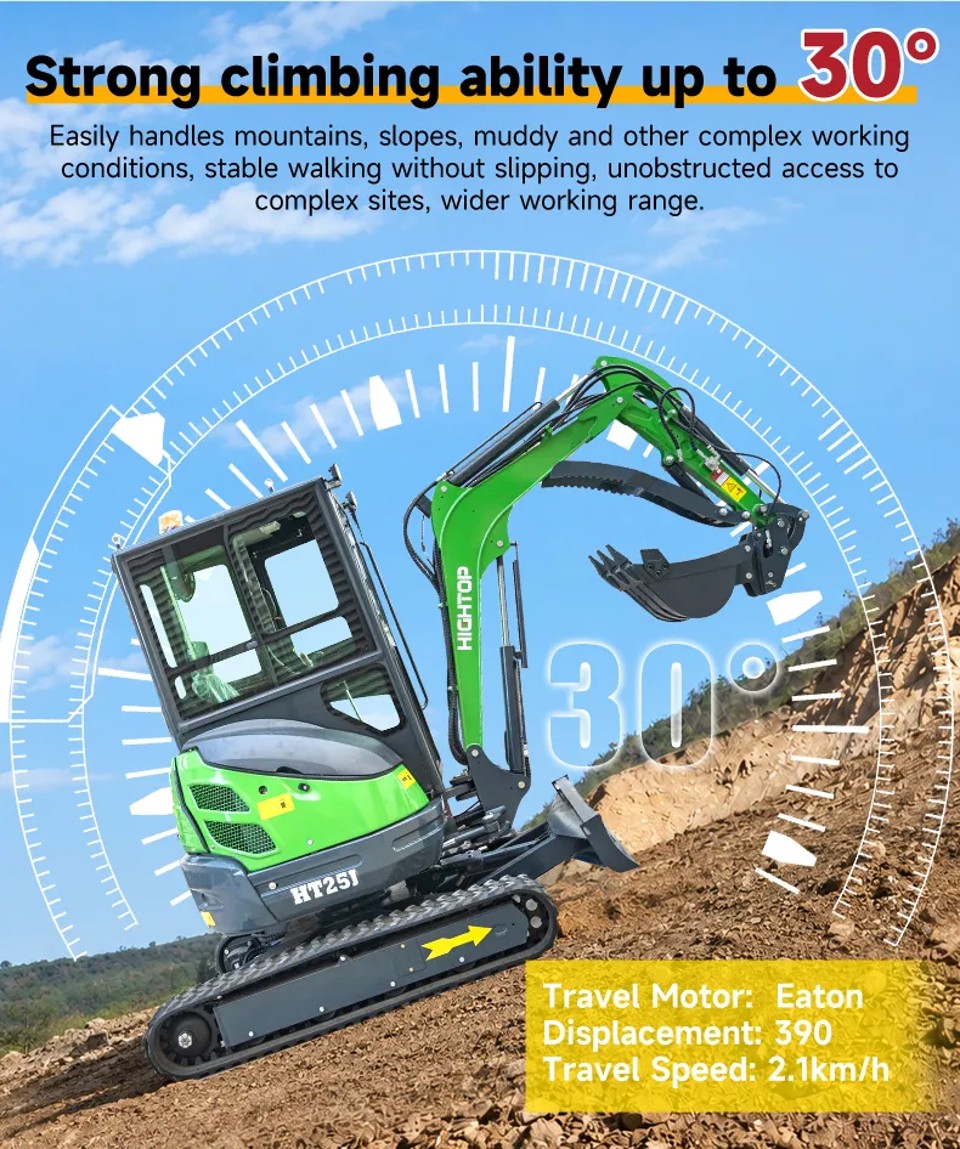

| Travel Motor | Eaton, Displacement 390, Travel Speed 2.1 km/h |
| Fuel Tank Capacity | 30 L |
| Cooling System Capacity | 5.05 L |
| Hydraulic Tank Capacity | 29 L |
