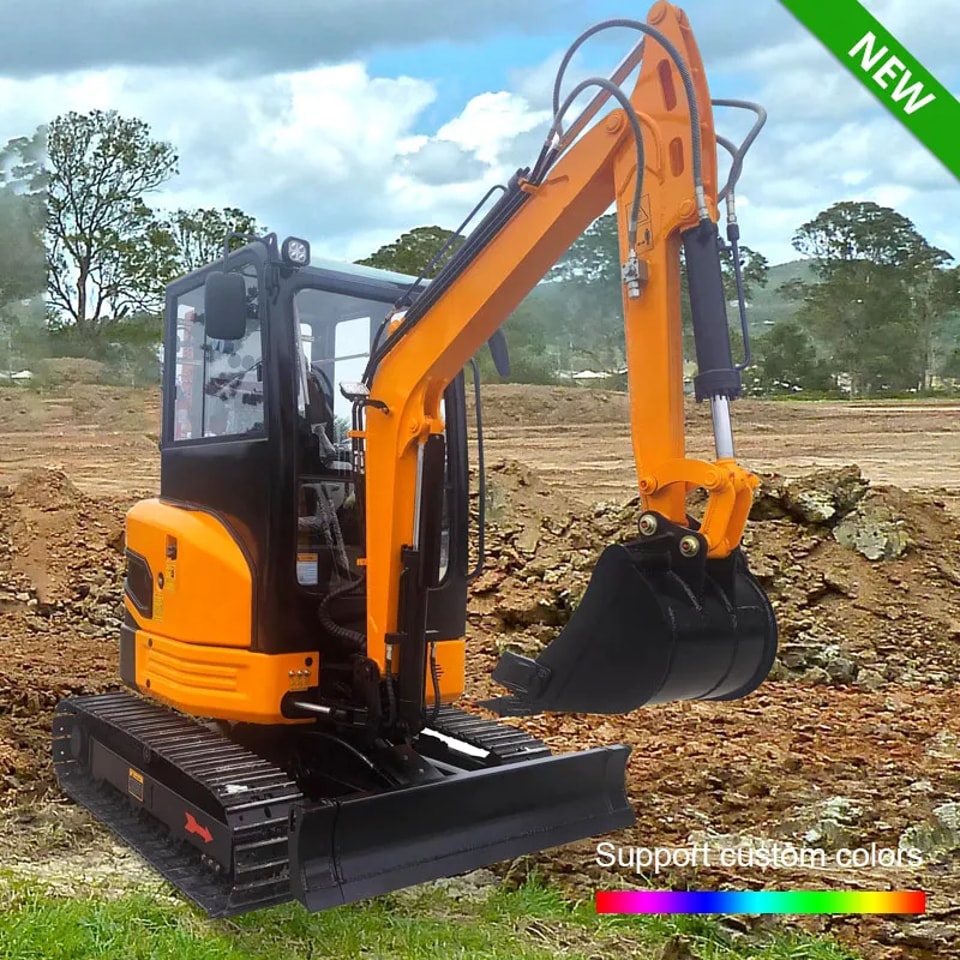

HT26-2 Mini Excavator With Cab
The HT26-2 mini excavator for sale is a powerful 2.5-ton industrial solution featuring a fully enclosed cabin for maximum operator comfort and all-weather productivity. Equipped with a high-torque engine and precise hydraulic controls, this 2.5 ton mini excavator with cab ensures exceptional digging performance and a high ROI for rental fleets and professional contractors. Inquire today for factory-direct wholesale pricing and comprehensive B2B support on our durable and versatile compact machinery.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Technical Parameter
Technical Parameter
| HT26-2 Mini Excavator With Cab — Parameter Table | |
|---|---|
| Basic Parameters | |
| Overall weight | 2416KG |
| Bucket capacity | 0.075m³ |
| Engine Model | Changchai390 |
| Engine power | 20KW/2200rpm |
| Dimensions (Unit: mm) | |
| Overall length | 3074mm |
| Overall width | 1500mm |
| Overall height | 2313mm |
| Ground to upper disc distance | 534 mm |
| Front and rear wheelbase | 1560 mm |
| Left and right track distance | 1200 mm |
| Tail swing radius | 936 mm |
| Minimum ground clearance | 230 mm |
| Hydraulic System | |
| Hydraulic system pressure | 18Mpa |
| Undercarriage System | |
| Number of single side supporting wheel | 3 pieces |
| Number of sprockets on one side | 1 piece |
| Working Range & Swing Angle | |
| Dynamic arm deflection | 45° (left) |
| Admiral's arm deflection | 55° (right) |
| Performance Parameters | |
| Maximum bucket digging force | 19.5KN |
