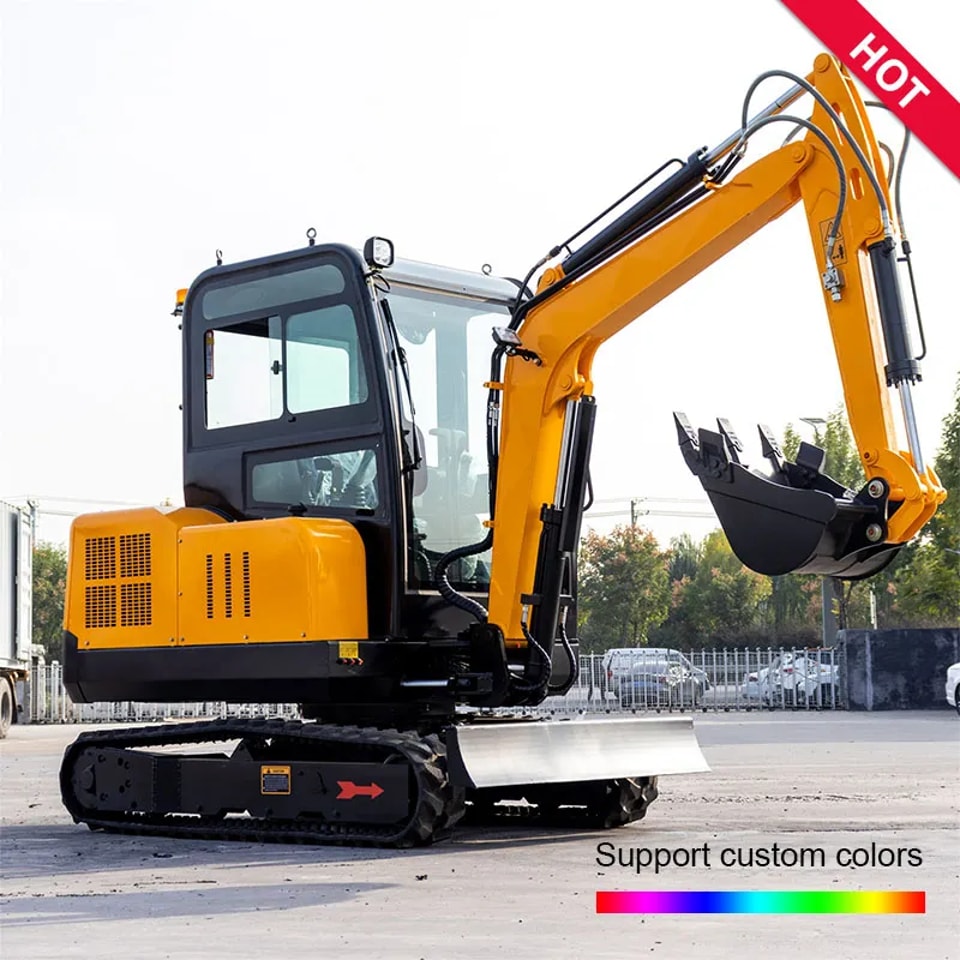

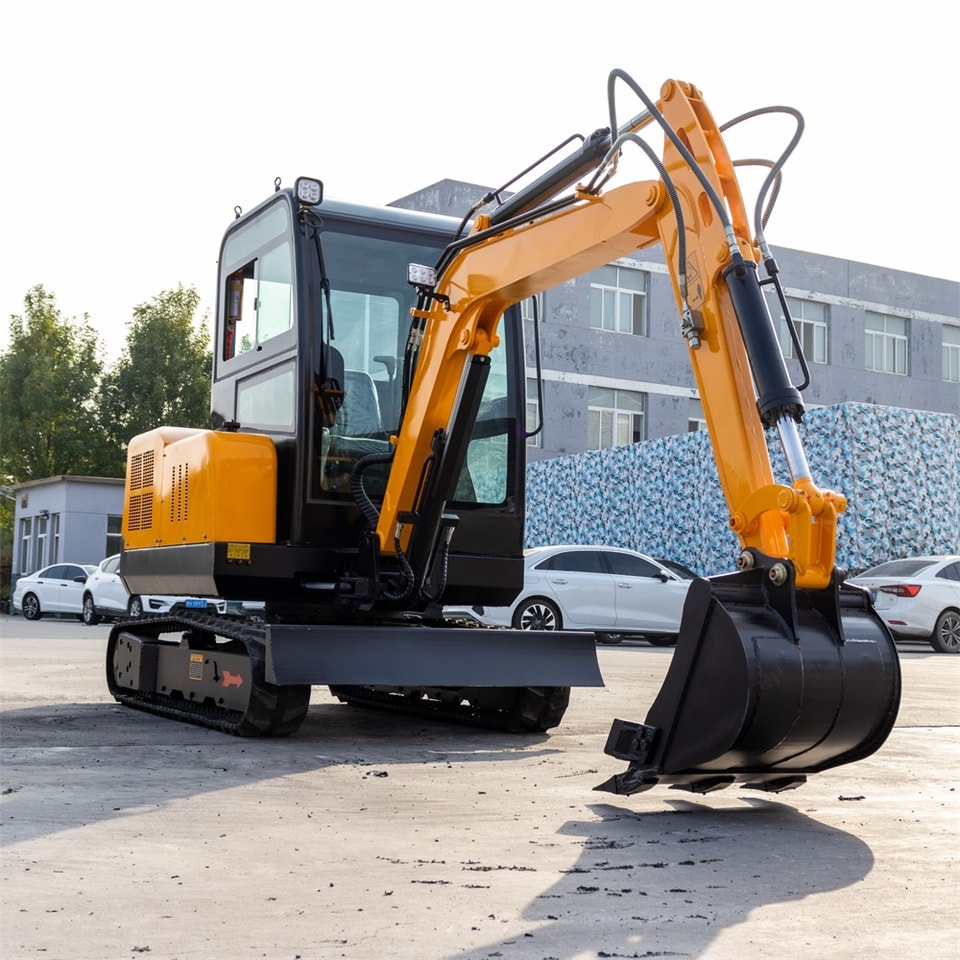

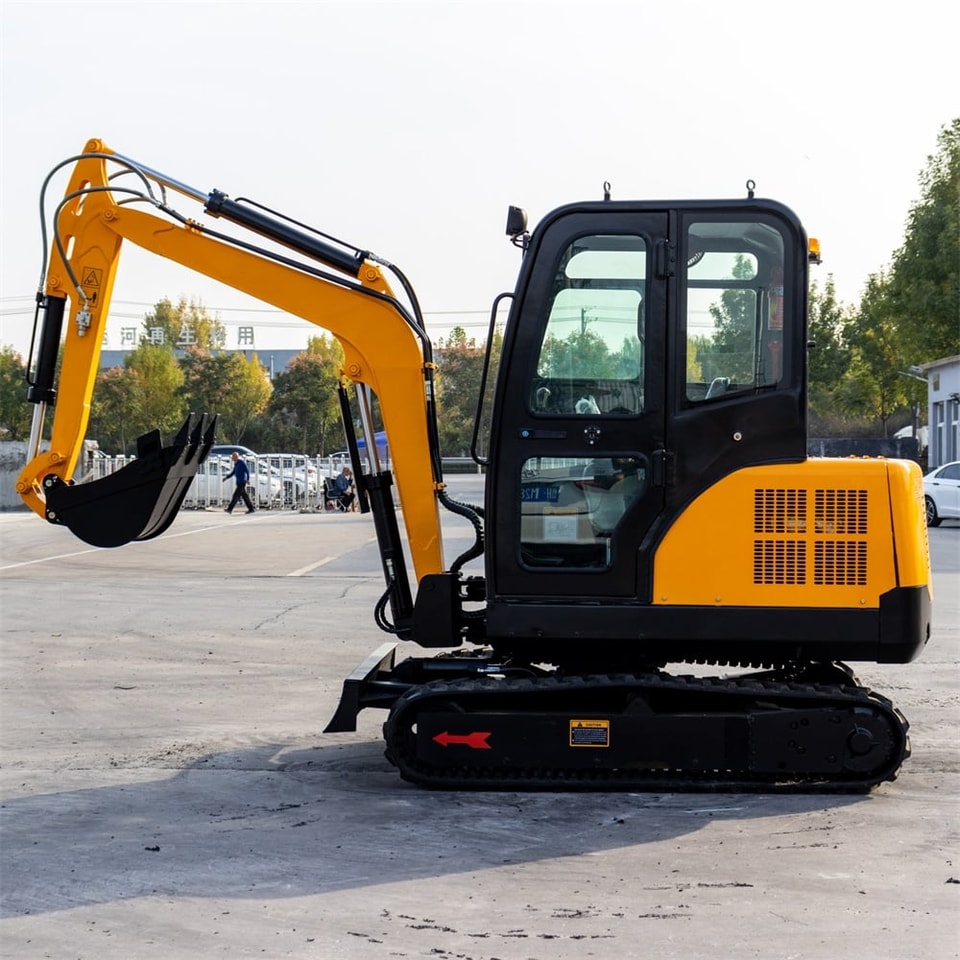

HT30 3T Mini Excavator with Cab
HT30 3T Mini Excavator Advantage
3 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
3 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
| HT30 3T Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT30 |
| Total Weight | 2600kg |
| Ground Pressure | 38kpa |
| Bucket Capacity | 0.095m³ |
| Bucket Width | 500mm |
| Dimensions (Unit: mm) | |
| Total Length | 4180mm |
| Total Width | 1500mm |
| Total Height | 2128mm |
| Ground Clearance | 458mm |
| Performance Parameters | |
| Max. Digging Height | 3900mm |
| Max. Digging Radius | 4040mm |
| Max. Digging Depth | 2500mm |
| Max. Dumping Height | 2600mm |
| Slewing Angle | 360° |
| Grade ability | 25° |
| Travel speed | 2.6km/h |
| Swing angle of boom (L/R) | 70° / 50° |
| Track System (Unit: mm) | |
| Track Gauge | 1150mm |
| Track Width | 250 / 260mm |
| Track Length (on ground) | 2300mm |
| Hydraulic System | |
| Main Pump | Triple Pump |
| Main Pressure | 18Mpa |
| Max. Rpm of the pump | 2500r/min |
| Pump Displacement | 28ml/r |
