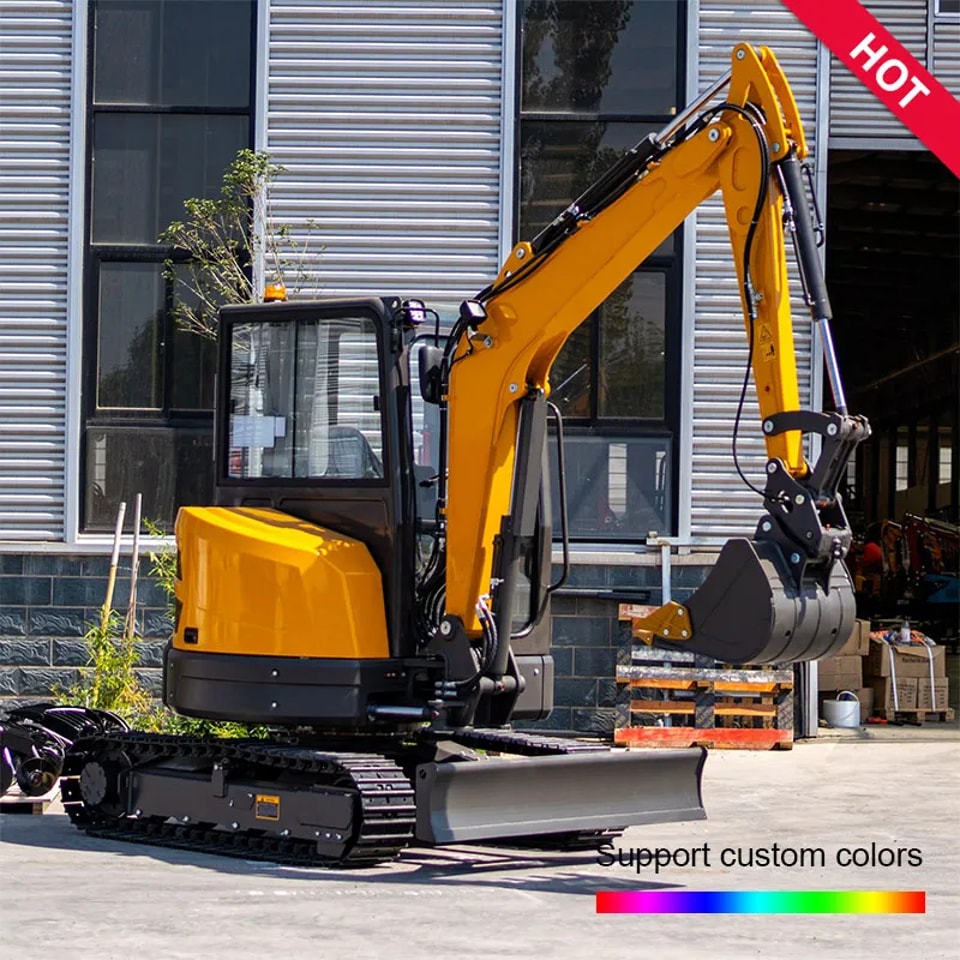

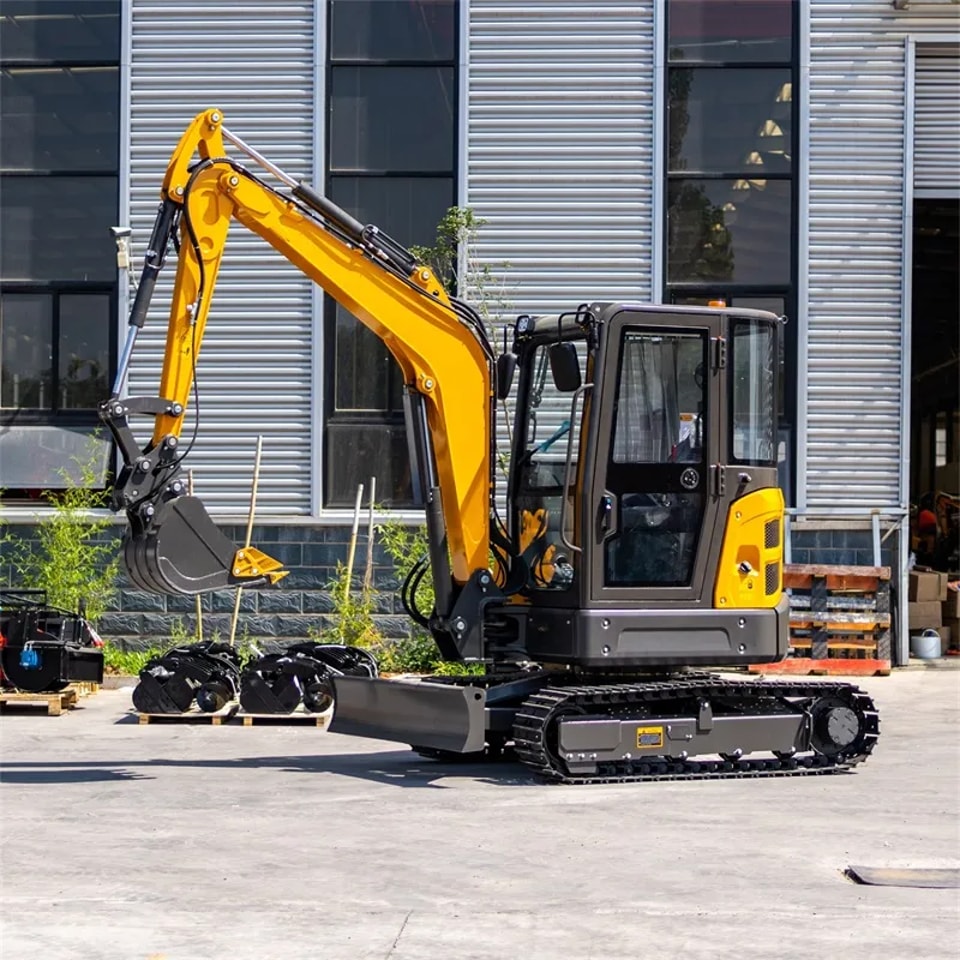

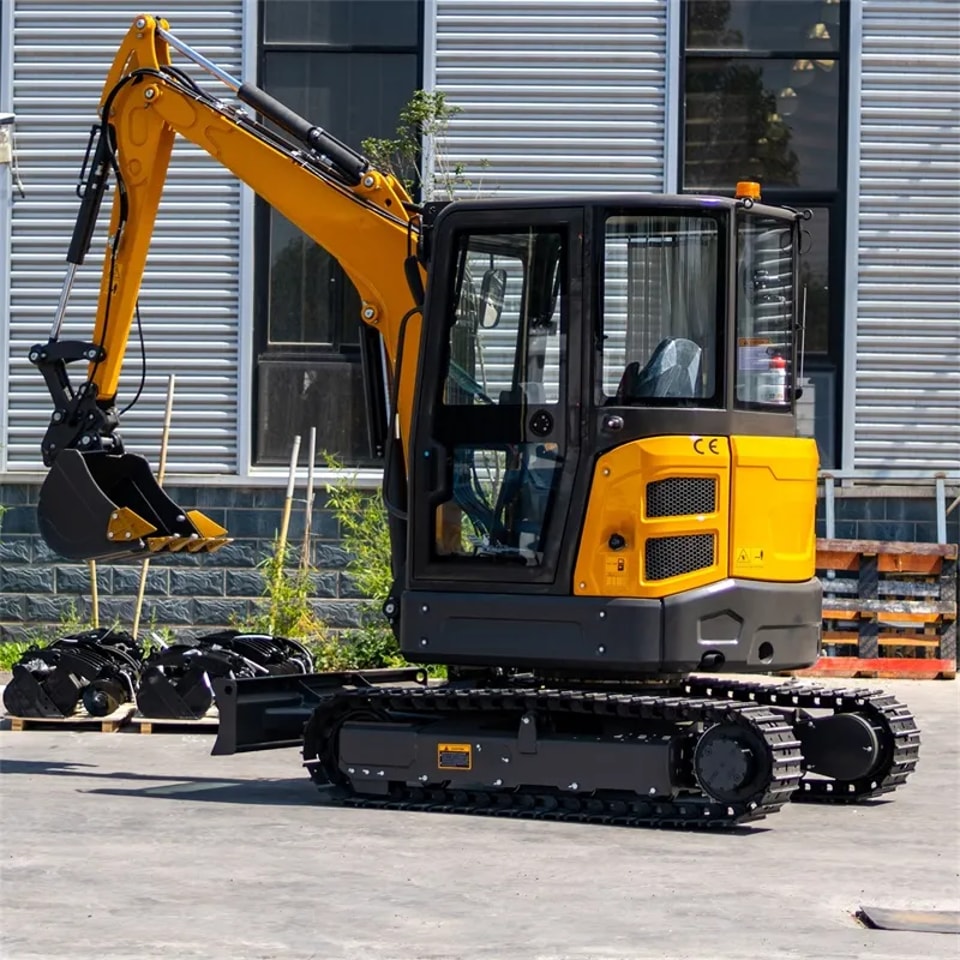

HT40 Crawler Excavator
The HT40 crawler excavator is a compact excavator ,which matched Kubota engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor,
HT40 small excavator hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
The crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted famous brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system. ensure it can work in different working environments and conditions.

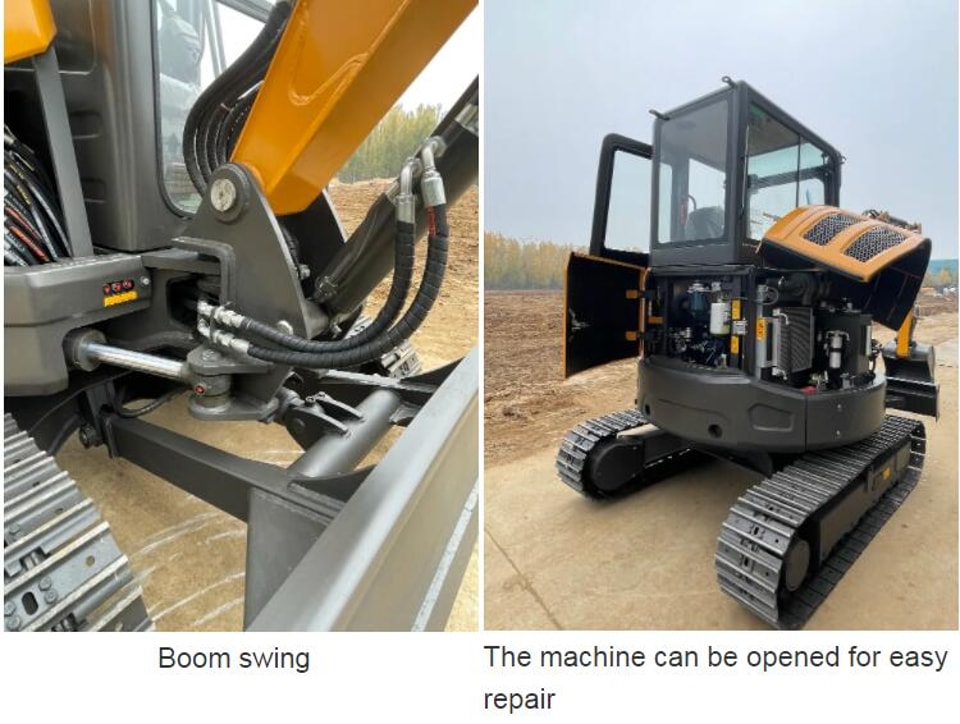

Boom swing

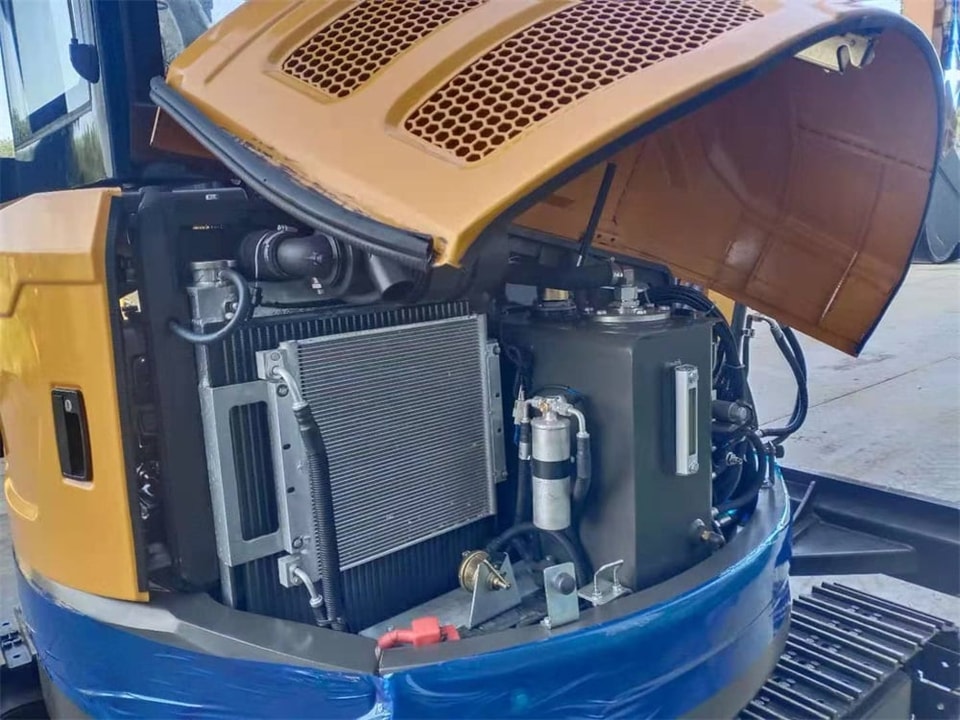

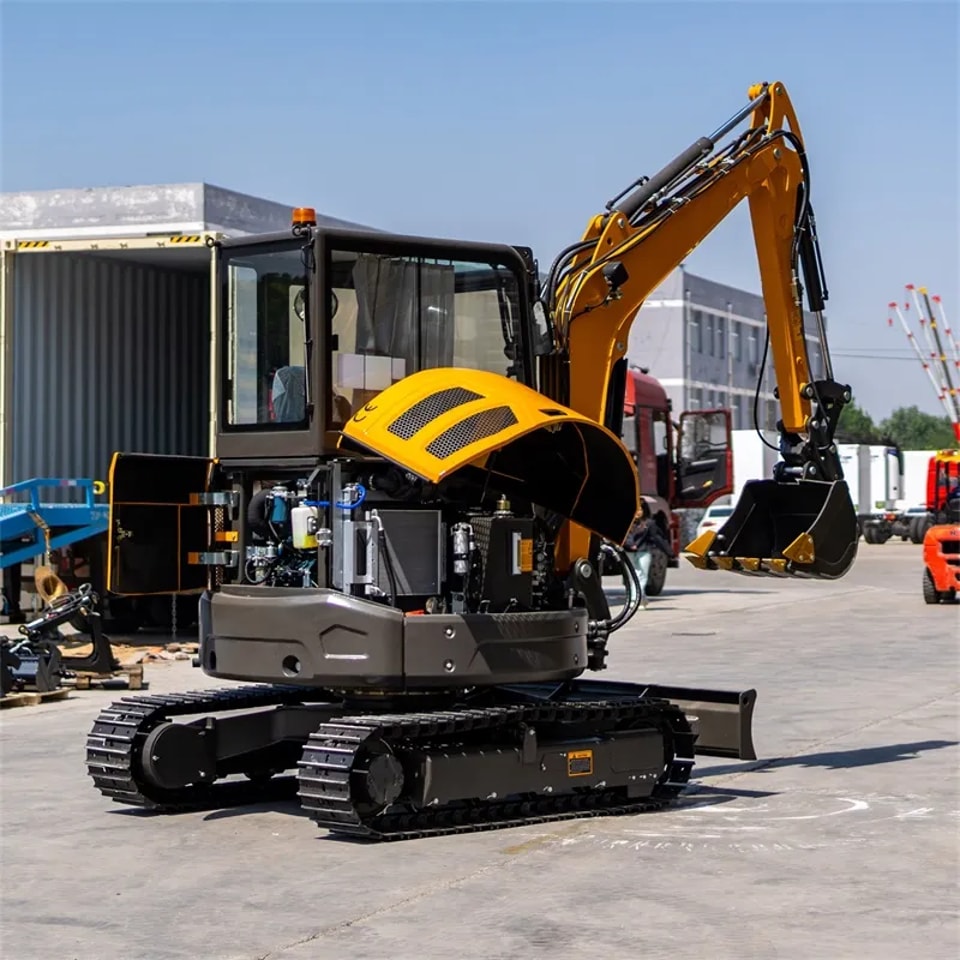

The machine can be opened for easy repair

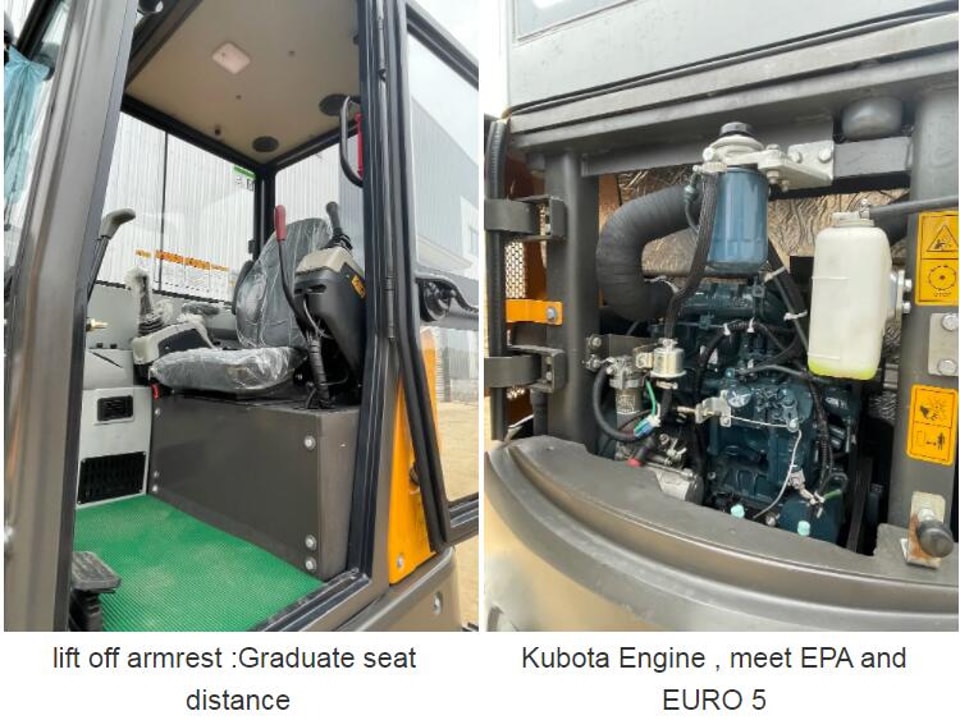

lift off armrest :Graduate seat distance
Kubota Engine , meet EPA and EURO 5
· 2pcs in 20GP container.
· 4 pcs in 40GP container.
1. DELIVERY TERMS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
2. PAYMENT TERMS:
· By T/T: 30% as deposit and the balance paid after finishing production before shipment.
3. ACCESSOORIES:
Tools box, operator’s manual and a list of spare parts.
4. WARRANTY:
Generally, 612months or 2000 hours since first receiving the goods, whichever first
5. ORIGINAL: China
| HT40 Crawler Excavator — Parameter Table | |
|---|---|
| Standard Configuration | |
| 1 | Japan Kubota D1703 engine, 18.5kw/2200rpm, Euro 5, EPA4 |
| 2 | China brand pump |
| 3 | China brand valves |
| 4 | China brand slewing motor |
| 5 | China brand driving motor |
| 6 | Closed cabin |
| 7 | Hydraulic pilot servo operation system |
| 8 | Steel track: 300mm |
| 9 | With hydraulic hammer pipeline system |
| 10 | Bucket capacity: 0.12m³ |
| 11 | With dozer blade |
| 12 | With high-low speed |
| 13 | With side boom |
| Engine | |
| Emission Standard | Euro 5, EPA4 |
| Make / Model | KUBOTA / D1703 |
| Power / Rotation speed | 18.5kw (25HP) @ 2200rpm |
| Number of cylinder | 3 |
| Type | In-line, water cooled, 4-stroke, mechanical pump, normally aspirated |
| Max. torque | 97.4N.m / 1500rpm |
| Displacement | 1.647L |
| Track Driving System | |
| Maximum Travel speed (High/Low) | 4.4 / 2.4 km/h |
| Width of steel track shoe | 300mm |
| Carrier roller (Each side) | 1 |
| Supporting roller (Each side) | 4 |
| Performance Parameters | |
| Standard Bucket capacity | 0.12m³ |
| Swing speed | 9 rpm |
| Maximum Grade ability | 58% |
| Ground pressure | 32 Kpa |
| Maximum Bucket digging force | 30.4 KN |
| Maximum Arm digging force | 18.2 KN |
| Hydraulic system pressure | 22.5 Mpa |
| Machine weight | 3810 kg |
| Boom length | 2535 mm |
| Arm length | 1400 mm |
| Fuel tank capacity | 42 L |
| Hydraulic oil tank capacity | 48.5 L |
| Engine oil capacity | 7 L |
| Machine Size (Unit: mm) | |
| Overall dimension (L × W × H) | 4915 mm × 1720 mm × 2525 mm |
| Axle base (Track length on ground) | 1670 mm |
| Length of rubber track | 2154 mm |
| Track gauge | 1420 mm |
| Minimum Ground clearance | 295 mm |
| Swing radius at tail | 860 mm |
| Swing radius at front | 2538 mm |
| Height of blade | 350 mm |
| Working Range (Unit: mm) | |
| Maximum Digging height | 4800 mm |
| Maximum Dumping height | 3406 mm |
| Maximum Digging depth | 3208 mm |
| Maximum Vertical digging depth | 2957 mm |
| Maximum Digging distance | 5480 mm |
| Maximum digging distance (on ground) | 5359 mm |
| Minimum swing radius | 2530 mm |
| Max. height when min. swing radius | 3655 mm |
| Maximum Lifting height of blade | 365 mm |
| Maximum Cutting depth of blade | 385 mm |
| Boom swing angle (Left / Right) | 55° / 65° |
