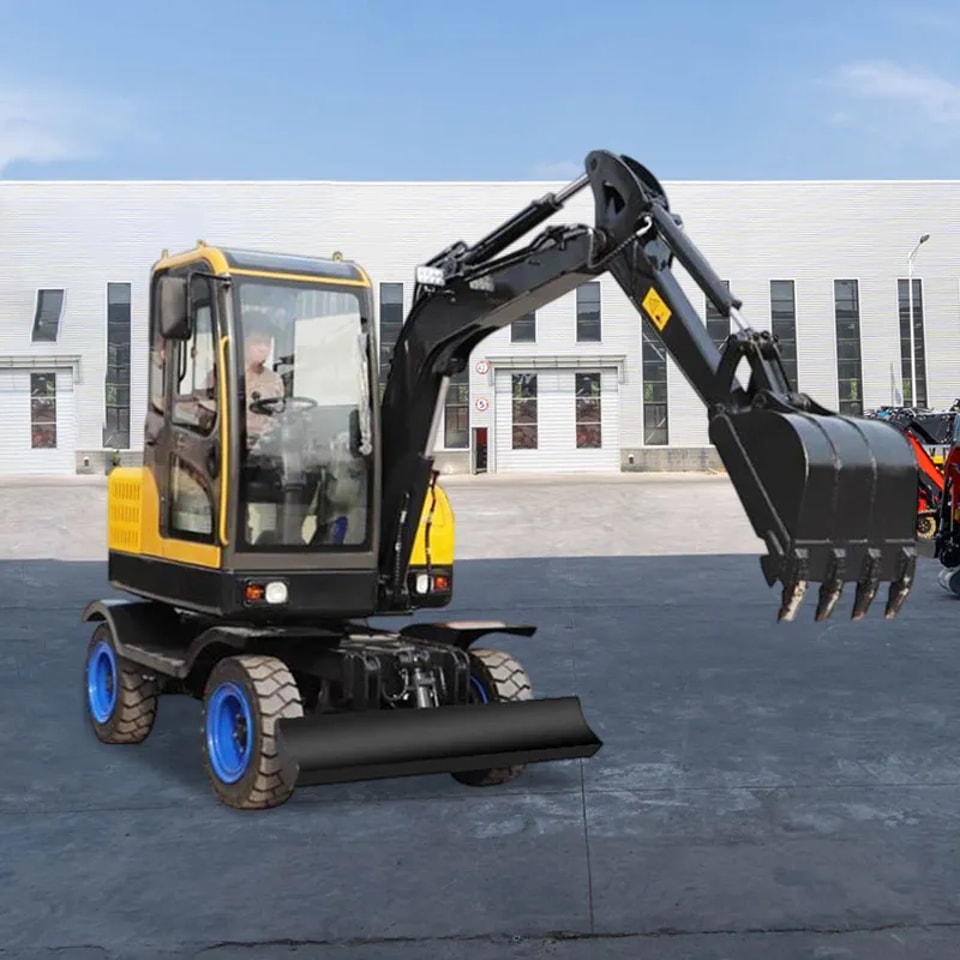

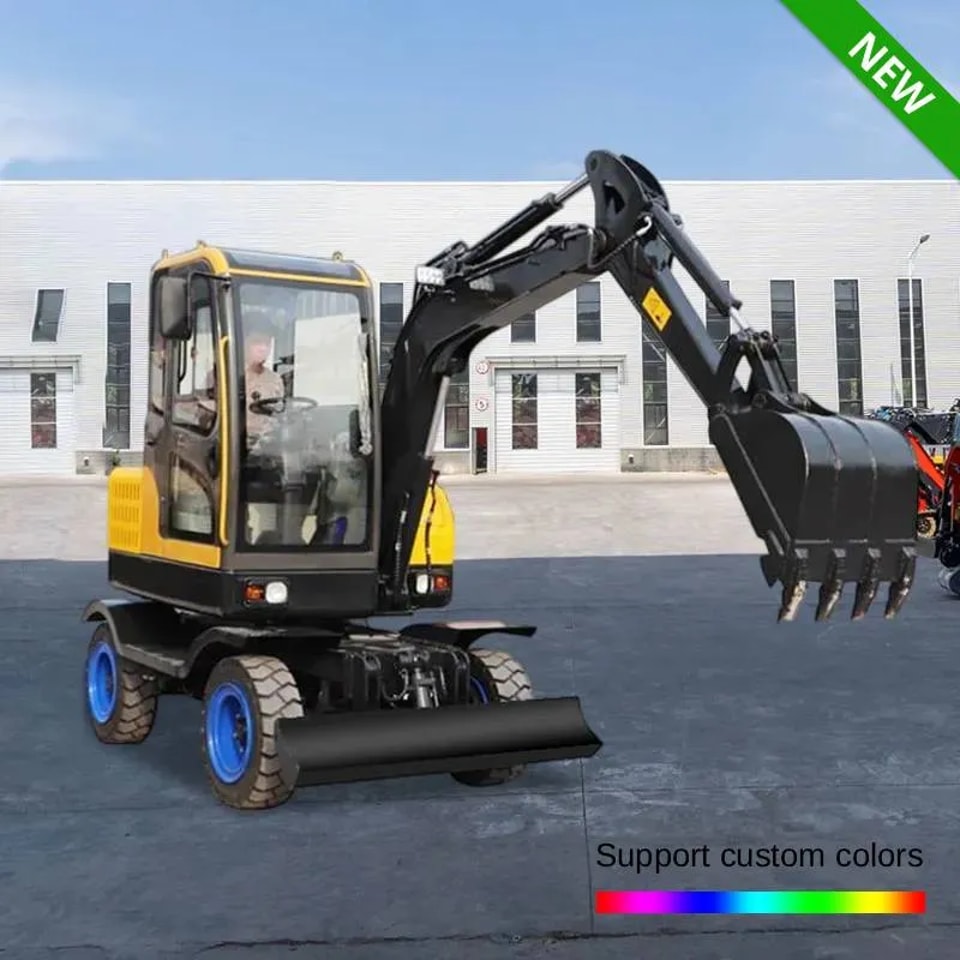

HT45 4.5T Mini Excavator
The HT45 4.5-ton mini excavator for sale is a high-efficiency compact digger powered by a Kubota engine, specifically engineered for professional earthmoving and urban utility projects. Equipped with a fully enclosed AC cabin and advanced pilot controls, this 4.5t crawler excavator delivers industrial-grade breakout force and superior operator comfort for a high ROI in rental fleets. Inquire today for factory-direct wholesale pricing and professional B2B support on this durable and versatile small hydraulic digger.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Specification
Description
HT45 4.5T Small Excavator Features
*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
Specification
| HT45 4.5T Small Excavator — Parameter Table | |
|---|---|
| Dimensions (Unit: mm) | |
| Overall Length (lowered) | 4400mm |
| Overall Height | 2200mm |
| Width | 1530 / 1600mm |
| Track width | 300mm |
| Total track length | 2175mm |
| Track gauge | 1703mm |
| Platform ground clearance | 557mm |
| Working Range (Unit: mm) | |
| Max. Digging Height | 4450mm |
| Max. Dumping Height | 3050mm |
| Max. Digging Depth | 2545mm |
| Max. Digging Distance | 4630mm |
| Max. Digging Radius | 4730mm |
| Min. Radius of gyration | 1820mm |
| Max. Lifting height of earth shovel | 359mm |
| Max. Digging depth of dozer | 268mm |
| Min. Tail swing radius | 1170mm |
| Engine | |
| Engine model | ZN490 |
| Power | 34 KW |
| Cooling method | Water-cooling Diesel engine |
| Hydraulic System | |
| Operating Pressure | 22mpa |
| Walking motor | Two speed plunger |
| Rotary motor | Variable plunger |
| The Main Pump | 32cc plunger |
| Flow | 99 L/min |
| Performance Parameters | |
| Climbing ability | 35° |
| Max. digging force | 55.6KN (5560) |
| Travel speed | 2.4 / 4.6 km/h |
| Rail contact pressure on the ground | 34.8kpa (0.355 kgf/cm²) |
| Specifications | |
| Bucket Capacity | 0.26m³ |
| Fuel reservoir | 60L |
| Hydraulic tank capacity | 75L |
| Operating Weight | 4500kg |
