HT500-3 Mini Crawler Dumper
Compact Hydraulic Crawler Dumper for Tight Sites: The HT500-3 mini crawler dumper features an 860kg operating mass, 270L hopper, and 6.5HP Briggs & Stratton engine. Hydraulic drive with 3.2km/h forward speed. 860kg Mass & 270L Hopper Compact size, big capacity. Briggs & Stratton 6.5HP 208cc EPA engine, elec start option. Hydraulic Drive 180 bar pressure, 3.2km/h speed. Foldable Platform Flexible maneuverability, easy storage.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HT500-3 Mini Crawler Dumper Parameter
HT500-3 Mini Crawler Dumper Images
HT500-3 Mini Crawler Dumper Parameter
HT500-3 Mini Crawler Dumper Parameter
| HT500-3 Mini Crawler Dumper — Parameter Table | |
|---|---|
Weight & Dimensions | |
| Max. operating mass | 860 kg |
| Transport mass | 360 kg |
| Overall (L×W×H) | 2112 × 832 × 1344 mm |
| Transport dimensions (L×W×H) | 1480 × 832 × 1344 mm |
| Ground clearance | 71 mm |
Hydraulic System | |
| Pump | Tandem gear pump (4cc ×2) 3600rpm |
| Motor | Disc distribution cycloid motor (×2) |
| Working pressure | Max. 180 bar |
| Hydraulic flow | 28.8 L |
| Motor torque | 645 Nm each at 180 bar |
Traction & Performance | |
| Driving | Hydraulic |
| Steering | Fully hydraulic / control valve |
| Forward speed | 3.2 km/h |
| Gradeability | 15° |
Engine | |
| Model | BRIGGS & STRATTON |
| Emission accordance | EPA |
| Rated power | 6.5 HP |
| Displacement | 208 cc |
| Fuel tank volume | 3.1 L |
| Oil volume | 0.6 L |
| Startup | Reversing & E-starter |
Hopper | |
| Hopper volume | 270 L |

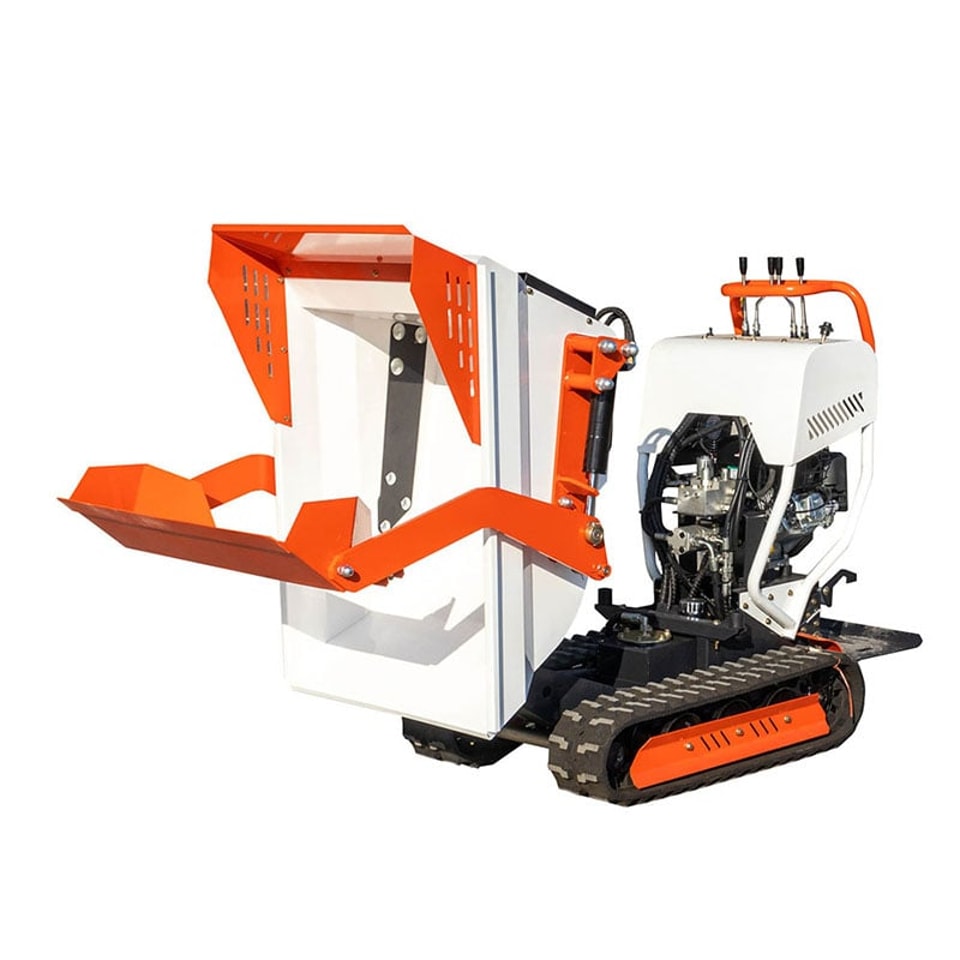

HT500-3 Mini Crawler Dumper Images
HT500-3 Mini Crawler Dumper – 860kg, 270L Hopper & Briggs & Stratton Engine
The HT500-3 mini crawler dumper is a compact, hydraulic-driven transport vehicle designed for efficient material handling on job sites. Powered by a Briggs & Stratton 208cc EPA-certified engine (6.5HP), it delivers reliable performance for landscaping, farming, and small construction projects.
Key Features
- Hydraulic Drive System: Tandem gear pump (4cc ×2) and disc distribution cycloid motors provide smooth, powerful traction.
- 860kg Operating Mass & 270L Hopper: Compact yet capable – ideal for short-distance transport of soil, sand, and aggregates.
- Briggs & Stratton 6.5HP Engine: 208cc, EPA compliant, with reversing and electric start options for easy operation in low temperatures.
- 3.2km/h Forward Speed & 180 Bar Pressure: Efficient movement with robust hydraulic power.
- Foldable Platform & Detachable Hopper Protection: Flexible maneuverability in tight spaces and easy maintenance.
- Separate Hydraulic Circuit for Traction: Ensures consistent pulling power and control.
Applications
The HT500-3 mini crawler dumper is ideal for landscaping, small-scale construction, farm transport, and material handling in confined areas. Its compact dimensions (2112×832×1344mm) and low ground clearance (71mm) allow it to navigate narrow pathways and job site obstacles with ease.
