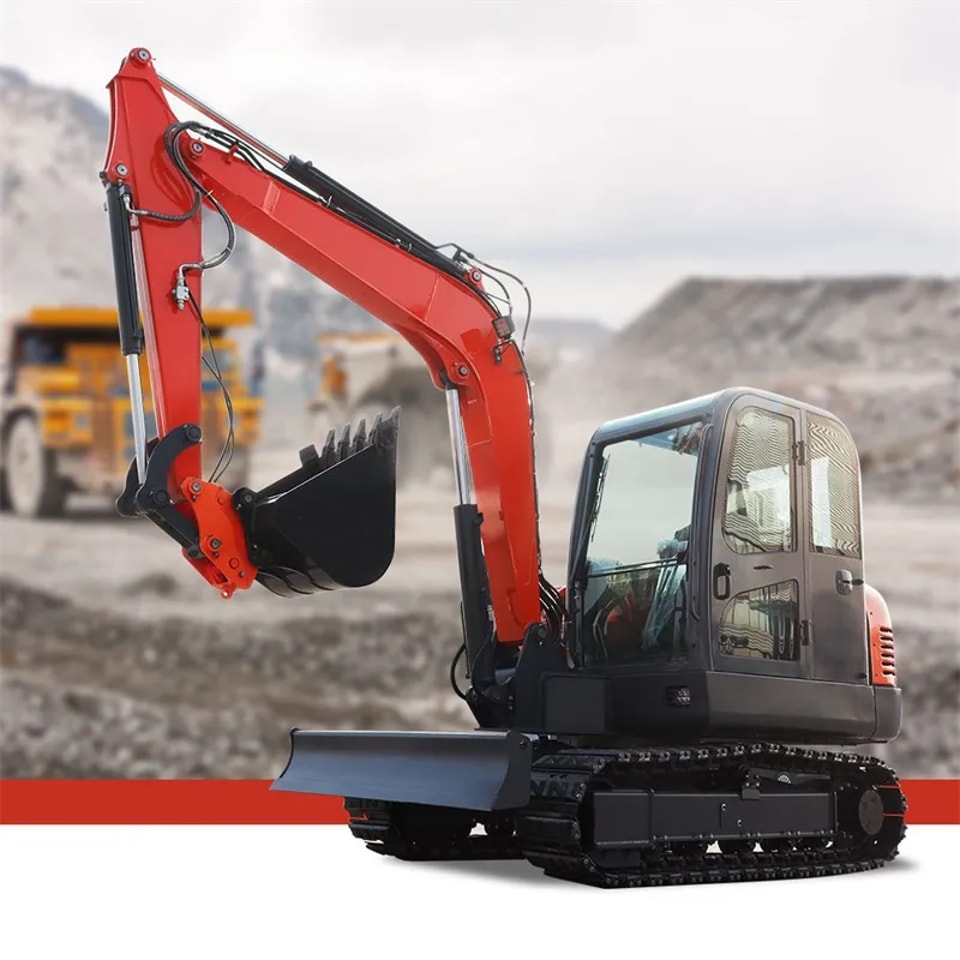

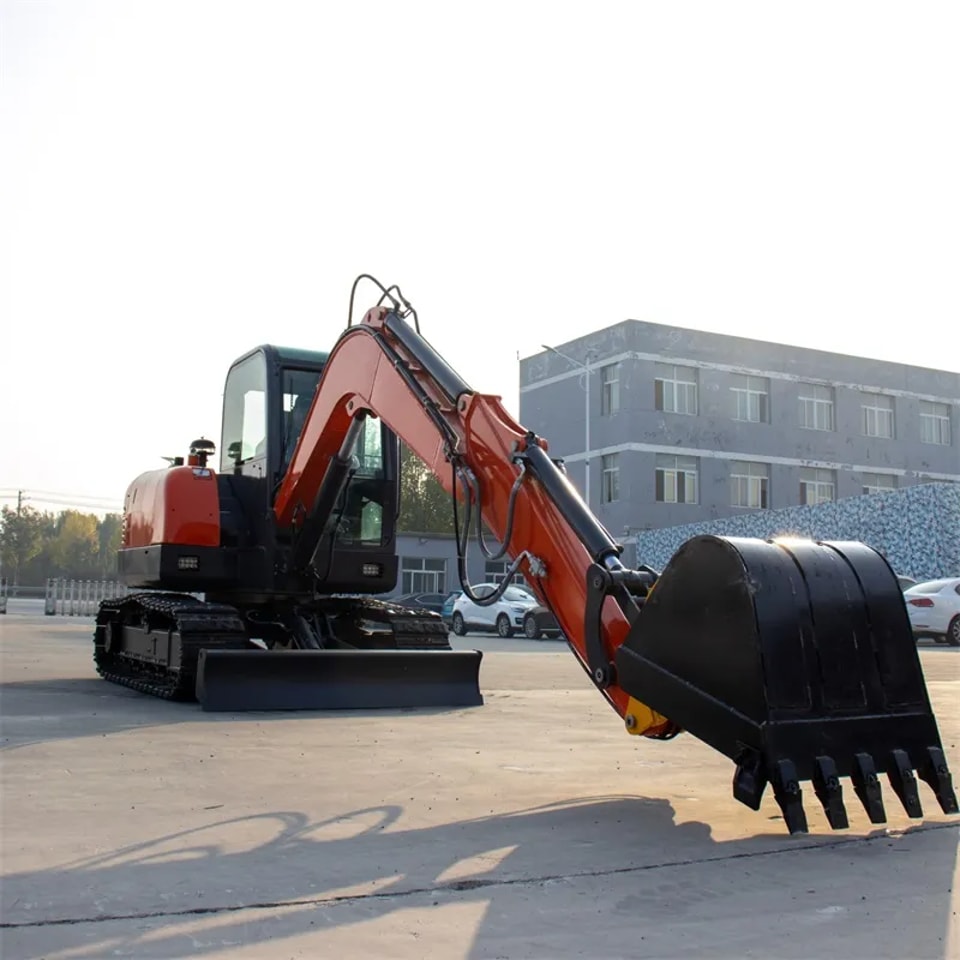

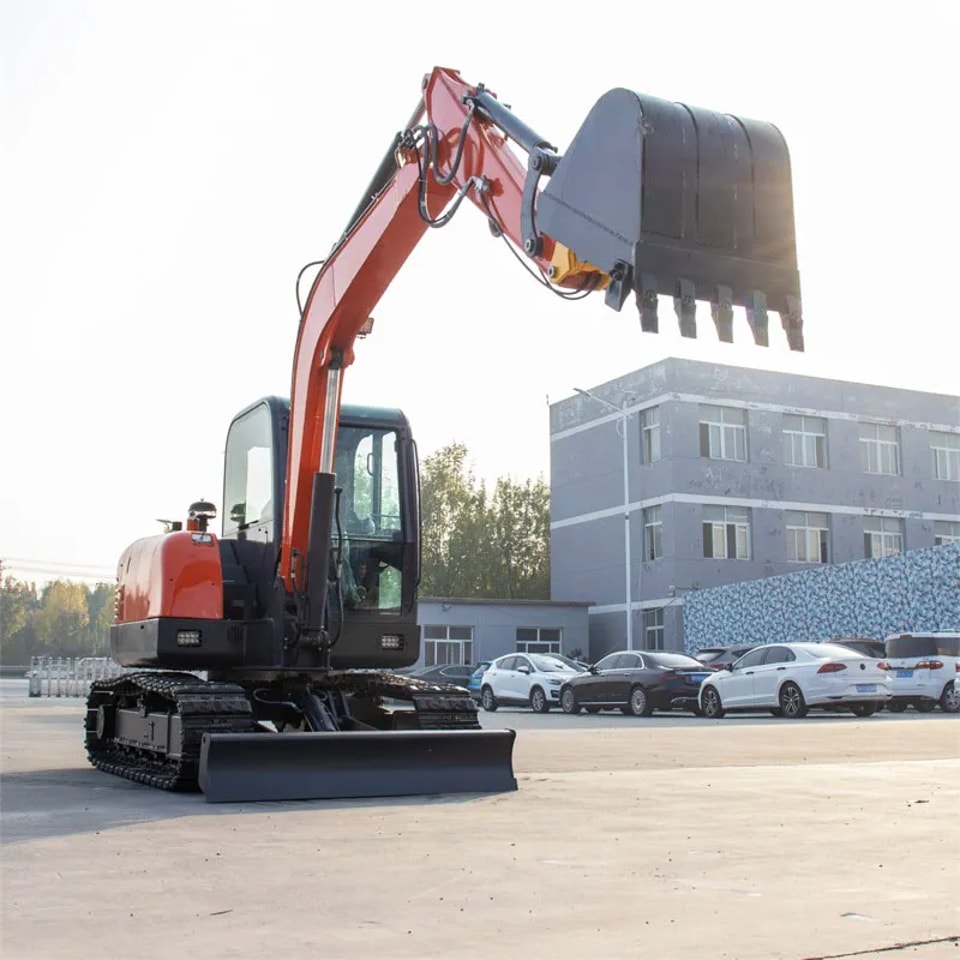

HT60 Crawler Excavator
| HT60 Hydraulic Excavator — Parameter Table | |
|---|---|
| Basic Parameters of the Whole Machine | |
| Total weight | 6000KG |
| Shipping length | 5850(mm) |
| Total height during transportation | 2575(mm) |
| Upper shelf / chassis width | 1880(mm) |
| Track width | 400(mm) |
| Track length | 2540(mm) |
| Track gauge | 1880(mm) |
| Min. ground clearance | 680(mm) |
| Boom length | 3000(mm) |
| Stick length | 1600(mm) |
| Working Range (Unit: mm) | |
| Max. Digging Height | 5760(mm) |
| Max. Dumping Height | 4030(mm) |
| Max. Digging Depth | 3820(mm) |
| Max. Digging Radius | 6150(mm) |
| Minimum radius of gyration | 2250(mm) |
| Maximum lifting height of earth shovel | 359(mm) |
| The maximum digging depth of dozer | 268(mm) |
| Min Tail swing radius | 1170(mm) |
| Dynamical System | |
| Model | 4TNV94 |
| Power | 37.4/2200 |
| Cooling method | Water-cooling |
| Hydraulic System | |
| Operating Pressure | 28mpa |
| Flow Rate | 109L/min |
| Pump | Plunger |
| Walking motor | Two speed plunger |
| Shape | Load Sensing System |
| Performance Parameters | |
| Bucket Capacity | 0.3m³ |
| Climbing ability | 35° |
| Maximum digging force | 5560N |
| Travel speed | 2.4-3.8KM/h |
| Unit swing speed | 8-10r/min |
| Hydraulic tank capacity | 32L |

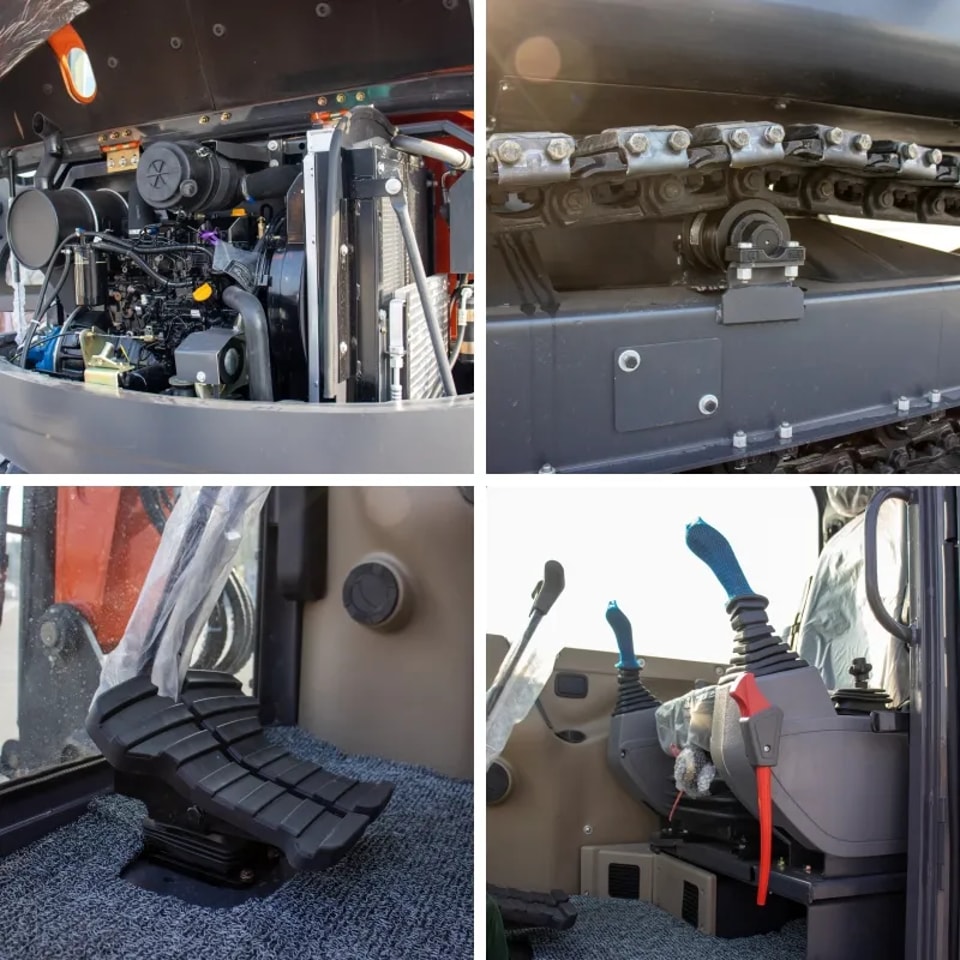

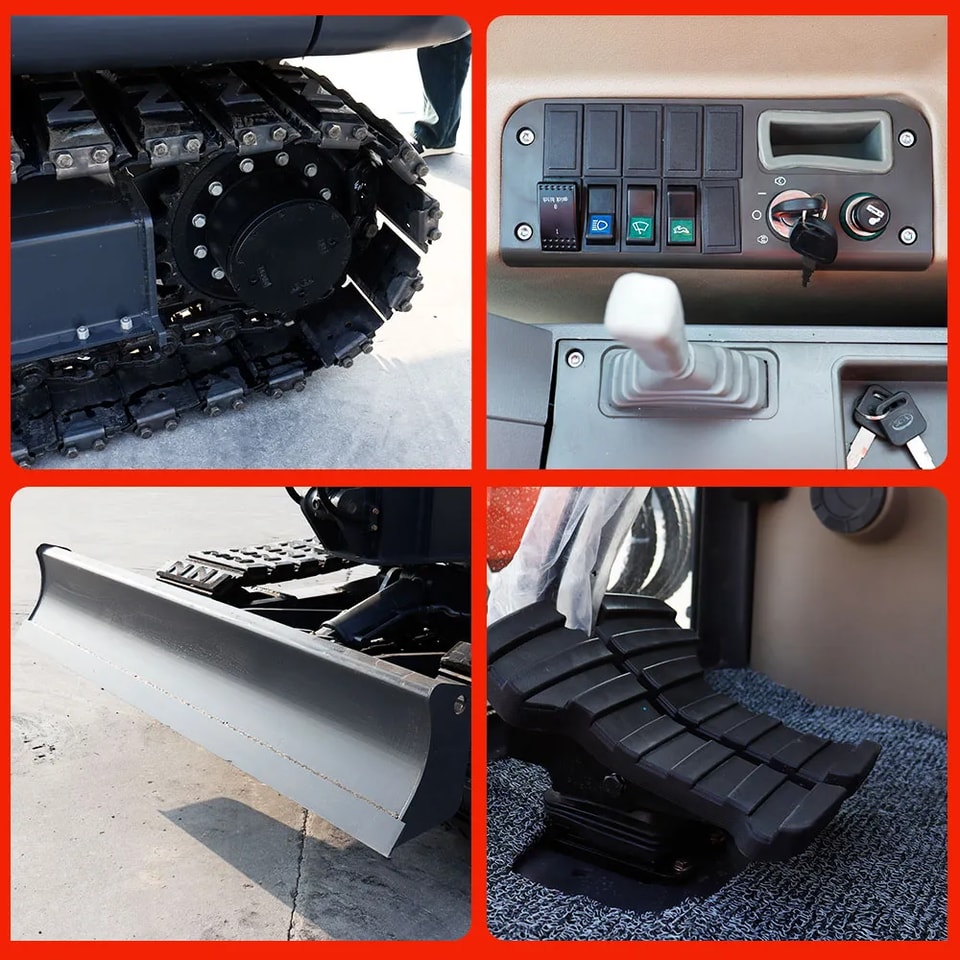

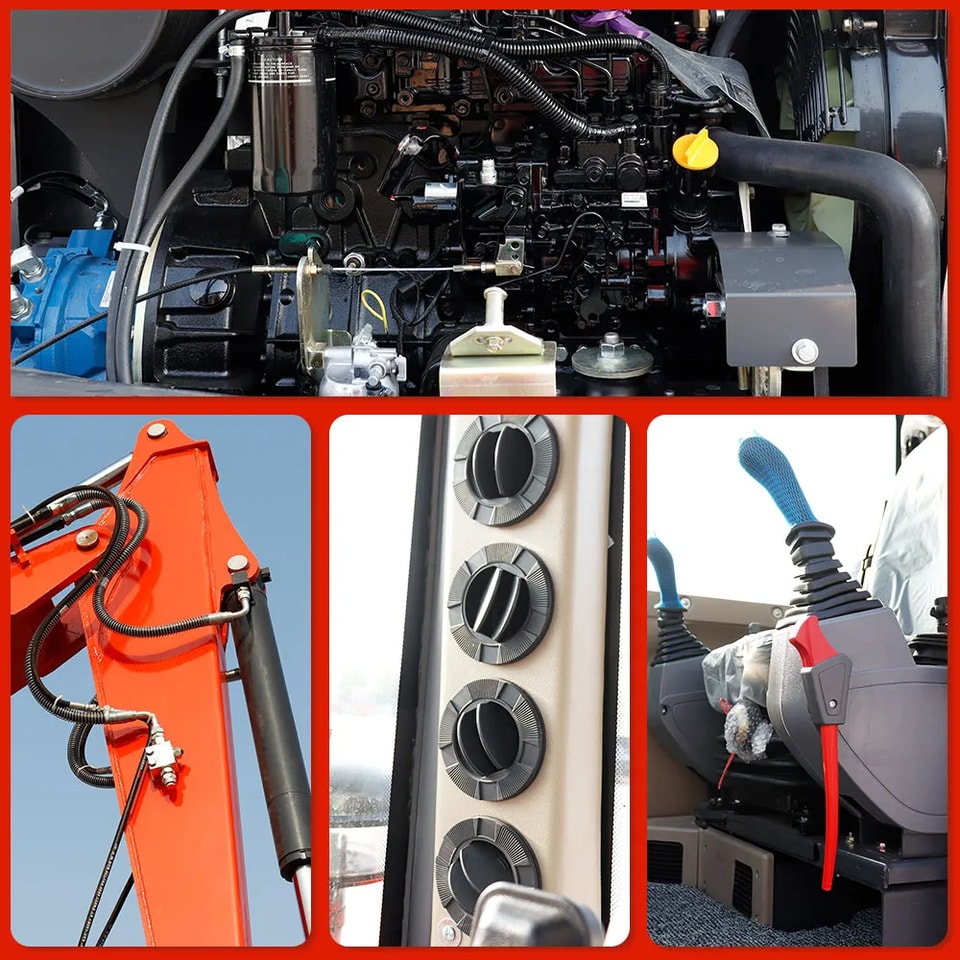

1.Spacious and bright cab.
Enlarged cab, new interior design, wide view, spacious and bright, humanised front shifting mechanism, equipped with adjustable suspension seat and cold and warm air-conditioning.
2. Power system.
The engine power reserve is sufficient, and the highly fitting hydraulic system can give full play to the engine power, and save more fuel under the condition of meeting various complicated working conditions.
3.The hydraulic system adopts brand hydraulic parts, with low power loss, fast action, good coordination of compound action, high efficiency and long service life.
4.The travelling system uses aggravated front and rear drive axles and gearboxes, which can provide good carrying capacity.

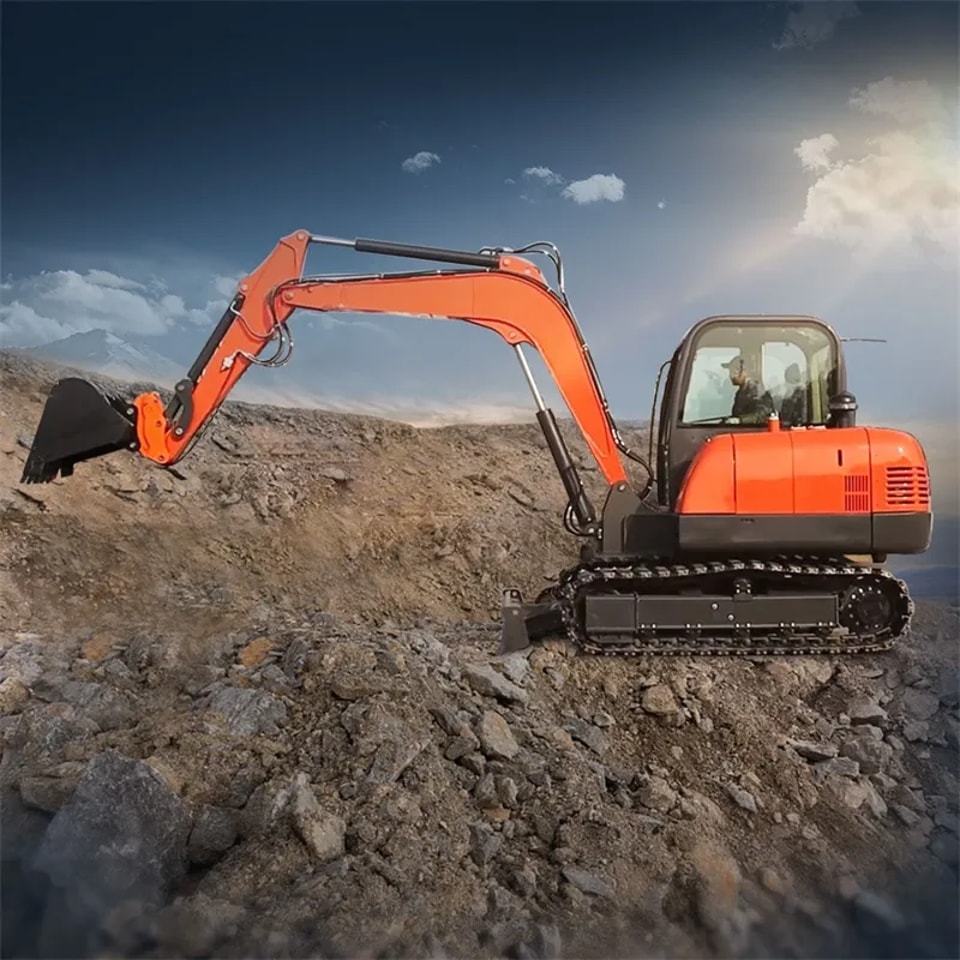

Applicable Industries：
Landfill clearance, quarry construction, building site construction, mountainous land clearing and digging, road ditching, etc.
