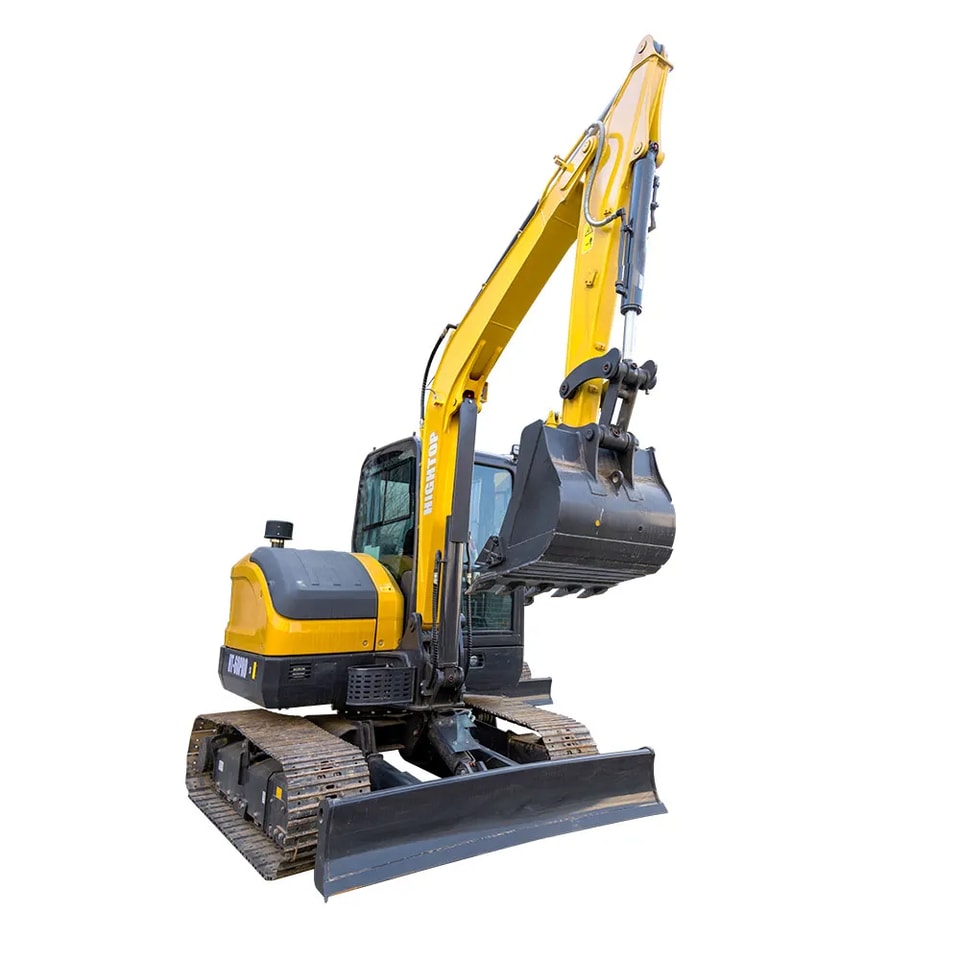

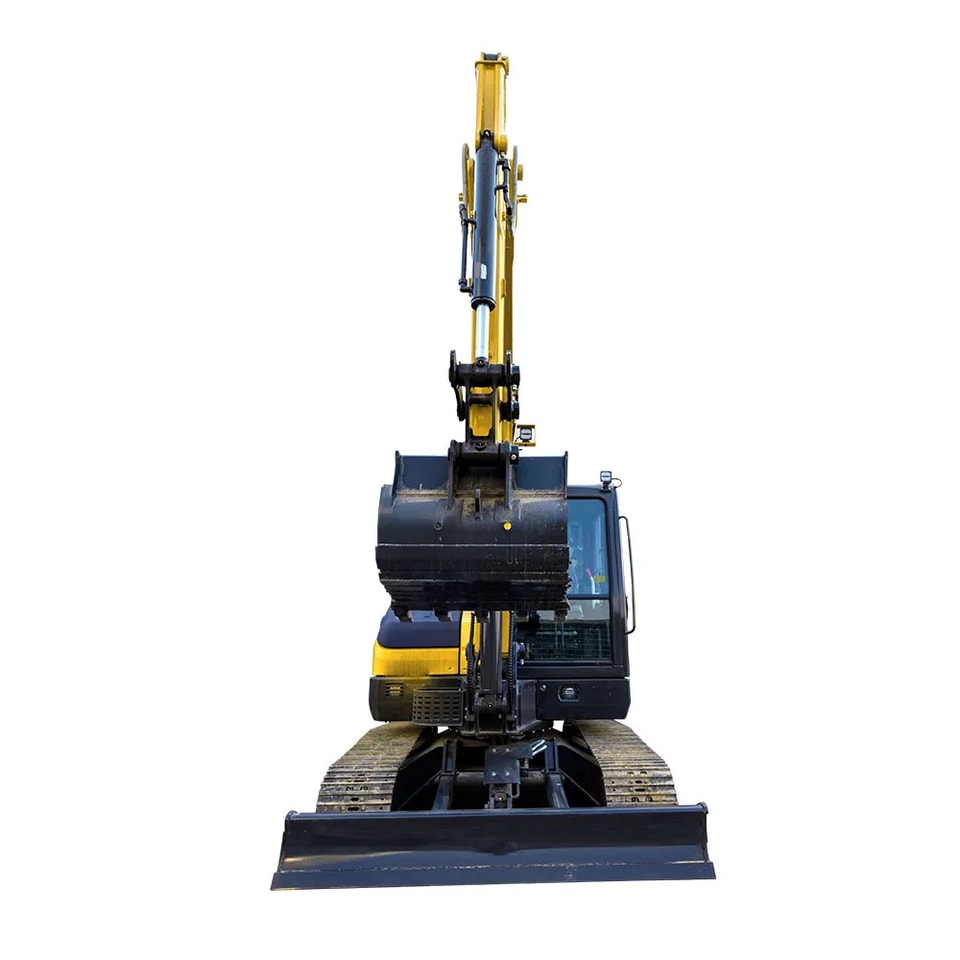

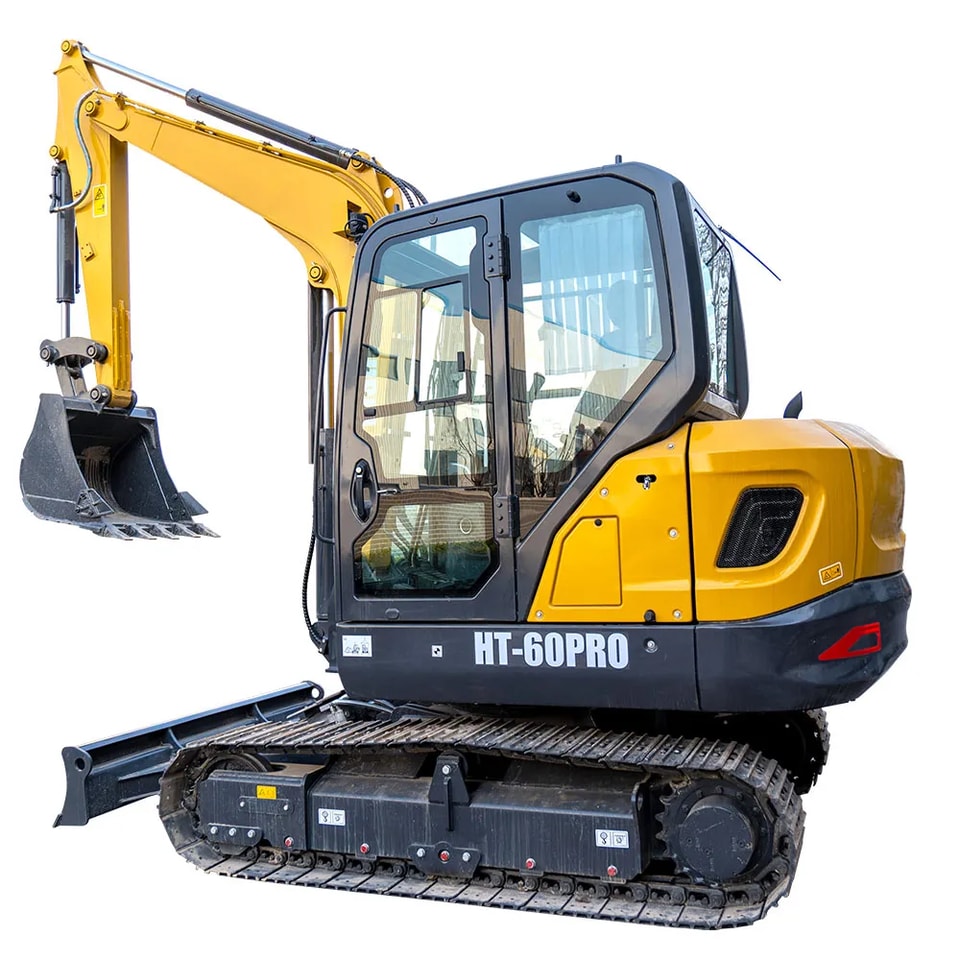

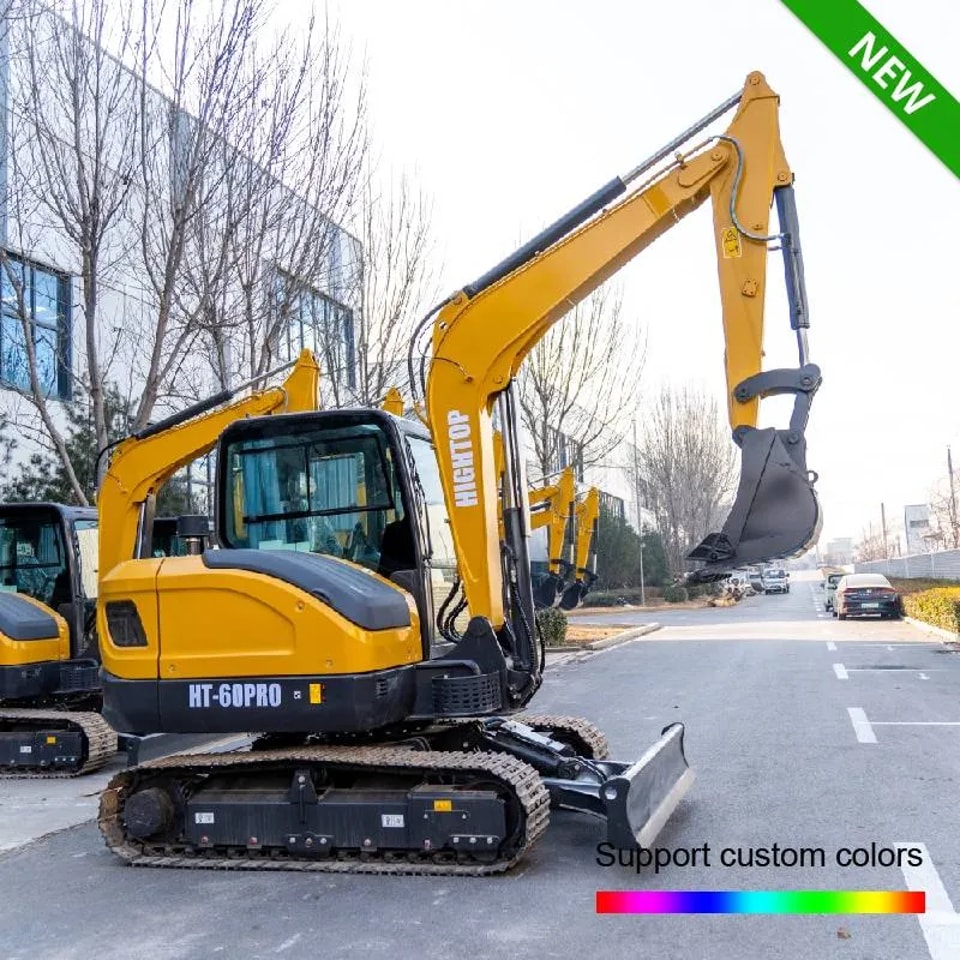

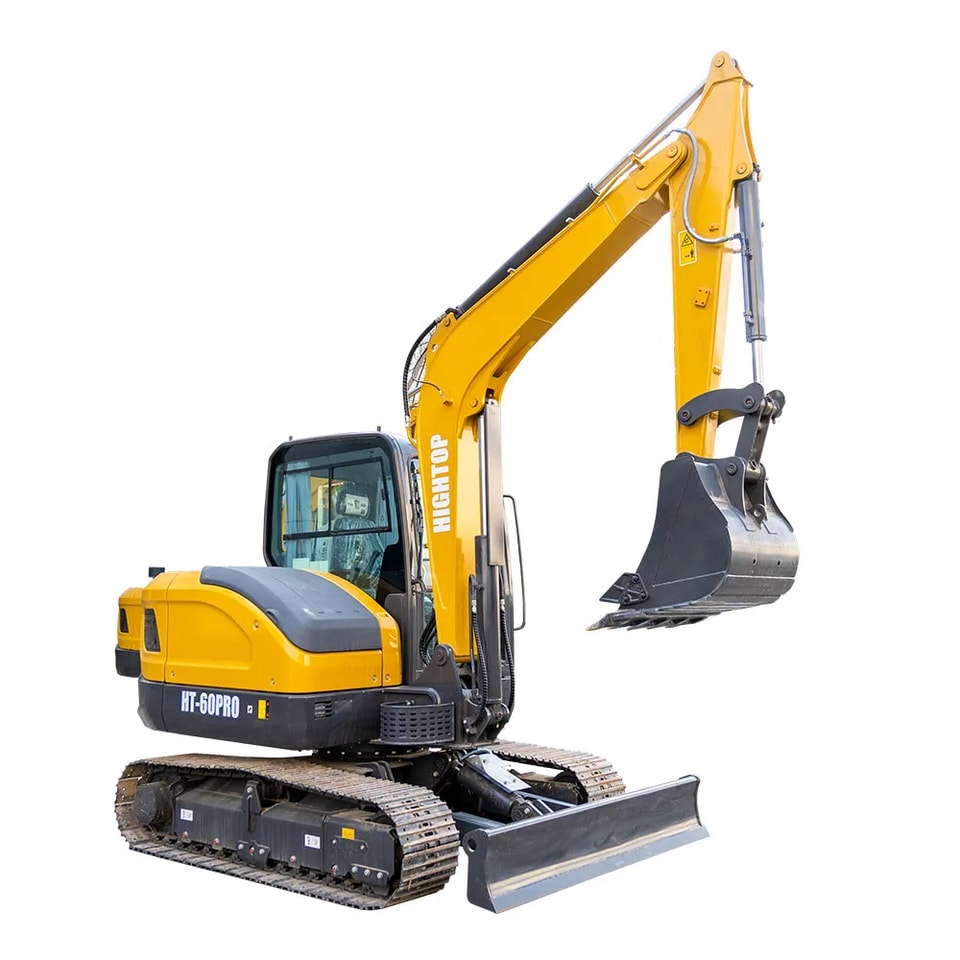

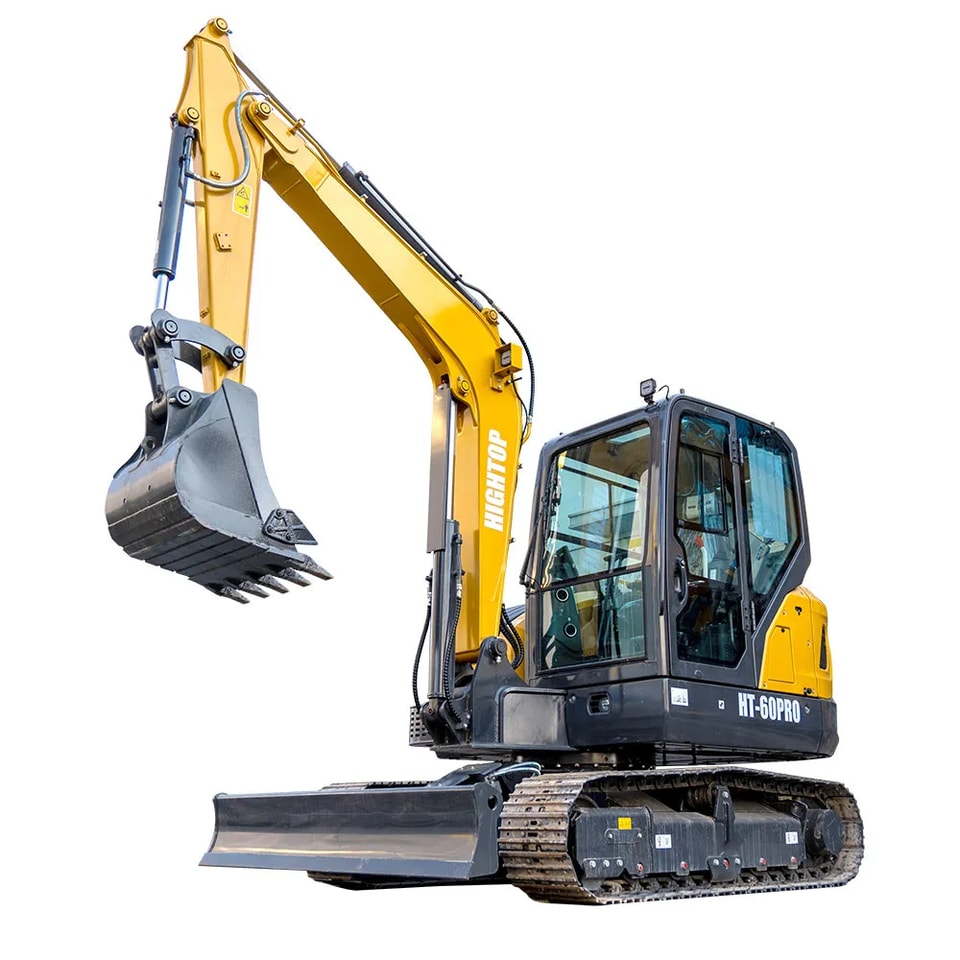

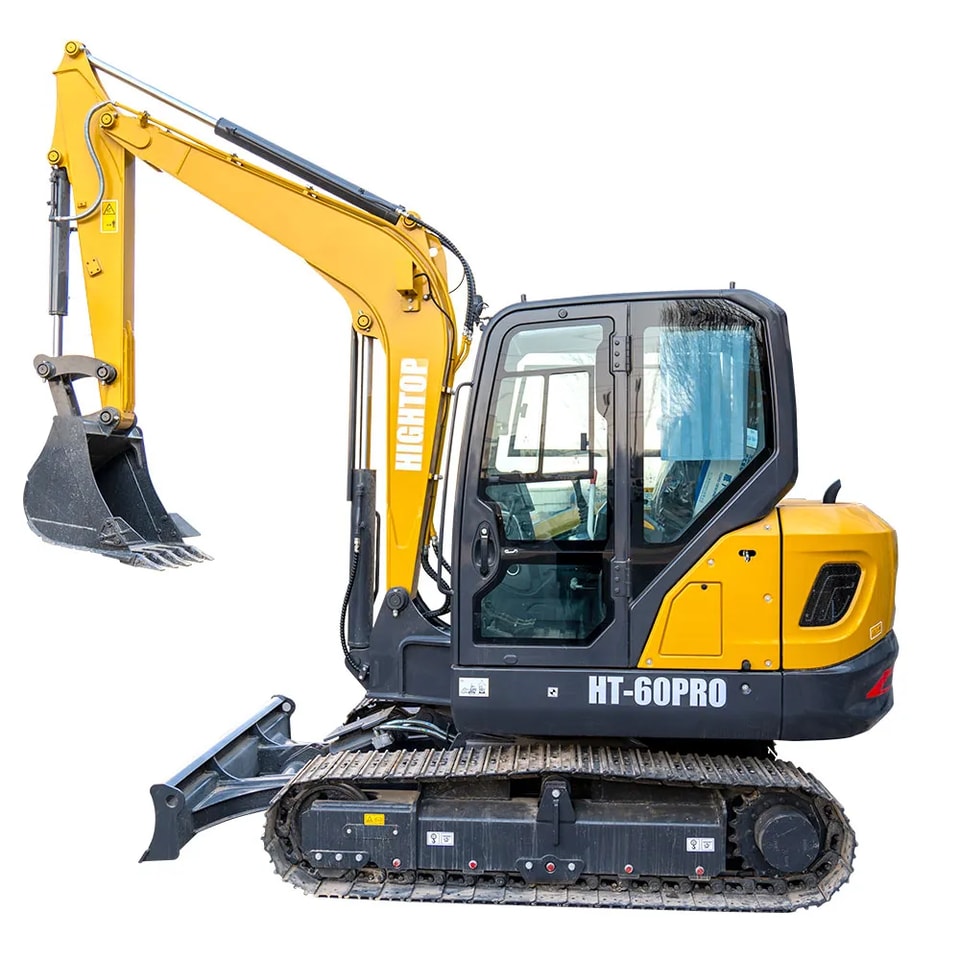

HT60Pro Hydraulic Excavator
HT60Pro Hydraulic Excavator Instruction
1. Efficient power, energy-saving and low consumption
Equipped with Yanmar 4TNV94L National IV engine, the rated output power can reach 36.2kW/2200rpm, with strong power and sufficient fuel combustion. Equipped with multiple fuel filtration systems, it can ensure the long-term stable operation of the engine and reduce harmful gas emissions; The point touch deceleration switch on the left joystick can automatically reduce the engine speed, effectively reducing fuel consumption and achieving dual advantages of environmental protection and economy.
2. Advanced hydraulic system, flexible and precise operation
Adopting a load sensitive hydraulic system, the maximum flow rate of the main pump can reach 138.6 L/min, with faster response in single action operation and excellent composite operation capability. Paired with parking brake design, the equipment runs more smoothly and controls more accurately during swinging, while the service life of hydraulic oil and filter element is longer, reducing equipment maintenance frequency and cost.
3. High strength structural design, strong durability
The total operating weight of the machine is 5670kg, equipped with a 3000mm boom and a 1600mm boom, and the key structural components have high strength. The upper and lower framework adopts optimized design, which can withstand strong impact and pressure in harsh working environments; The X-shaped central frame further enhances overall stability, significantly extends equipment service life, and adapts to various complex operating conditions.
4. Wide homework scope and strong adaptability
The maximum excavation radius can reach 6100mm, the maximum excavation depth is 3730mm, the maximum unloading height is 4040mm, and the operation coverage is wide. The tail turning radius of the equipment is only 1655mm, and the body is flexible. It can operate freely in confined spaces such as narrow alleys and garden corners, and is suitable for various scenarios such as urban renovation, farmland construction, and small-scale earthwork projects.
5. Comfortable driving experience, reducing work fatigue
The cabin space design is reasonable, with a wide view and suspended seats, which can effectively alleviate physical fatigue caused by long-term work. Equipped with LED headlights, the lighting effect is good during nighttime construction, ensuring work safety and further enhancing the human-machine interaction experience.
6. Reliable performance configuration, stable operation
The equipment has a rotation speed of 9.5r/min, a walking speed of 2.3-3.8km/h, strong climbing ability, reasonable grounding pressure ratio, and good passability in complex terrain. VHD sleeves are used in key areas to increase the lubrication cycle of the pin joint, reduce the problem of loose working units, and ensure long-term stable operation of the equipment.
HT60Pro Hydraulic Excavator Parameter
| HT60pro Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Total Length A | 6010 |
| Total Width B | 2000 |
| Overall Height C | 2650 |
| Turntable Width D | 1880 |
| Track Length E | 2535 |
| Chassis Overall Width F | 2000 |
| Standard Track Shoe Width G | 400 |
| Track Wheelbase H | 1990 |
| Gauge I | 1600 |
| Counterweight Ground Clearance J | 700 |
| Minimum Ground Clearance K | 385 |
| Minimum Tail Turning Radius L | 1700 |
| Track Height M | 606 |
| Hydraulic System | |
| Main Pump | Plunger Pump |
| Main Pump Rated Flow Rate (L/min) | 158.4 |
| Main Safety Valve Pressure (MPa) | 24.5 |
| Walking System Pressure (MPa) | 24 |
| Rotary System Pressure (MPa) | 24 |
| Pilot System Pressure (MPa) | 3.5 |
| Working Range (Unit: mm) | |
| Maximum Digging Height A | 5630 |
| Maximum Unloading Height B | 3945 |
| Maximum Digging Depth C | 3830 |
| Maximum Vertical Digging Depth D | 2680 |
| Maximum Excavation Radius E | 6130 |
| Minimum Turning Radius F | 2460 |
| Working Device (Standard Configuration) | |
| Arm Length (mm) | 3000 |
| Standard Stick Length (mm) | 1600 |
| Bucket Capacity (m³) | 0.24 |
| Oil Capacity | |
| Fuel Tank Capacity (L) | 130 |
| Hydraulic Oil Tank Capacity (L) | 85 |
| Engine Oil Capacity (L) | 9 |
| Basic Information | |
| Model | HT60pro |
| Operating Weight (Kg) | 6000 |
| Bucket Capacity (m³) | 0.24 |
| Engine | |
| Model | V2607 |
| Direct Injection | √ |
| 4-Stroke | √ |
| Water Cooling | √ |
| Number of Cylinders | 4 |
| Rated Output Power/Speed (kw/rpm) | 35.0 / 2200 |
| Maximum Torque/Speed (N·m) | 171.5 / 800-1800 |
| Displacement (L) | 2.615 |
| Main Performance | |
| Travel Speed (High/Low) (km/h) | 4.2 / 2.4 |
| Swing Speed (r/min) | 11 |
| Gradeability (°) | ≤35 |
| Ground Pressure (kPa) | 33.4 |
| Bucket Digging Force (kN) | 48.3 |
| Arm Digging Force (kN) | 32.5 |
| Maximum Traction Force (kN) | 50.5 |
