HT80 8T Crawler Excavator
The HT80 Wheel Excavator is a high-speed 8-ton mobile digging solution designed for urban infrastructure, road maintenance, and material handling. Equipped with a powerful turbocharged engine and advanced hydraulic systems, this wheeled excavator offers the perfect blend of mobility and digging power. Featuring a reinforced chassis and high-quality tires, the HT80 ensures fast site-to-site travel without damaging road surfaces. As a versatile 8t rubber tire excavator, it is the ideal choice for contractors seeking high efficiency in confined city spaces and utility projects.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Specification
Description
HT80 8T Crawler Excavator Advantage
8 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.

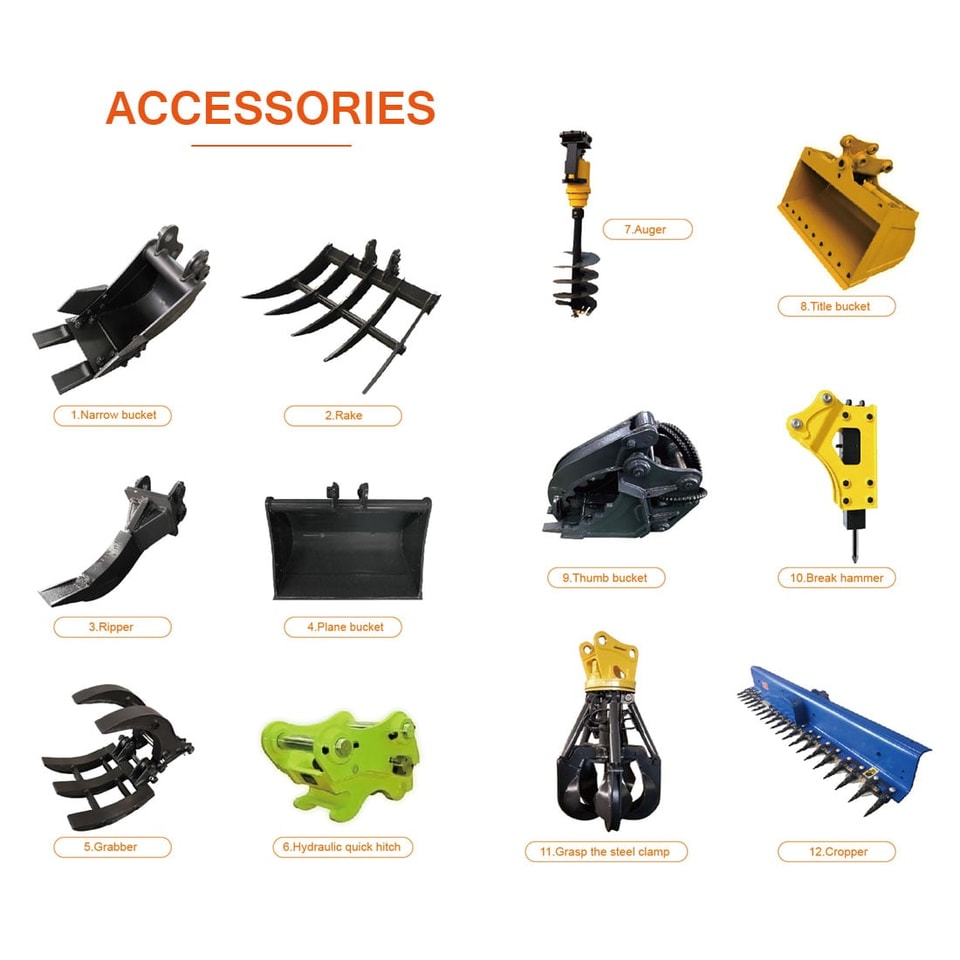

8 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
8 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
Specification
| HT80 8T Crawler Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT80 |
| Operating weight | 8000 kg |
| Bucket capacity | 0.3 m³ |
| Dimensions (Unit: mm) | |
| Transport length | 6442 mm |
| Transport width | 2152 mm |
| Transport height | 2835 mm |
| Tail swing radius | 2057 mm |
| Track width | 2600 mm |
| Min. ground clearance | 318mm |
| Engine | |
| Engine power | 55 / 2200 kw/rpm |
| Max. engine torque | 269 / 1610 N.m/rpm |
| Hydraulic System | |
| Hydraulic pump (wheel pump ×2) | Shimadzu-SGPIA27F2H9 |
| Certified capacity | 27+27 mlr |
| Pilot pressure | 3 Mpa |
| Working pressure | 20 Mpa |
| Rated flow | 118.8 L/min |
| Hydraulic tank capacity | 116 L |
| Fuel capacity | 138 L |
| Performance Parameters | |
| Rotating speed | 10 rpm |
| Max. travelling speed | 35 km/h |
| Digging force of bucket | 41.4 kN |
| Max. drawbar pull | 47 kN |
| Gradeability | 30° |
| Working Equipment | |
| Bulldozer blade (W × L) | 2140 / 310 mm |
| Movable arm length | 3500 mm |
| Arm length | 1800 mm |
| Working Range (Unit: mm) | |
| Max. excavation distance | 6563 mm |
| Max. Digging depth | 4462 mm |
| Max. Digging height | 6680 mm |
| Max. dumping height | 4876 mm |
| Min. turning radius | 2440 mm |
