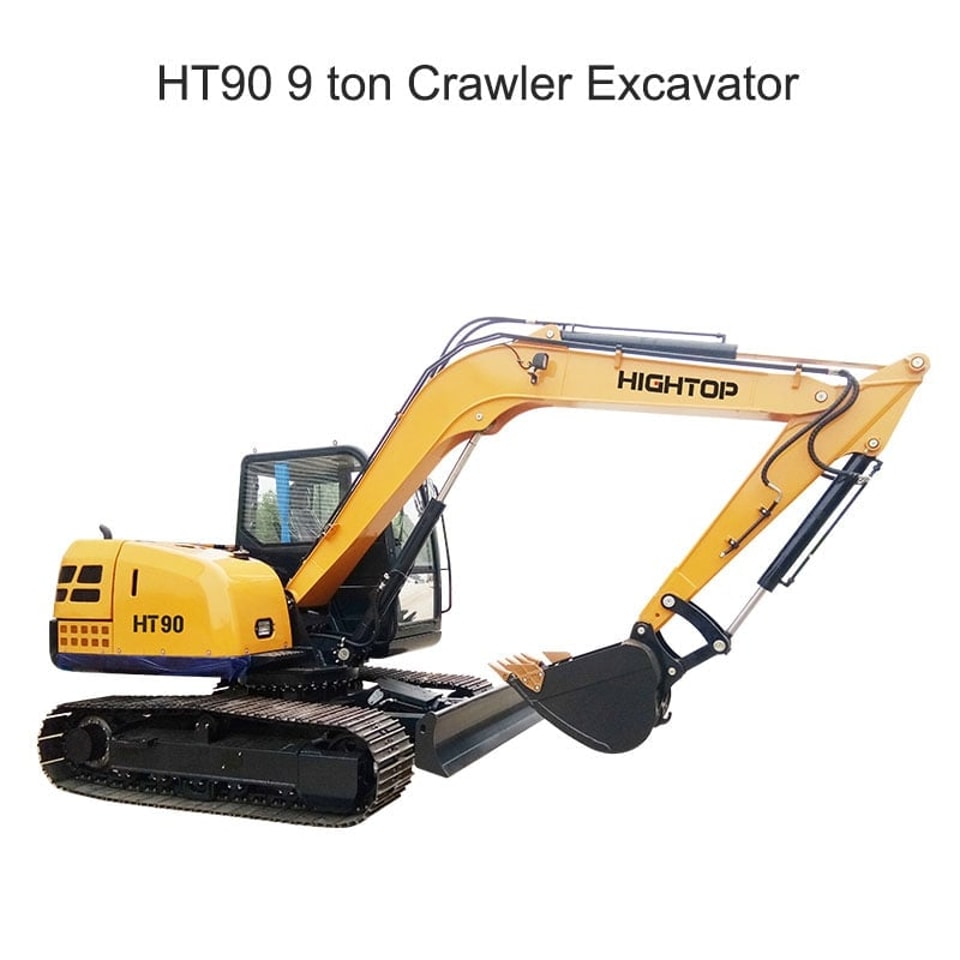

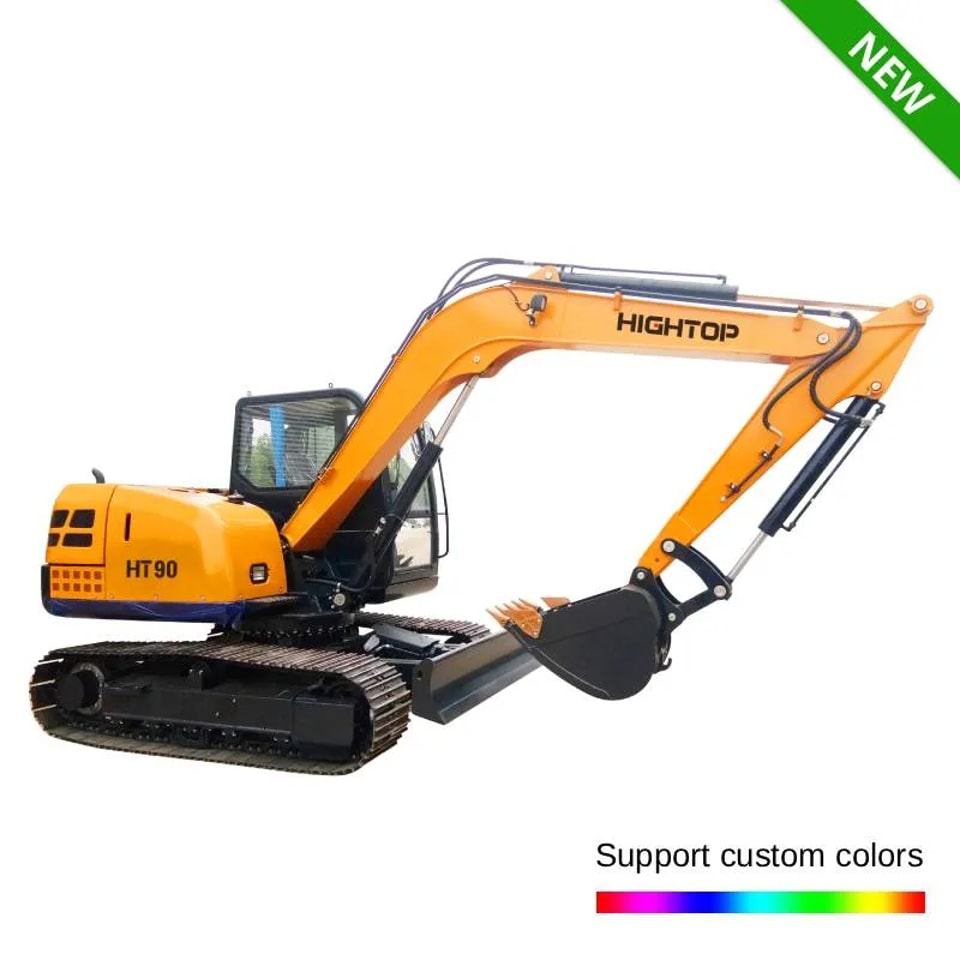

HT90 9T Crawler Excavator
The HT90 9-ton crawler excavator for sale is a powerful hydraulic digging machine engineered for high-torque earthmoving, road construction, and large-scale infrastructure projects. Featuring a reinforced undercarriage and a spacious cabin, this 9t crawler digger delivers the stability and breakout force required for industrial excavation while ensuring a superior ROI for rental fleets. Inquire today for factory-direct wholesale pricing and professional B2B support on this high-efficiency medium-sized excavator.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Specification
Description
HT90 9TCrawler Excavator Advantage
9 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.

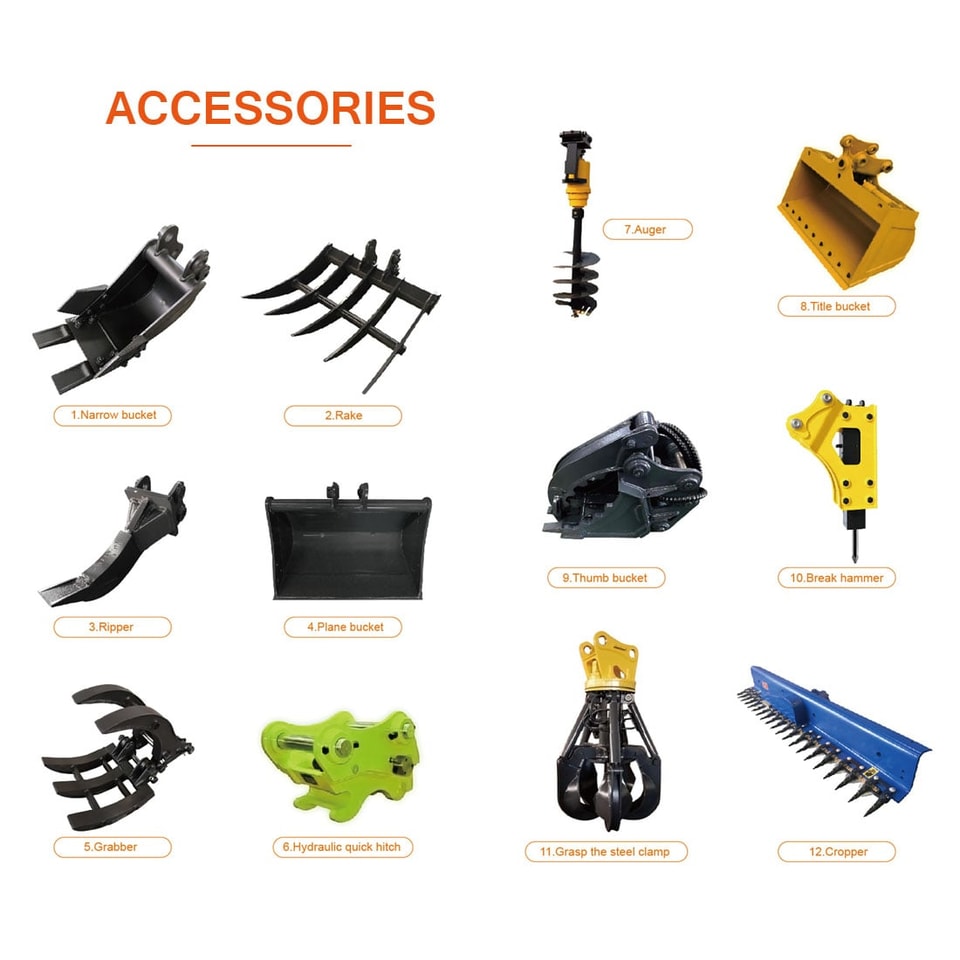

4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
9 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
9 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
Specification
| HT90 9T Crawler Excavator — Parameter Table | |
|---|---|
| Performance Parameters | |
| Standard Bucket capacity | 0.4m³ |
| Swing speed | 12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 58KN |
| Maximum Arm digging force | 40KN |
| Hydraulic system pressure | 27.5Mpa |
| Machine weight | 9000kg |
| Fuel tank | 110L |
| Hydraulic oil tank | 100L |
| Engine | |
| Emission Standard | Tier 3 / Stage III |
| Make / Model | CUMMINS / QSF2.8 |
| Power / Rotation speed | 53kw (72HP) @ 2200rpm |
| Number of cylinder | 4 |
| Track System | |
| Maximum Travel speed | 2.3 / 4 km/h |
| Width of track shoe | 450mm |
| Number of track shoe per side | 39 pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 5 |
| Machine Size (Unit: mm) | |
| Overall dimension (L × W × H) | 6410mm × 2278mm × 2630mm |
| Height of cabin | 2630mm |
| Track length on ground (Axle base) | 2209mm |
| Track gauge | 1750mm |
| Minimum Ground clearance | 375mm |
| Swing radius at tail | 1813mm |
| Working Range (Unit: mm) | |
| Maximum Digging height | 7050mm |
| Maximum Dumping height | 5188mm |
| Maximum Digging depth | 4015mm |
| Maximum Vertical digging depth | 3550mm |
| Maximum Digging radius | 6540mm |
| Minimum swing radius | 2140mm |
| Maximum Lifting height of blade | 370mm |
| Maximum Cutting depth of blade | 344mm |
